Katool R-1234YF, DUAL AC2100 Machine - Recovery, Recycle & Recharge

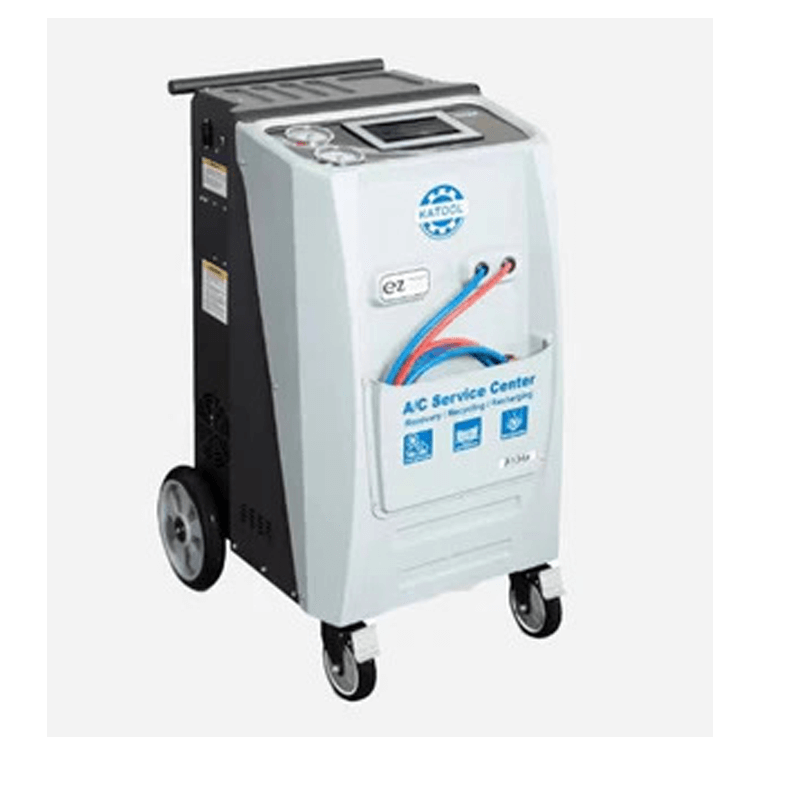

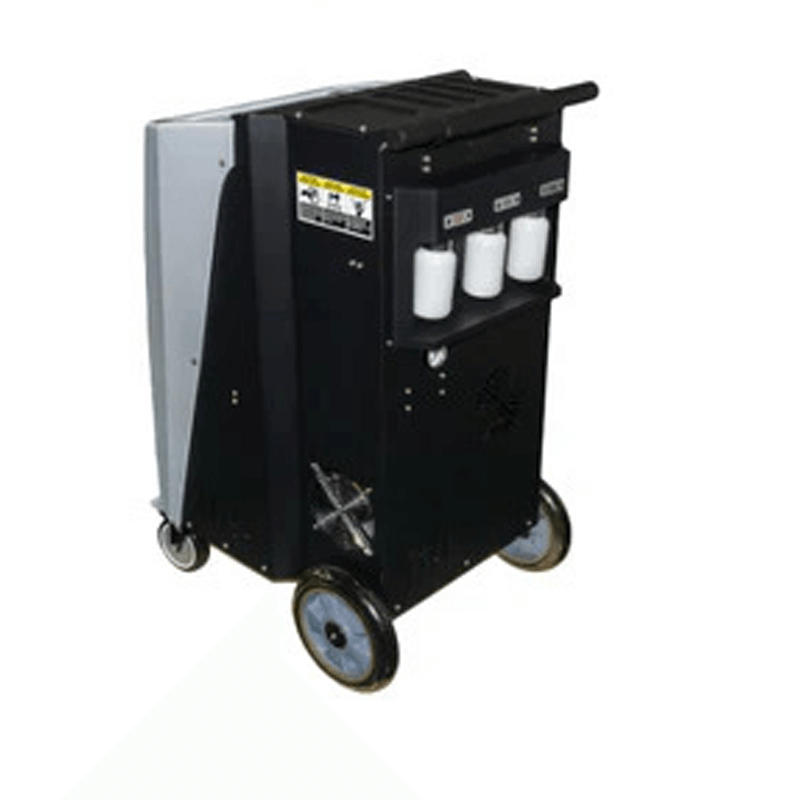

R-1234YF Recovery Machine by Katool

The R-1234YF Recovery Machine is a robust solution designed for efficiently handling automotive air conditioning systems using R1234YF refrigerant. Operating at 110V AC, 60 Hz, it boasts impressive specifications tailored for professional use. Featuring a twin cylinder 1/2 hp oil-less compressor and a 3.6 CFM dual-stage vacuum pump, it ensures rapid recovery and charging speeds of 39.7 lbs/h and 2.2 lbs/min respectively. With a recovery performance of at least 95% in under 30 minutes at 70-75°F, coupled with precise gas and oil loadcell accuracies of 0.04 oz/66 lbs, it guarantees reliability in extracting and measuring refrigerant and oil. The machine includes a 7” touch HQ display for intuitive operation, along with essential safety features such as a high pressure shut-off switch and a low pressure bypass for leak-free systems.

Crafted for durability and ease of use, this recovery machine incorporates a high strength HDPE case, ensuring portability and resilience in varied working conditions. It comes equipped with an array of safety mechanisms including a tank overfill sensor, automatic high pressure switch reset, and an external circuit breaker, all certified to meet SAE J2851 and UL 1963 standards. Designed and manufactured in the U.S.A., it combines advanced functionality with user-friendly features, making it a dependable choice for automotive HVAC service professionals.

Dual AC2100 R-1234YF Specifications:

• Applicable Refrigerant Type: R1234YF
• Voltage: 110V AC, 60 Hz
• Recovery Performance (70-75°F): Min. 95% in less than 30 min
• Charge Performance (70-75°F): ±0.5 oz (15 g)
• Operate Temperature Range: 41-122°F (5-50°C)
• Max Pressure: 18 bar
• Filter-Drier Capacity: 175 lbs (80 kg), spin-on type
• Gas Loadcell Accuracy: 0.04 oz/66 lbs (1 g/30 kg)
• Oil Loadcell Accuracy: 0.04 oz/66 lbs (1 g/30 kg)
• Vacuum Transducer Accuracy: 1 mBar/1000 mBar
• Recovering Speed: 39.7 lbs/h (18 kg/h)
• Charge Speed: 2.2 lbs/min (1 kg/min)
• Hose Length: 9.8’ (3 m) SAE J2788
• Compressor: 1/3 hp (246W), thermal protected, oiled, hermetically sealed
• Vacuum Pump: 3.6 CFM (120 L/min), dual stage
• Display: 7” touch HQ
• Tank: 0.5 cubic feet (14.3 L)
• Oil Bottle: 15 cubic inch (250 mL)
• Printer: YES
• Heating Belt: optional
• SD Database: YES
• Vacuum Test: YES
• Fan & Condenser: YES
• Packing Size: 22” x 28” x 41” (550 x 700 x 1050 mm)
• Gross Weight: 240 lb (110 kg)

R-1234YF Dual AC2100 Special Features:

• Twin cylinder 1/2 hp oil-less compressor and gravity drain condenser
• No need to regulate the inlet; compressor is capable of handling both liquid and vapor refrigerants
• Unique “Y” hose assembly that recovers from the low-side and high-side of the vehicle simultaneously
• Hose kit includes all necessary hoses and couplers for servicing R-134a and R-1234YF MVAC systems
• Safe venting of case interior prior to start up
• Low pressure bypass for recovery of leak-free systems
• Low pressure switch stops recovery above ambient pressure for leaking systems to prevent pulling air into recovery cylinders
• 80% tank full shut-off safety harness prevents over filling of recovery tank
• Oil separator and oil measure bottle for system oil removal measurement
• For protection, high pressure shut-off switch turns the unit off automatically if the pressure rises above 350 psi
• Inlet filter screen stops debris from getting inside unit
• Maximum air flow and cool running even in high ambient temperatures
• High efficiency fan keeps air moving across condenser
• High pressure switch with automatic reset, tank overfill sensor, and external circuit breaker
• High strength HDPE case for lightweight, portable and rugged use
• LED indicators simplify recovery information
• Certified to meet SAE J2851, conforms to UL 1963

• Designed and manufactured in the U.S.A.

Katool R-1234YF Documentation:

   Katool R-1234YF Recovery Machine Product Manual
