Katool R-134A, DUAL AC1800 Machine - Recovery, Recycle & Recharge

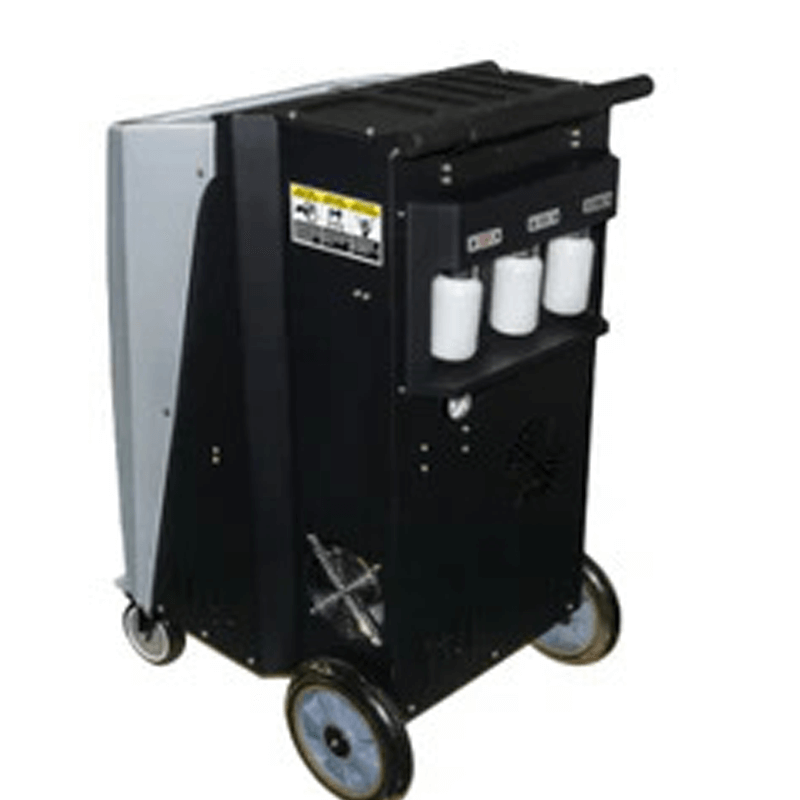

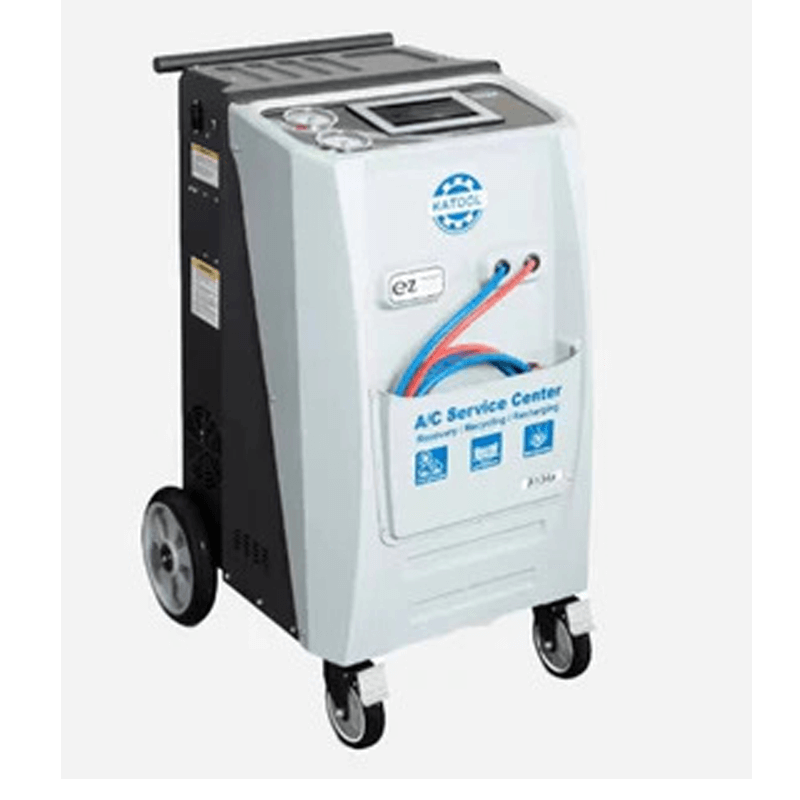

R-134A Recovery Machine by Katool

The R-134A Recovery Machine is a versatile and efficient tool designed specifically for handling R134a refrigerant in automotive air conditioning systems. Operating on 110V AC, it ensures rapid recovery of at least 95% of refrigerant within 30 minutes at temperatures ranging from 41-122°F. Equipped with a twin-cylinder 1/2 hp oil-less compressor and a 3.6 CFM dual-stage vacuum pump, it achieves a recovery speed of 39.7 lbs/h and a charging speed of 2.2 lbs/min. The machine features a 7” touch HQ display for user-friendly operation and includes comprehensive safety mechanisms such as a high-pressure shut-off switch, a low pressure bypass for leak-free systems, and a tank overfill sensor, ensuring secure operation and preventing potential hazards.

Noteworthy special features include a unique “Y” hose assembly that simultaneously recovers refrigerant from both the low-side and high-side of the vehicle, optimizing efficiency. It also includes a complete hose kit for servicing R-134a and R-1234YF MVAC systems, an oil separator with an oil measure bottle for precise oil management, and a high-efficiency fan for reliable performance even in high ambient temperatures. Certified to meet industry standards and built with a high-strength HDPE case for durability and portability, this machine is a dependable choice for automotive professionals requiring efficient refrigerant recovery and charging solutions.

Recovery Machine R-134A Specifications:

• Applicable Refrigerant Type: R134a
• Voltage: 110V AC, 60 Hz
• Recovery Performance (70-75°F): Min. 95% in less than 30 min
• Charge Performance (70-75°F): ±0.5 oz (15 g)
• Operate Temperature Range: 41-122°F (5-50°C)
• Max Pressure: 18 bar
• Filter-Drier Capacity: 175 lbs (80 kg), spin-on type
• Gas Loadcell Accuracy: 0.04 oz/66 lbs (1 g/30 kg)
• Oil Loadcell Accuracy: 0.04 oz/66 lbs (1 g/30 kg)
• Vacuum Transducer Accuracy: 1 mBar/1000 mBar
• Recovering Speed: 39.7 lbs/h (18 kg/h)
• Charge Speed: 2.2 lbs/min (1 kg/min)
• Hose Length: 9.8’ (3 m) SAE J2788
• Compressor: 1/3 hp (246 W), thermal protected, oiled, hermetically sealed
• Vacuum Pump: 3.6 CFM (120 L/min), dual stage
• Display: 7” touch HQ
• Tank: 0.5 cubic feet (14.3 L)
• Oil Bottle: 15 cubic inch (250 mL)
• Printer: YES
• Heating Belt: optional
• SD Database: YES
• Vacuum Test: YES
• Fan & Condenser: YES
• Packing Size: 22” x 28” x 41” (550 x 700 x 1050 mm)
• Gross Weight: 240 lb (110 kg)

R-134A Recovery Machine Special Features:

• Twin cylinder 1/2 hp oil-less compressor and gravity drain condenser
• No need to regulate the inlet; compressor is capable of handling both liquid and vapor refrigerants
• Unique “Y” hose assembly that recovers from the low-side and high-side of the vehicle simultaneously
• Hose kit includes all necessary hoses and couplers for servicing R-134a and R-1234YF MVAC systems
• Safe venting of case interior prior to start up
• Low pressure bypass for recovery of leak-free systems
• Low pressure switch stops recovery above ambient pressure for leaking systems to prevent pulling air into recovery cylinders
• 80% tank full shut-off safety harness prevents over filling of recovery tank
• Oil separator and oil measure bottle for system oil removal measurement
• For protection, high pressure shut-off switch turns the unit off automatically if the pressure rises above 350 psi
• Inlet filter screen stops debris from getting inside unit
• Maximum air flow and cool running even in high ambient temperatures
• High efficiency fan keeps air moving across condenser
• High pressure switch with automatic reset, tank overfill sensor, and external circuit breaker
• High strength HDPE case for lightweight, portable and rugged use
• LED indicators simplify recovery information
• Certified to meet SAE J2851, conforms to UL 1963

• Designed and manufactured in the U.S.A.

Katool R-134A Documentation:

   Katool R-134A Recovery Machine Product Manual
