HDMBL-10 10,000lb 4 Post Boat Lift - The Skipper

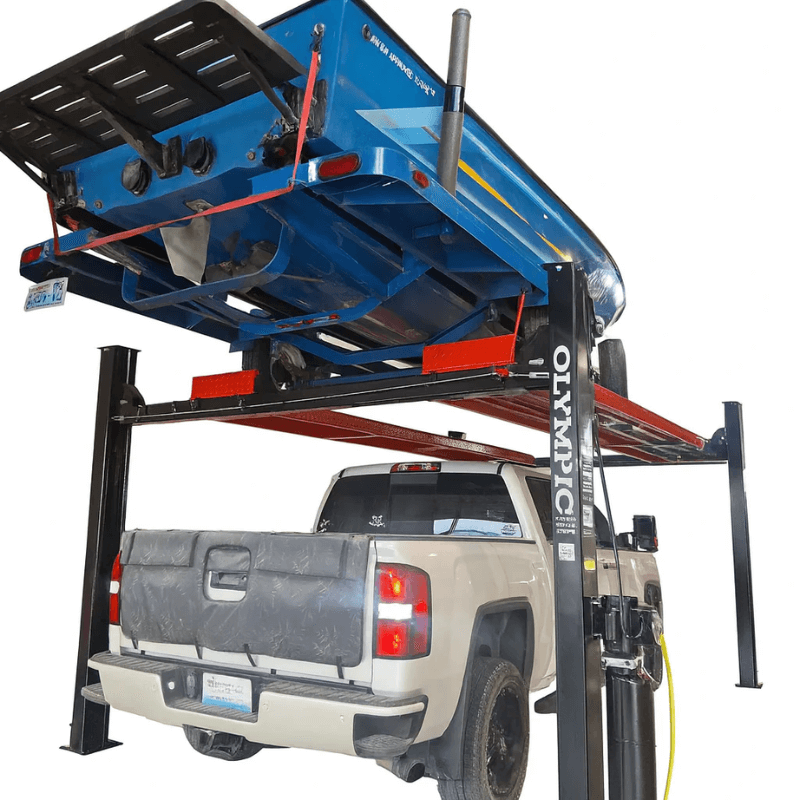

Olympic HDMBL-10 10,000 lb. "The Skipper" Portable Boat & Trailer Storage 4 Post Lift

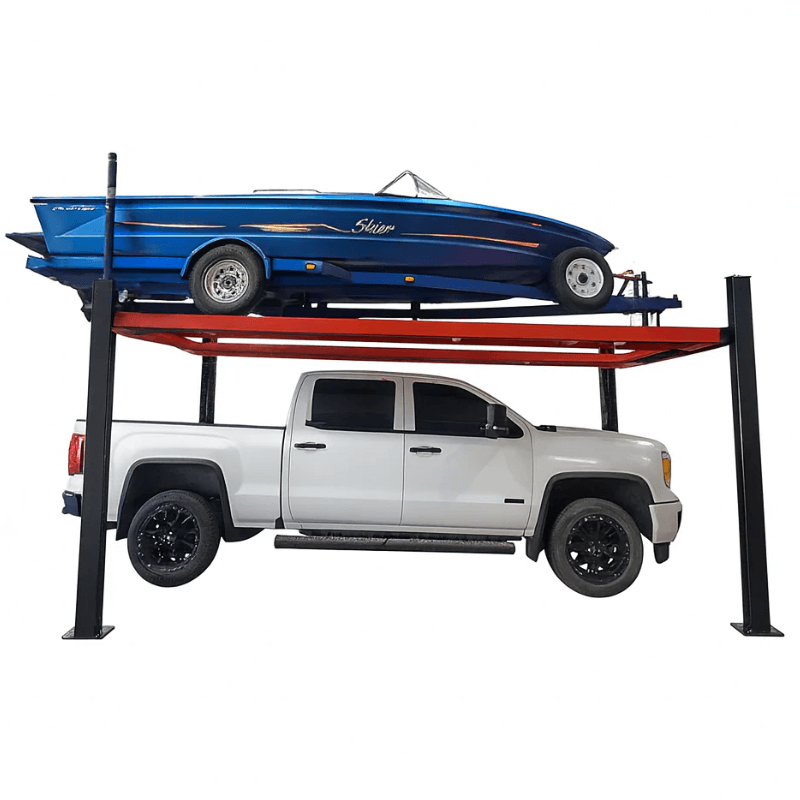

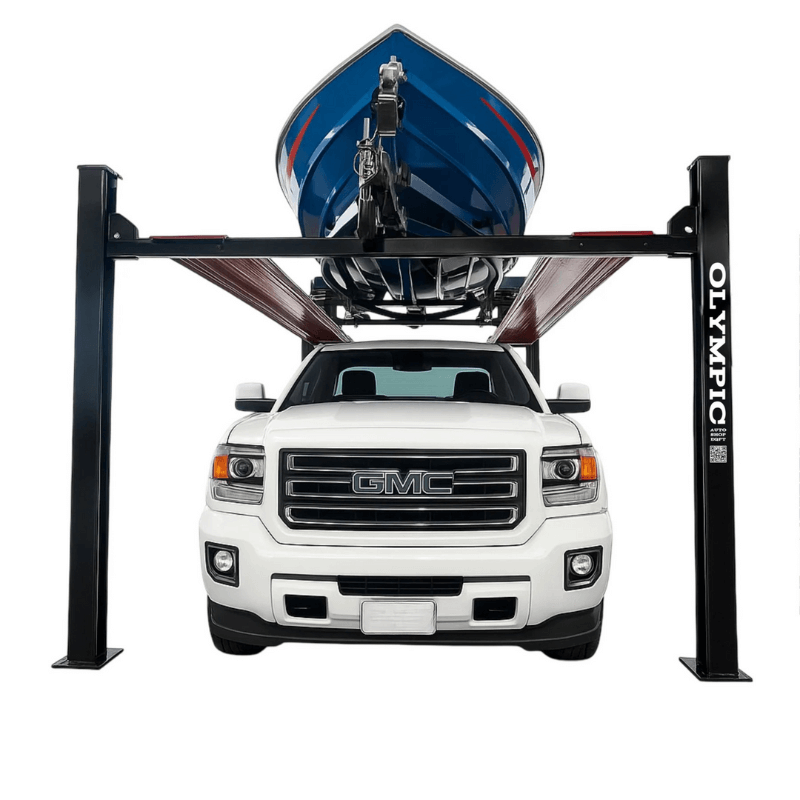

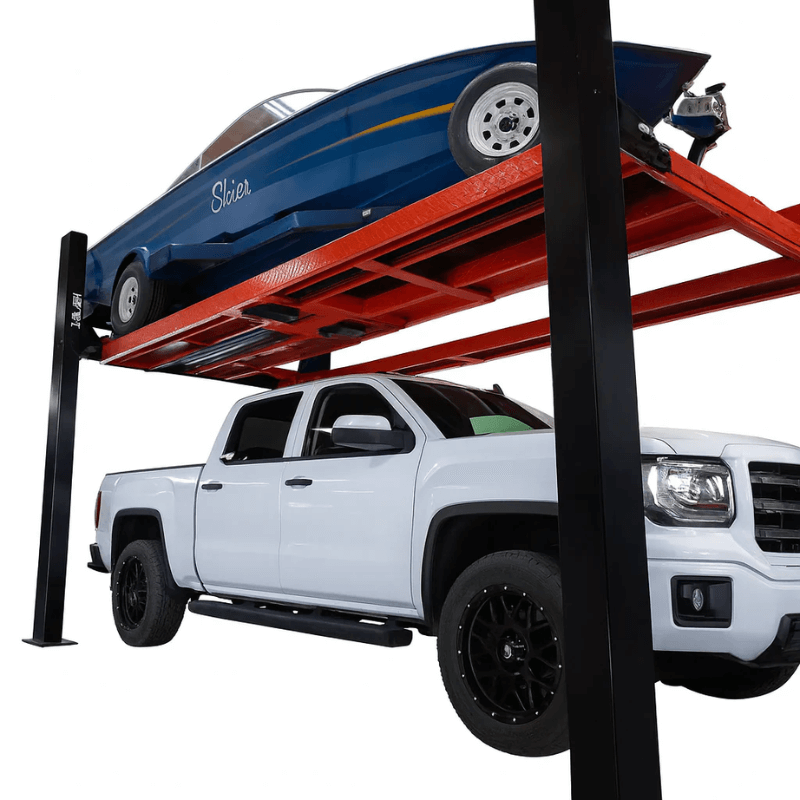

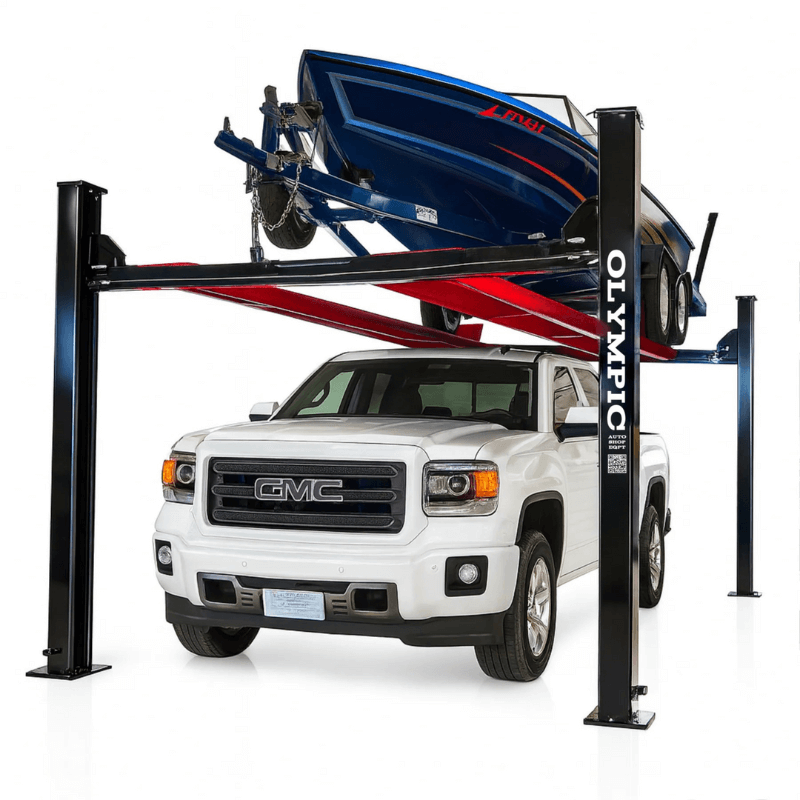

The Olympic HDMBL-10 “The Skipper” is a purpose-built 4-post boat and trailer storage lift engineered for serious towing, storage, and protection needs. With a robust 10,000 lb lifting capacity and an extra-wide, extra-long design, this lift is ideal for safely storing large trailers, boats, pickups, and utility vehicles indoors while maximizing floor space and security.

Built from high-quality Q235 structural steel, The Skipper delivers outstanding durability and long-term reliability. Its portable drive-through design, adjustable runways, and 19 ladder locking positions provide flexibility for trailers exceeding 20 feet in length. Heavy-duty construction, a powder-coated finish, and a stable ladder lock system ensure smooth lifting and secure positioning at every height.

Designed for homeowners, marine enthusiasts, fleet owners, and service facilities, this lift offers exceptional versatility and convenience. With 84 inches of clearance under the tracks, removable ramps and stops, and included portability components, The Skipper simplifies trailer storage while keeping equipment accessible and protected. Certified and tested at 150% of rated capacity and backed by a 10-year warranty, it is a dependable solution for demanding storage applications.

4 Post Lift HDMBL-10 Specification

• Lift Type: 4-Post Boat & Trailer Storage Lift

• Load Capacity: 10,000 lbs

• Overall Lift Length: 239.76″

• Overall Width: 140.35″

• Overall Height: 104.33″

• Drive-Through Width: 112″

• Width Between Posts: 125″

• Runway Length: 195″

• Runway Width: 20″

• Width Between Tracks: 46″

• Lifting Range: 5.71″ – 88.74″

• Maximum Clearance Under Tracks: 84.02″

• Speed of Rise: 50 seconds

• Speed of Lowering: 50 seconds

• Power Unit: HPU2203, 3 HP, 2.2 kW, Single Phase

• Voltage: 110V / 220V

HDMBL-10 10,000 lb. 4 Post Lift Special Features

• 10,000 lb capacity designed for large boats, trailers, and trucks

• Extra-long 195″ platforms for trailers over 20 feet

• 112″ drive-through width with 125″ between posts

• Adjustable runways for flexible trailer width positioning

• Provides over 84″ of storage clearance under tracks

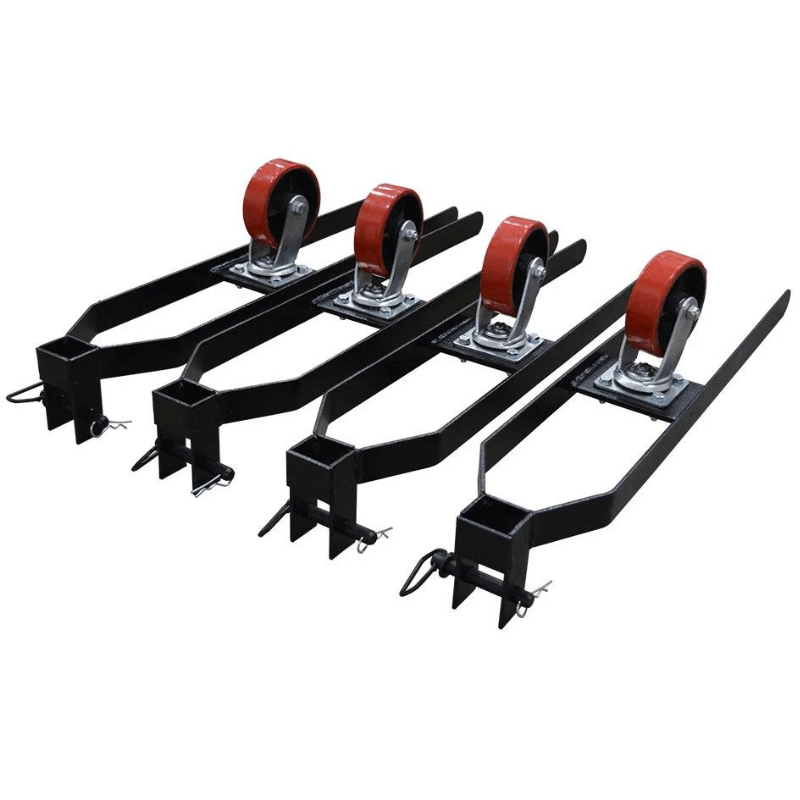

• Portable drive-through design with included mobility package

• 19 ladder locking positions for enhanced safety

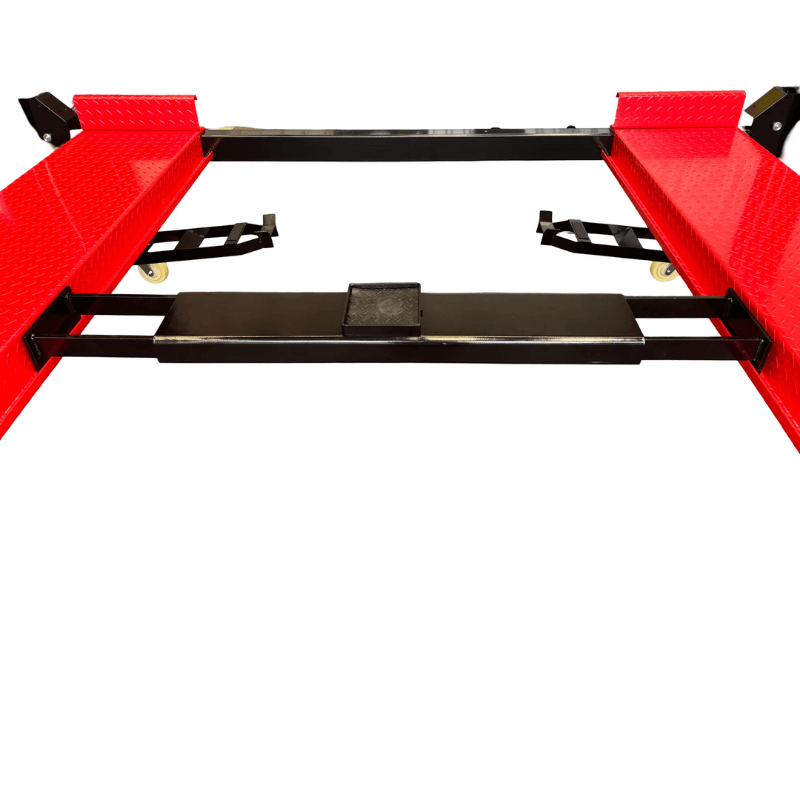

• Adjustable-width trailer hitch wheel rest included

• Heavy-duty Q235 structural steel construction

• Durable powder-coated finish for corrosion resistance

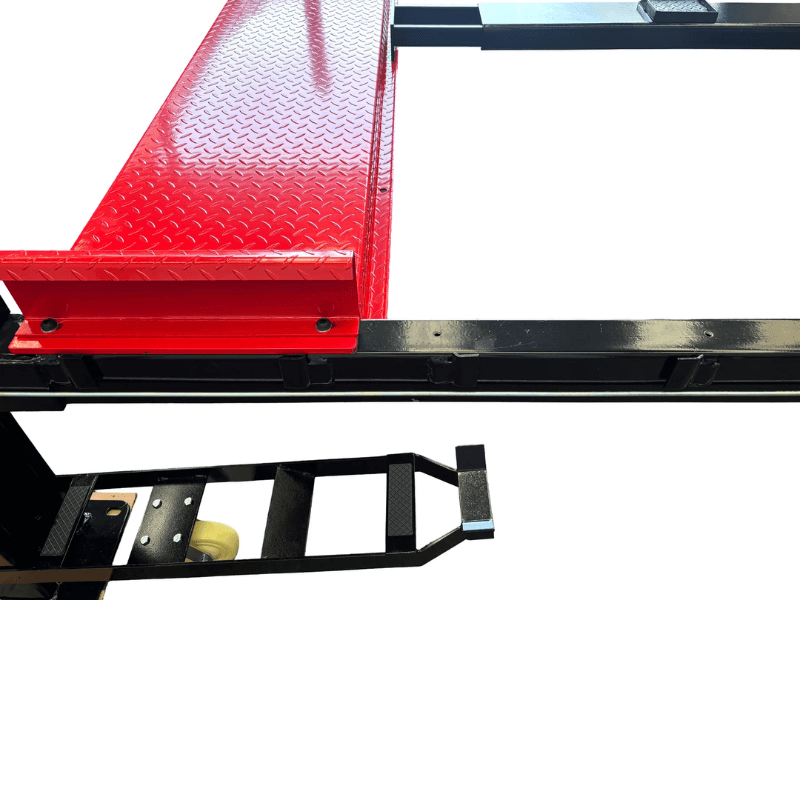

• Removable ramps, stops, and drip trays included

• Aircraft-grade safety design, tested to 150% capacity

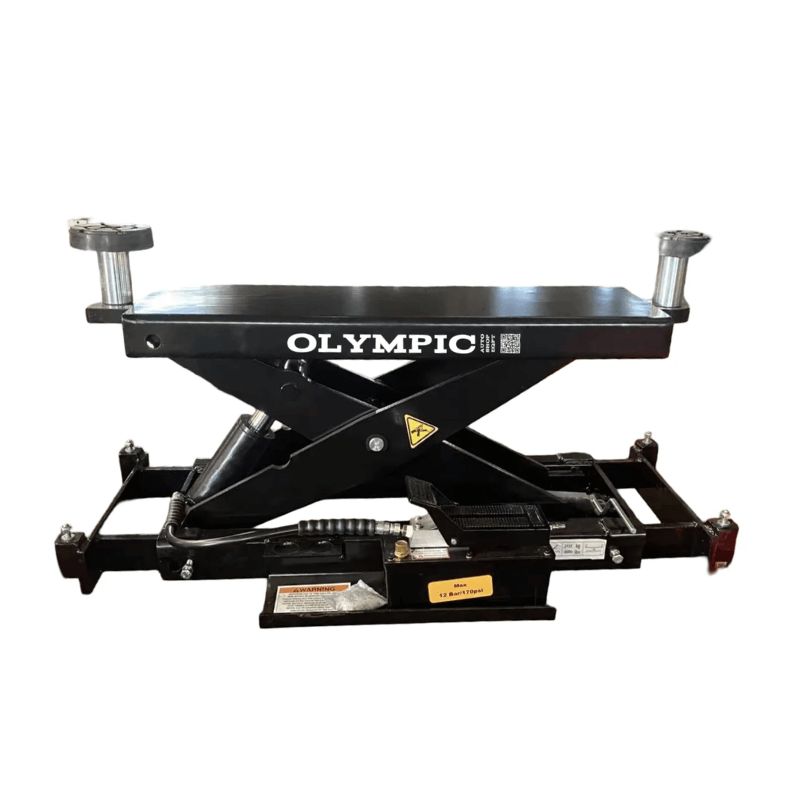

• Optional bridge jack, aluminum ramps, and center platforms

• Backed by an industry-leading 10-year warranty
