HDMBL-9 9,000lb 4 Post Boat Lift - Extra Wide

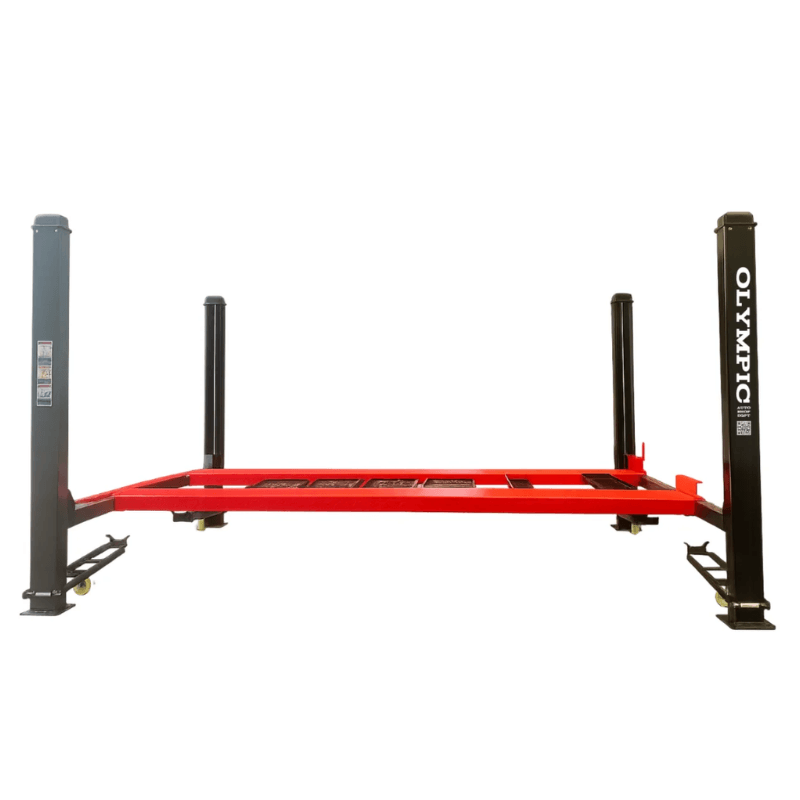

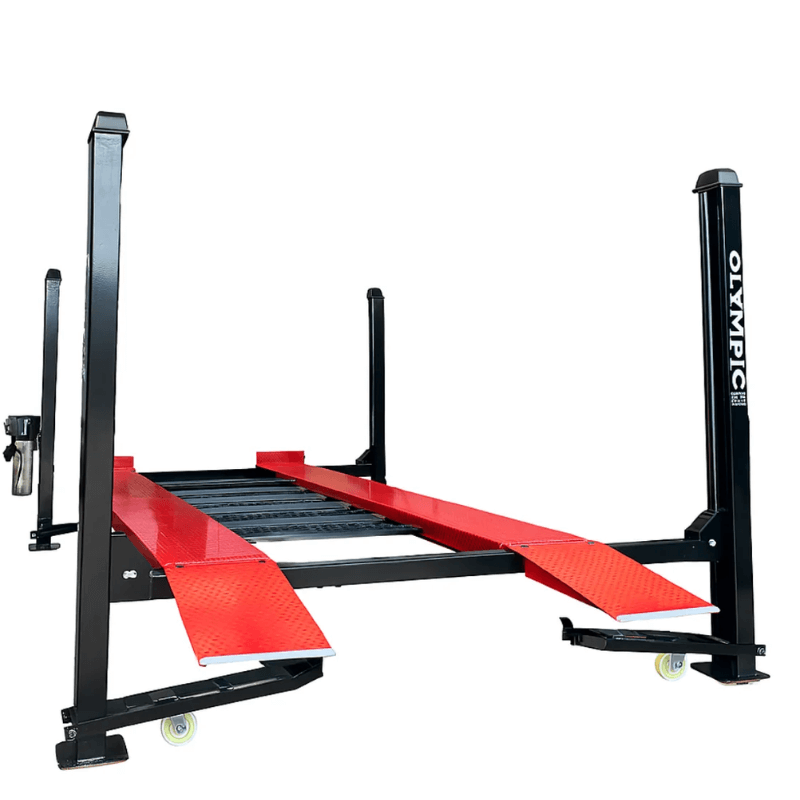

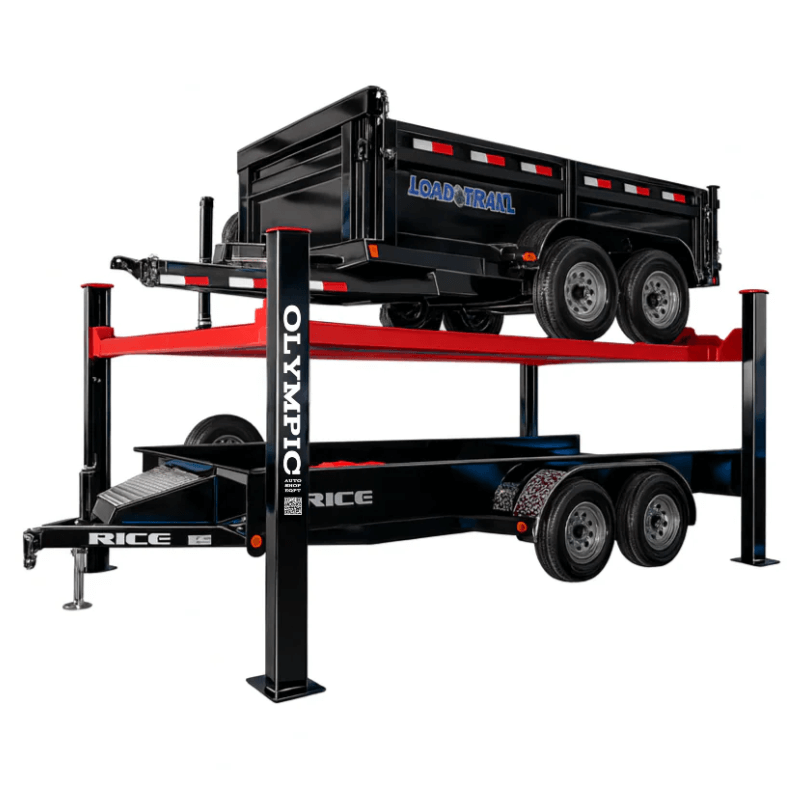

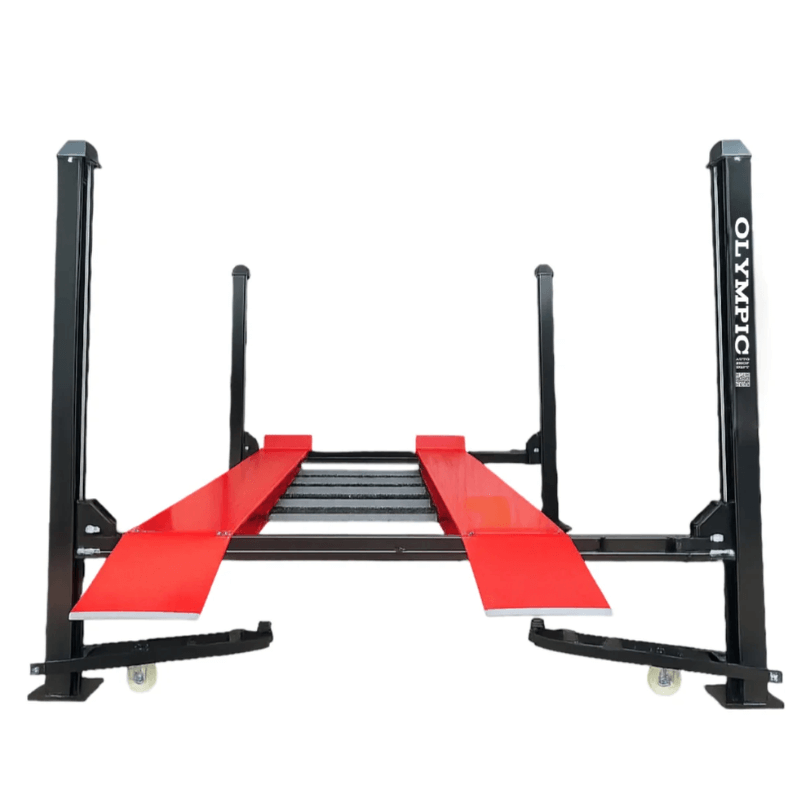

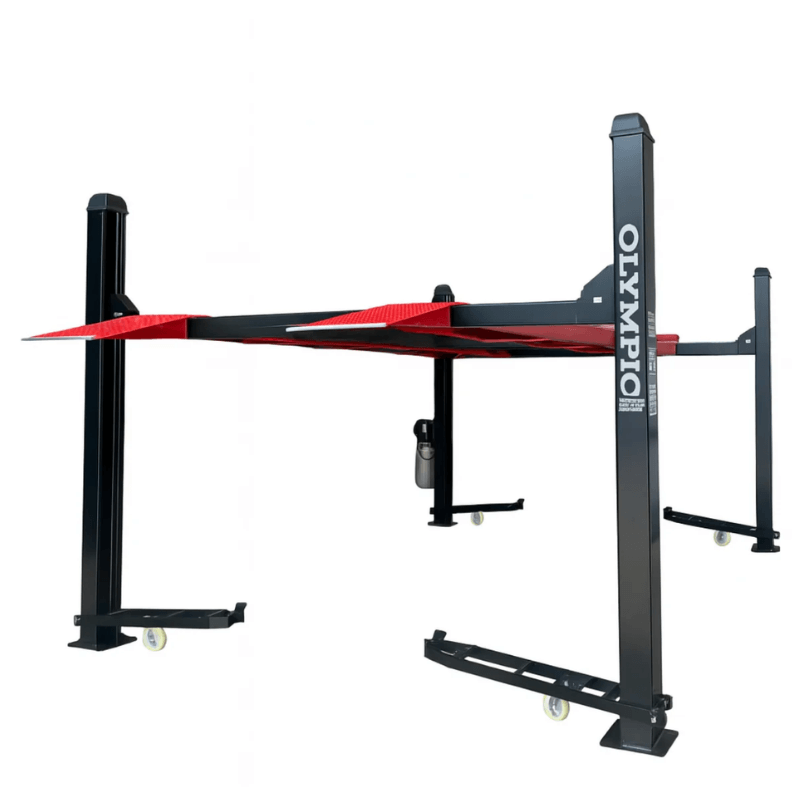

Olympic HDMBL-9 9,000 lb. Extra-Wide Portable Boat & Trailer 4 Post Lift

The Olympic HDMBL-9 Extra-Wide Portable Boat & Trailer 4-Post Lift is a heavy-duty storage and lifting solution engineered to protect boats, trailers, and wide vehicles while maximizing garage space. With a robust 9,000 lb lifting capacity and an extra-wide drive-through design, this lift allows you to safely store valuable equipment off the ground, reducing exposure to damage, moisture, and theft.

Constructed from high-quality Q235 structural steel, the HDMBL-9 is built for long-term durability and stability. Its steel runways feature 3/16″ non-skid diamond plate surfaces and adjustable widths to accommodate a wide range of trailer sizes. A heavy-duty 3″ hydraulic cylinder, aircraft-quality cables rated at 14,000 lbs, and large slider blocks work together to ensure smooth, controlled lifting with dependable load support. The built-in ladder lock safety system further enhances operational security.

Ideal for boat owners, trailer users, and facilities handling dual-wheel vehicles, the Olympic HDMBL-9 is perfectly suited for residential garages, storage buildings, and light commercial environments. Its portable design, included ramps, drip trays, and portability package provide flexibility without permanent installation, while optional accessories expand its functionality for maintenance tasks. Backed by an industry-best 10-year warranty and certified at 150% of rated capacity, this lift delivers confidence, protection, and performance.

4 Post Lift HDMBL-9 Specification

• Lift Type: 4-Post Boat & Trailer Storage Lift

• Lifting Capacity: 9,000 lbs

• Overall Lift Length (with Ramps): 198.49″

• Overall Width: 136.9″

• Overall Height: 83.66″

• Maximum Lift Height: 75″

• Drive-Through Width: 110.6″

• Width Between Posts: 123.83″

• Runway Length: 165.9″

• Runway Width: 19.09″

• Width Between Tracks: 47″ – 69″

• Maximum Clearance Under Runways: 67.71″

• Speed of Rise: 40 seconds

• Speed of Lowering: 40 seconds

• Voltage Options: 110V / 220V

• Recommended Power Unit: HPU2203, 3 HP, 2.2 kW, Single Phase

HDMBL-9 9,000 lb. 4 Post Lift Special Features

• Extra-wide 9,000 lb capacity lift for boats, trailers, and wide vehicles

• Portable 4-post design with included portability package

• Drive-through configuration with ramps usable from either end

• Adjustable steel runways to fit various trailer widths

• 3/16″ non-skid diamond plate runway surfaces

• Extra-wide 18.7″ runways for added stability

• Heavy-duty 3″ hydraulic lifting cylinder

• Aircraft-quality cables rated at 14,000 lbs

• Built-in ladder lock safety system

• Large slider blocks for enhanced load stability

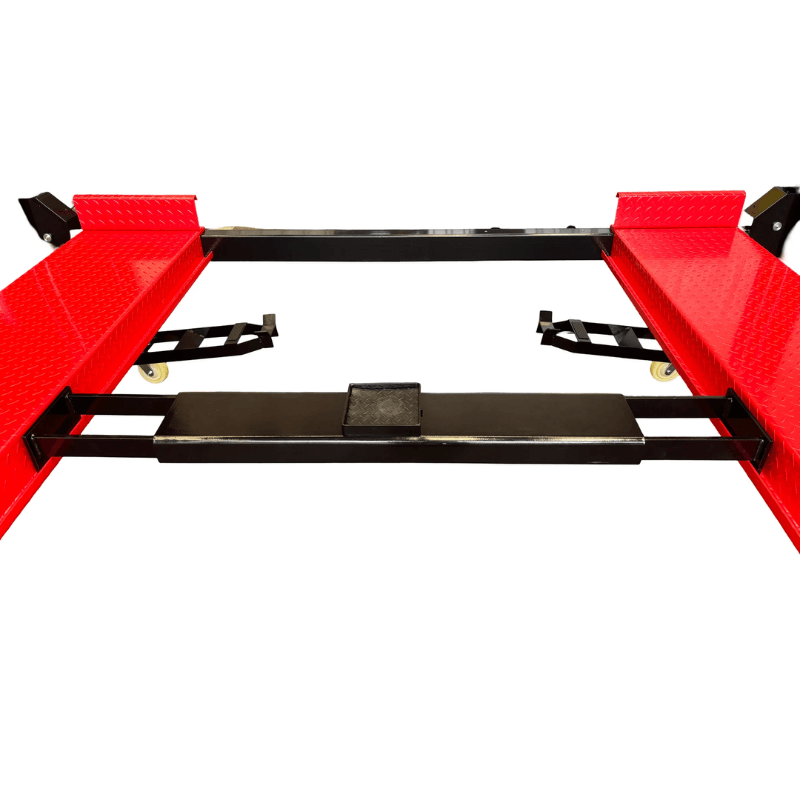

• Sliding adjustable-width trailer hitch wheel rest included

• Includes (2) 45″ detachable steel ramps and detachable stops

• Drip trays included for clean storage

• Optional bridge jack, aluminum ramps, and tool tray available

• Certified and tested at 150% of rated capacity

• Backed by Olympic’s industry-best 10-year warranty

HDMBL-9 Manual

  Olympic HDMBL-9 Spec Sheet
