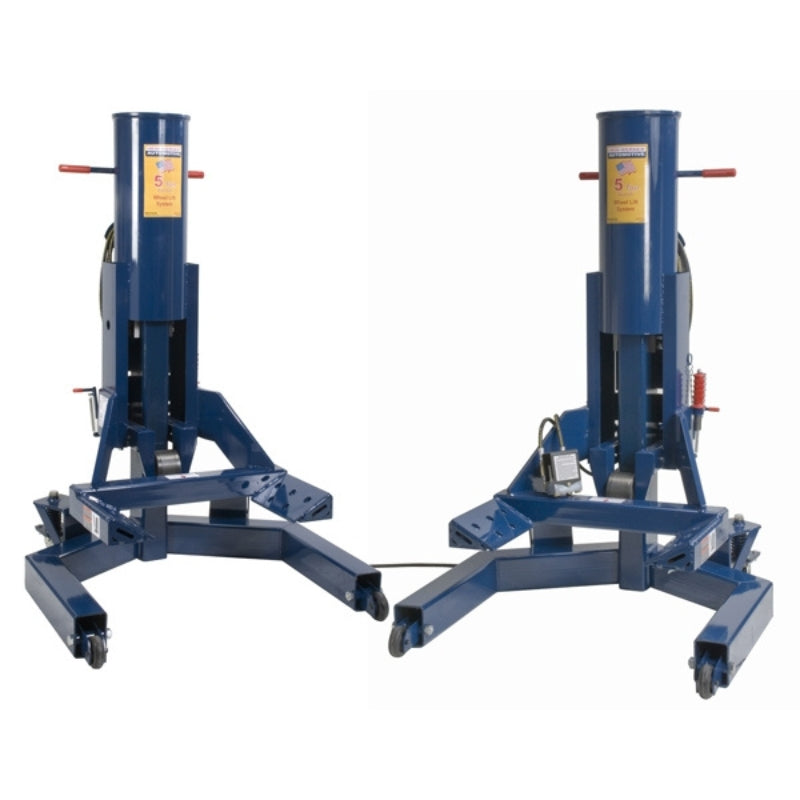

Hein-Werner 10 Ton HW93693 Wheel Lift System (Pair)

SKU HW93693
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$16,499.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

HW93693 Wheel Lift System (Pair) by Hein-Werner

Grease monkeys and speed demons, listen up! Your garage is crying out for the HW93693 Wheel Lift System - the unsung hero of the automotive world that'll make you wonder how you ever lifted a jalopy without it. This bad boy doesn't just lift cars, it practically teleports them into the air with its whopping 20,000 lbs capacity. It's like having the Hulk as your personal jack, except this one won't turn green and smash your precious rides.

This all-American beast is air-powered, meaning you can use it anywhere in your shop without tripping over pesky cords. It'll cradle wheels from 16 inches up, thanks to its nifty adapters, and with a single controller, you'll be raising front or rear ends faster than a NASCAR pit crew. The six-lock safety latch design means your precious metal stays put, while the load retention pins turn these lifts into stands quicker than you can say "transmission fluid". And at 160 psi max air pressure, it's got more lifting oomph than a rocket booster. So gear up, this is about to revolutionize your workflow faster than you can change a spark plug!

Wheel Lift System HW93693 Specifications:

  • Maximum Capacity, each lift 10,000 lbs./4,540 kg.
  • Maximum Capacity, system 20,000 lbs./9,075 kg.
  • Maximum Air Pressure 160 psi
  • Minimum Wheel Dia. w/o Adapters 19”
  • Minimum Wheel Dia. with Adapters 16”
  • Maximum Tire to Fender Clearance 8”
  • System Weight 1,030 lbs.
  • Weight per Lift 513 lbs.
  • Adapter Weight 22 lbs.
  • Width 41 9/16”
  • Depth 39 ½”
  • Height (lowered) 53 ¼”
  • Height (raised) 77 ¼”

HW93693 10 Ton Wheel Lift System Special Features:

  • Lifts engage wheels without needing to remove panels on vehicle
  • Raise front or rear end of vehicle using a single controller
  • Load retention pin allows lifts to function as stands
  • Wide base ensures stability
  • Completely air operated. No electrical connections required
  • Safety latch design provides six different locked positions
  • Portable! Use in any area of the shop
  • Sold and to be used in pairs
  • Made in the USA

Hein-Werner HW93693 Documentation:

Lift System HW93693 Product Manual Hein-Werner HW93693 Product Manual
