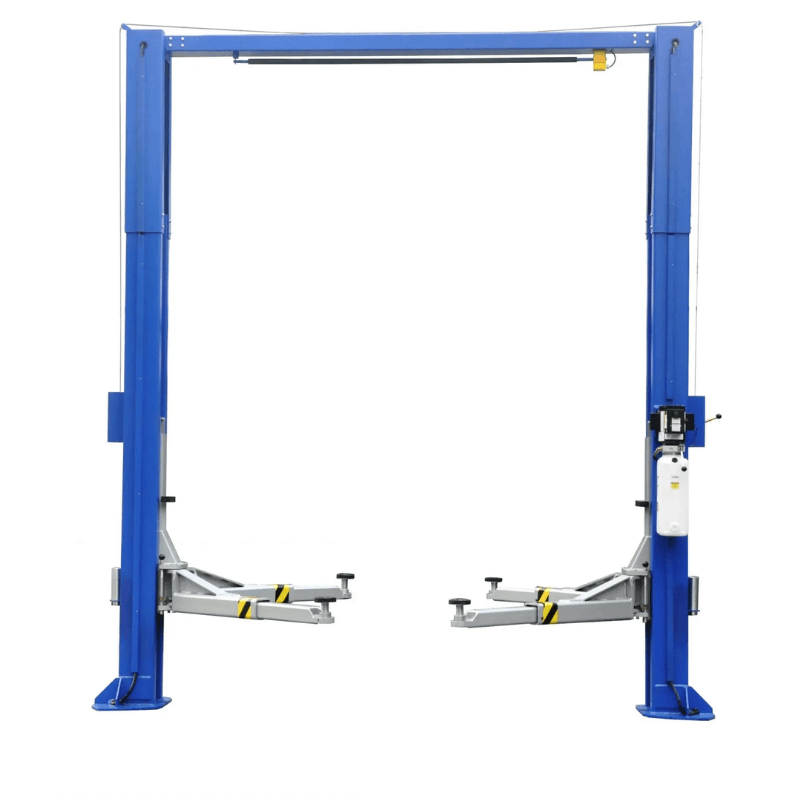

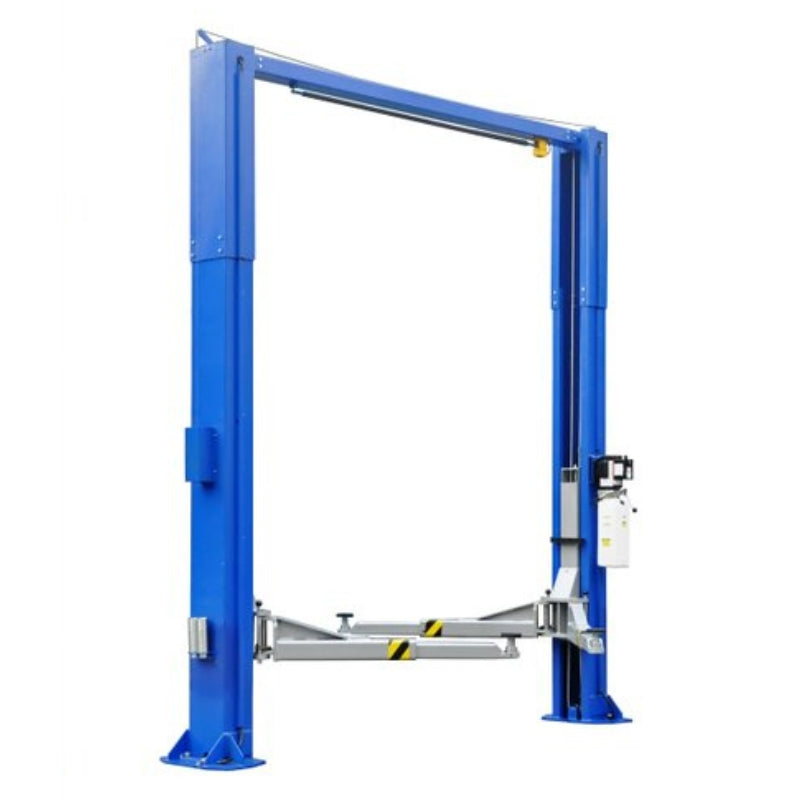

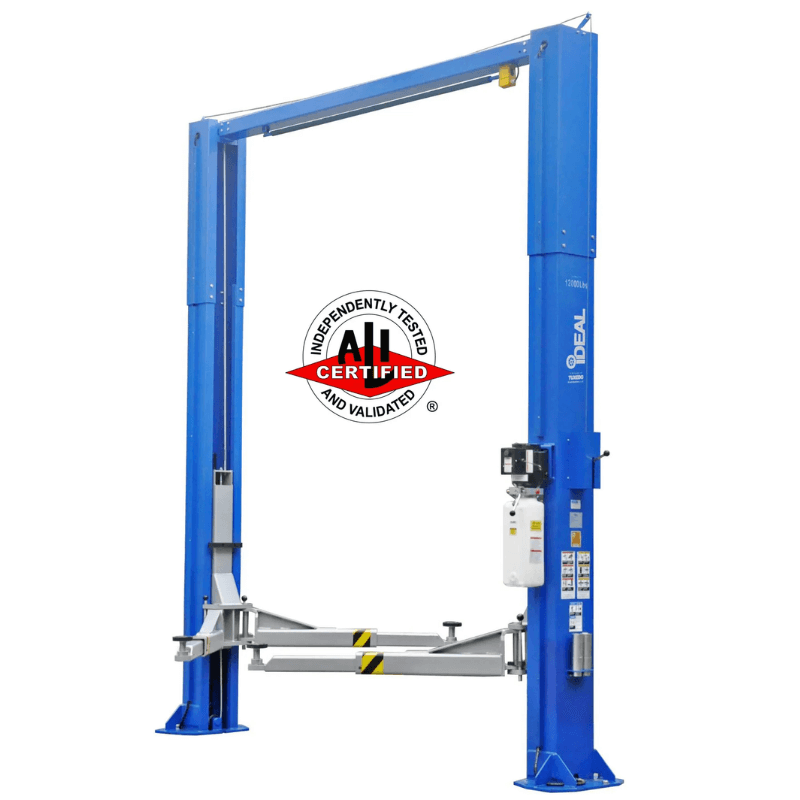

iDeal 12,000 lb TP12KSC-DX, 2 Post Car Lift - Ali Certified

TP12KSC-DX Car Lift by iDeal

This ALI certified car lift boasts a substantial capacity of 12,000 lbs, making it ideal for heavy-duty lifting tasks. Its symmetric arms ensure balanced lifting, while rubber door guards protect vehicles from accidental scratches or dings. Featuring direct drive push cylinders and a single point lock release, this lift offers efficient operation and secure locking mechanisms. With a clear floor design, it provides ample space for easy maneuvering underneath vehicles. Equipped with spin-up lift pads and a heavy-duty arm restraint system, it ensures stability and safety during lifting operations. Additionally, the included stackable adapters and external hose guards enhance versatility and durability, making it a reliable choice for professional automotive workshops.

Standing at an overall height of 168-1/2", this car lift offers a generous max lift height of 75", allowing for convenient access to vehicle undercarriages. Its narrow drive-thru clearance of 109" accommodates various vehicle sizes, while the symmetric arms provide flexibility in positioning. The durable construction and ALI certification ensure compliance with safety standards, guaranteeing peace of mind for operators. Furthermore, the included Duro certified power unit meets rigorous industry standards for reliability and safety, with certifications from MET, UL, and CSA. Whether for routine maintenance or major repairs, this car lift combines robust features and thoughtful design to streamline automotive servicing operations.

Car Lift TP12KSC-DX Specifications:

• Capacity: 12,000 lbs.
• Height Overall: 168-1/2″
• Width Overall w/ Power Unit: 151-5/16″
• Max Lift Height: 75″
• Width Between Columns: 122″
• Min. Pad Height: 4-7/8″
• Drive Thru Clearance: 109″
• Lifting Speed: 50S
• Asymmetric / Symmetric: Symmetric
• Clear Floor / Floor Plate: Clear Floor
• Short Arm Reach – min/max: 37-5/8″ – 57″
• Long Arm Reach – min/max: Same
• Narrow Bay Setting: NA
• Max Load Per Arm: 3,000 lbs
• Ship Weight: 2,295 lbs
• Power: 220V – 20 AMP – 1 PH

TP12KSC-DX 12,000 lb Car Lift Special Features:

• ALI Certified
• 12,000 lbs capacity

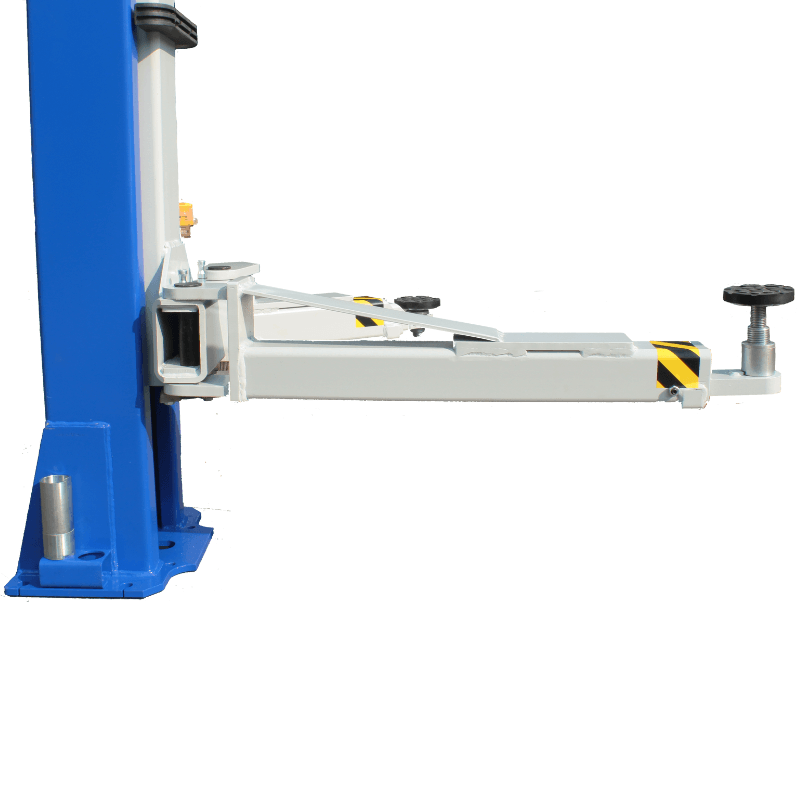

• Symmetric Arms
• Rubber Door Guards
• Direct Drive push Cylinders
• Single Point Lock Release

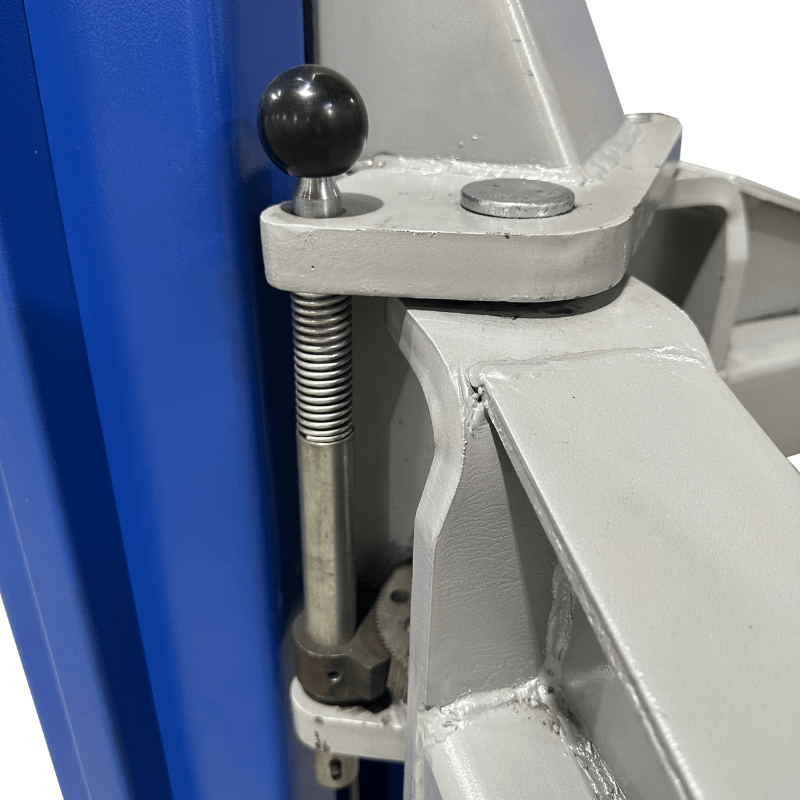

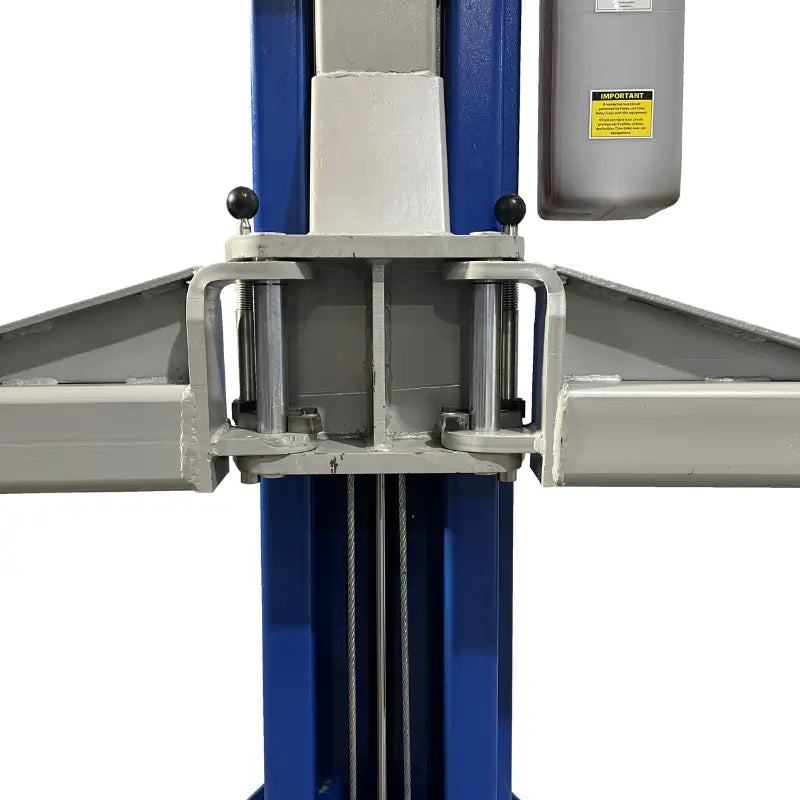

• Heavy Duty Arm Restraint System

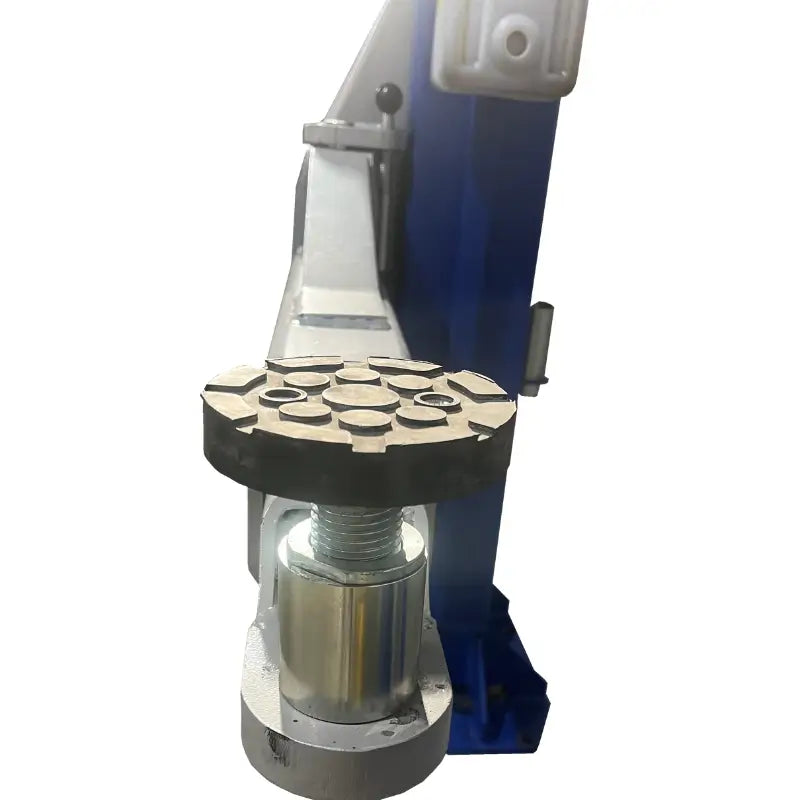

• Spin Up Lift Pads 5” min. Pad Height

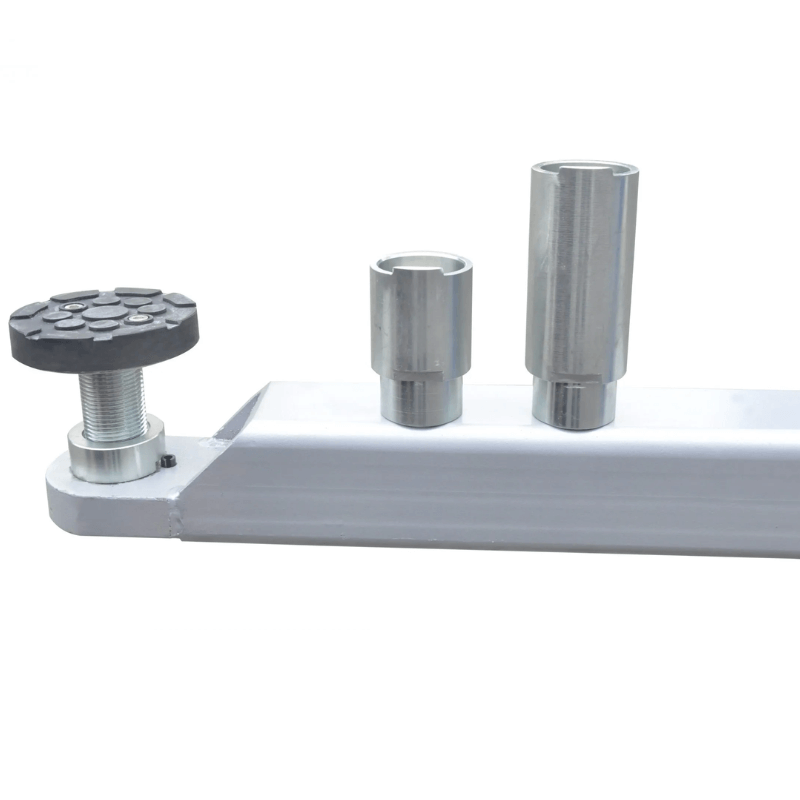

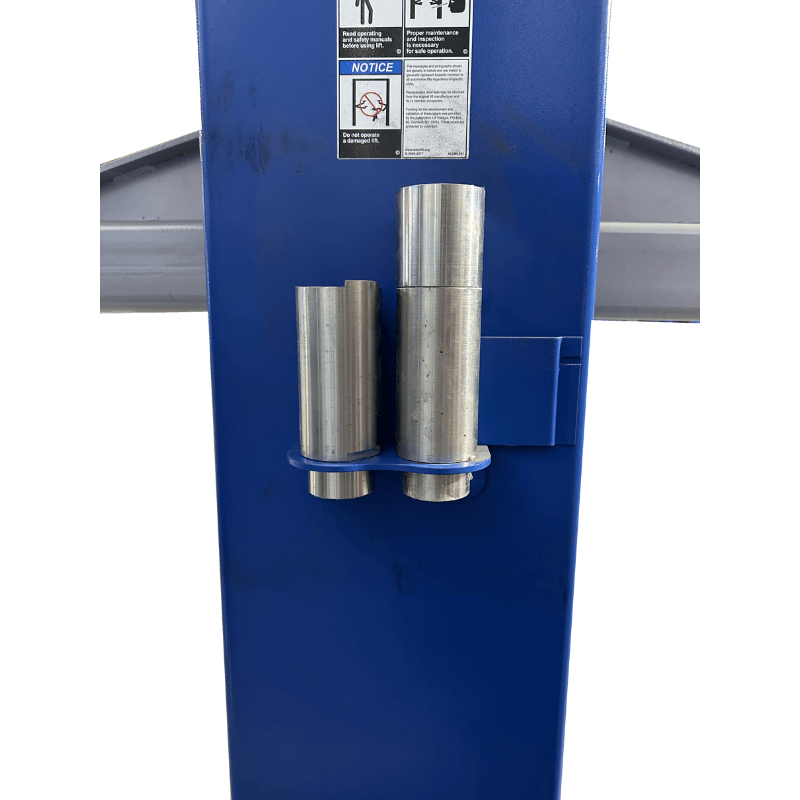

• Stackable Adapters Included

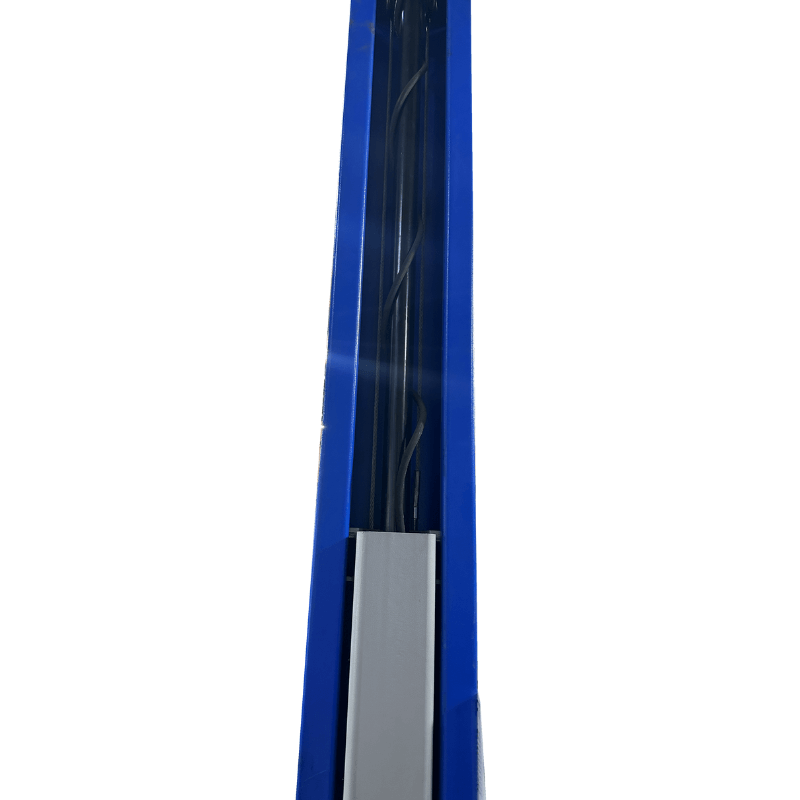

• External hose guards

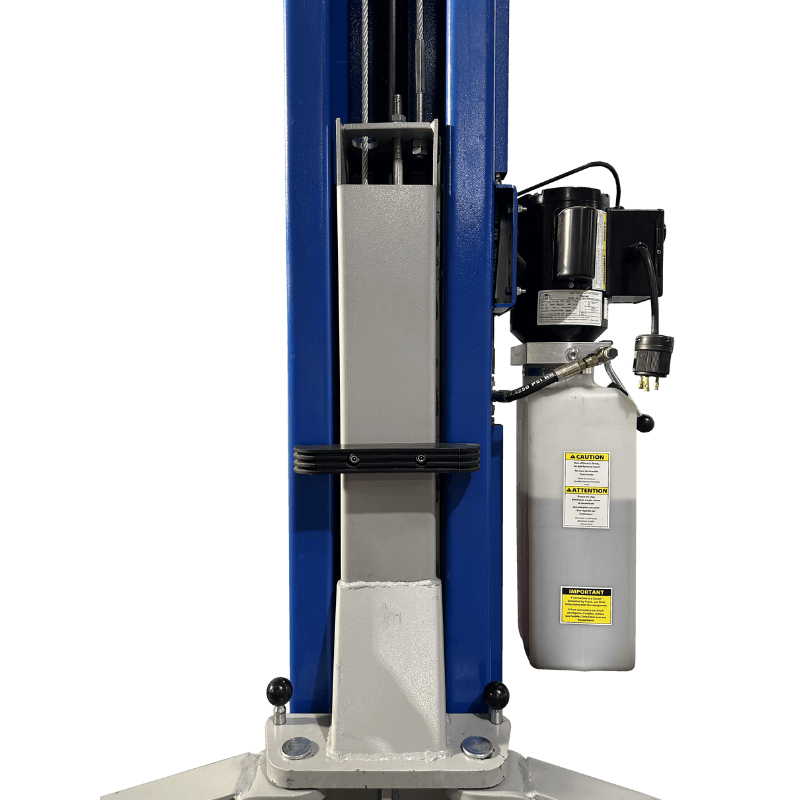

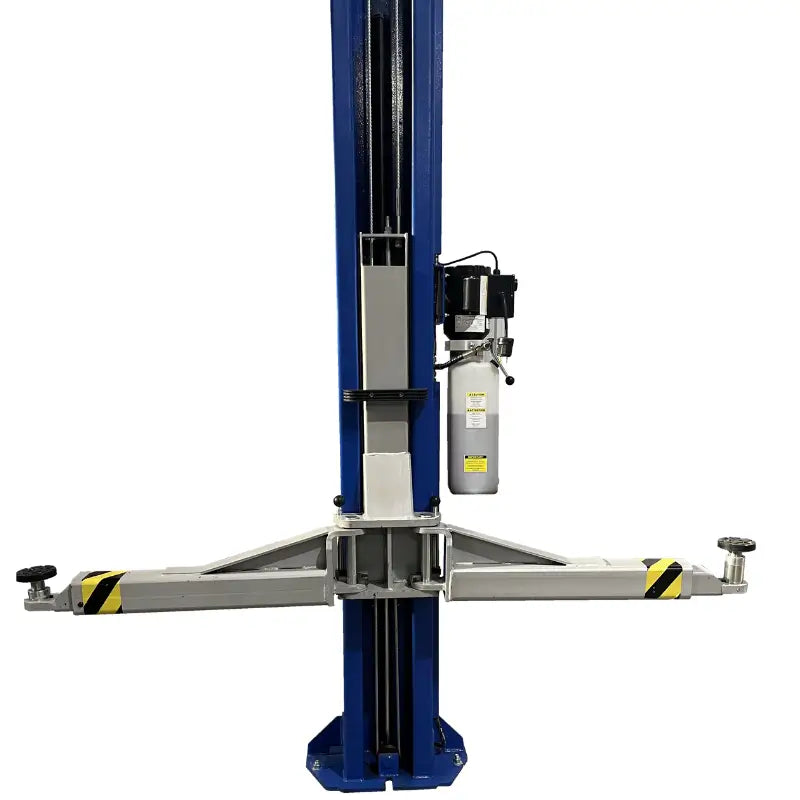

• Duro Certifed Power Unit – MET, UL, CSA
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
• iDeal Warranty:  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment

iDeal TP12KSC-DX Documentation:

   iDeal TP12KSC-DX Car Lift Product Manual
