iDeal A-2200IEH-XR Electric Hydraulic ATV Lift

SKU A-2200IEH-XR
by iDeal
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$3,599.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
Color: Blue

Notify me when back in stock

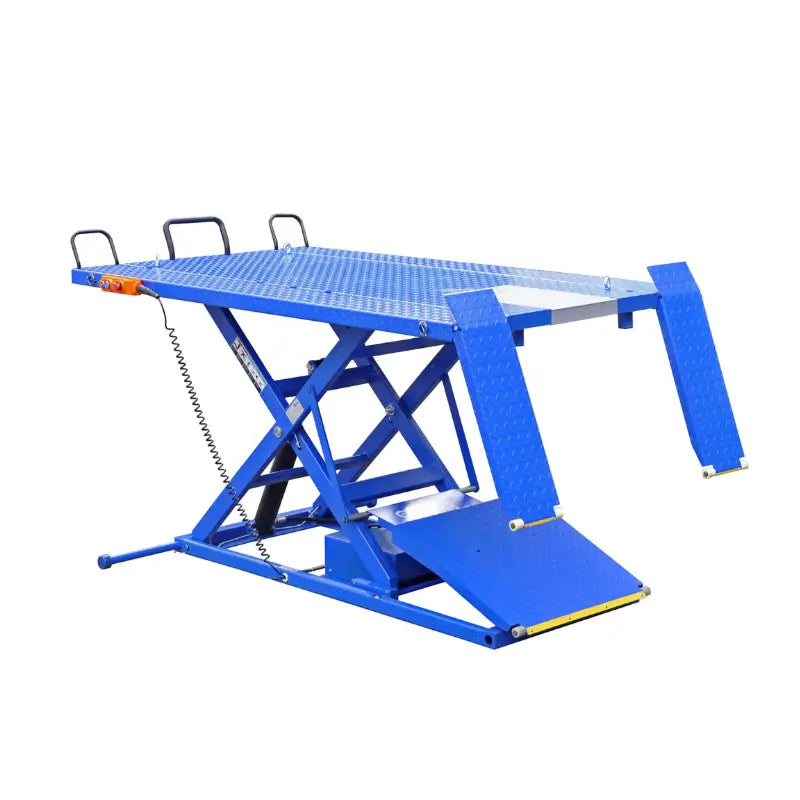

A-2200IEH-XR Electric Hydraulic ATV Lift by iDeal

Servicing your ATV or UTV shouldn’t feel like you're arm-wrestling a machine—enter the iDeal A-2200IEH-XR Electric Hydraulic ATV Lift, designed to bring some fun back to the job. With a beefy 2,200 lb capacity and a lift height of 47 inches, this bad boy lifts your ride faster than you can finish your coffee. The wide 50" x 88.6" platform gives you enough room to handle any maintenance challenge, while the full-width retractable ramp system makes loading and unloading smoother than a freshly waxed floor. Need a lift? Just press the button on the hand-held remote and watch it go!

Packed with features to make your life easier, this lift includes six locking positions and a stabilizer bar for that steady, no-wobble lift. The rear drop-down service panel makes it super convenient for quick adjustments. Choose from bold blue or sleek black, and let the 110V electric/hydraulic power unit do the heavy lifting. With tie-down anchor eye bolts to keep things secure and a platform designed for all your power sport toys, this lift makes every service job feel like a win.

Electric Hydraulic ATV Lift A-2200IEH-XR Specifications:

  • Capacity: 2,200 lbs. (1,000 kg)
  • Lifting Height, Max: 47.2” (1200 mm)
  • Height, Min: 7” (180 mm)
  • Platform Size: 50” x 88.6” (1270 mm x 2250 mm)
  • Power Supply: 110V, 60Hz, 1 Phase, 18A
  • Lifting and Lowering Time: 30 seconds each
  • Gross Weight: 980 lbs.

A-2200IEH-XR Electric Hydraulic ATV Lift Special Features:

  • Exclusive full-width retractable ramp system
  • Available in blue and black
  • Hand-held remote control pendant for easy operation
  • Magnetic lock release with six locking positions
  • Rear drop-down service panel for convenient access
  • Stabilizer bar for added stability during operation
  • Wheel stops and tie-down anchor eye bolts for safety
  • Compatible with optional M-Vise or M-Chock

iDeal A-2200IEH-XR Documentations

  A-2200IEH-XR Electric Hydraulic ATV Lift Product Manual
