iDeal IWA-60-8500-HD-K Wheel Aligner

SKU IWA-60-8500-HD-K
by iDeal
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$24,599.00
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

IWA-60-8500-HD-K Wheel Aligner by iDeal

Precision. Accuracy. Speed. That’s the IWA-60-8500-HD-K. This state-of-the-art 3D HD image aligner is built for heavy-duty vehicles, and it doesn’t mess around. Operating on a Windows platform with Techno Vector 7 software, it delivers unmatched accuracy of 0.01 degrees, certified by CE standards. Four high-resolution, extended-range 3D tower cameras work in tandem to measure up to four axles simultaneously, even on vehicles as long as 50 feet and as wide as 13 feet. No need for a lift; this floor-based aligner is designed for efficiency.

To streamline your workflow, the IWA-60-8500-HD-K boasts an integrated quick reference vehicle database and dynamic LED tower guides. The HD turntable, drive-on floor ramp sets, and mobile cabinet configuration make setup a breeze, adapting to any workshop layout. With wireless remote control operation, live reading screens for front and rear axle readings, and comprehensive data management features like customer database integration and customized report generation, investing in this baby is a no-brainer.

Wheel Aligner IWA-60-8500-HD-K Specifications:

  • 3D HD Image Aligner Model: IWA-60-8500-HD-K
  • Aligner Type: Heavy Duty 3D Multi-Axle Imaging
  • Operating System: Windows
  • Software: Techno Vector 7
  • Accuracy: 0.01 Degrees
  • Certification: CE
  • Target Size (8): Standard
  • Cameras (Total): 4
  • Lift Compatible: No
  • Standard Wheel Clamps (8): 15"-17"
  • Toe Adjustment: Yes
  • Lifted Runout: Yes
  • Live Caster: Yes
  • Runout Compensation: Yes
  • Wheel Alignment Modes: Variable 2-8 Wheels
  • Database Update: Yes
  • Customer Manager: Yes
  • Max Width: Up to 13 feet.
  • Max Wheelbase: Up to 50 feet.
  • Power: 120V-15 Amp/1PH/60HZ
  • Ship Weight: 1,285 lbs. (3pcs)

IWA-60-8500-HD-K Wheel Aligner Special Features:

  • multi-axle floor alignment system – no vehicle lift required!
  • Designed to measure long vehicles & vehicles with trailers
  • High resolution / extended range 3d tower cameras measures up to four axles at once
  • Integrated quick reference vehicle database for commercial vehicles
  • Includes hd turntable & drive-on floor ramp sets for quick & easy front end alignments
  • Dynamic led tower guide changes shape to guide technician
  • Mobile cabinet allows for side or front centered placement for ‘drive-thru’ or ‘dead-end’ set-up configurations
  • Drive-over cable plates included for ‘drive-thru’ configuration

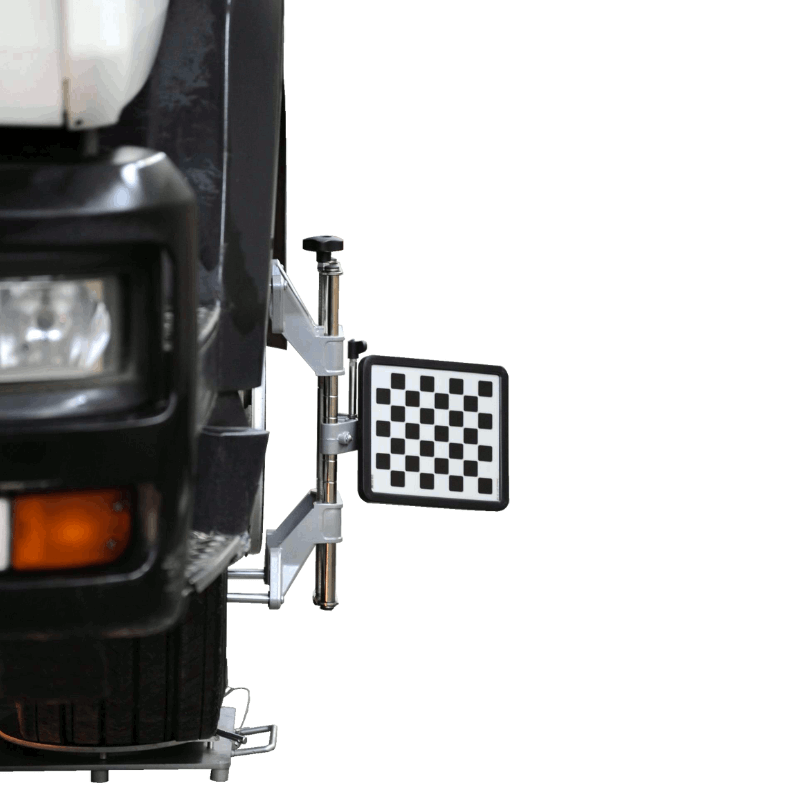

  • 8ea compact lightweight targets
  • 8ea adjustable wheel clamps 15”- 27” fits most standard rim sizes

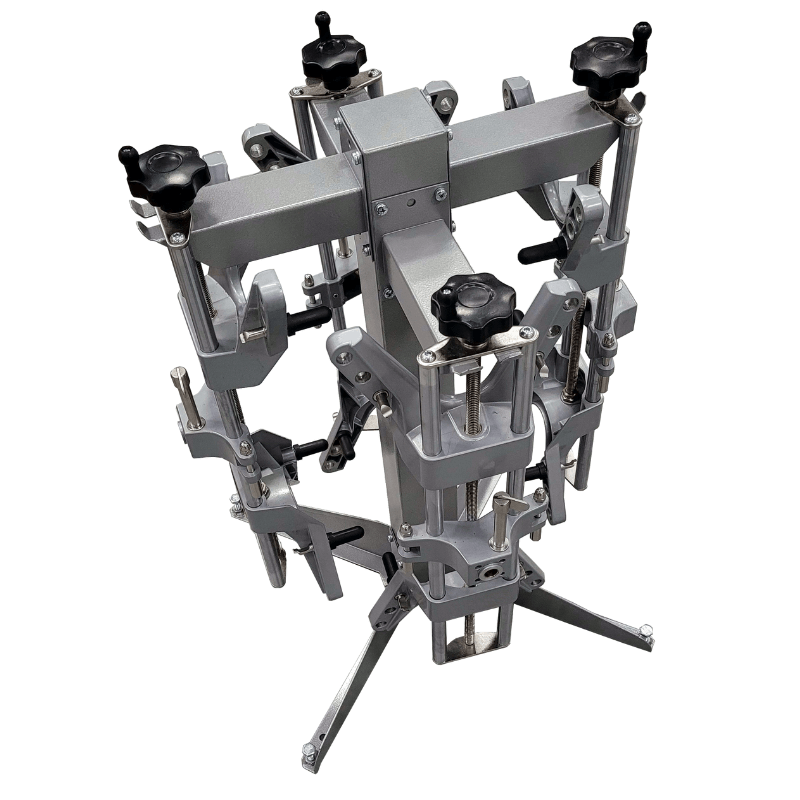

  • Convenient storage stands for wheel clamps
  • Dual towers provide max view range up to 50 ft.
  • Wireless remote-control operation when unable to reach cabinet & keyboard
  • Illustration diagrams & integrated help system
  • Live reading screens for front & rear axle readings
  • Recalls / prints current & past info for customized reports
  • Optional yearly vehicle spec updates
  • Convenient customer database feature
  • Steering wheel holder, brake depressor & wheel chocks included
    computer, monitor, keyboard, mouse & color printer also included
  • Product ships from Montana & Includes training

iDeal IWA-60-8500-HD-K Documentation:

Wheel Aligner IWA-60-8500-HD-K Product Manual   iDeal IWA-60-8500-HD-K Wheel Aligner Product Manual
