iDeal LR-10K-TLPAD High Performance, Commercial Low-Rise Pad Lift

SKU LR-10K-TLPAD
by iDeal
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$3,345.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

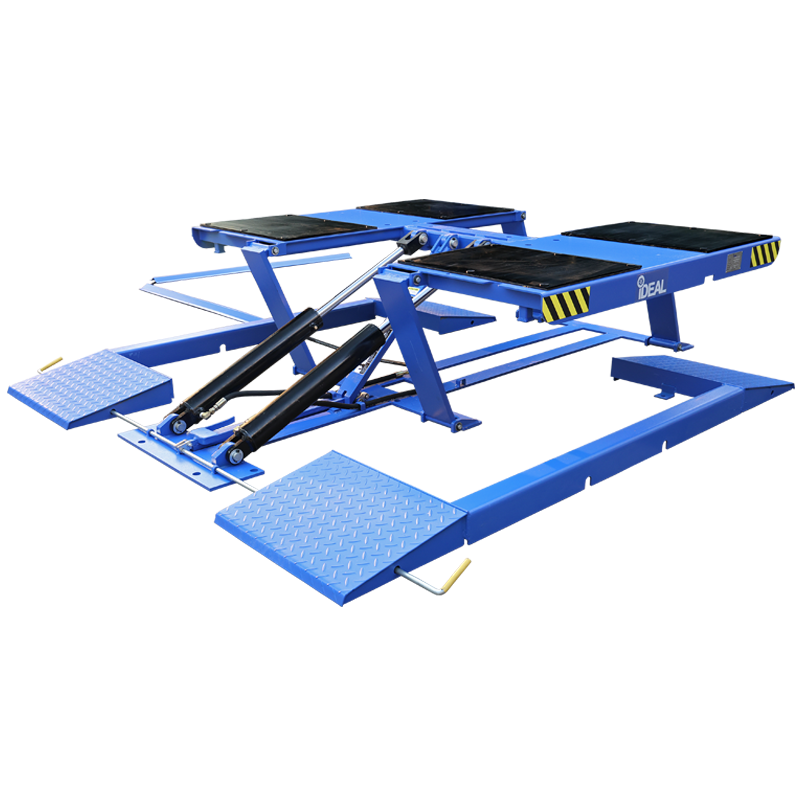

LR-10K-TLPAD Pad Lift by iDeal

Tired of slow, cumbersome pad lifts? The iDeal LR-10K-TLPAD is here to revolutionize your tire and wheel service. This workhorse can handle up to 10,000 pounds, making light work of even the heaviest vehicles. Its low-profile design and generous platform dimensions (91 inches long, 88-5/8 inches wide) mean you can accommodate a variety of cars, SUVs, and trucks with ease.

Need to reach those hard-to-get spots? No problem. With a minimum height of 4-1/4 inches and a maximum of 22-1/2 inches (extendable to 30-3/4 inches with the tall adapter), you've got the flexibility to tackle any job. Safety is paramount, which is why the LR-10K-TLPAD features durable rubber contact pads, diamond plate ramps, and dual hydraulic lift cylinders for stability. Plus, three locking height positions give you added peace of mind. The latch release handles on each side are a touch of genius, making it easy to operate even when you're in a hurry. The LR-10K-TLPAD isn’t just a pad lift; it's a productivity booster.

Pad Lift LR-10K-TLPAD Specifications:

  • Capacity: 10,000 lbs.
  • Overall Length: 91"
  • Overall Width: 88-5/8"
  • Max Rise Height: 22-1/2"
  • Min Lift Height: 4-1/4"
  • Max Lift Height with Tall Adapter: 30-3/4"
  • Platform Pad Length: 51-1/4"
  • Platform Pad Width: 24"
  • Platform Outer Width: 70-3/4"
  • Platforms Forward Movement: 15"
  • Platform Locking Heights: 13.5", 17.25", 21.5"
  • Lift Speed Standard 115V: 60 Seconds
  • Lift Speed Optional 220V: 36 Seconds
  • Power: 115V - 1 Ph - 20 Amp
  • Shipping Weight: 1,262 lbs.

LR-10K-TLPAD Pad Lift Special Features:

  • 10,000 LBS CAPACITY
  • LOW RISE, COMMERCIAL GRADE PAD LIFT
  • IDEAL FOR EXPRESS TIRE & WHEEL SERVICE
  • SURFACE MOUNT INSTALL CONFIGURATION
  • INTEGRATED OUTER FRAME & RAMPS PROVIDE
    DRIVE-ON & OFF CLEARANCE FOR WIDE VEHICLES
  • LATCH RELEASE HANDLES ON EACH SIDE OF LIFT
  • DUAL HYDRAULIC LIFT CYLINDERS
  • DIAMOND PLATE RAMPS
  • DURABLE RUBBER PLATFORM CONTACT PADS
  • 3 LOCKING HEIGHT POSITIONS
  • METAL HOSE COVERS 55″L (2EA)
  • STANDARD (4EA) HD MULTI-POSITION HEIGHT ADAPTERS
    & (4EA) 1.5″ RUBBER PADS
  • POWER UNIT PEDESTAL STAND
  • DURABLE POWDER COAT FINISH
  • OPTIONAL 220V POWER UNIT FOR INCREASED LIFT SPEED

iDeal LR-10K-TLPAD Documentation:

Pad Lift LR-10K-TLPAD Product Manual   iDeal LR-10K-TLPAD Pad Lift Product Manual

20% DISCOUNT on Scratch & Dent Units:

  • Contact Us today if your item is available
  • Pictures of units can be shared upon request
  • Discount does NOT apply to on-sale items.
  • All refurbished items ship from Texas warehouse or can be picked up at no additional cost

This Item has a FLAT RATE SHIPPING FEE: $599*

*Based on Nationwide Averages - Contact Us to see if we can ship for less.

Warehouse Pickup locations:

  • Temecula, CA 92590
  • Orlando, FL 32824
  • Kennesaw, GA 30144
  • Elwood, IN 46036
  • Maple Grove, MN 55311
  • Reidsville, NC 27320
  • Bohemia, NY 11715
  • Reading, PA 19605
  • Alvarado, TX 76009
  • West Valley City, UT 84119

We are not your average online store!

  • No Sales Tax - Except CA, FL, IN, MI, & OH

  • Products Ship in 3-5 Business Days

  • Free Warehouse Pickup Options

Forklifts and Lift Gates

All of our Single Post, 2 Post, and 4 Post Lifts* require a forklift (or similar) to unload.  Tire Changers and Balancers and other small items allow for a lift gate service (At no additional charge) Lift gate service will lower your order to street level.  How do I know if a forklift is required? See the drop down options that show when you're attempting to place an order.

What if I don't have a forklift at my location and my order requires it?

This is a common question and here's some alternatives:

  • We can deliver to a local freight terminal near you.  Typically this is within 30-60 minutes away depending on location.  We will find a location - Contact Us
  • Do you have a buddy that owns a forklift and we can ship it there?  Does your place of work have a forklift?  Select this location as the delivery address.
  • Warehouse pickup - This is always an option but depends how far you're willing to drive.
  • Rent a forklift - This is the least favorable option but may be necessary.  We always schedule the delivery so this should minimize the days required to rent.

Can I hand unload my order if I don't have a forklift?

No, sorry, the truck drivers don't allow for this.  2 things: Liabilities and the time it takes to unload - truck drivers can't wait, even if you have an army of help.

How do I know if my order requires a forklift or if a lift gate service is available?

See the drop down options that show when you're attempting to place an order.

Residential Deliveries

Yes, we deliver to residential addresses!

Will the freight company contact me to schedule the delivery?

Yes, the freight company will call you ahead of time to schedule the delivery to ensure you are available to receive/unload your order.

Warehouse Pickup (No Freight Charge)

Warehouse pickup is available for almost all of our brands.  Warehouse locations are listed on each product page.  At checkout, select "Pickup" and choose the warehouse you'd like to pickup from.  Upon ordering, we will send an email with the pickup form/number.

Freight Terminals

If you don't have a forklift at your location, we can find you a freight terminal in your area and they will load your trailer onsite.  (Typically 30-60 minute drive away, depending on location) Special note: Some orders are so large they ship on a flatbed by themselves, in these cases a freight terminal delivery is not an option.  The product page will state whether this is the case.

Flat Rate Shipping and Freight Quotes

Most of our products have a flat rate shipping fee. However, if you see a note that says "Contact us to see if we can ship for less" then this means we're able to quote for a better price.  Contact Us now!

*The X1 Triumph 4 post can deliver with lift gate
