iDeal LT-EV3300DC-X EV/ Hybrid Component Lift Table/ 12VDC Battery OP

SKU LT-EV3300DC-X
by iDeal
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$5,960.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

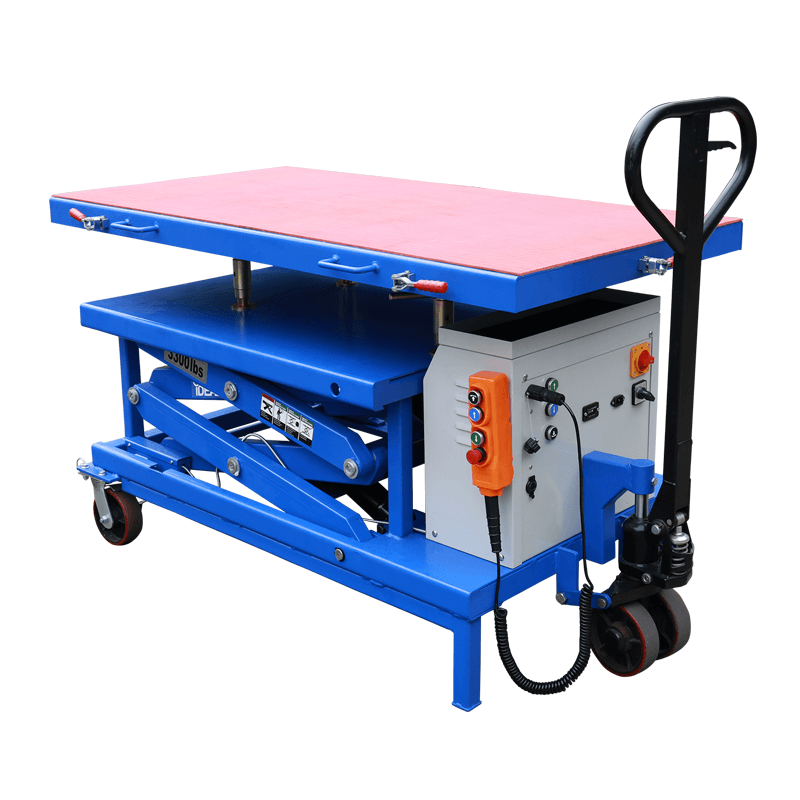

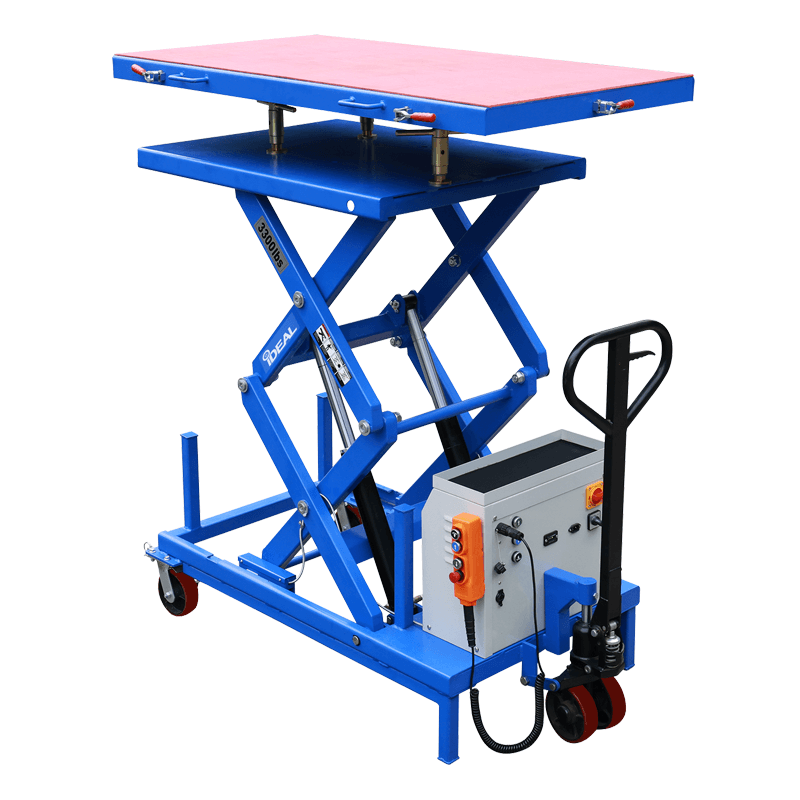

LT-EV3300DC-X Lift Table by iDeal

Ready to revolutionize your electric and hybrid vehicle maintenance? Meet the LT-EV3300DC-X Lift Table by iDeal. This lift boasts a 3,300 lbs capacity and a spacious 59" x 31.5" EV platform. With adjustable heights from 35.4" to 72.6", it's built to handle any EV service challenge.

Picture effortlessly positioning vehicles with the insulated, multi-directional sliding platform and six adjustable latch clamps. The dual DC electric operation with magnetic hand controls ensures precise lifts, while the 12VDC power unit with integrated charger guarantees reliable performance. Plus, the sub-platform storage keeps your tools at hand. Upgrade your EV servicing capabilities today with the LT-EV3300DC-X. Don't let outdated equipment hold you back in the thriving electric vehicle market.

Lift Table LT-EV3300DC-X Specifications:

  • Capacity: 3,300 lbs.
  • Overall Length: 67.3"
  • Overall Width: 35.4"
  • Max EV Platform Height: 72.6"
  • Min EV Platform Height: 35.4"
  • Hand Bar Height: 47.2"
  • EV Platform Size: 59" L x 31.5" W
  • EV Platform Tilt Angle (+/-): 4° to 8°
  • EV Platform Locking Heights: 49", 61", 68"
  • Speed of Rise: 20 Seconds
  • Speed of Lowering: 22 Seconds
  • Power Supply: 110VAC - 1.5A - 1PH
  • DC Power Unit: 12VDC - 120A, 2.15HP
  • Shipping Weight: 1,090 lbs.

LT-EV3300DC-X Lift Table Special Features:

  • 3,300 lbs. Capacity
  • Innovative, High Quality Portable Scissor Lift Design
  • Efficient & Safe Method To Install Or Remove EV Or Hybrid Vehicle Components
  • Battery Packs, Motors, And Powertrain Assemblies

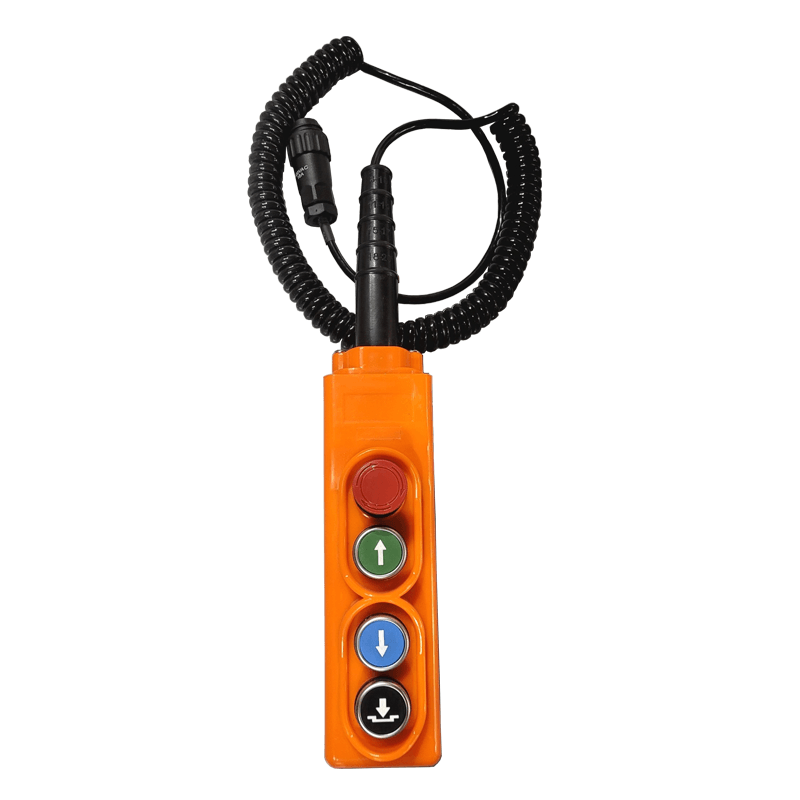

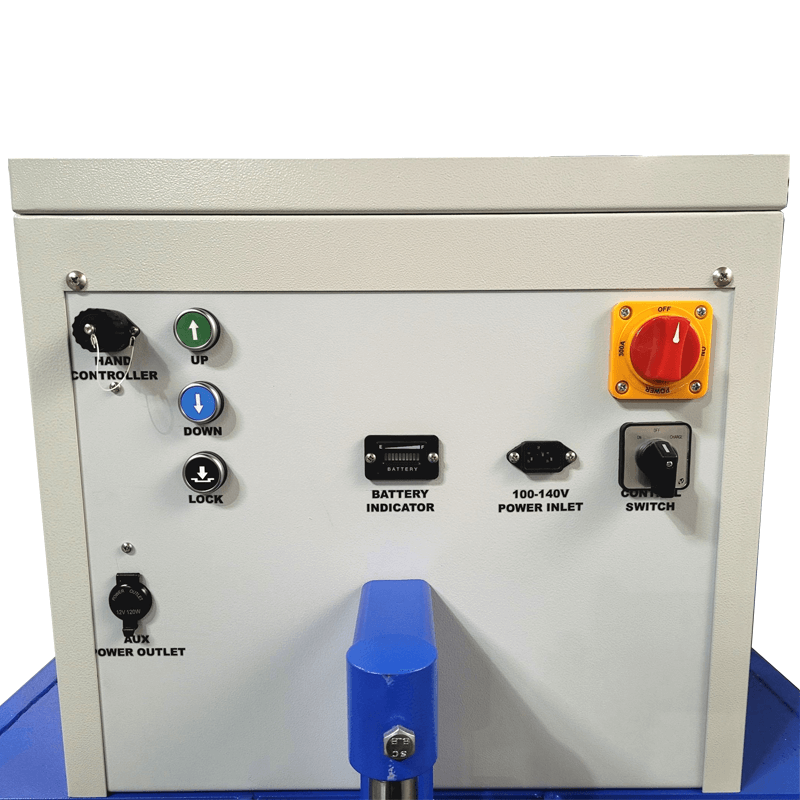

  • Dual DC Electric Operation With Control Panel Or Magnetic Hand Control Buttons For Lifting, Locking & Lowering
  • 12VDC Operation With Integrated 100V Battery Charger
  • Portability Ease With Pallet Jack Operation With 6" Poly Wheels

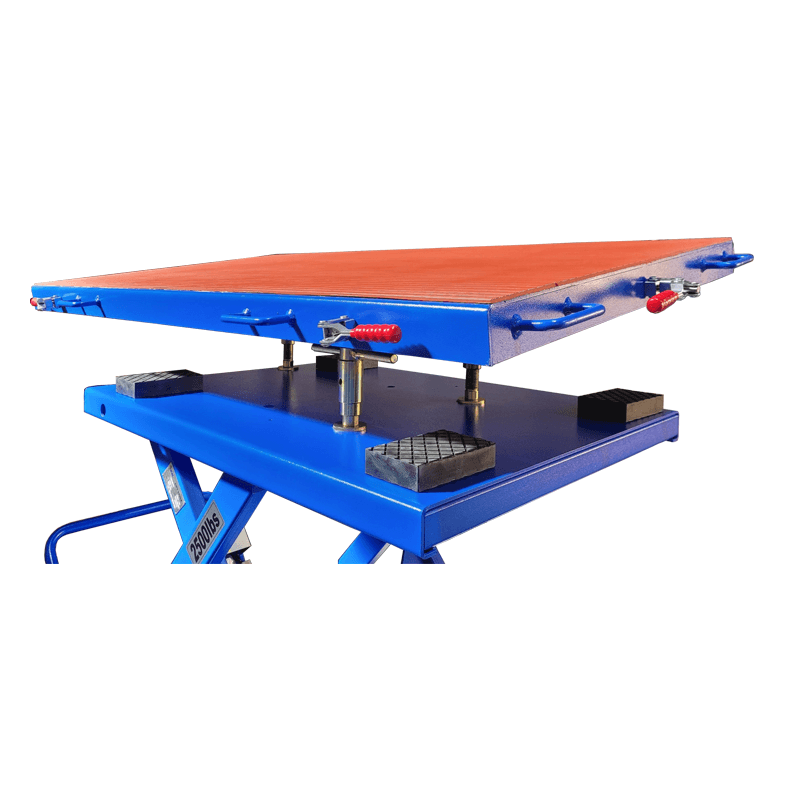

  • Insulated Multi-Directional Sliding EV Platform With (6) Adjustable Latch Clamps
  • Heavy-Duty Jack Screws For Precision Tilt & Height Platform Adjustments

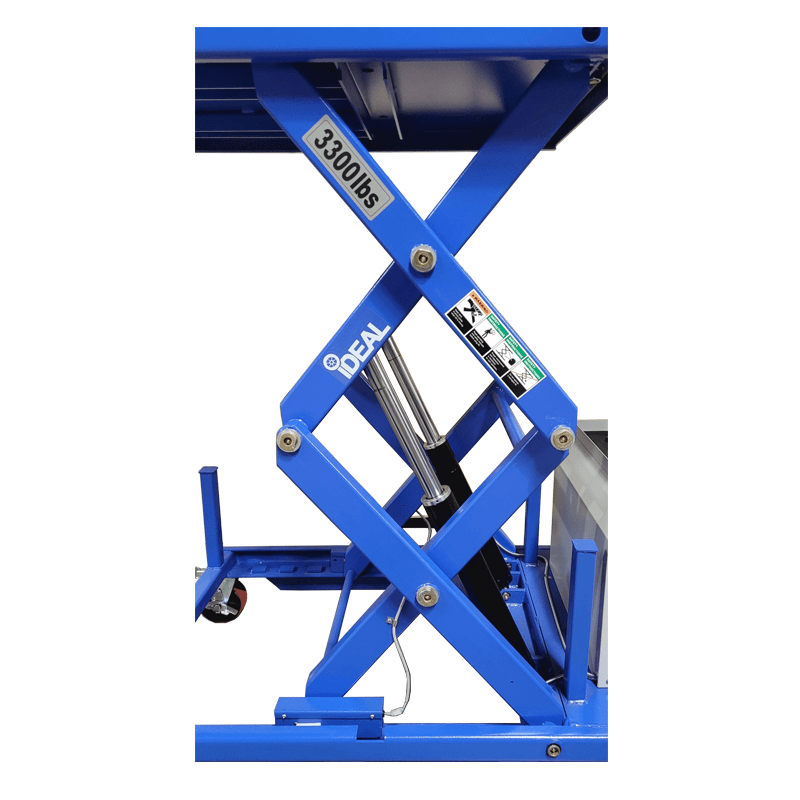

  • Double Scissor Heavy-Duty Design With High Quality Hydraulic Cylinder
  • Integrated Utility / Tool Tray & Sub-Platform Storage Area

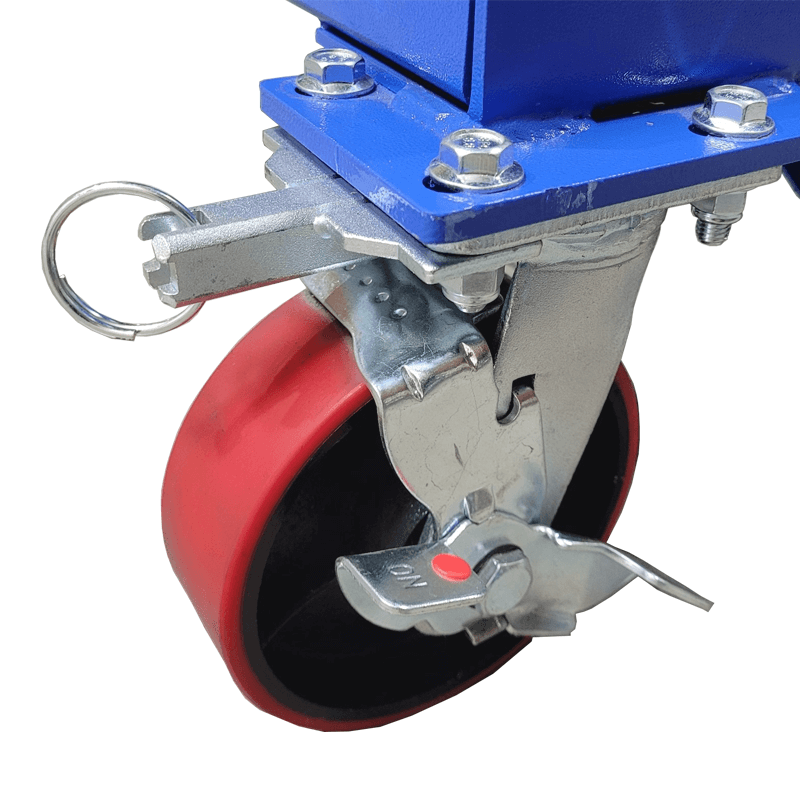

  • Durable Directional & Locking 6" Poly Swivel Casters
  • EV Platform Size 59" L x 31.5" W
  • (3) Locking Height Positions
  • EV Platform Height 35.4" to 72.6"
  • 20 Second Rise & 22 Second Lower Time
  • Includes 12VDC Battery & (4) Rubber Pads (6.4" L x 4" W x 1.45" H)
  • Durable Powder-Coat Finish

iDeal LT-EV3300DC-X Documentation:

Lift Table LT-EV3300DC-X Product Manual   iDeal LT-EV3300DC-X Lift Table Product Manual
