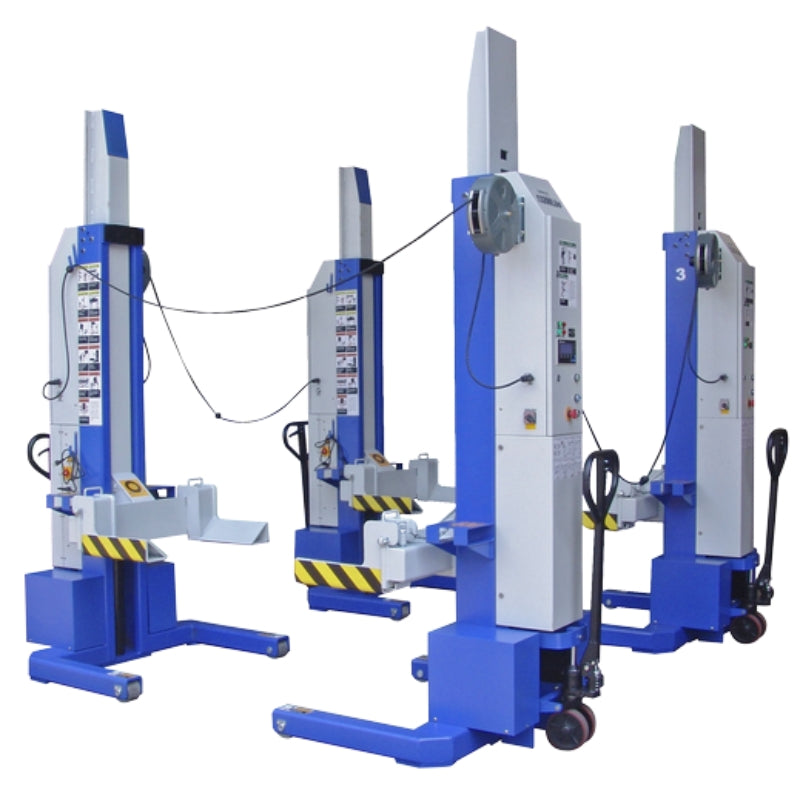

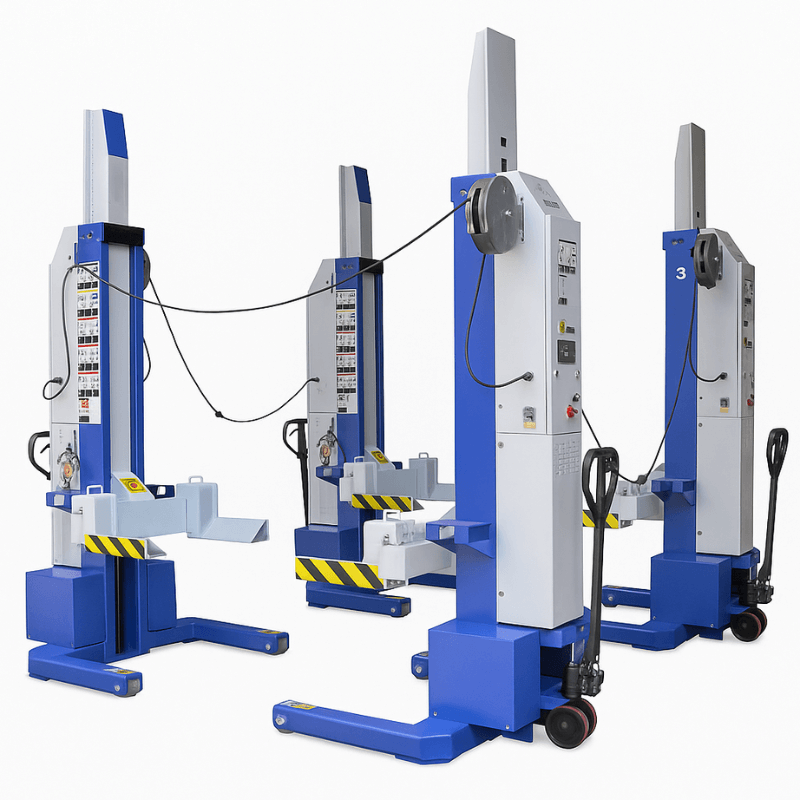

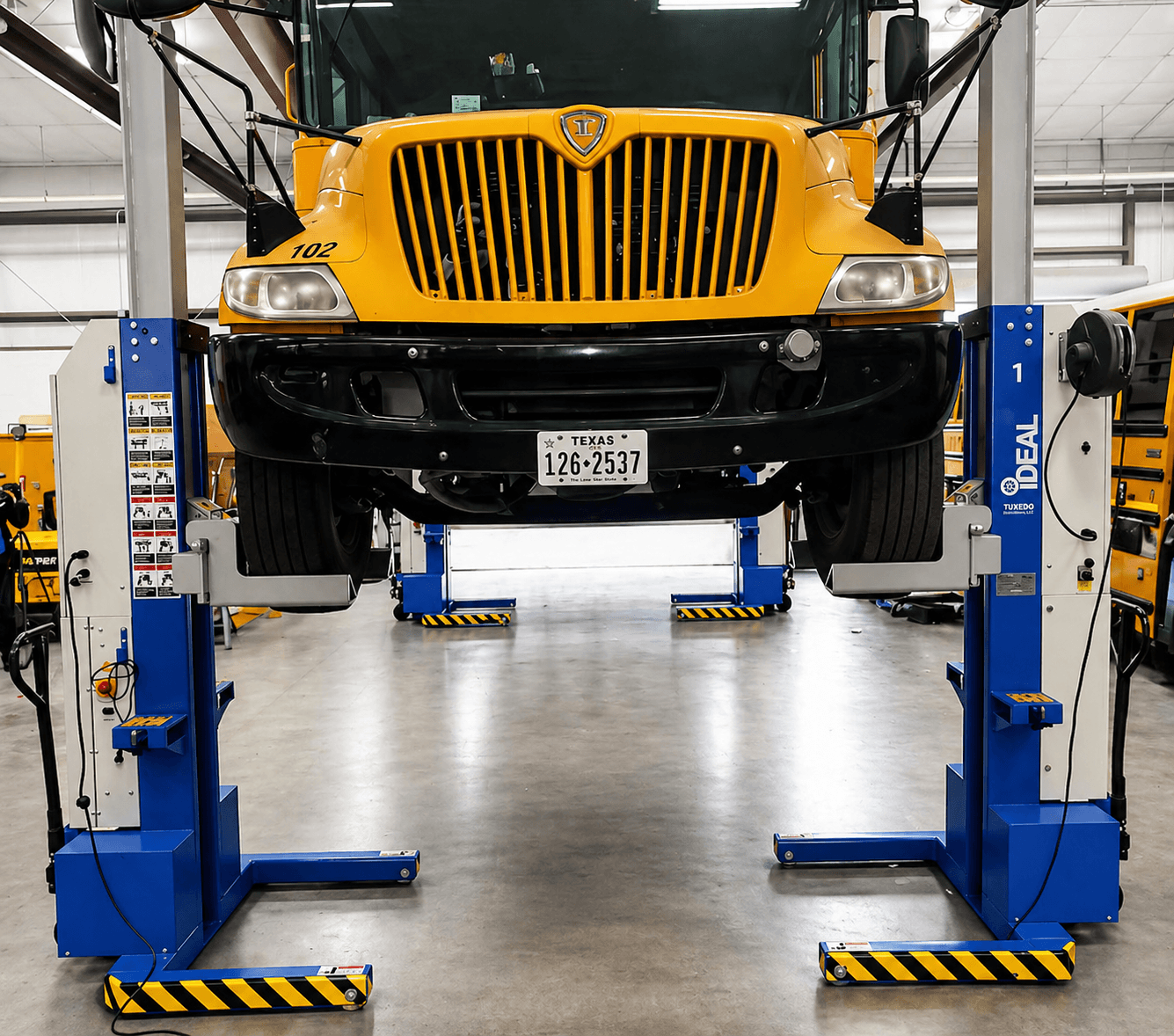

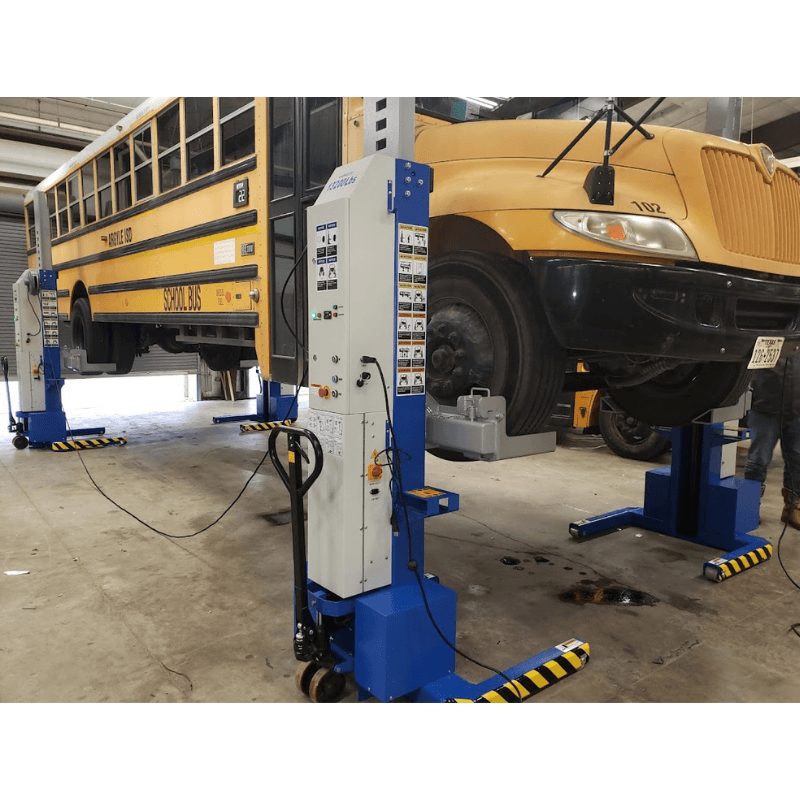

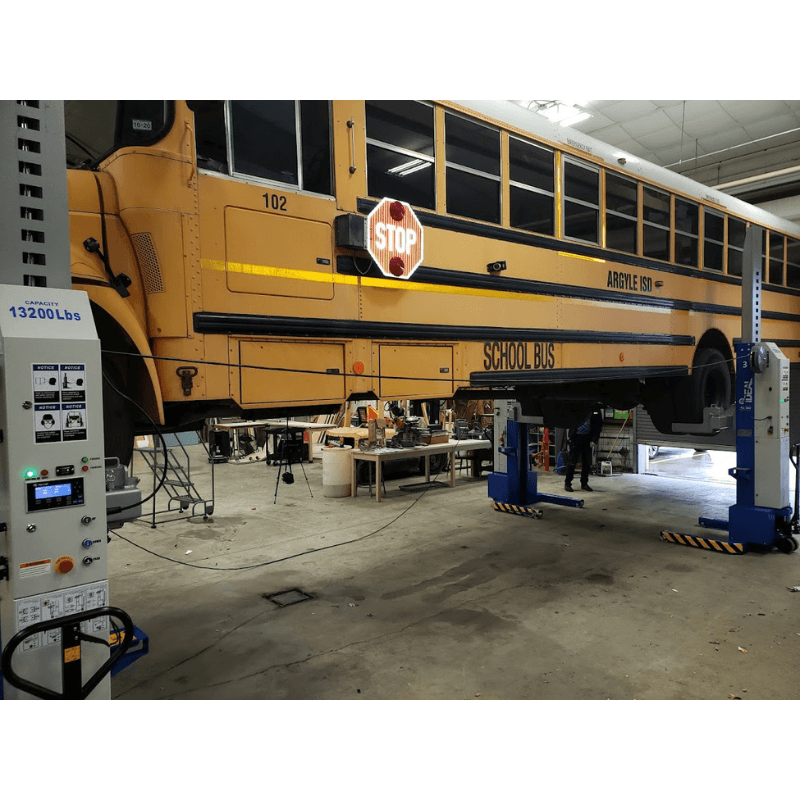

MSC-13K-B-452 Mobile Column Lift by iDeal
The MSC-13K-B series offers a versatile solution for heavy-duty lifting needs, available in three lift models - 26,000 lbs, 52,000 lbs, and 78,000 lbs capacities, catering to various lifting requirements. With column configurations ranging from 2 to 6 columns, it ensures flexibility in setup and operation. Equipped with a heavy-duty hydraulic system, Siemens PLC, and Electro-Optical encoder, these lifts ensure continuous synchronization across all columns, guaranteeing smooth and safe lifting operations. The adjustable lifting forks, coupled with large carriage bearings, allow for easy accommodation of a wide range of wheels and swift, durable lifting. Additionally, the LCD screen with keyboard interface provides clear visuals of settings and lifting heights, enhancing operational ease.
Safety and convenience are paramount in the design of the MSC-13K-B series. Each column features an independent mechanical locking system and an emergency switch, ensuring the highest level of safety assurance during operation. The easy-to-use master controller facilitates both individual and paired synchronized operations, while the pallet jack-style wheel ensures effortless positioning. With noise levels kept at 70 dB(A), these lifts are suitable for indoor use. Moreover, the inclusion of an AC power input and a DC power output per column, along with compatibility with 12VDC sealed deep cycle batteries, ensures operational flexibility and reliability in various settings.
Mobile Column Lift MSC-13K-B-452 Specifications:
- Lift Models: MSC-13K-B-226, MSC-13K-B-452, MSC-13K-B-678
- Column Configurations: 2 Column, 4 Column, 6 Column
- Capacity: 26,000 lbs, 52,000 lbs, 78,000 lbs
- AC Power (Input, Per Column): 100-140VAC, 60Hz, 1 PH
- DC Power (Output, Per Column): 24VDC
- Lifting Height: 67.1″
- Column Heights – Min/Max: Min. 88.6″ / Max 155.5″
- Overall Width: 44.1″
- Fork Adjustable Range: 6.3″ – 22″
- Fork Length: 14″
- Fork to Column Clearance: 9.3″
- Rise Time: 75S
- Descent Time: 60S
- Maximum Distance between Columns: 32.8′
- Minimum Concrete Surface Strength: 3000 PSI
- Noise Level: 70 dB(A)
- Set-Up / Operation: Indoors
- Battery Type (Not included): 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105)
- Ship Weight: 1,210 lbs per Column
MSC-13K-B-452 52,000 lbs. Mobile Column Lift Special Features:

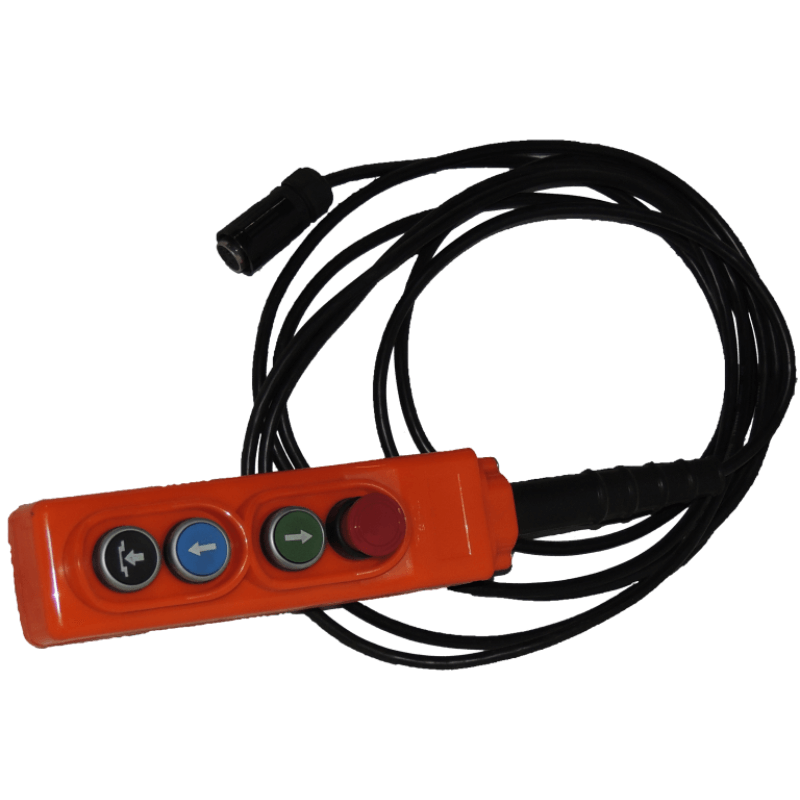

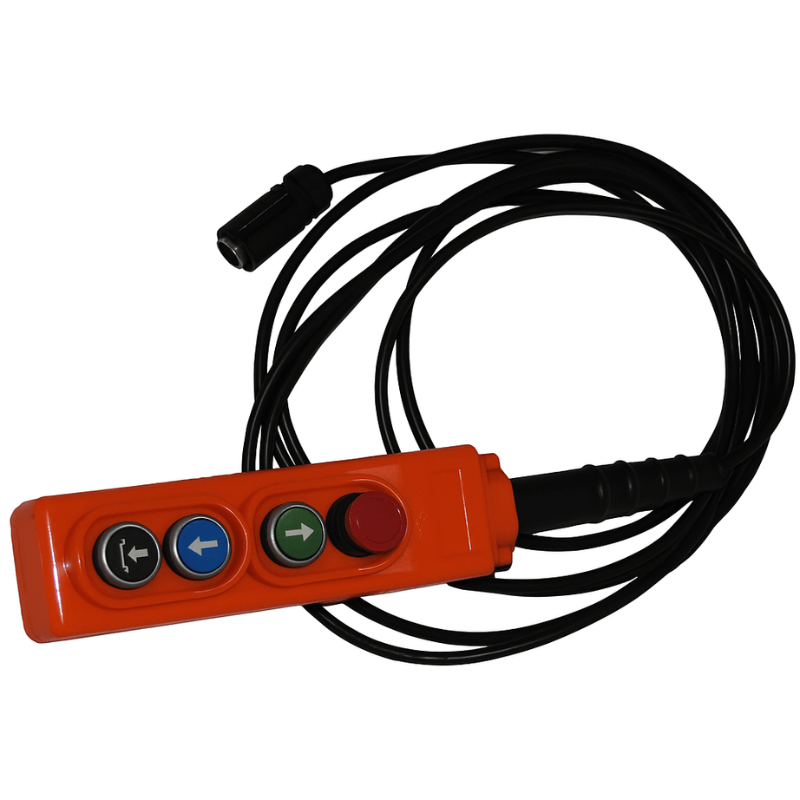

- Easy to use master controller for individual or paired synchronized operation
- Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns

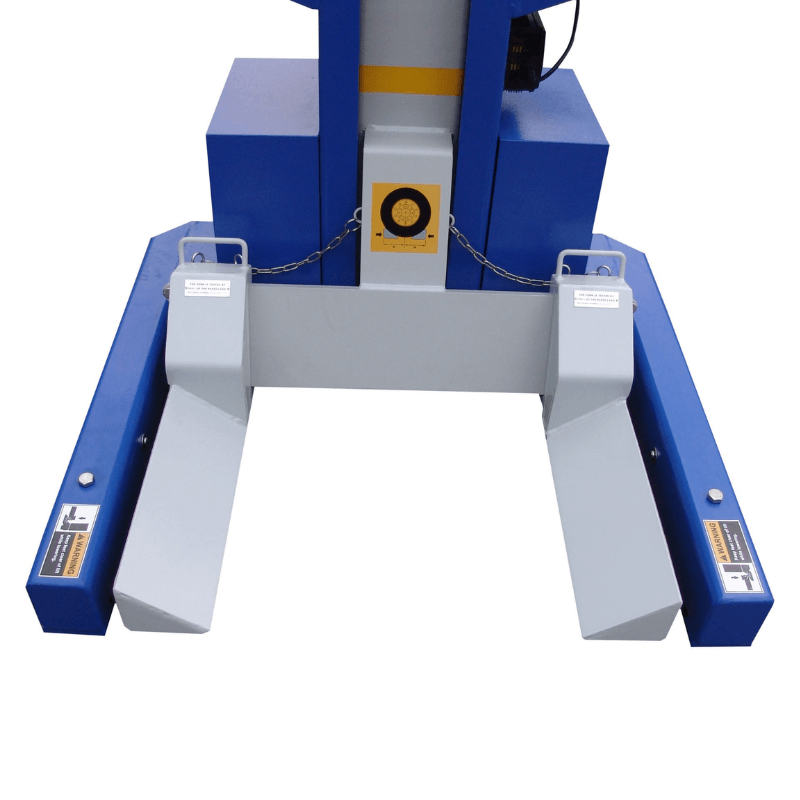

- Adjustable lifting forks accommodate the widest range of wheels
- Easily positioned with pallet jack style wheel
- Heavy-duty hydraulic system
- Large carriage bearings provide durable, fast and easy lifting

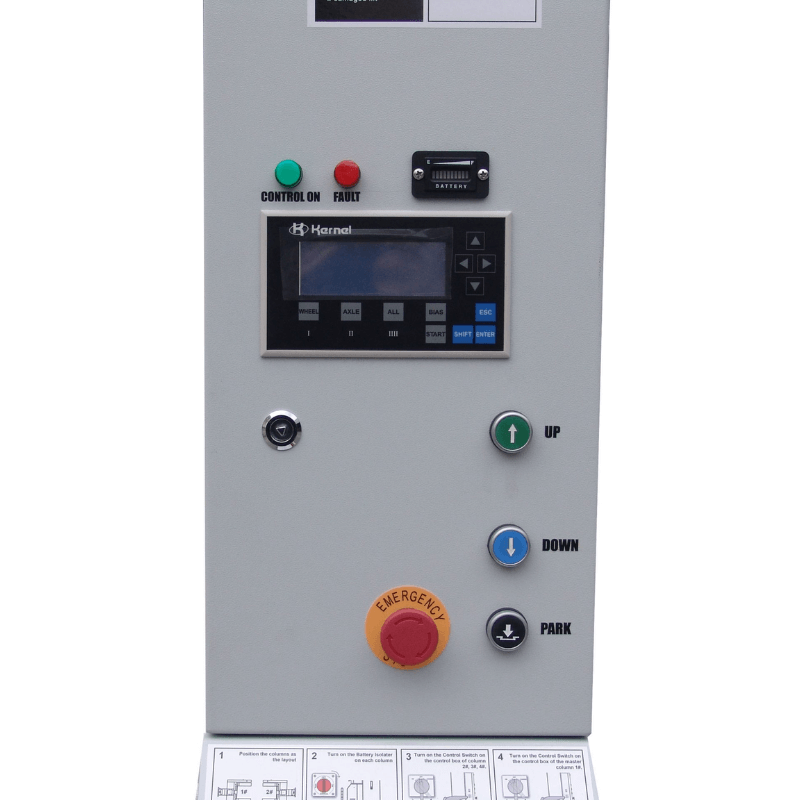

- LCD screen with keyboard offers easy to read visuals of settings and lifting height
- Independent mechanical locking system
- Emergency switch on each column provide highest safety assurance
- Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
- iDeal Warranty:
One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment
iDeal MSC-13K-B-452 Documentation:
iDeal MSC-13K-B-452 Mobile Column Lift Product Manual
