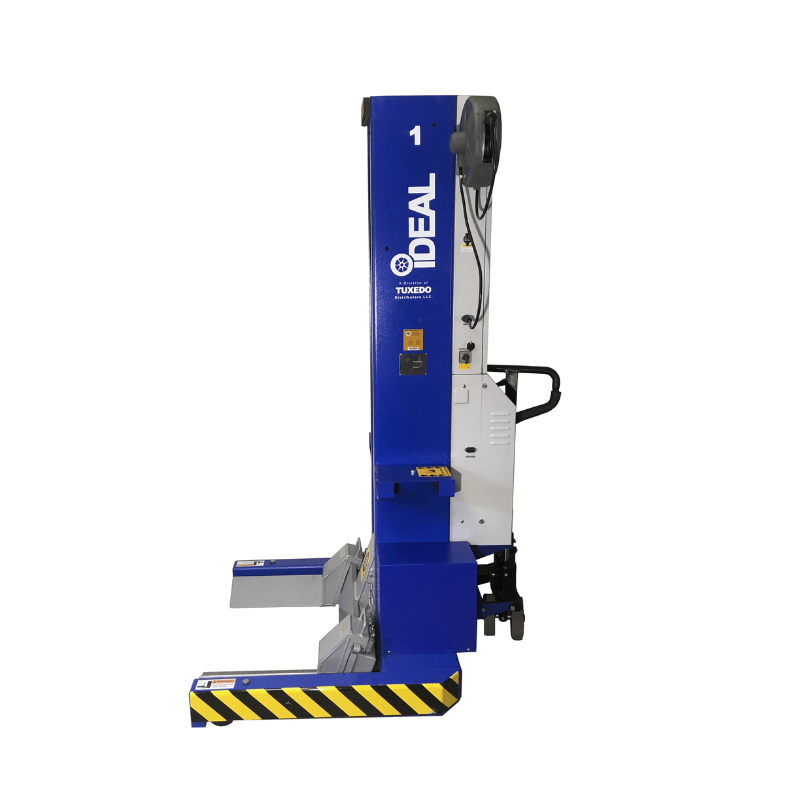

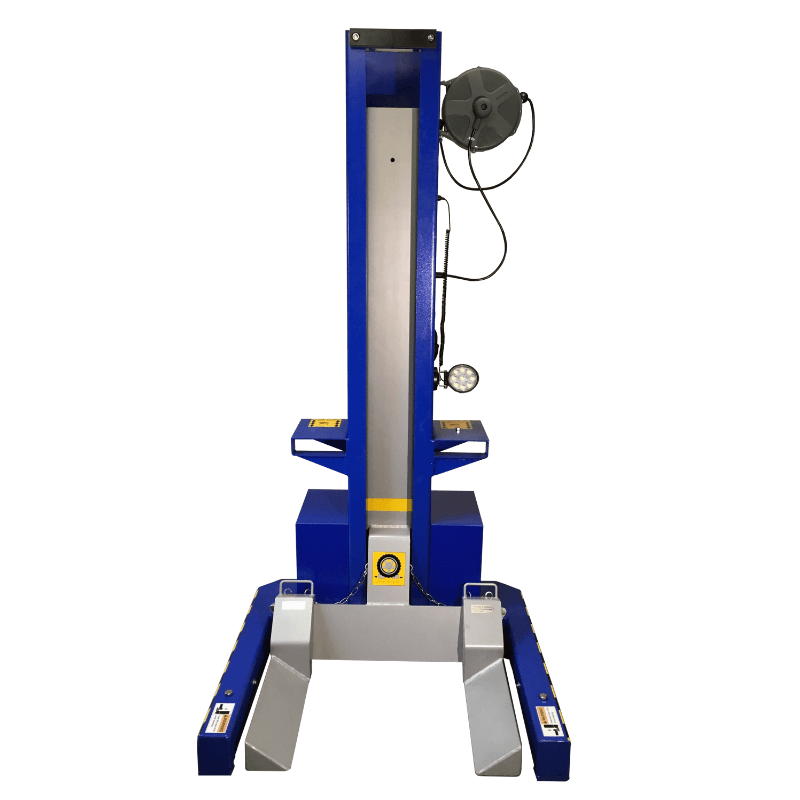

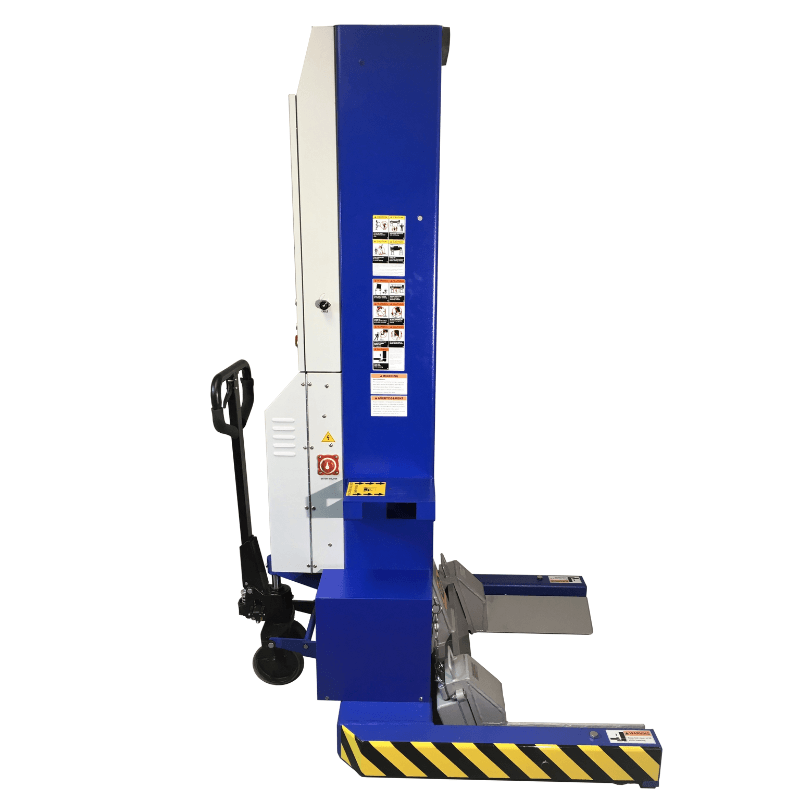

MSC-18K-X-472 Mobile Column Lift by iDeal
Introducing the MSC-18K-X series, a versatile lineup of lifting solutions tailored to your specific needs. Available in 2-column, 4-column, and 6-column configurations, these robust lifts offer impressive capacities ranging from 36,000 lbs. to 108,000 lbs., ensuring reliable support for a variety of vehicles. Designed for indoor use, these lifts operate on a 100-140VAC, 60HX single-phase charging voltage, providing convenient setup and operation in any workspace.
Equipped with an array of special features, the MSC-18K-X series stands out as a pinnacle of efficiency and safety. With a 24VDC battery operation and onboard charging system, these lifts offer flexibility and ease of use. The U-shape wiring configuration enables swift vehicle entry and exit, while the independent mechanical locking system and emergency switches on each column ensure the highest level of safety. Thanks to the PLC and optical encoder synchronization, coupled with adjustable lifting forks and a user-friendly master control panel, achieving precise and synchronized lifting has never been easier. Additionally, the new LED light with a magnetic base enhances visibility and efficiency, making the MSC-18K-X series the ultimate lifting solution for your workspace.
Mobile Column Lift MSC-18K-X-472 Specifications:
- MSC-18K-X-236, MSC-18K-X-472, MSC-18K-X-6108

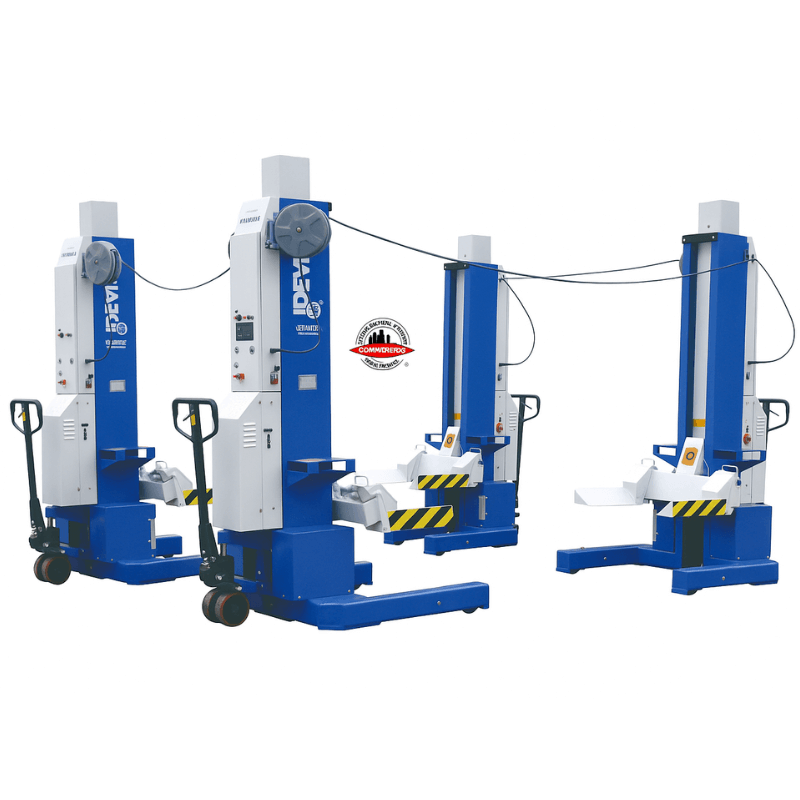

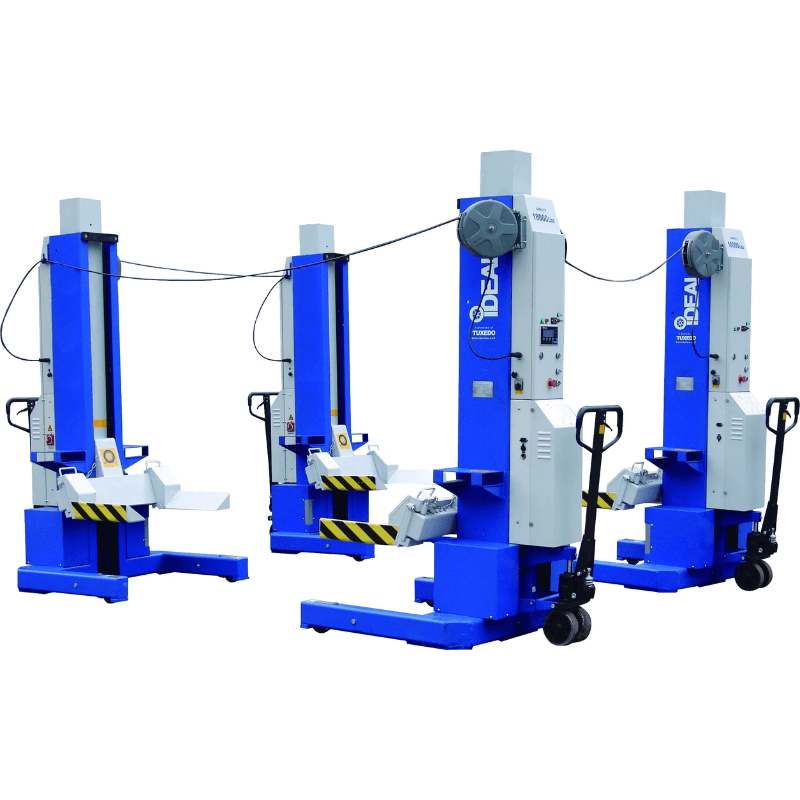

- Column Configurations: 2 Column, 4 Column, 6 Column
- Capacity: 36,000 lbs., 72,000 lbs., 108,000 lbs.
- Charging Voltage: 100-140VAC, 60HX, Single Phase
- Lifting Height: 67.1″
- Column Heights – Min/Max: Min. 88.6″ / Max 155.5″
- Column Width: 44.1″
- Fork Adjustable Range: 12.6″ – 22″
- Fork Length: 17.9″
- Fork to Column Clearance: 10″
- Rise Time: 100 Seconds
- Max Distance between Columns: 32.8′
- Min. Concrete Surface Strength: 3,000PSI
- Set-Up / Operation: Indoors
- Battery Type (Recommended): 12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 – not included
- Batteries Not Included
- Weight: 6600 lbs
- Pallet Dimensions: 92" 96" 90"
MSC-18K-X-472 72,000 lbs. Mobile Column Lift Special Features:
- ALI Certified
- 24VDC Battery Operation with Onboard Charging System
- Communication Cable with Retractable Cable Reels
- U-Shape Wiring Configuration for quick vehicle entry & exiting
- Convenient Operation from any Column
- Independent Mechanical Locking System
- PLC & Optical Encoder provides continuous synchronization for Columns
- Easily positioned with Pallet Jack type device with Poly Caster Wheels
- Adjustable Lifting Forks for the widest range of Wheel Diameters
- Emergency Switch per each Column, provides the highest safety assurance
- Easy to use Master Control Panel for Individual or Paired Synchronized Operation
- CD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
- Conveniently stored out of the way when not in use to maximize work space
- Available in Two, Four or Six Column Configurations

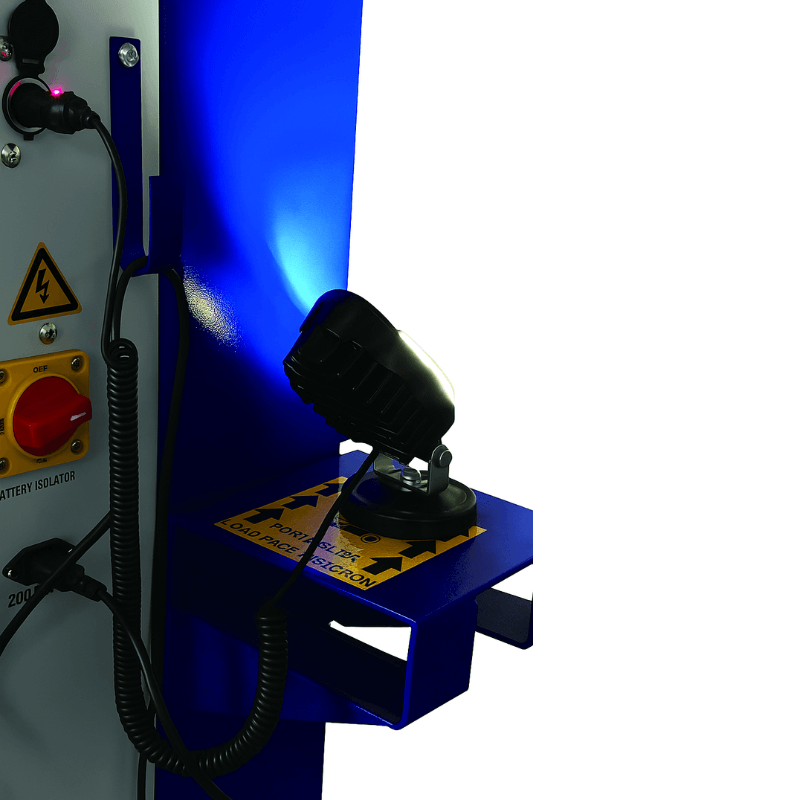

- New! LED Light with Magnetic Base!!
- Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
- iDeal Warranty:
One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment
