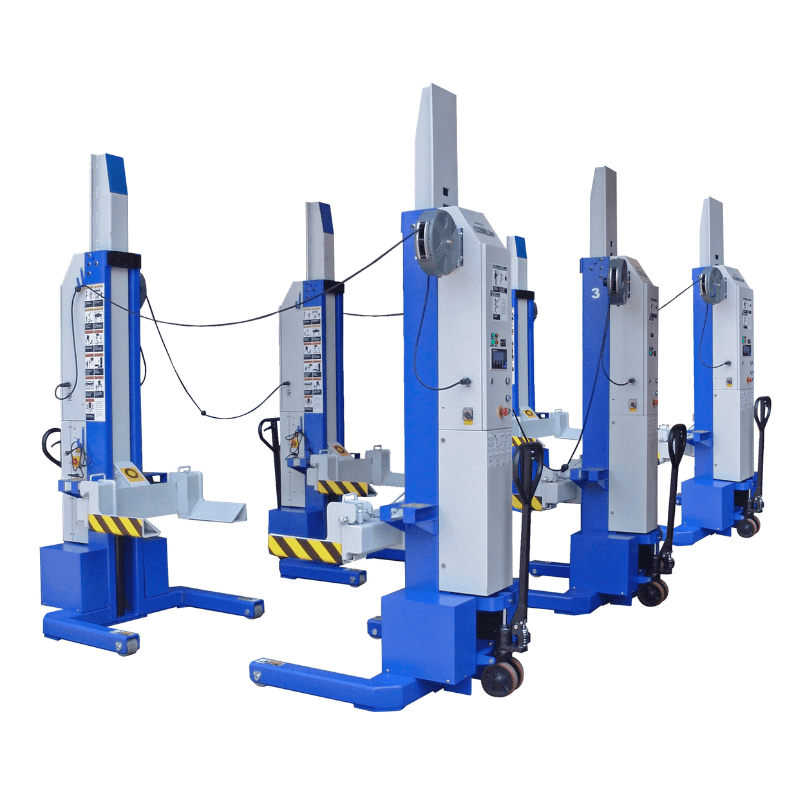

iDEAL Mobile Column Lift, MSC-18K-X-6108, Six Column Set, 108,000 lbs.

MSC-18K-X-6108 Mobile Column Lift by iDeal

Introducing the MSC-18K-X series, a versatile solution for your lifting needs, available in three robust configurations: 2 Column, 4 Column, and 6 Column. With impressive capacities ranging from 36,000 to 108,000 lbs., these lifts are engineered for efficiency and reliability. Equipped with a 24VDC Battery Operation featuring an onboard charging system, coupled with a communication cable featuring retractable cable reels, these lifts offer seamless operation and mobility. The U-Shape Wiring Configuration ensures swift vehicle entry and exiting, while the independent mechanical locking system and emergency switches per column prioritize safety in every operation. Whether indoors or outdoors, these lifts provide unmatched convenience and precision, thanks to their PLC & Optical Encoder synchronization and easily accessible master control panel for individual or synchronized operation.

Experience unparalleled versatility with the MSC-18K-X series. Engineered for optimal performance, these lifts boast adjustable lifting forks, accommodating the widest range of wheel diameters, and a rise time of just 100 seconds. The LCD screen with keypad interface ensures easy access to settings, while the addition of LED lights with a magnetic base enhances visibility and safety in any workspace. Designed for seamless integration into your workflow, these lifts can be easily positioned with a pallet jack type device, featuring poly caster wheels for effortless maneuverability. When not in use, they can be conveniently stored to maximize workspace efficiency. Whether you opt for the two, four, or six column configuration, the MSC-18K-X series offers unmatched reliability, safety, and convenience for all your lifting requirements.

Mobile Column Lift MSC-18K-X-6108 Specifications:

• MSC-18K-X-236, MSC-18K-X-472, MSC-18K-X-6108
• Column Configurations: 2 Column, 4 Column, 6 Column
• Capacity: 36,000 lbs., 72,000 lbs., 108,000 lbs.
• Charging Voltage: 100-140VAC, 60HX, Single Phase
• Lifting Height: 67.1″
• Column Heights – Min/Max: Min. 88.6″ / Max 155.5″
• Column Width: 44.1″
• Fork Adjustable Range: 12.6″ – 22″
• Fork Length: 17.9″
• Fork to Column Clearance: 10″
• Rise Time: 100 Seconds
• Max Distance between Columns: 32.8′
• Min. Concrete Surface Strength: 3,000PSI
• Set-Up / Operation: Indoors
• Battery Type (Recommended): 12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 – not included
• Batteries Not Included

MSC-18K-X-6108 108,000 lbs. Mobile Column Lift Special Features:

• 24VDC Battery Operation with Onboard Charging System
• Communication Cable with Retractable Cable Reels
• U-Shape Wiring Configuration for quick vehicle entry & exiting
• Convenient Operation from any Column
• Independent Mechanical Locking System
• PLC & Optical Encoder provides continuous synchronization for Columns
• Easily positioned with Pallet Jack type device with Poly Caster Wheels

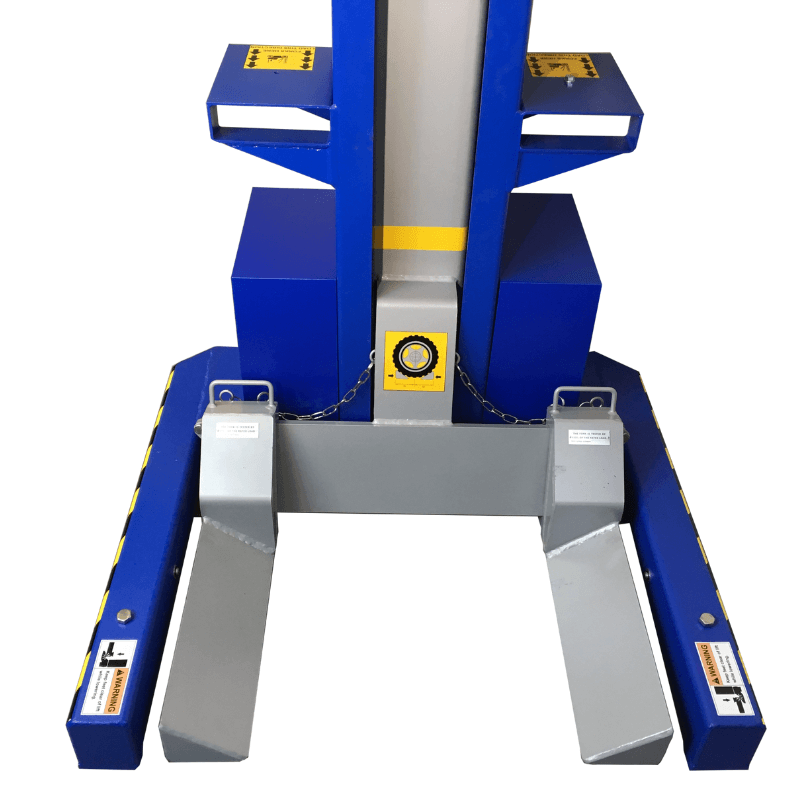

• Adjustable Lifting Forks for the widest range of Wheel Diameters
• Emergency Switch per each Column, provides the highest safety assurance
• Easy to use Master Control Panel for Individual or Paired Synchronized Operation
• LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
• Conveniently stored out of the way when not in use to maximize work space
• Available in Two, Four or Six Column Configurations

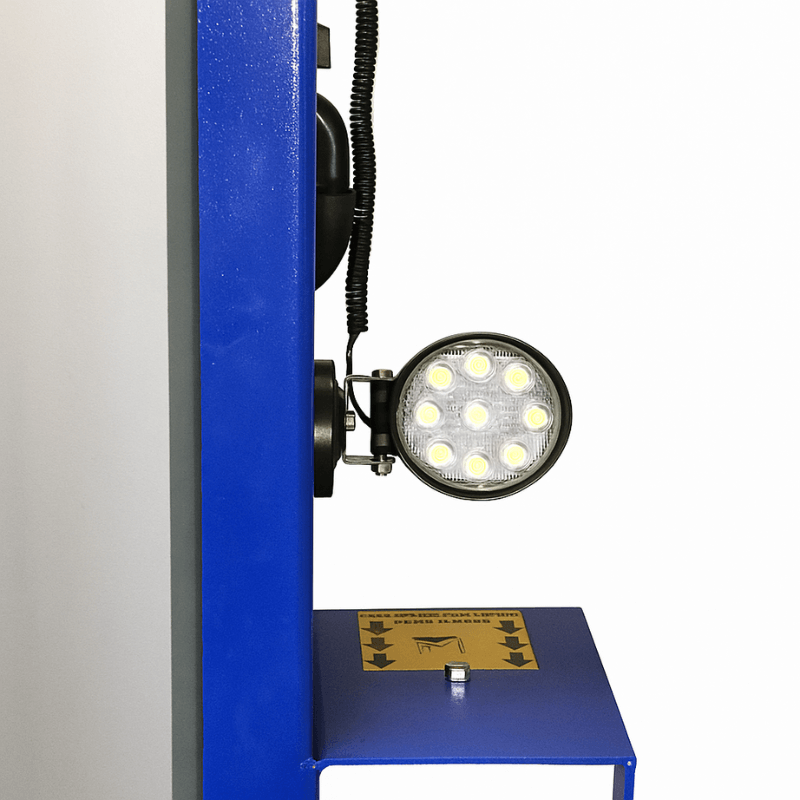

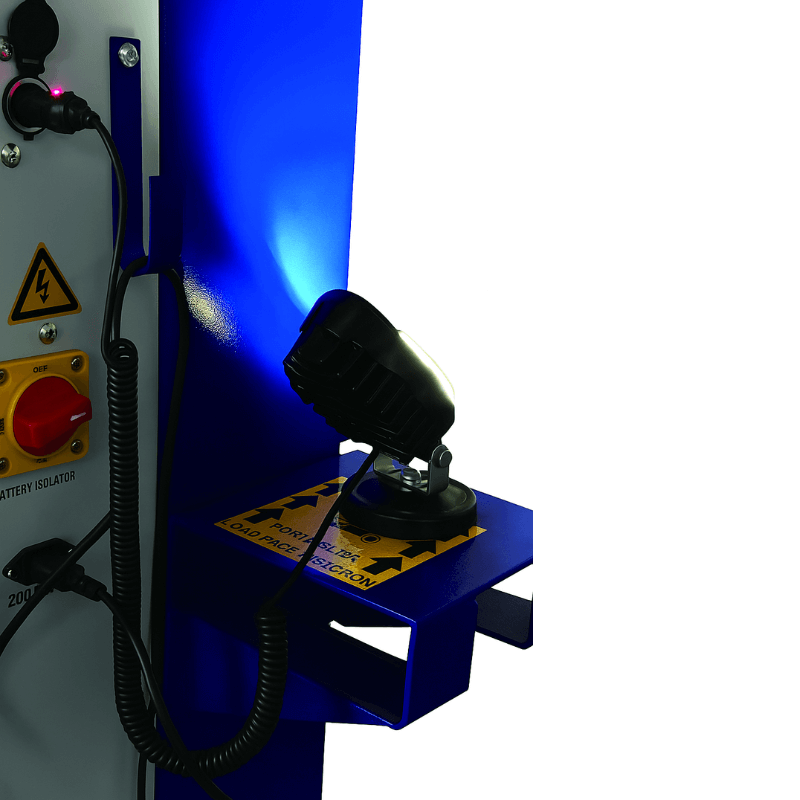

• New! LED Light with Magnetic Base!
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
• iDeal Warranty:
  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment

iDeal MSC-18K-X-6108 Documentation:

   iDeal MSC-18K-X-6108 Mobile Column Lift Product Manual
