iDeal PSB-PMR1088-AK Paint Mixing Room

PSB-PMR1088-AK Paint Mixing Room by IDeal

The IDeal PSB-PMR1088-AK Paint Mixing Room is a commercial-grade solution designed to optimize air flow and lighting coverage for professional paint mixing operations. Featuring a DELUXE CONTROL PANEL and a bright white powder coat finish inside and out, this room offers both durability and aesthetic appeal. The construction includes heavy-duty, precision-punched 18 gauge panels, and the room can be assembled with convenient 5/16” bolts and serrated lock nuts. Optional door placements on the side or front add to its versatility, and the pre-hung 36” personnel door with a viewing window ensures easy access. The UL Listed Dayton 12” tube-axial exhaust fan with spark-resistant blades, coupled with a NEMA rated 1/2HP-3 Phase motor, provides robust and reliable ventilation.

Inside, the paint mixing room is equipped with premium AFC intake and exhaust filters and LDPI industrial light fixtures that feature inside access hinged glass doors. These fixtures include two UL and ETL certified lights, delivering true daylight color with GE T8 fluorescent lamps. The optimal airflow of 1,429 CFM at 0.5 static pressure ensures a safe and efficient environment, meeting all applicable OSHA and NFPA 33 regulations. Measuring 10 feet in length, 8 feet in width, and 8 feet in height, the room includes all necessary assembly hardware, a manometer, and sealant. Its user-friendly design makes it easy to install, operate, and maintain, providing an ideal solution for paint mixing needs.

PSB-PMR1088-AK Mixing Room Specification

• Paint Booth Model: PSB-PMR1088-AK
• Inside Dimensions: 10’L X 8’W X 8’H or 8’L X 10’W X 8’H
• Outside Dimensions: 12′-6″L X 8’-4″W X 9’-4″H or 8’-4”L X 12’-6”W X 9’-4”H
• Fan / Motor:
  • (1ea) – 12" Tube Axial Fan
  • 1/2 HP-3PH-208-230/460VAC-60HZ
  • Non-Spark, UL Listed, NEMA Rated
• CFM: 1,429 @ .5 Static Pressure
• Light Fixtures: (2ea) 48” 32W, T8 / 4 Bulb Light Fixtures, UL & ETL Listed Cls1, Div2 – Groups A, B, C & D
• Lamps: (8ea) T8 Fluorescent, 32W, 5000K – 48”L
• Options:
  • Single Phase Electrical Configuration
  • 8′ Exhaust Duct Kit (13″ Diameter)

Mixing Room PSB-PMR1088 Special Features

• TYPICALLY SHIPs WITHIN 48 HOURS!
• Commercial grade design for optimal air flow & lighting coverage
• DELUXE CONTROL PANEL included
• Bright White Powder Coat panel Finish – (inside & outside)
• Optional door placement to side or front of room
• ‘Pre-Hung’ 36”W PERSONNEL DOOR W/ VIEWING WINDOW
• Heavy duty precision punched 18 Gauge panel construction
• Convenient 5/16” bolt & serrated lock nut ASSEMBLY
• UL Listed Dayton 12” tube-axial exhaust fan w/ spark resistant fan blades
• NEMA rated 1/2HP-3 Phase – 230/460VAC-60Hz motor standard
• Premium AFC intake & exhaust filters
• LDPI Industrial Light Fixtures w/ Inside Access Hinged Glass Door
• (2ea) LDPI Industrial (Cls1 / Div 2) Light fixtures – UL & ETL (GROUPS A, B, C & D.)
• True ‘daylight color’ w/ GE t8 48” florescent lamps 32W – 2900 lumens, 5000K

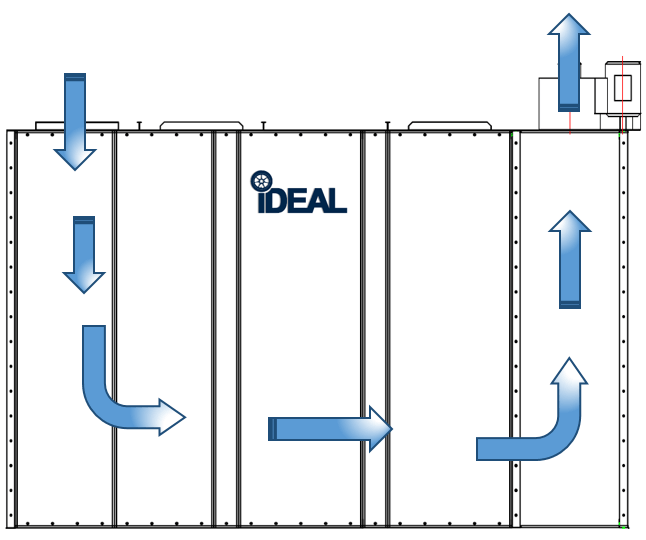

• Optimal air flow w/ CFM 1,429 @ .5 static pressure
• Inside Dimensions: 10″ L X 8′ W X 8″ H
• All assembly HARDWARE, MANOMETER & SEALANT included
• Meets and/or exceeds all applicable OSHA & NFPA 33 regulations
• Easy to install, operate & maintain

IDeal PSB-PMR1088-AK Documentation

   IDeal PSB-PMR1088-AK Mixing Room Product Manual

   IDeal PSB-PMR1088-AK Mixing Room Installation Instruction
