iDeal PSB-SEMIDD26-ASY-AK Semi Downdraft Paint Booth

SKU PSB-SEMIDD26B-1PH-230V-AK
by iDeal
  • Ask about the January Paint Booth Sale!
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
$21,399.00
Free Warehouse Pickup Locations*
*Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
Power

Notify me when back in stock

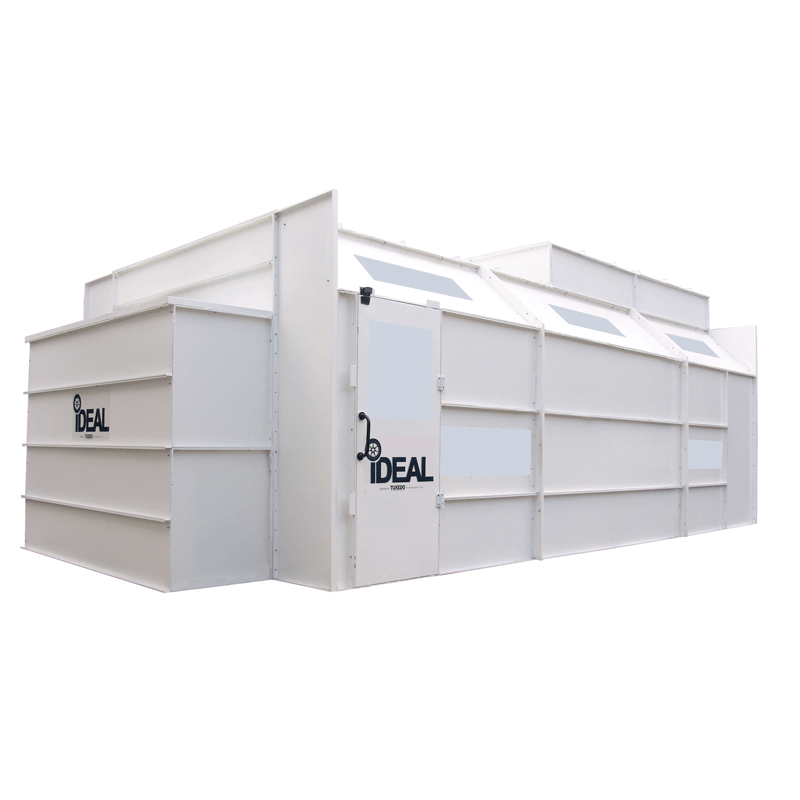

PSB-SEMIDD26B-ASY-AK Semi Downdraft Paint Booth by iDeal

Overspray, inconsistent paint jobs, and employee discomfort are just some of the headaches associated with a subpar spray booth. These issues not only waste time and money but also create a safety hazard. It's time to stop making excuses and invest in a solution that will elevate your painting process.

The PSB-SEMIDD26B-AK Paint Spray Booth is the answer to your industrial painting challenges. Its 26' x 14' x 9'3" dimensions, coupled with a powerful UL-listed 30-inch tube-axial exhaust fan and premium AFC filtration system, create a safe and efficient workspace. The booth's heavy-duty construction, bright white interior, and deluxe control panel ensure durability and ease of use. With ten T-8 light fixtures, you'll enjoy optimal lighting conditions for precise color matching. You’ll be the next Picasso - but for cars.

Semi Downdraft Paint Booth PSB-SEMIDD26B-ASY-AK Specifications:

  • Paint Booth Model: PSB-SEMIDD26B-AK
  • Inside Dimensions: 26’L X 14’W X 9′-3″H
  • Outside Dimensions: 29′-4″L X 14′-4″W X 9′-7″H
  • Fan / Motor
    • 30″ Tube Axial Fan
    • 3HP-3PH-230/460VAC-60HZ
    • Non-Spark, NEMA Rated
    • CFM: 12,200 @ .5 Static Pressure
  • Lighting: 10 Each T-8 / 4 Bulb Light Fixtures
  • Options
    • Single Phase Electrical Configuration
    • Canopy / Plenum Required for Booth Heater
    • 9′ Exhaust Extension Kit – 3 Pieces (25″ Diameter)
    • Side Personnel Door Kit
    • 48″ Solid Extension Kit
    • Gas Fired Booth Heater 3 Phase (Plenum Req.)
    • Gas Fired Booth Heater 1 Phase (Plenum Req.)
    • Electric Booth Heater 3 Phase
    • Electric Booth Heater 1 Phase
  • Weight: 4675 Lbs
  • Pallet Dimensions: 121"L 64"W 91"H

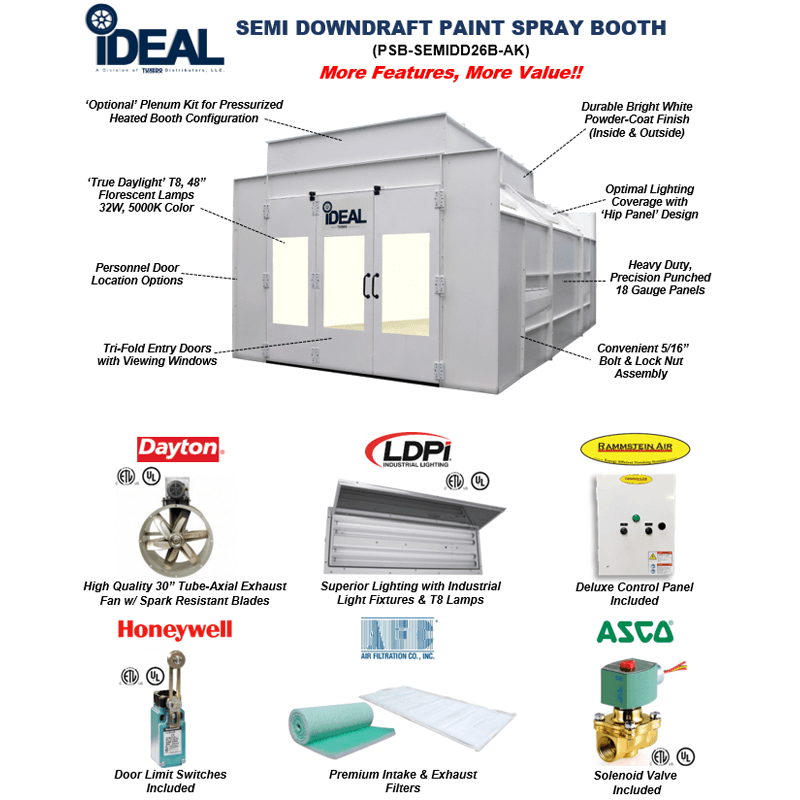

PSB-SEMIDD26B-ASY-AK Semi Downdraft Paint Booth Special Features:

  • Typically ships within 48 hours!
  • Heavy duty precision punched 18 Gauge panel construction
  • Optimal air flow w/ CFM 12,200 @ .5 static pressure
  • Commercial grade ‘hip panel’ design for optimal lighting coverage
  • Inside Dimensions: 26′ L X 14′ W X 9′ 3″ H
  • Convenient 5/16” bolt & nut assembly

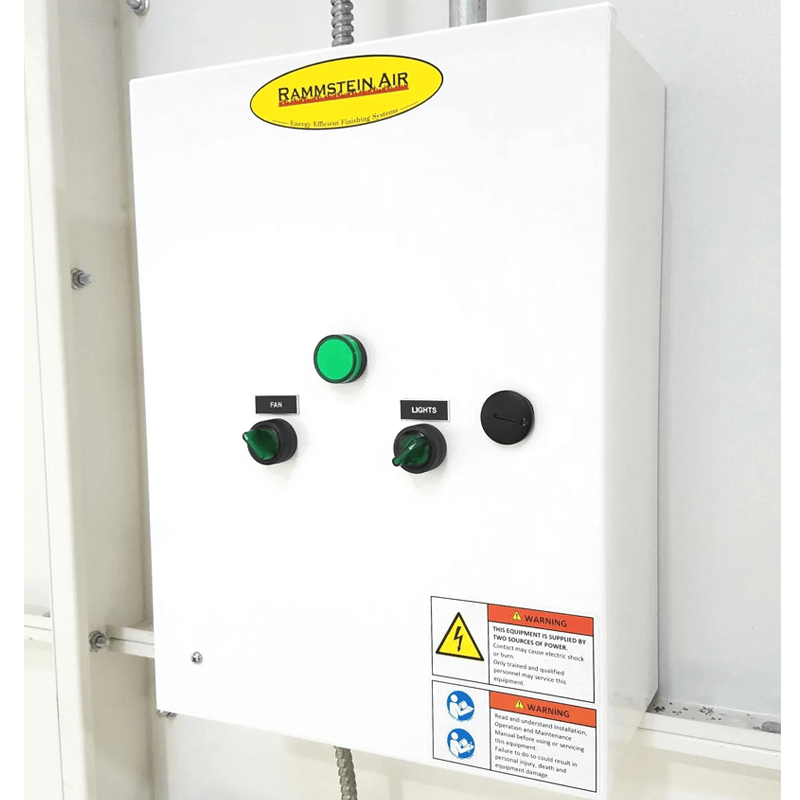

  • Deluxe Control Panel included
  • Bright White Powder Coat panel Finish – (inside & outside)
  • Manometer, Solenoid Valve, Hardware & Sealant Included
  • UL Listed Dayton 30” tube-axial exhaust fan w/ spark resistant fan blades
  • NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard
  • Premium AFC intake & exhaust filters
  • (10ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
  • (40ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length

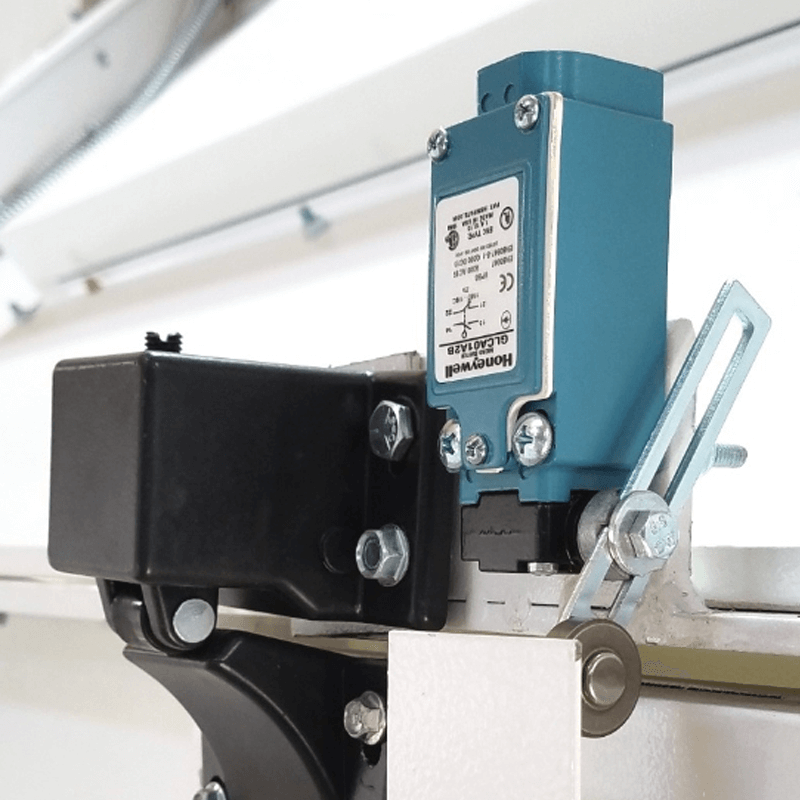

  • Tri-fold entry Doors w/ viewing windows & shutoff switch
  • Personnel Door w/ viewing window & shutoff switch
  • Meets NFPA 33 standards
  • Optional: 1PH electrical, plenum kit, Personnel door kit & booth extension kit

iDeal PSB-SEMIDD26B-ASY-AK Documentation:

Paint Spray Booth PSB-SEMIDD26B-AK Product Manual   Ideal PSB-SEMIDD26B-AK Paint Spray Booth Product Manual



This Item has a FLAT RATE SHIPPING FEE: $1999*

*Based on Nationwide Averages - Contact Us to see if we can ship for less.

  • Alvarado, TX 76009
iDeal PSB-SEMIDD26B-ASY-AK Diagram
