RS-3001-EHS-30KW Electric AMU Heating System

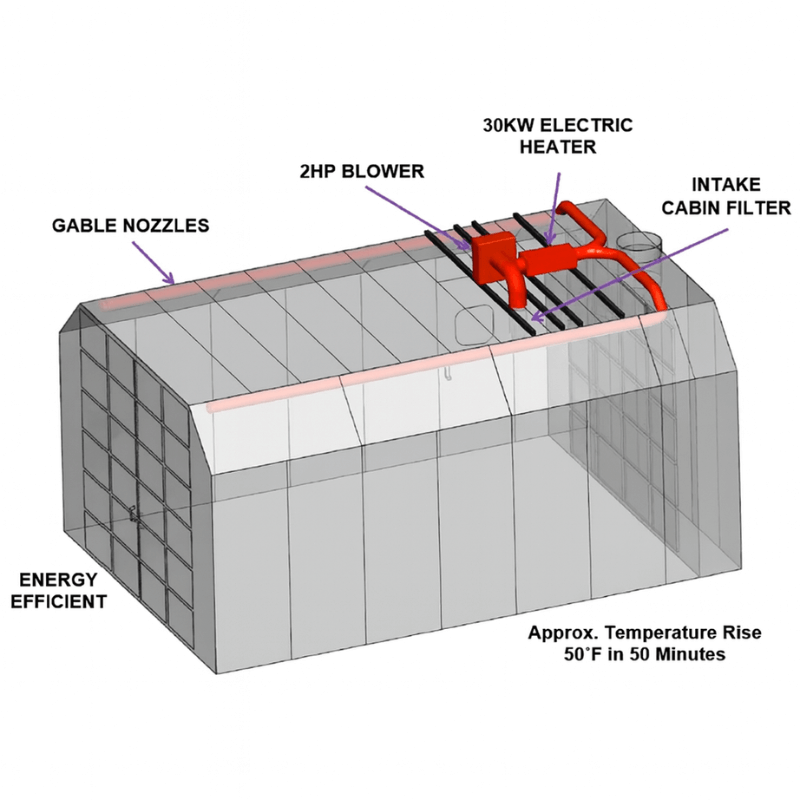

The RS-3001-EHS-30KW Electric AMU Heating System by CPI/Rammstein Air is a high-performance solution tailored for paint booth heating applications. Designed with a vertical or side discharge configuration and finished with a durable white powder coat, this heating system ensures both versatility and longevity. It features a 30KW heating element powered by a 208VAC or 230VAC 3-phase connection, capable of achieving a temperature rise of approximately 30°F in just 10 minutes and 50°F in 50 minutes. The integrated ETL-listed control panel simplifies operation with real-time system messages, cycle time, and elapsed time displays, while interlock status indicator lights enhance safety monitoring during use.

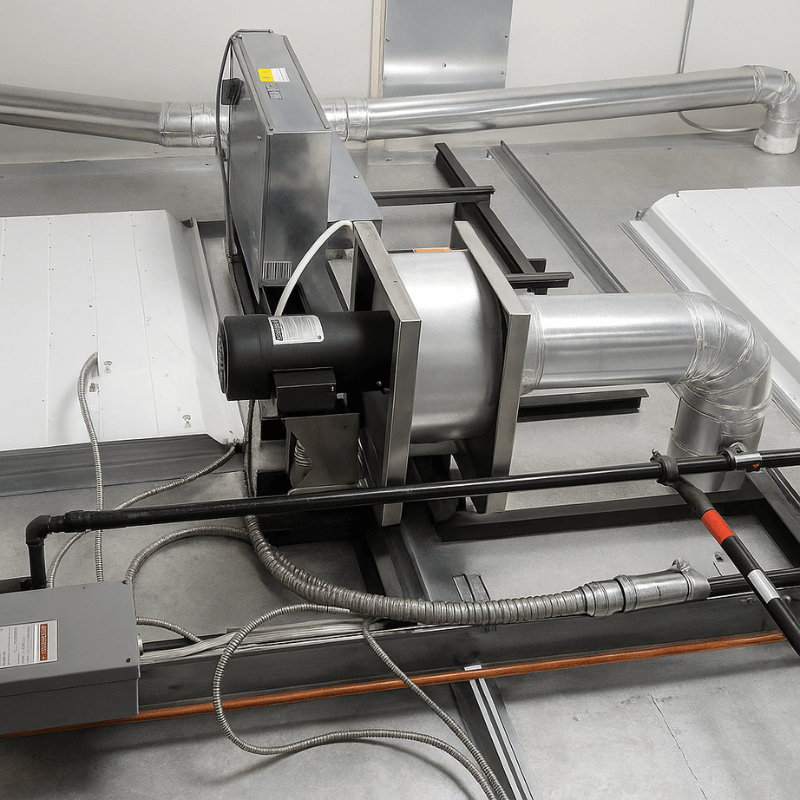

Engineered for compatibility with cross flow, side down, and semi down draft paint booths, the RS-3001-EHS-30KW offers easy installation with its single-point connection and 30-foot umbilical cord. A 2HP blower motor ensures efficient airflow, while the truly variable airflow feature allows precise adjustments for optimal performance. With its exhaust VFD pre-fused and wired, hour meter for usage tracking, and fluid control interface, this system is designed for both reliability and user convenience. Weighing just 560 lbs., the RS-3001-EHS-30KW provides a compact yet powerful heating solution to meet the demands of industrial paint booth environments.

RS-3001-EHS-30KW Electric AMU Heating System Specification

  • Model: RS-3001-EHS-30KW

  • Fuel Type: Electric

  • Heating Element: 30KW / 208VAC or 230VAC / 3-Phase / 85A

  • Blower Motor: 2HP / 208VAC or 230VAC / 3-Phase / 6.3A

  • BTUH: Not Applicable

  • Gas Train: Not Applicable

  • Airflow Capacity (CFM): Not Applicable

  • Temperature Rise: Approx. 30°F in 10 minutes / 50°F in 50 minutes

  • Ship Weight: 560 lbs

  • Compatible Booth Models: Cross Flow, Side Down & Semi Down Draft

Electric AMU Heating System RS-3001-EHS-30KW Special Features

  • Vertical/Side Discharge configuration for flexible installation.

  • Durable white powder coat finish ensures long-lasting performance.

  • ETL Listed Control Panel for safety and compliance.

  • Single-point connection for simplified setup and integration.

  • Exhaust VFD fused and wired for efficient airflow management.

  • Hour meter tracks system usage and maintenance intervals.

  • Control panel displays real-time messages, cycle time, and elapsed time.

  • Truly variable airflow allows precise adjustment for optimal performance.

  • Interlock status indicator lights enhance operational safety.

  • 30-foot umbilical cord for ease of installation and mobility.

  • Easy-to-use controls provide straightforward operation and monitoring.

iDeal RS-3001-EHS-30KW Documentation

iDeaL RS-3001-EHS-30KW Manual   IDeaL RS-3001-EHS-30KW Manual
