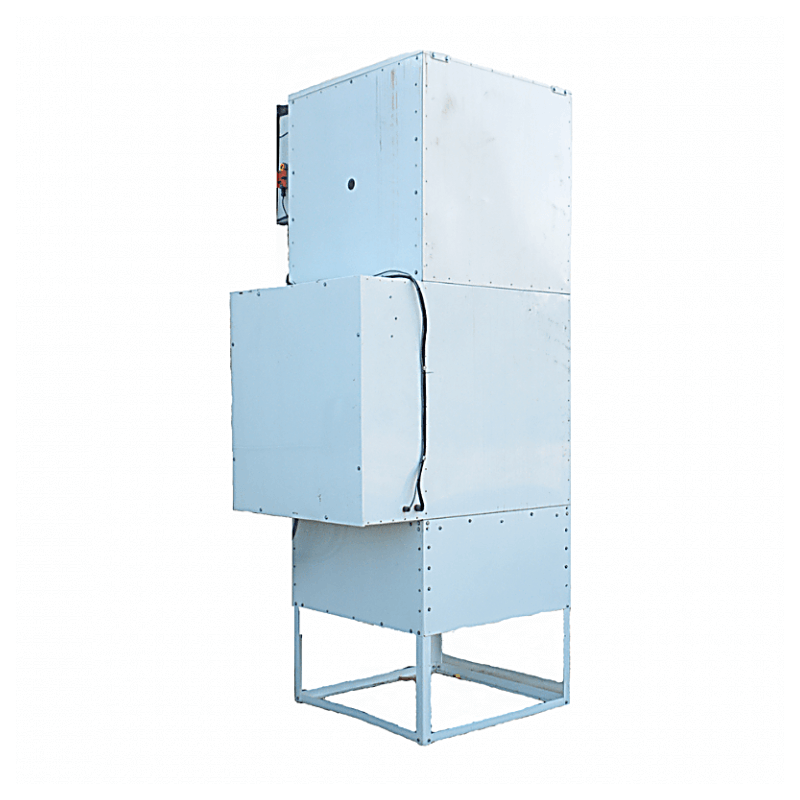

IDEAL Rammstein RS-1001-EHS-30KW Direct Fired AMU Heating System

RS-1001-EHS-30KW Heating System

The RS-1001 Direct Fired AMU Heating System by CPI/Rammstein Air is a reliable, high-performance solution for paint booth heating. Designed with a vertical or side discharge configuration and a durable white powder-coated finish, this system ensures both functionality and longevity. Featuring an ETL-listed control panel, it offers a single-point connection, exhaust VFD fused and wired, and an easy-to-read hour meter. The advanced control panel provides real-time updates, cycle time, elapsed time, and interlock status indicators for seamless operation. With truly variable airflow and a 30-foot umbilical cord, the RS-1001 delivers exceptional performance and ease of use in industrial environments.

Engineered to run on natural gas (NG) or liquid propane (LP) with a heating capacity of 1.2M BTUH, this AMU heater is ideal for applications requiring precise temperature management. It supports up to 13,000 CFM with an intake motor powered by a 230V, 10HP, 3-phase connection. Compatible with side down and semi down draft paint booth models, the RS-1001 is a versatile addition to your setup. With a rugged design, including a triple-phase exhaust VFD motor and interlocked safety features, this system prioritizes both efficiency and user safety. Weighing 1,395 lbs., it is built to meet the demands of heavy-duty operations while complying with all relevant safety standards.

RS-1001-EHS-30KW Heating System Specification

• Fuel Type: Natural Gas (NG) or Liquid Propane (LP)

• Heating Capacity: 1.2M BTUH

• Gas Train Size: 1″

• Airflow Capacity: 13,000 CFM

• Intake Motor: 230V, 10HP, 3-Phase

• Exhaust VFD: 230V, 10HP, 3-Phase

• Blower Motor: N/A

• Heating Element: N/A

• Temperature Rise: N/A

• Ship Weight: 1,395 lbs.

• Compatible Booth Models: Side Down & Semi Down Draft (Plenum/Canopy Required)

Heating System RS-1001-EHS-30KW Special Features

• Vertical/Side Discharge configuration for versatile installation.

• Durable white powder coat finish for longevity.

• ETL Listed Control Panel for safety and compliance.

• Single-point connection for streamlined setup.

• Exhaust VFD fused and wired for efficient operation.

• Hour meter for tracking system runtime.

• Control panel displays cycle time, elapsed time, and system messages.

• Truly variable airflow for precise control.

• Interlock status indicator lights enhance safety monitoring.

• 30-foot umbilical cord for flexible installation.

• Easy-to-use controls for straightforward operation.


iDeal RS-1001-EHS-30KW Manual

  IDEAL Rammstein RS-1001-EHS-30KW Manual

   IDeaL RS-1001-EHS-30KW Brochure
