Ideal TP10KAC-DX 2 Post 10,000 lb Car Lift Clear Floor

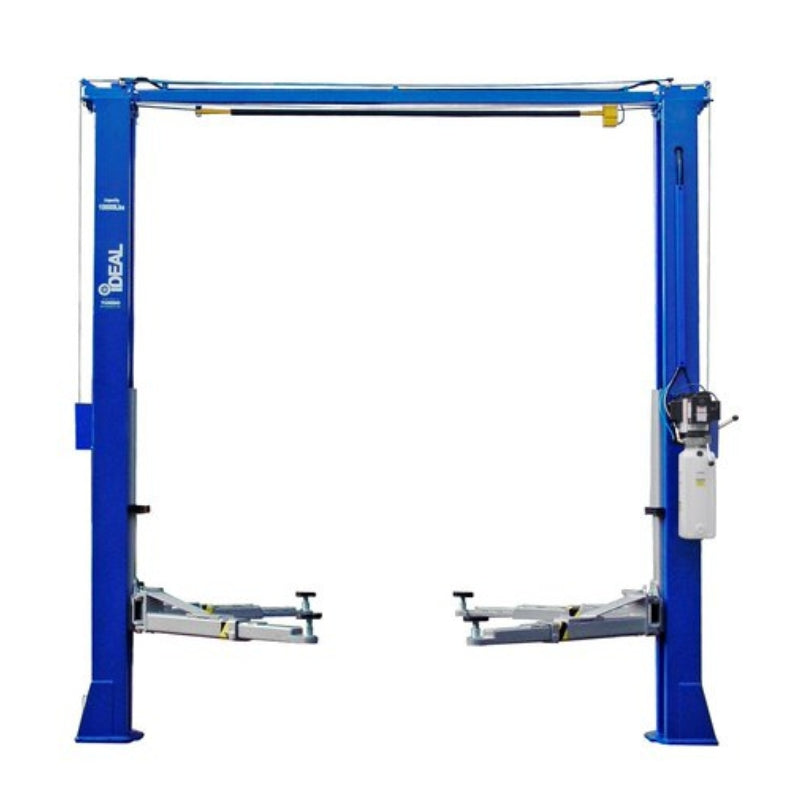

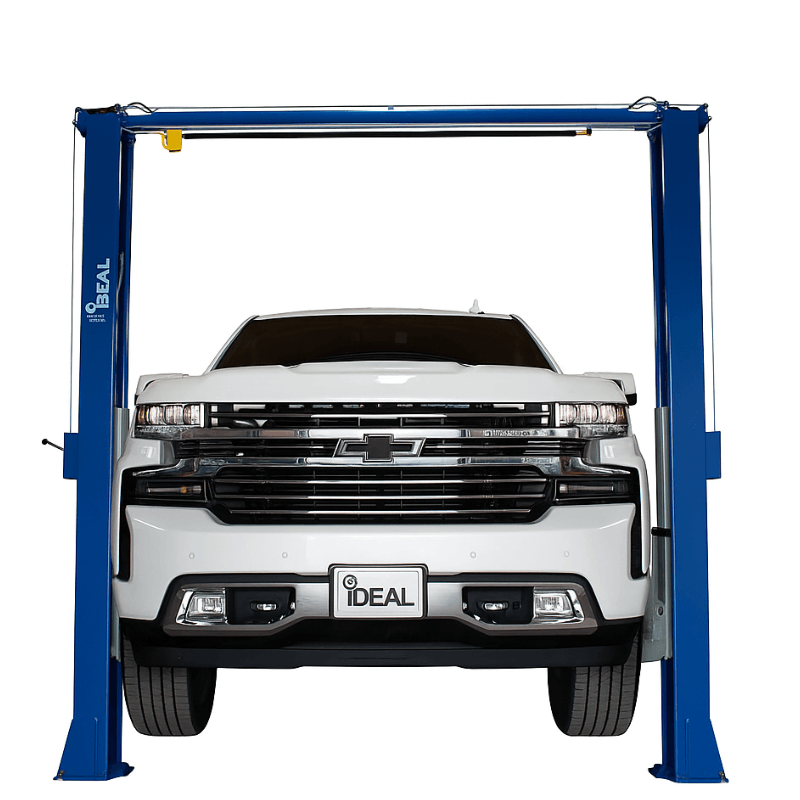

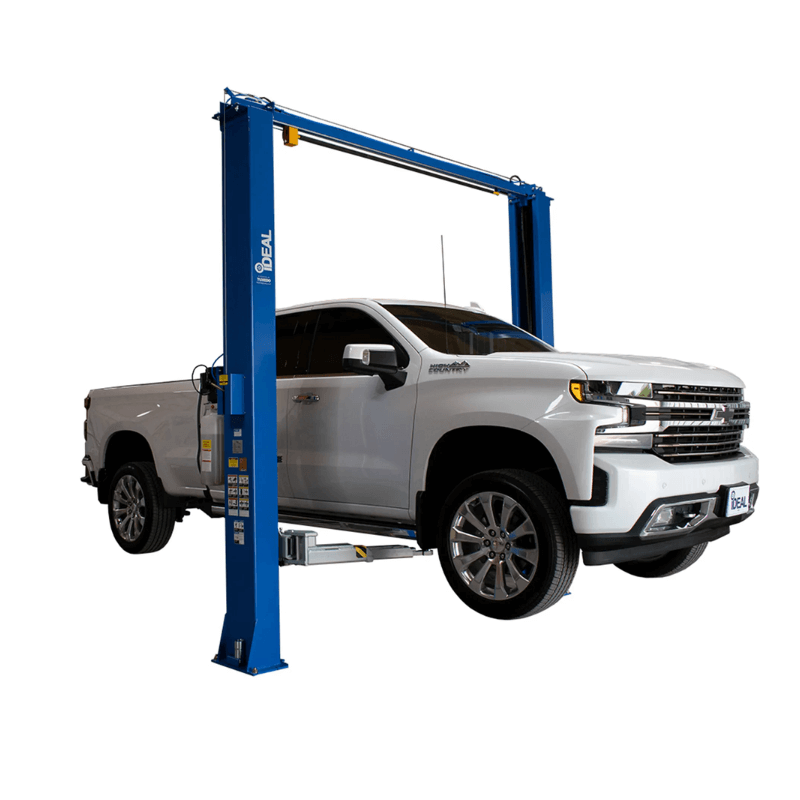

TP10KAC-DX Car Lift by iDeal

The TP10KAC-DX Car Lift offers a robust solution for automotive maintenance and repair facilities. With an overall width of 137 3/16 inches, it provides ample space for various vehicle types, while its bi-symmetric arm design ensures balanced lifting with a remarkable 10,000 lbs capacity. This lift boasts a minimum ceiling height requirement of 12 feet and features a single-piece column design, maximizing stability during operation. Equipped with rubber door guards and heavy-duty arm restraints, it ensures safety for both vehicles and operators. Additionally, its stackable adapters and spin-up low-profile lift pads enhance versatility, accommodating a wide range of vehicles with ease.

ALI certified and equipped with a Duro Certified Power Unit, this lift adheres to stringent industry standards, ensuring reliability and safety in every use. Its 3-stage front arms and direct drive pull cylinders contribute to efficient lifting operations, with a rise speed of just 50 seconds. The single-point lock release simplifies operation, while external hose guards protect against potential damage. With shipping dimensions of 140 inches in length, 19 inches in width, and 40 inches in height, weighing 1,705 lbs, this lift offers a comprehensive solution for automotive workshops seeking durability, efficiency, and safety in their lifting equipment.

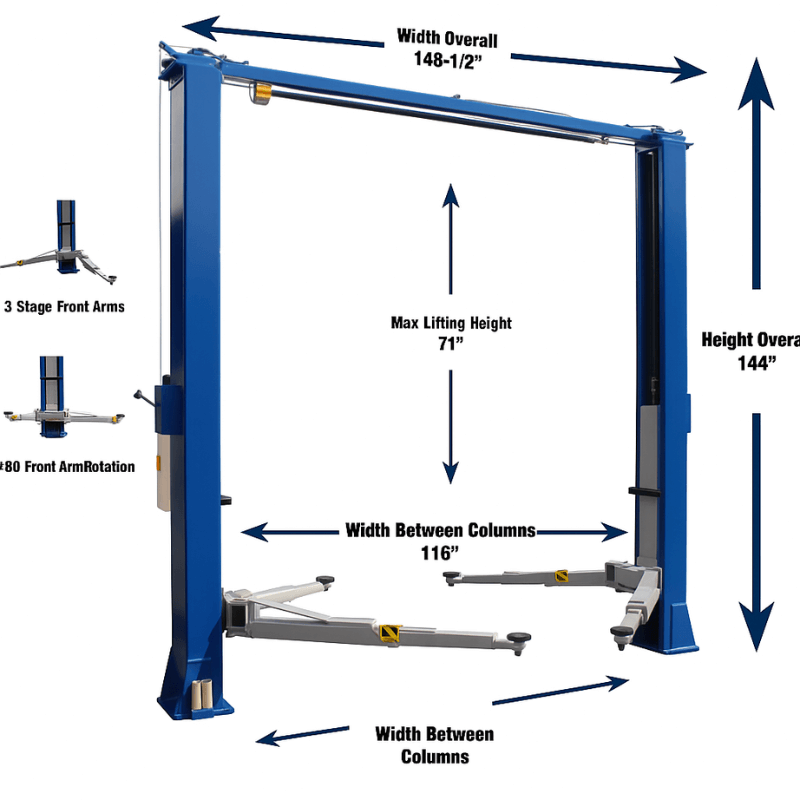

Car Lift TP10KAC-DX Specifications:

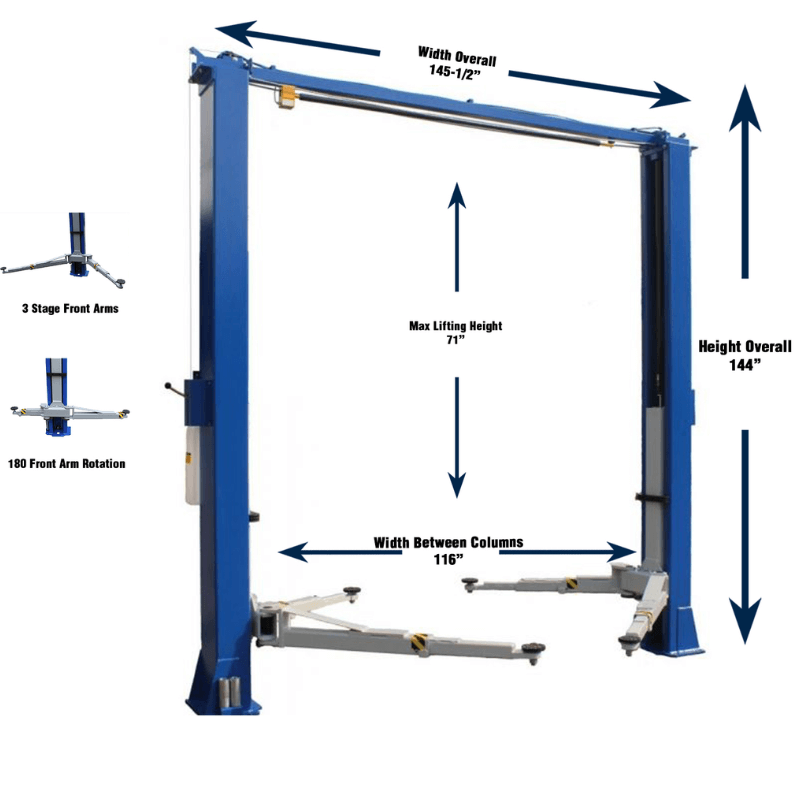

• Overall Width: 137 3/16″
• Overall Width w/Power Unit: 145 1/2″
• Overall Height: 144″
• Minimum Ceiling Height: 12′
• Low Pad Height: 4″
• Max. Lift Height: 71″
• Max. Lift Height w/Tallest Adapter: 76 1/2″
• Width Between Columns: 116″
• Drive Thru Width: 104″
• Floor to Overhead Shutoff: 136″
• Arm Reach Front: 23″ – 45″
• Arm Reach Rear: 41″ – 57″
• Maximum Load Per Arm: 2,500 lbs
• Electric Power Unit: 220VAC, 20 Amp, 1 Phase
• Rise Speed: 50 Seconds
• Minimum Concrete: 4 1/4″ / 3000PSI
• Operating Pressure: 3,050 PSI
• Shipping Weight: 1,705 lbs.
• Shipping Dimensions: 140″ L X 19″ W X 40″ T

TP10KAC-DX 10,000 lb Car Lift Special Features:

• ALI certified
• 10,000 lbs capacity

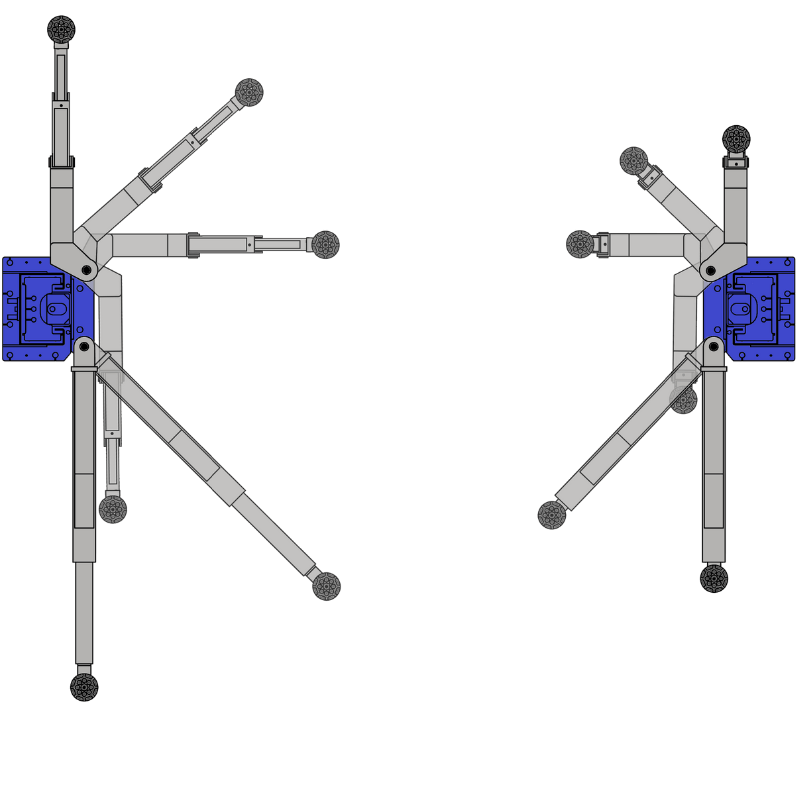

• Bi-Symmetric arm design
• Rubber Door Guards

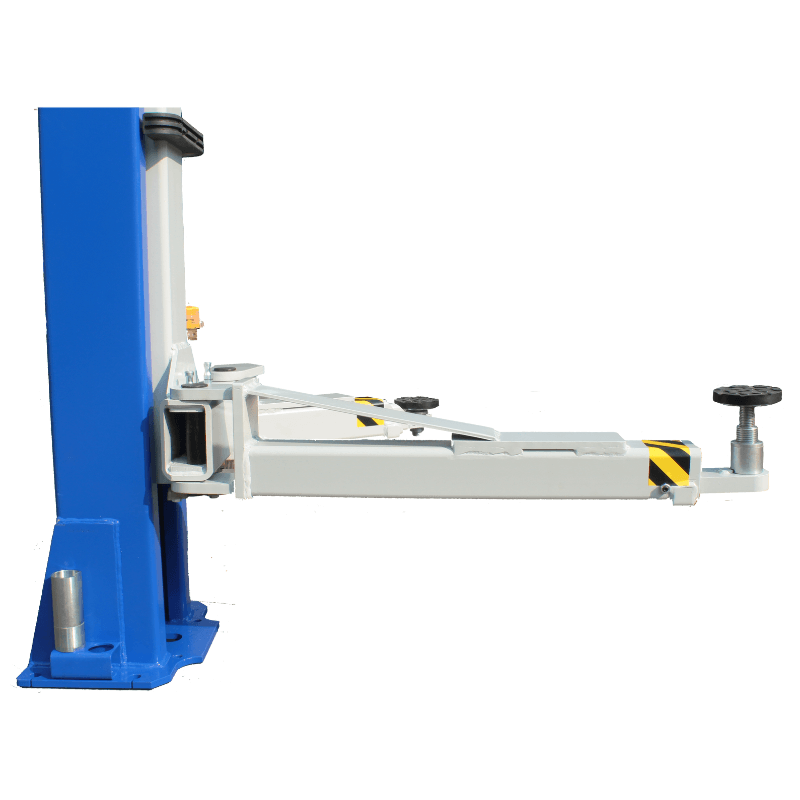

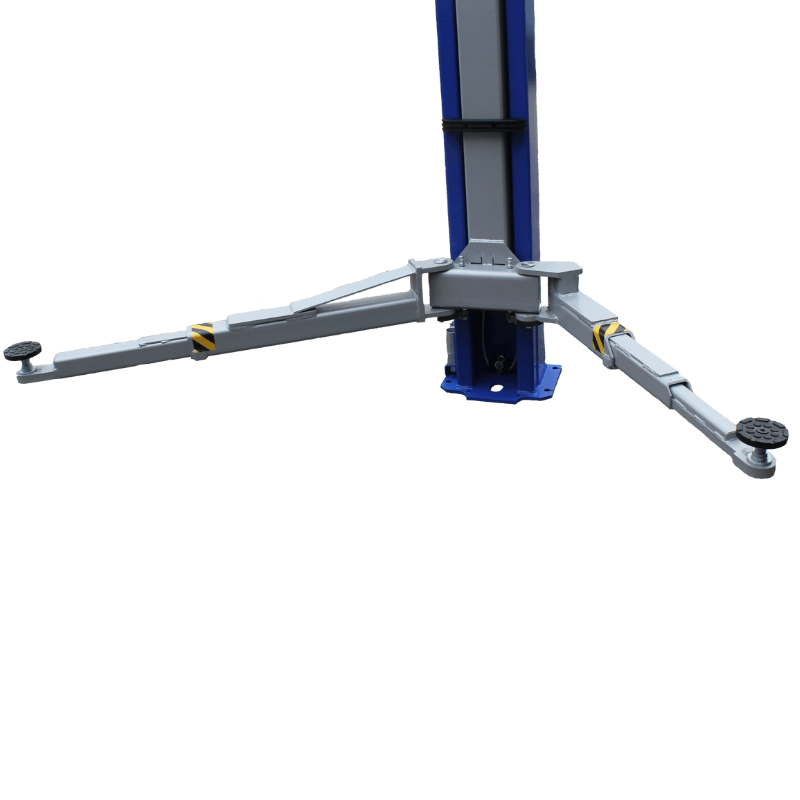

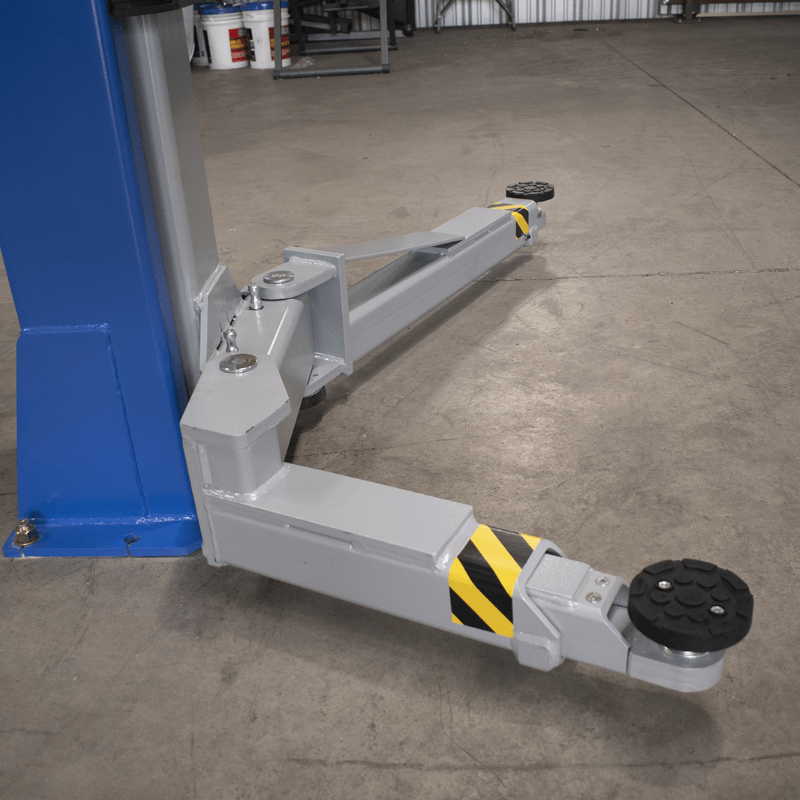

• 3 Stage Front Arms
• Single Piece Column
• Direct Drive pull Cylinders
• Single Point Lock Release

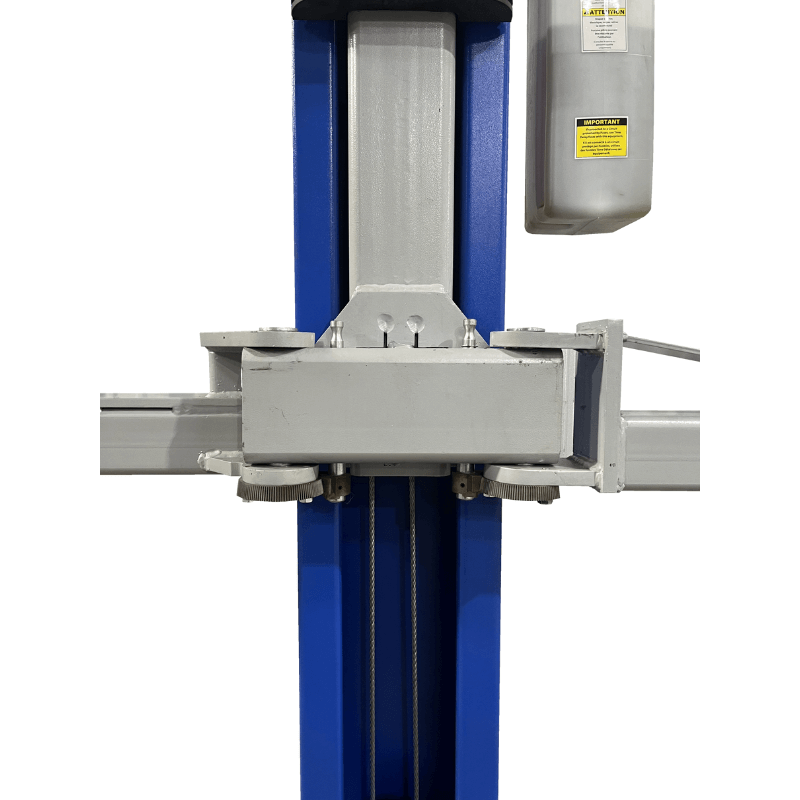

• Heavy Duty Arm Restraint System

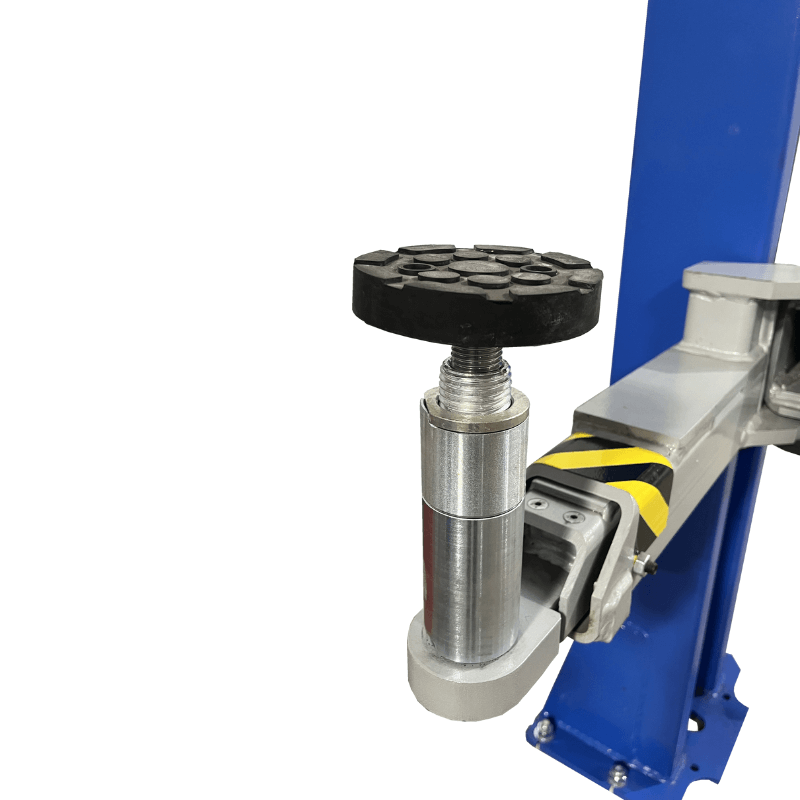

• Spin Up Low Profile Lift Pads

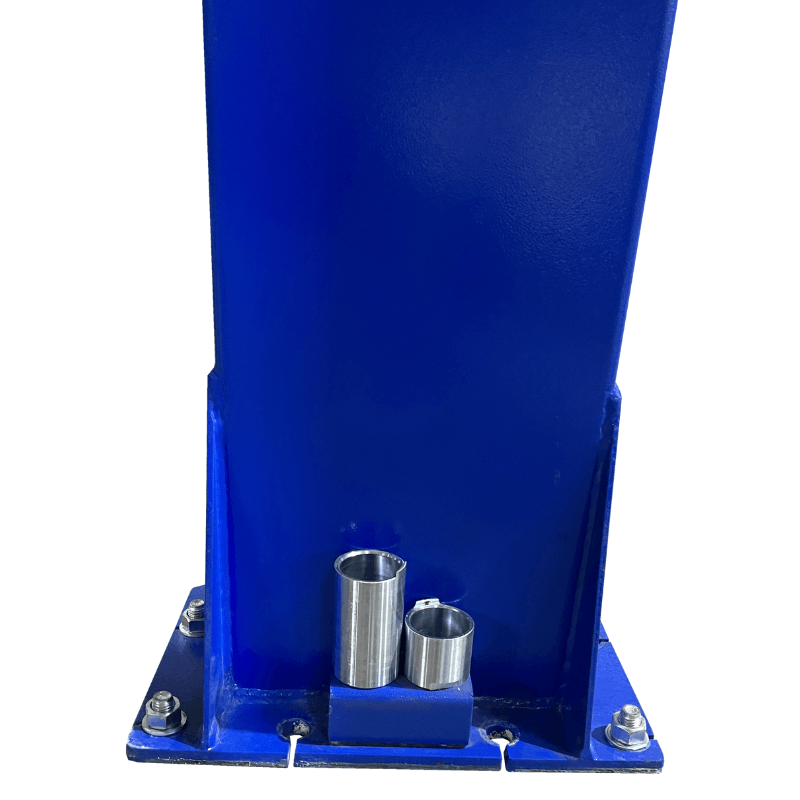

• Stackable Adapters Included
• External hose guards

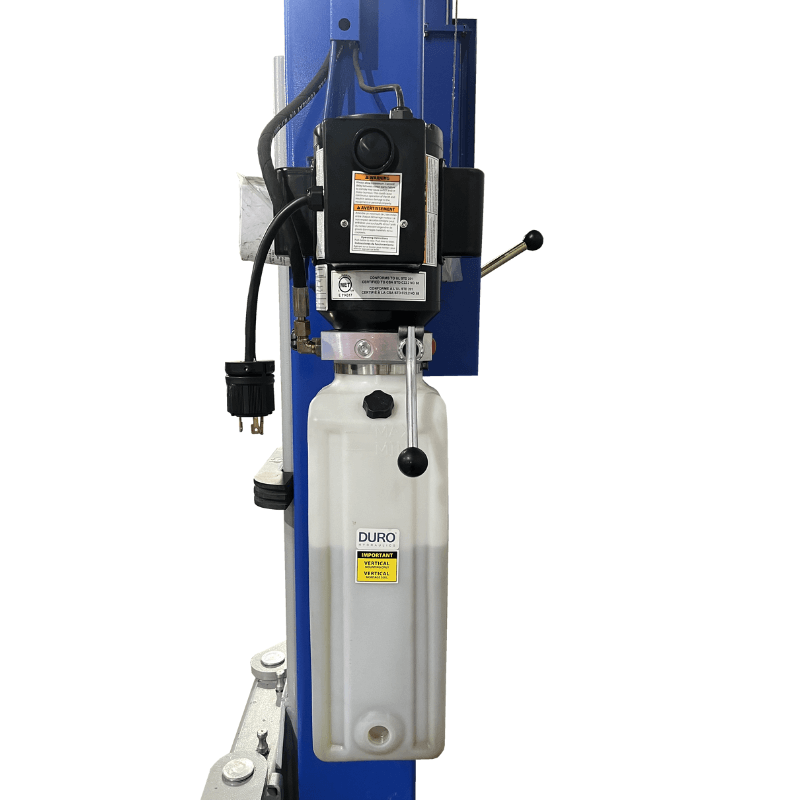

• Duro Certifed Power Unit – MET, UL, CSA
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use

• iDeal Warranty:
  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment

iDeal TP10KAC-DX Documentation:

   iDeal TP10KAC-DX Car Lift Product Manual
