iDeal UF-2500EH-X Pro-Series Utility & All-Terrain Vehicle Lift

SKU UF-2500EH-X
by iDeal
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$3,249.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
Color: Blue

Notify me when back in stock

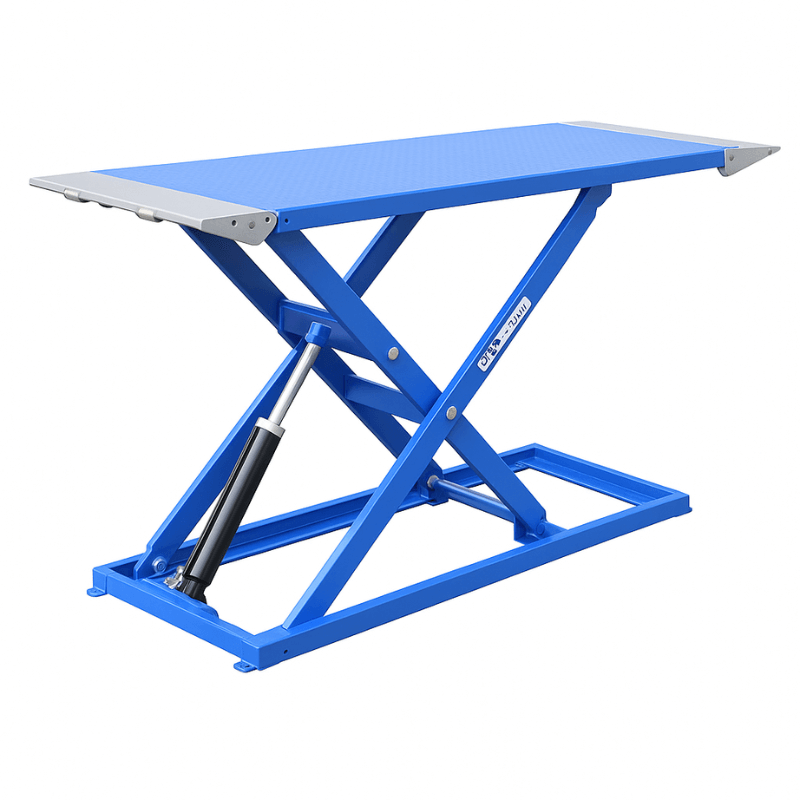

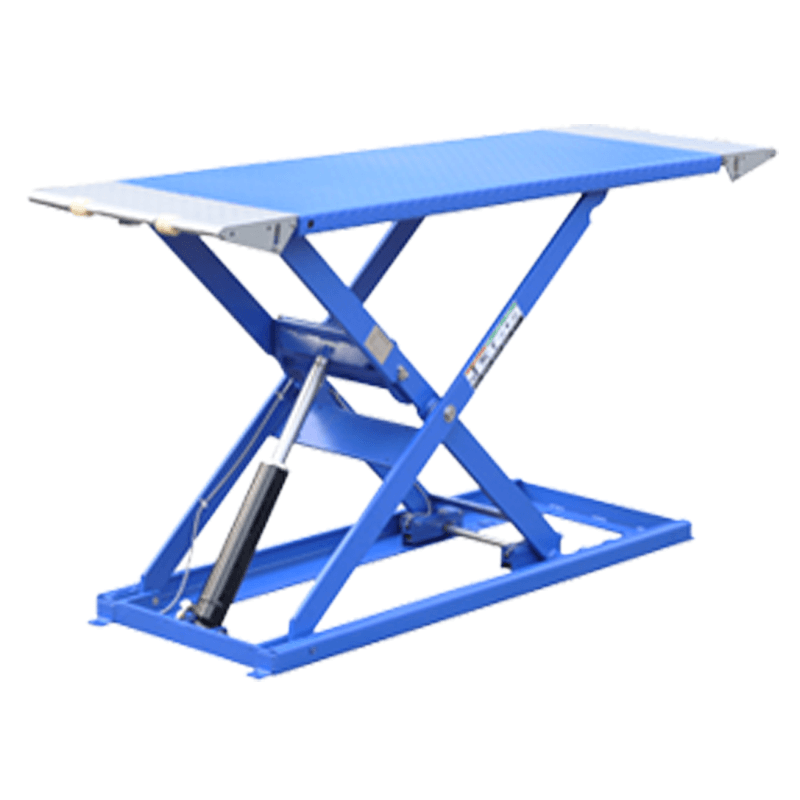

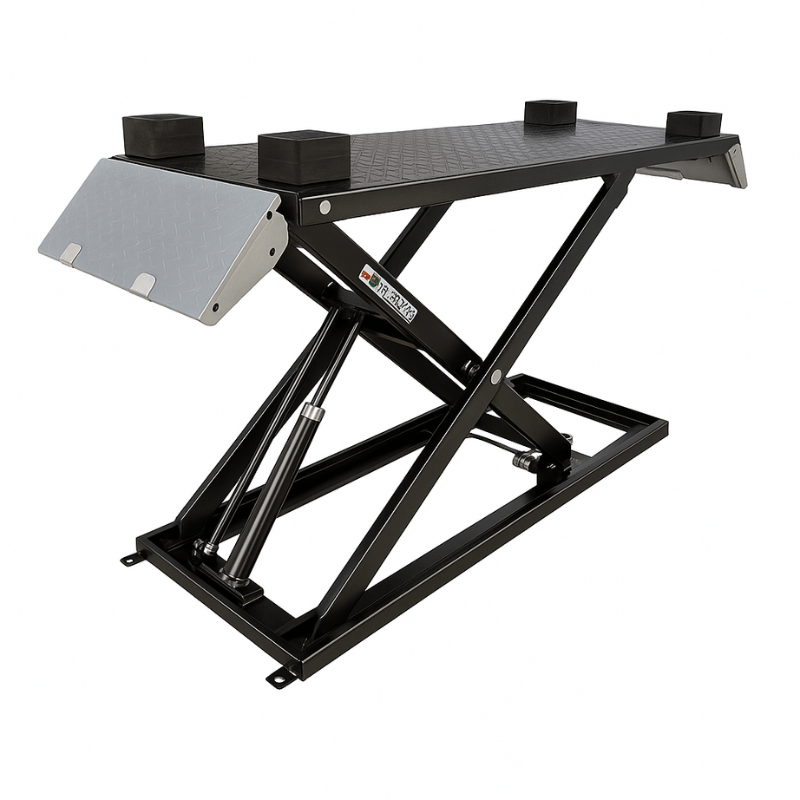

UF-2500EH-X Vehicle Lift by iDeal

Ever wish you could lift your vehicle without the hassle of traditional ramps and jacks? Well, say hello to the UF-2500EH-X Vehicle Lift by iDeal! This high-capacity lifting solution is engineered for both personal and professional use, bragging a weight capacity of 2,000 lbs and a lifting height of up to 43 inches (or 49 inches with rubber lift pads). It’s the perfect answer for anyone looking to elevate their garage game - figuratively and literally.

The UF-2500EH-X is not just powerful, it’s also smartly engineered. With a compact width of 24 inches and a platform size of 67″ x 24″, it fits snugly into tight spaces, maximizing your workspace. The lift operates smoothly with a 110V electric/hydraulic system, featuring a user-friendly control panel and an electro-magnetic lock release for safety. Plus, its heavy-duty diamond plate platform with rubber contact lift pads ensures your vehicle stays protected. Whether you opt for the portable or mounted pedestal stand, this lift is ready to meet your lifting needs.

Vehicle Lift UF-2500EH-X Specifications:

  • Lift Model: UF-2500EH-X
  • Capacity: 2,000 lbs
  • Min. Height: 4-3/4″
  • Max Lifting Height: 43″
  • Overall Length w/ Ramp: 67″ – 88-7/8″
  • Overall Width: 24″
  • Platform Size (L x W): 67″ x 24″
  • Lifting Time: 25 seconds
  • Lowering Time: 25 seconds
  • Power: 110V, 60Hz, 1 PH-18A
  • Ship Weight: 740 lbs
  • Pallet Dimensions: 27"L 91"W 20"H

UF-2500EH-X Vehicle Lift Special Features:

  • Exclusive ‘wheels free’ design for the largest UTVs to smallest ATVs.
  • Provides SMALL LIFT FOOTPRINT for ADDITIONAL WORKSPACE
  • 2,500 lbs capacity
  • 43″ RISE HEIGHT (49” w/ rubber lift pads)
  • 24″W X 88.9″L PLATFORM SIZE
  • 4.75” MIN. HEIGHT
  • smooth & rapid 110V Electric / Hydraulic operation
  • fully operational control panel W/ ELECTRO-MAGNETIC LOCK RELEASE
  • three locking positions
  • Heavy-Duty Diamond Plate Platform & extension Construction
  • LOAD BEARING ‘HINGED’ PLATFORM EXTENSIONS
  • PORTABLE OR MOUNTED PEDESTAL stand
  • Power unit cover w/ storage bin
  • RUBBER CONTACT LIFT PADS – 4.75” X 6.5” (4EA)
  • Options: WHLSTDKIT-UF2500EH-X

iDeal UF-2500EH-X Documentation:

Vehicle Lift UF-2500EH-X Product Manual   iDeal UF-2500EH-X Vehicle Lift Product Manual
Vehicle Lift UF-2500EH-X Product Flier   iDeal UF-2500EH-X Vehicle Lift Product Flier

20% DISCOUNT on Scratch & Dent Units:

  • Contact Us today if your item is available
  • Pictures of units can be shared upon request
  • Discount does NOT apply to on-sale items.
  • All refurbished items ship from Texas warehouse or can be picked up at no additional cost
