Katool AK-H115Z 11000 lbs Heavy Duty Two Post Lift

SKU AK-M115Z
by Katool
$1,999.00
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Typically Ships in 3-7 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

H115Z Two-Post Vehicle Lift ƒ?? 11,000ƒ??lb Heavy Duty Garage Hoist

Elevate your garage or workshop setup with the Katool AKƒ??M115S Two-Post Lift, a heavy-duty hoist engineered to handle up to 11,000 lbs. Built for serious mechanics and auto enthusiasts, this lift provides unmatched stability and performance for lifting cars, trucks, and SUVs. Its clear-floor design ensures unobstructed movement under the vehicle, making maintenance and repair tasks more accessible and efficient.

This two-post lift is powered by a dual hydraulic chain-drive system, ensuring smooth and balanced lifting. It comes equipped with automatic safety locks on both posts, manual release levers, and a high-precision motor rated at 2.2 kW. Adjustable arm extensions and height adapters offer greater flexibility, allowing it to accommodate a wide variety of wheelbases and frame designs. With a max lifting height of 70.75", it gives you plenty of space to work underneath.

AK H115Z Specifications

  • Lifting Capacity: 11,000 lb (5,000 kg)

  • Maximum Lifting Height (under pads): 70.75ƒ??

  • Minimum Pad Height: 4.25ƒ??

  • Overall Height: 141.25ƒ??

  • Overall Width: 142.25ƒ??

  • Drive-Thru Clearance: 94.5ƒ??

  • Arm Reach (Minƒ??Max): Front 30.75ƒ??ƒ??50.5ƒ??; Rear 30.75ƒ??ƒ??50.5ƒ??

  • Motor Power: 2.2 kW (220 V, 60 Hz)

  • Net Weight (excluding accessories): Approx. 1,350 lb (620 kg)

AK-H115Z 11000 lbs Heavy Duty Two Post Lift Special Features

  • Clear-floor twin-post design for unobstructed vehicle access

  • Dual hydraulic chain-drive cylinders provide stable, uniform lifting

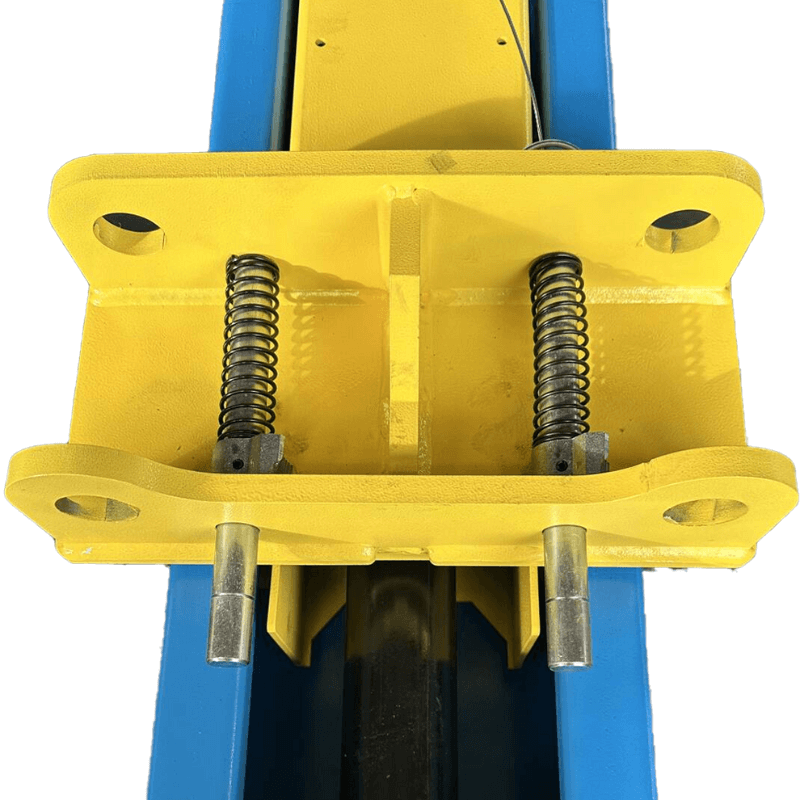

  • Automatic safety locks with manual release on both posts

  • CE-certified and tested for 115% dynamic and 150% static loading

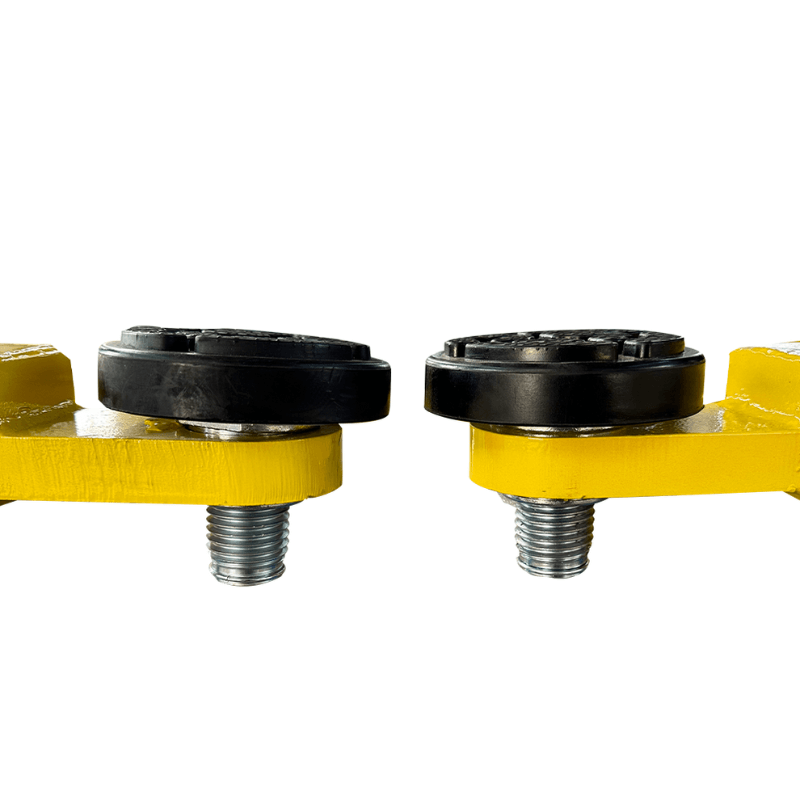

  • Includes height extension adaptors (+30 mm and +120 mm) and rubber pad guards

  • Compatible with both 110 V and 220 V electrical systems

  • Overhead safety shutoff bar and integrated foot-guard rails with built-in toolbox

Katool H115Z Manual

Not Available
