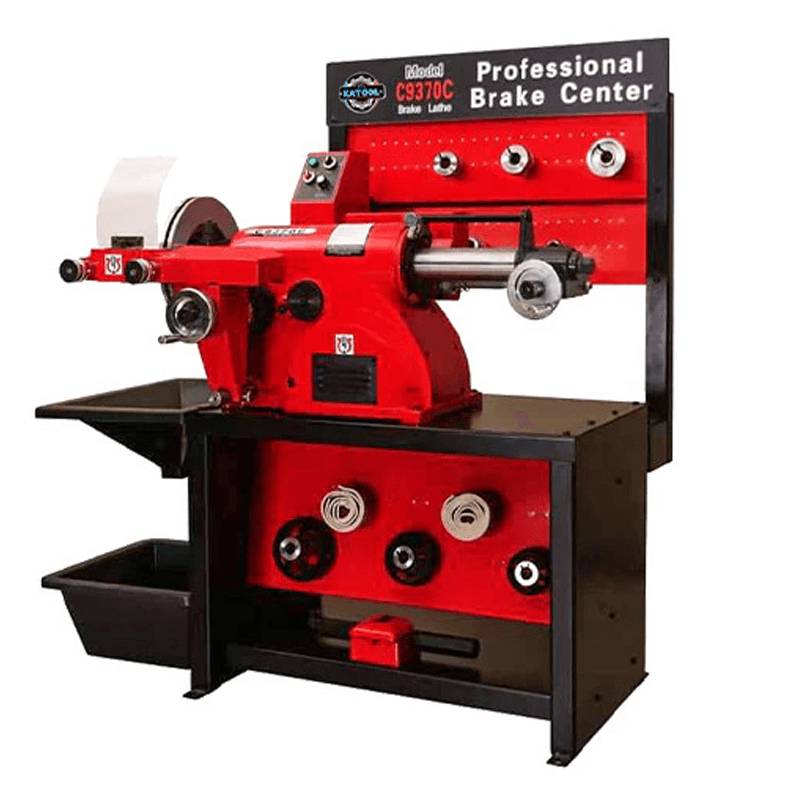

Katool C9370C Brake Lathe Machine

C9370C Brake Lathe by Katool

Feeling the brakes on your big rig grinding harder than your teenage angst? The C9370C Brake Lathe is here to turn that frown upside down (and your rotors nice and smooth)! This bad boy is specifically designed for mammoth-sized brake jobs on large trucks. Think of it as the Michelangelo of brake drums – sculpting them to perfection with its variable speed settings (from a leisurely 70 rpm to a high-powered 118 rpm). Plus, you can adjust the speed on-the-fly with a single knob – no need to take a coffee break and lose your momentum!

The C9370C tackles a wide range of brake components, handling rotors from the size of dinner plates (7 inches) all the way up to monster truck tires (18 inches). This workhorse lathe prioritizes safety with a fancy schmancy tool holder thingy (technical term) and includes a standard chuck for easy clamping – no more wrestling with those brake drums! Invest in the C9370C Brake Lathe and experience the difference of precise, efficient brake maintenance. This machine is a perfect fit for bus companies, large-scale repair shops, or anyone who doesn't want their truck to sound like a banshee on the highway.

Brake Lathe C9370C Specifications:

• Motor: 110V/60Hz
• Spindle Travel: 9.875”
• Spindle Speed: 70, 88, 118 rpm
• Spindle Feed Speed: 0.002”-0.02”
• Hand wheel Graduations: 0.002”
• Cross Feed Speed: 0.002”-0.01”
• Rotor Thickness: 2.85”
• Rotor Diameter: 7”-18”
• Drum Depth: 9.875”
• Drum Diameter: 6”-17.7”
• Shipping Weight: 716.5 lbs
• Dimension: 44.5 x 40.5 x 45.2 inches

C9370C Brake Lathe Special Features:

• The spindle speed is controlled by the frequency converter, allowing stepless changes within a certain range.
• Spindle speed adjustment can be made at any time without stopping, using a single knob interface.
• This machine specializes in repairing brake drums and brake shoes for large trucks.
• Utilizes a wide base for enhanced rigidity across the entire machine.

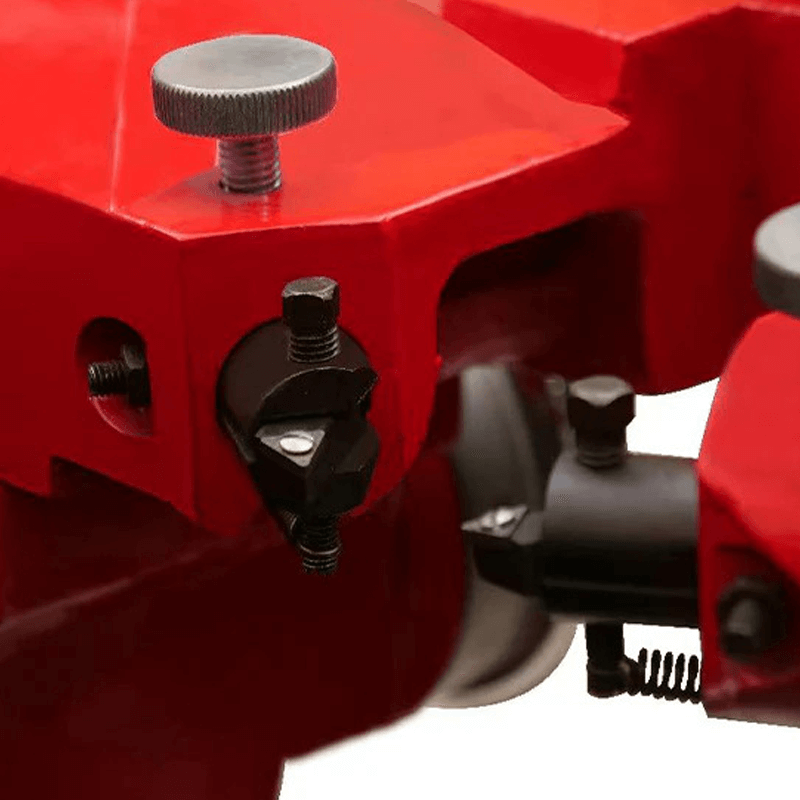

• Includes a tool holder limit mechanism to ensure operational safety.
• Equipped with a standard chuck for easy clamping of hubless brake drums, capable of cutting depths up to 320mm.

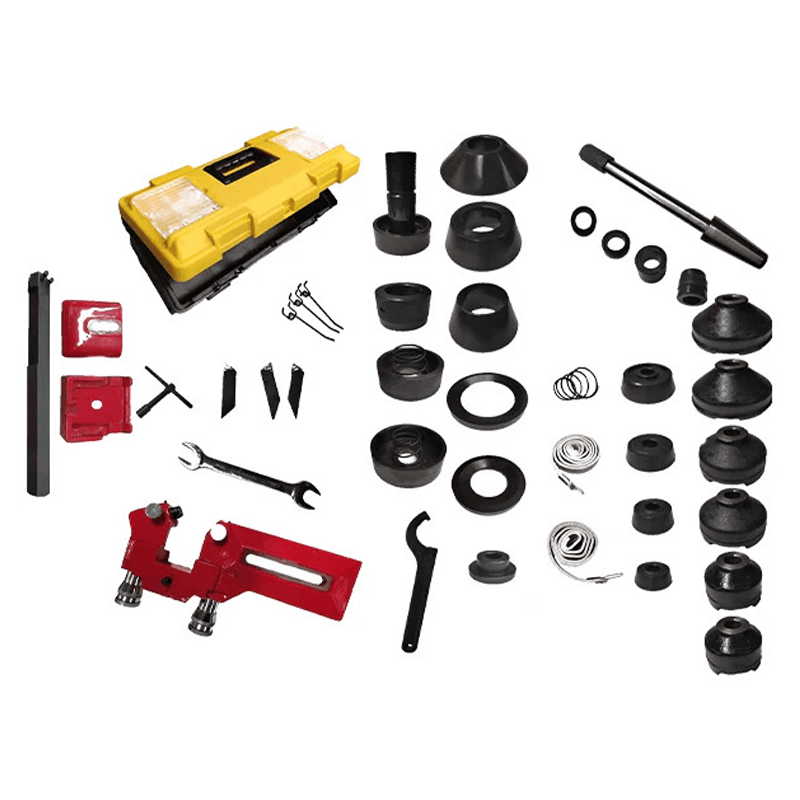

• Comes with a comprehensive set of accessories to meet various operational needs.
• Offers a variety of optional special accessories for user customization.
• Customizable accessories available for special models.
• Ideal maintenance equipment for bus companies and large to medium-sized car repair shops.

Katool C9370C Documentation:

 Katool C9370C Brake Lathe Machine Product Manual
