Katool C9372 Brake Lathe Machine

SKU C9372
by Katool
  • Free Shipping
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Better Business Bureau (BBB) Accredited
$5,859.00
Free Warehouse Pickup Locations*
*Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

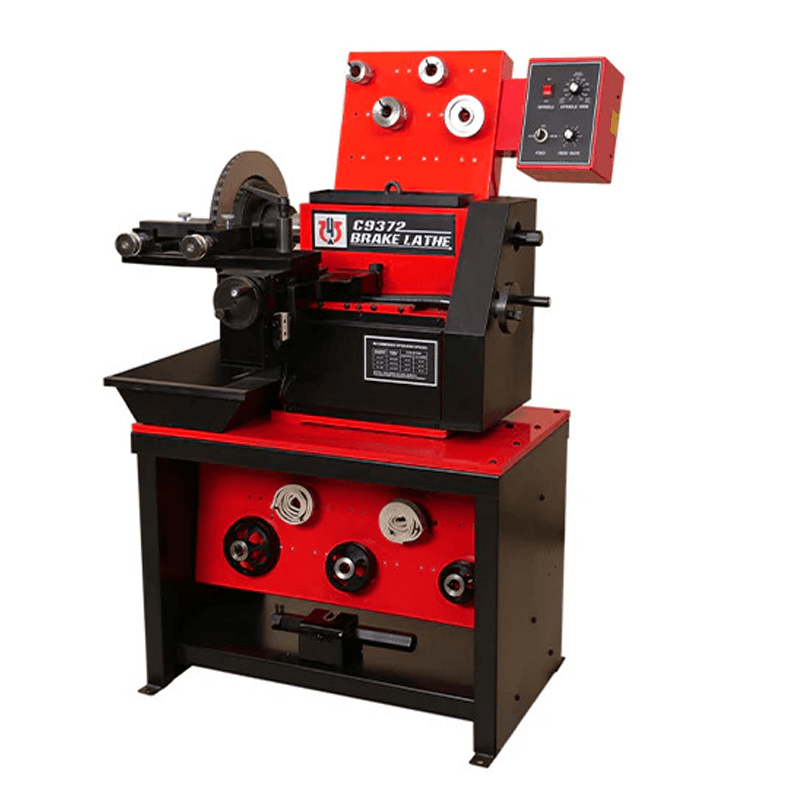

C9372 Brake Lathe by Katool

Worn-out brakes can be noisy, dangerous, and a real pain to deal with. Traditional methods might not be versatile enough for different brake sizes, and finding a machine with the right power and control can be a challenge. Tired of that constant grinding sound and the worry that your brakes might fail? Frustrated with limited options when it comes to brake lathe capabilities?

The C9372 Brake Lathe is sure to be your new friend. This machine is a powerhouse of versatility, with the ability to handle a wide range of brake sizes from the size of a pizza (4 inches) all the way up to a really big pizza (20 inches). It boasts multiple speed settings, adjustable feed rates, and user-friendly features like fast rotor-to-drum changes. Plus, its automatic stop position ensures safety and streamlines your workflow. Don't let squeaky brakes drive you crazy. Invest in the C9372 Brake Lathe and experience the difference of a smooth, quiet ride. This machine is a perfect fit for your automotive workshop looking to handle a variety of brake jobs.

Brake Lathe C9372 Specifications:

  • Rotor Diameter: 4”-20” (102-508mm)
  • Maximum Rotor Thickness: 2.85” (73mm)
  • Drum Diameter: 6”-19.5” (152-500mm)
  • Drum Depth: 6.5” (165mm)
  • Flywheel Diameter: 6”-24” (152-610mm)
  • Spindle Weight Capacity (Standard 1” Arbor): 150 lbs (68 Kg)
  • Spindle Speed: 70-320 RPM
  • Feed rates - Rotor and Drum: 0”-0.026” (0mm-0.66mm)
  • Feed Rates Per Minute: 2.54” (64.5mm)
  • Shipping Weight: 661.3 lbs / 300 KG
  • Motor: 110V/220V 50/60HZ
  • Dimensions: 43.3 x 28.7 x 28.3 inches / 1100 x 730 x 720mm

C9372 Brake Lathe Special Features:

  • Quickly, accurately, and efficiently cuts rotor
  • Fast and slow settings for cutting rotor
  • Quick, accurate, and efficient cutting of drum
  • Finitely adjustable settings for cutting drum
  • Three spindle speed options to choose from
  • Fully equipped adapter package included
  • Convenient design allows quick change from rotor to drum
  • Automatic stop position after cutting

Katool C9372 Documentation:

Brake Lathe Machine C9372  Product Manual  Katool C9372 Brake Lathe Machine Product Manual
