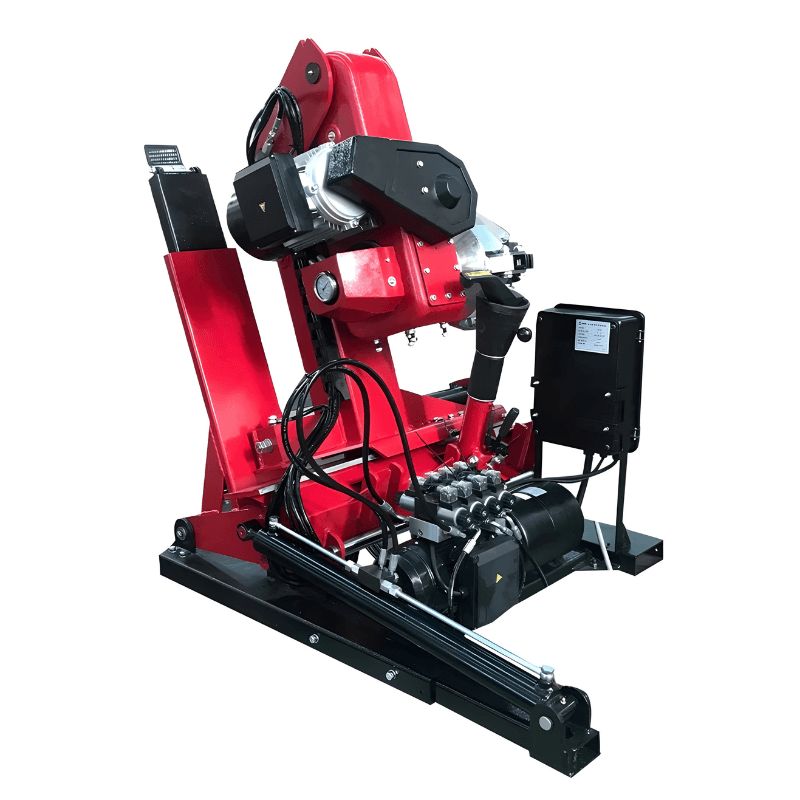

Katool KT-308 Mobile Tire Changer

KT-308 Mobile Tire Changer for Truck & Car Tires

Servicing large truck, agricultural, and industrial tires in the field can be difficult, time-consuming, and expensive when equipment must be transported back to a shop. Standard tire changers often lack the capacity, mobility, and hydraulic power needed for heavy-duty commercial tire service applications.

The Katool KT-308 Mobile Tire Changer is engineered to bring professional tire service directly to the job site. Featuring a powerful hydraulic operating system, 5,512 lbs. of clamping force, and support for wheels weighing up to 1,653 lbs., the KT-308 allows technicians to mount and demount large truck, agricultural, construction, and industrial tires efficiently and safely. Its mobile design eliminates unnecessary transportation downtime while delivering the durability and performance required for demanding field service environments.

Built with industrial-grade steel construction, bi-directional hydraulic rotation, and a low-voltage 24V control system, the KT-308 combines mobility, precision, and heavy-duty capability into one professional tire changing solution. Whether servicing commercial fleets, construction equipment, agricultural machinery, or roadside truck repairs, this machine provides reliable performance where it is needed most.

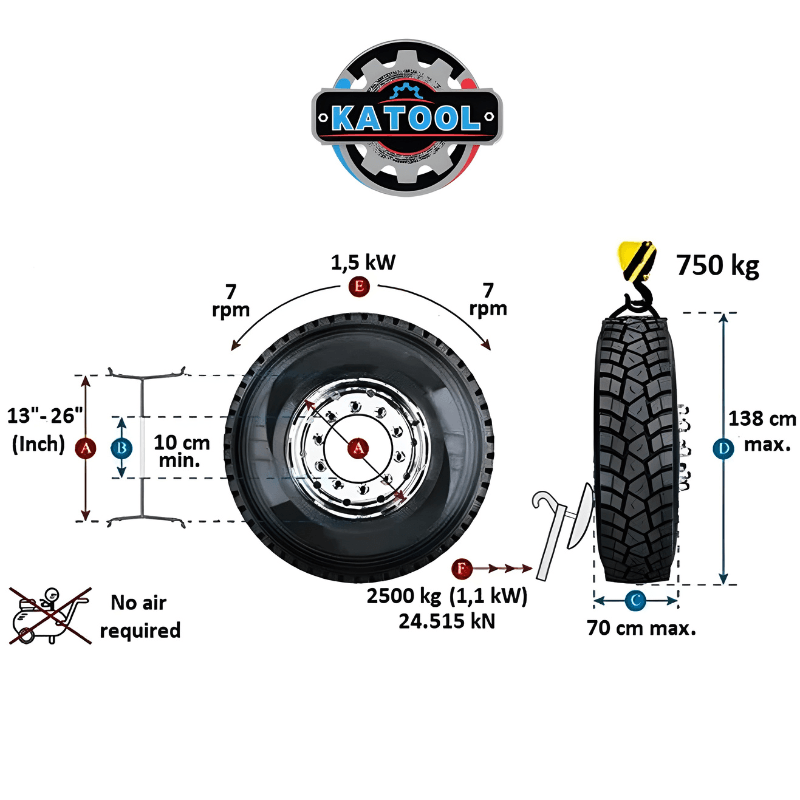

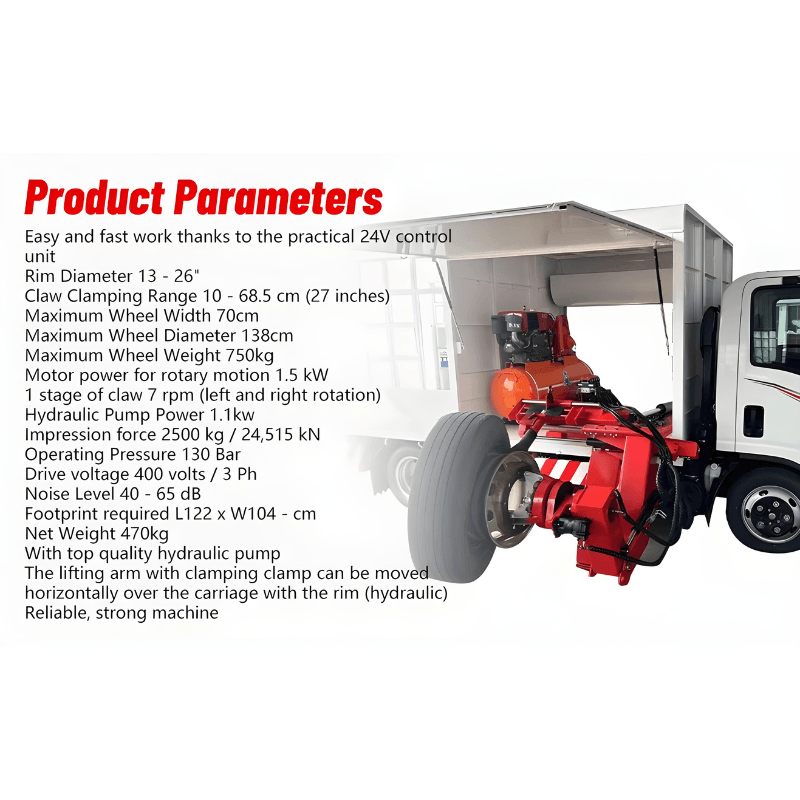

Tire Changer KT-308 Specifications

• Model: KT-308
• Product Type: Mobile Hydraulic Tire Changer
• Rim Diameter Capacity: 13" – 26"
• Claw Clamping Range: 4" – 27"
• Maximum Wheel Width: 27.6"

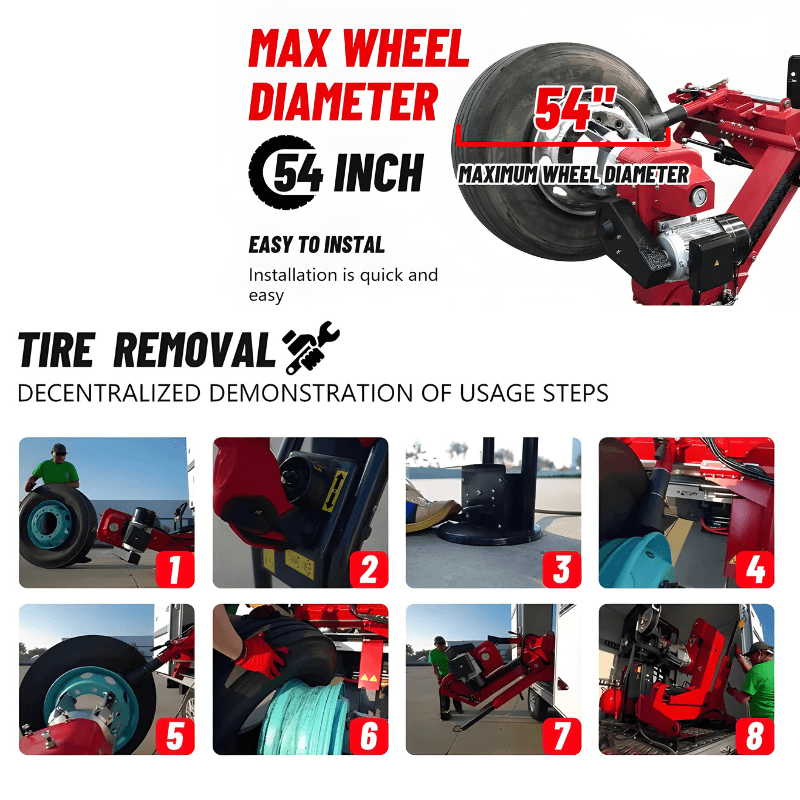

• Maximum Wheel Diameter: 54.3"
• Maximum Wheel Weight: 1,653 lbs.
• Rotation Motor Power: 2.0 HP
• Rotation Speed: 7 RPM (Bi-Directional)
• Hydraulic Pump Power: 1.5 HP
• Maximum Clamping Force: 5,512 lbs.
• Operating Pressure: 1,885 PSI (130 Bar)
• Power Supply: 400V / 3-Phase
• Control Voltage: 24V
• Noise Level: 40–65 dB

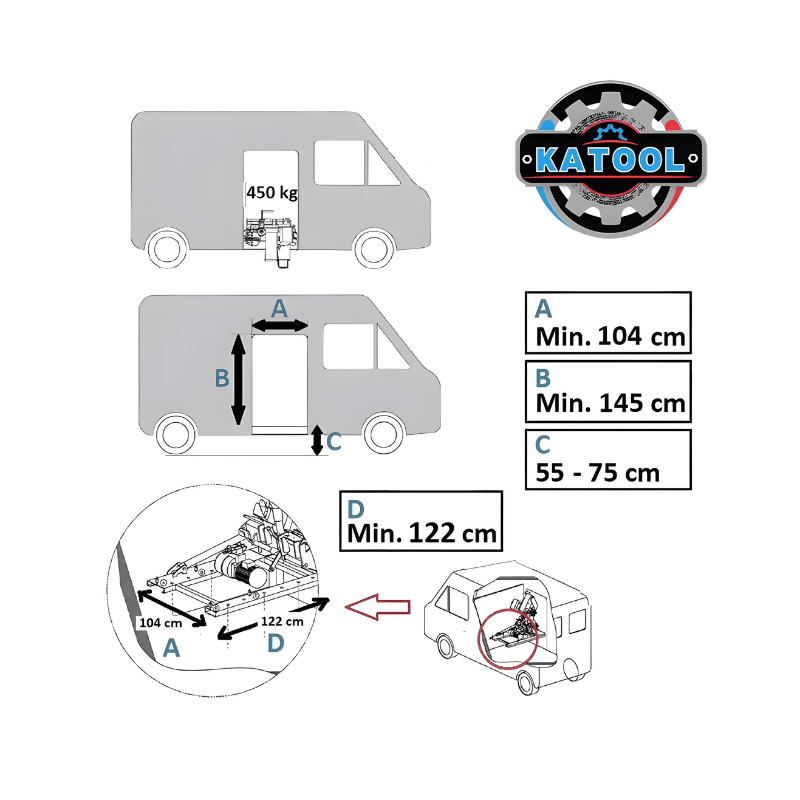

• Required Footprint: 48" x 41"
• Net Weight: 1,036 lbs.
• Warranty: 1-Year Parts Warranty / 3-Year Structural Warranty

KT-308 Mobile Tire Changer Special Features

• Heavy-duty mobile tire changer designed for truck and passenger vehicle tire service
• Ideal for commercial fleets, construction equipment, agricultural machinery, and industrial vehicles

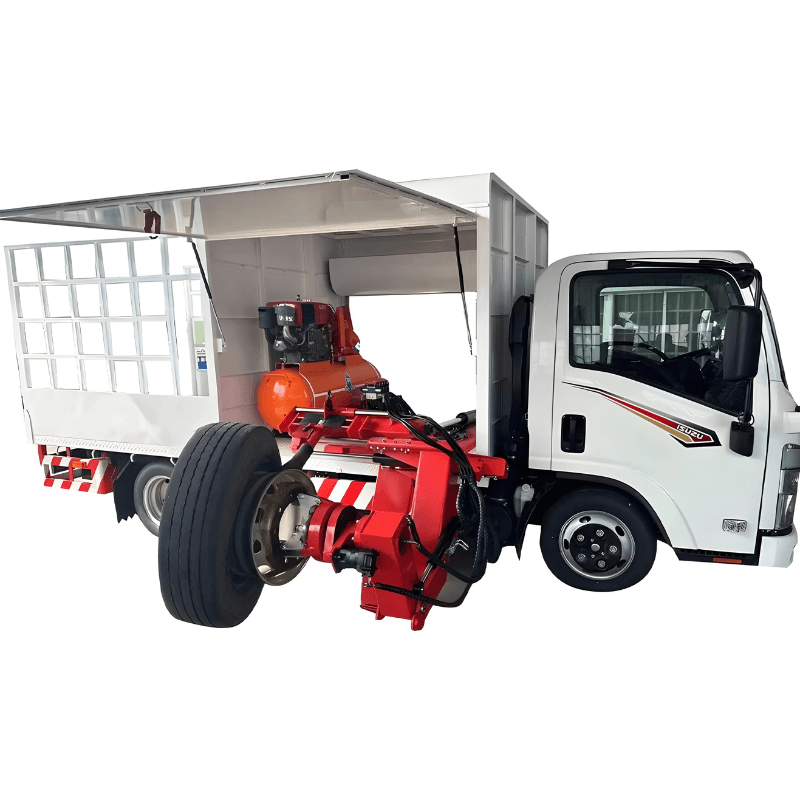

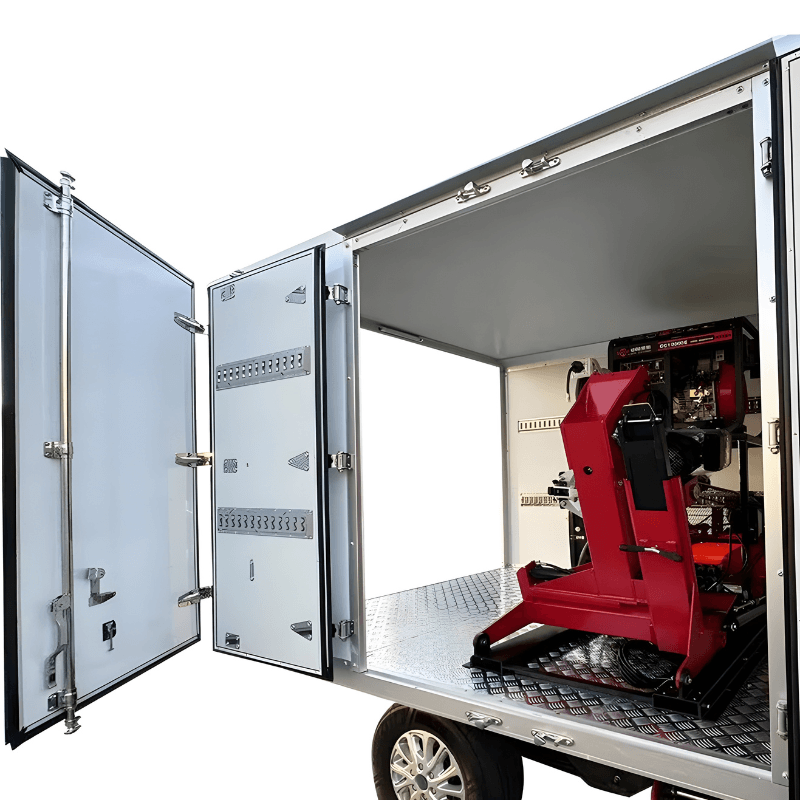

• Mobile design enables on-site tire service without transporting wheels to a workshop
• High-pressure hydraulic system delivers powerful and controlled tire changing performance
• Up to 5,512 lbs. of clamping force for secure wheel handling
• Supports wheels weighing up to 1,653 lbs.
• Handles wheel diameters up to 54.3"
• Accommodates wheel widths up to 27.6"
• Bi-directional 7 RPM rotation system for efficient tire mounting and demounting
• Reinforced heavy-duty steel construction for demanding environments

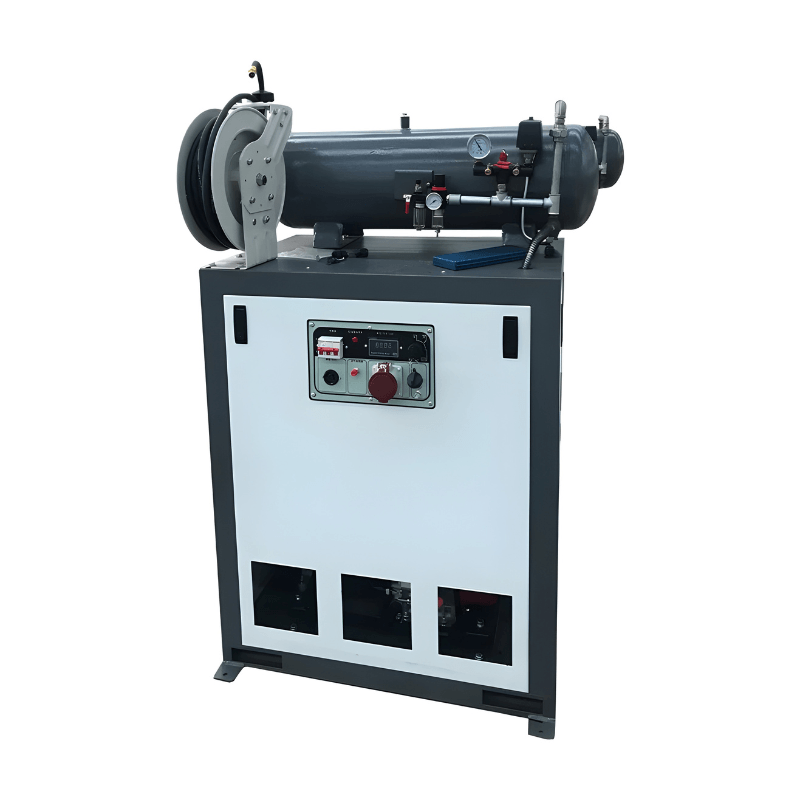

• Low-voltage 24V control system for safer operation

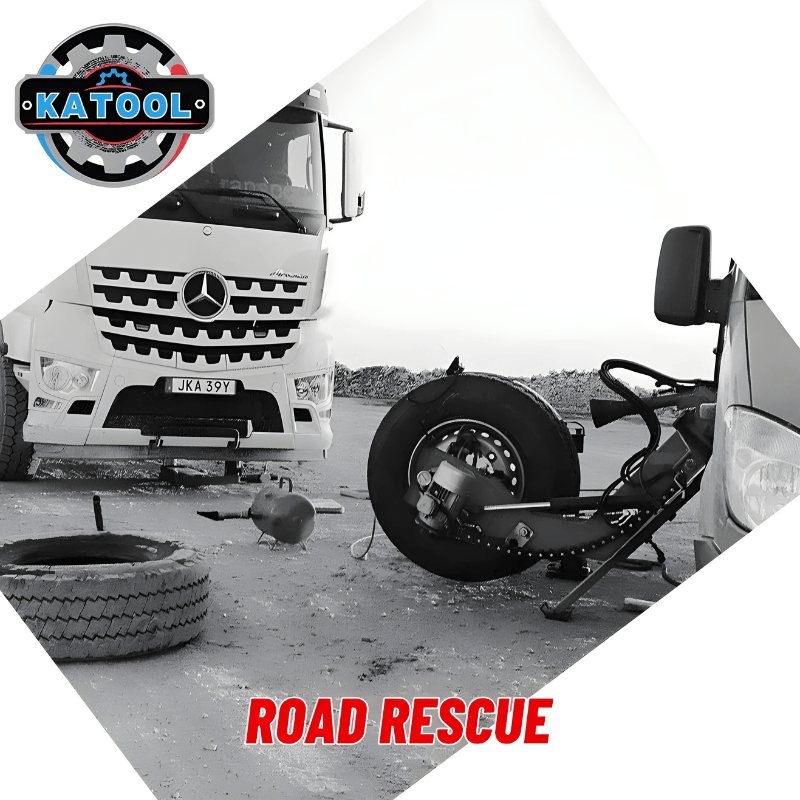

• Designed for professional roadside, fleet, agricultural, and industrial tire service
• Compact footprint for easier deployment in mobile service applications
• Built for continuous commercial-duty operation
• Reduces downtime by allowing tire repairs directly at the job site

Katool KT-308 Manual

Not Available
