Katool KT-310 Auto Body Frame Machine

SKU KT-310
by Katool
  • Free Shipping
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Better Business Bureau (BBB) Accredited
$6,999.00
Free Warehouse Pickup Locations*
*Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

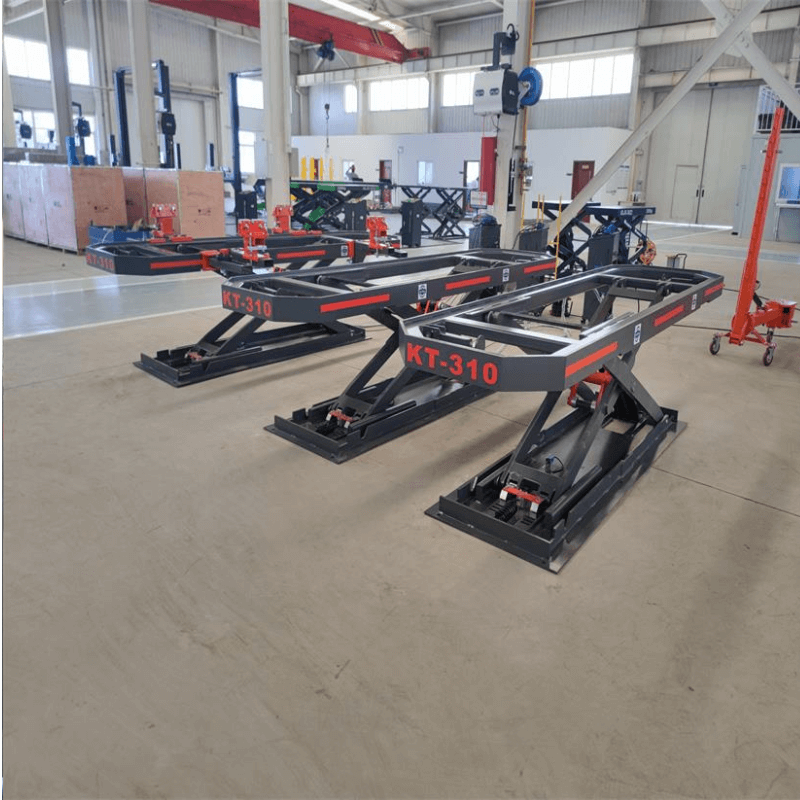

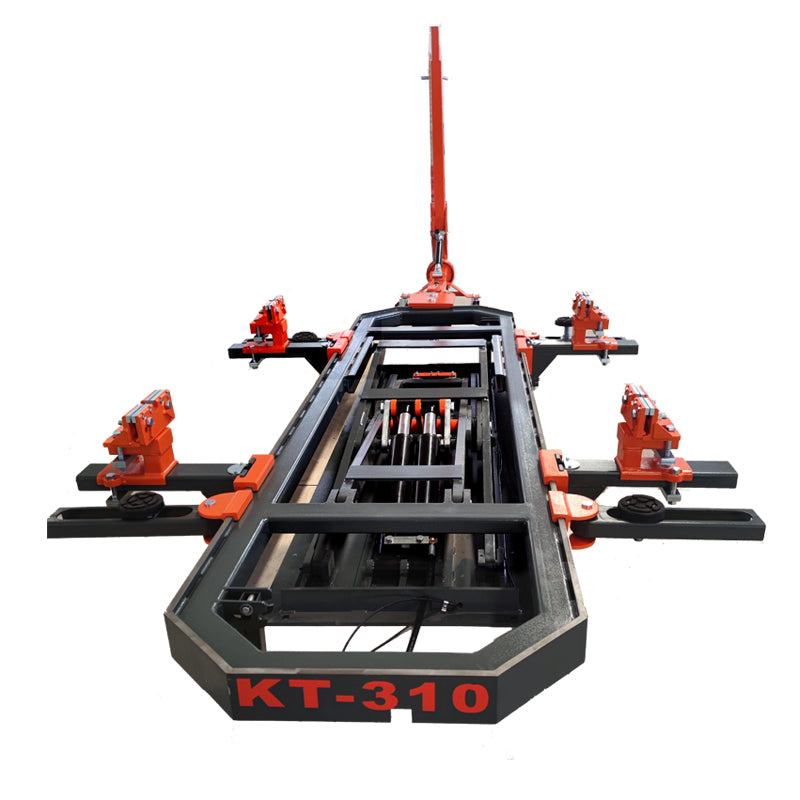

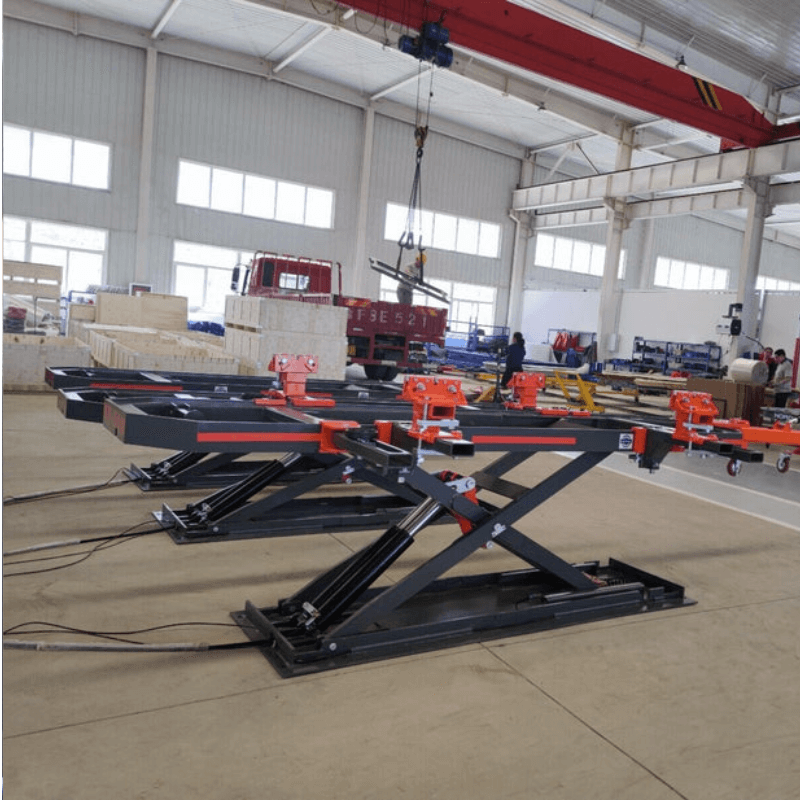

KT-310 Auto Body Frame Machine by Katool

Need a reliable partner to tackle those everyday collision repairs? Look no further than the Katool KT-310 Auto Body Frame Machine. This workhorse isn't about flashy features, it's about getting the job done efficiently and precisely. Don't let its compact size fool you. The KT-310 is crafted with a sturdy frame and European technology, ensuring it can handle whatever bumps and bruises your shop throws at it. Plus, it boasts a CE certification, so you know safety is a top priority.

The KT-310 packs a punch with a 60KN pulling tower that rotates a full 360 degrees. No matter the angle of the damage, the KT-310 can reach it. Plus, its adjustable height and lifting arms make it perfect for a variety of vehicle sizes, from zippy compacts to family SUVs. Don't have a ton of space in your shop? No problem! The KT-310 is designed to be space-saving and cost-effective. It boasts features like quick-fix clamp jaws and adjustable lifting arms that make setup a breeze, saving you valuable time and frustration. Time is money, and the KT-310 understands that. This machine is designed for quick and efficient repairs, meaning you can get your customers back on the road faster.

Auto Body KT-310 Specifications:

  • Frame Length:130.8 Inch
  • Frame Width: 34.5 Inch
  • Frame Height: 4.3 to 67 Inch
  • Max Push Power for Pulling Tower: 60KN
  • Rated Voltage: 220V
  • Working Range of Pulling Tower: 360 Degrees
  • Max Load Bearing: 7000 lbs (CE Certified)

KT-310 From Katool Special Features:

  • KT-310 - the small bench welded made of cold high alloy rectangular tubes is designed professionally for body collision quick repair. It's built with upgraded materials, improved welding technique, and enhanced stress intensity to make the repairing work more precise and faster. In accordance with European advanced technology, the frame machine is simple, practical, safe and precise for fast repairs.
  • CE certified
  • 110mm drive on height
  • Flexible moving tower, quick fixing, and wide working area, durable pulling power with 60KN.
  • 9-grade locking system to reach different heights.
  • Special design for jaws: quick fixed clamp jaws with only two screws

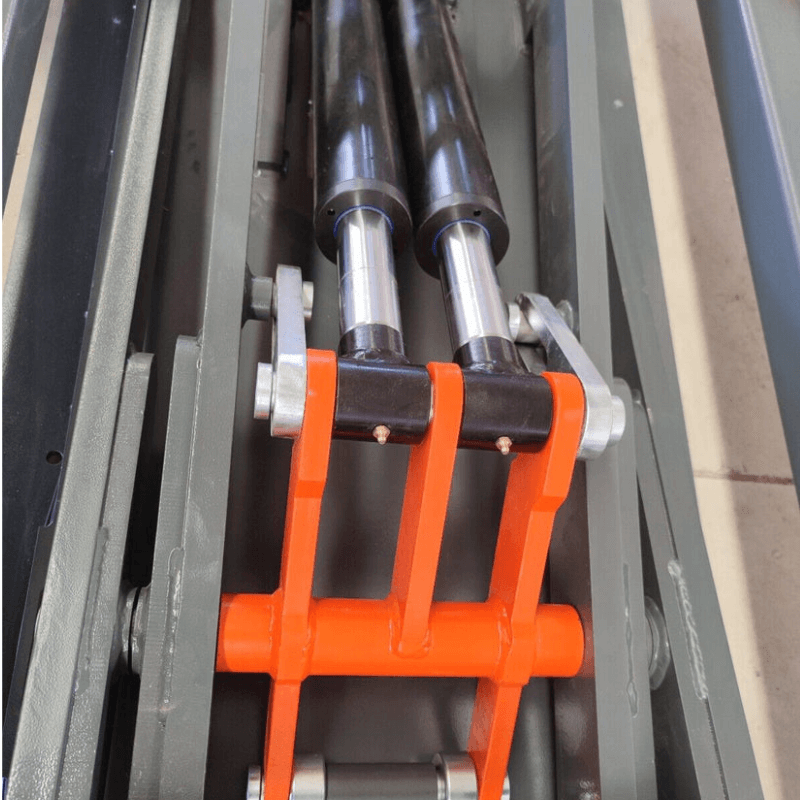

  • Four adjustable lifting arms can rotate 180 degrees when the bench is used as a scissor lift, which is designed to lift nearly all kinds of vehicles.
  • Equipped with bench supporter to find the exact height to install the pulling towers.
  • Adjustable heavy-duty main clamps are easy to install and remove.
  • Fast repair for small and medium ve­hicles. The model helps save valuable space in shops and is low-cost.
  • Katool Warranty:
    One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.

Katool KT-310 Documentation:

Katool KT-310 Product Manual   Katool KT-310 Auto Body Product Manual

This Unit Ships for Free

Warehouse Pickup locations - Contact Us if interested.

  • City of Industry, CA 91789
  • Brookshire, TX 77423
  • Houston, TX 77064
  • Pooler, GA 31322
  • Jersey City, NJ 07305
  • Bolingbrook, IL 60440

Katool KT-310 Video
