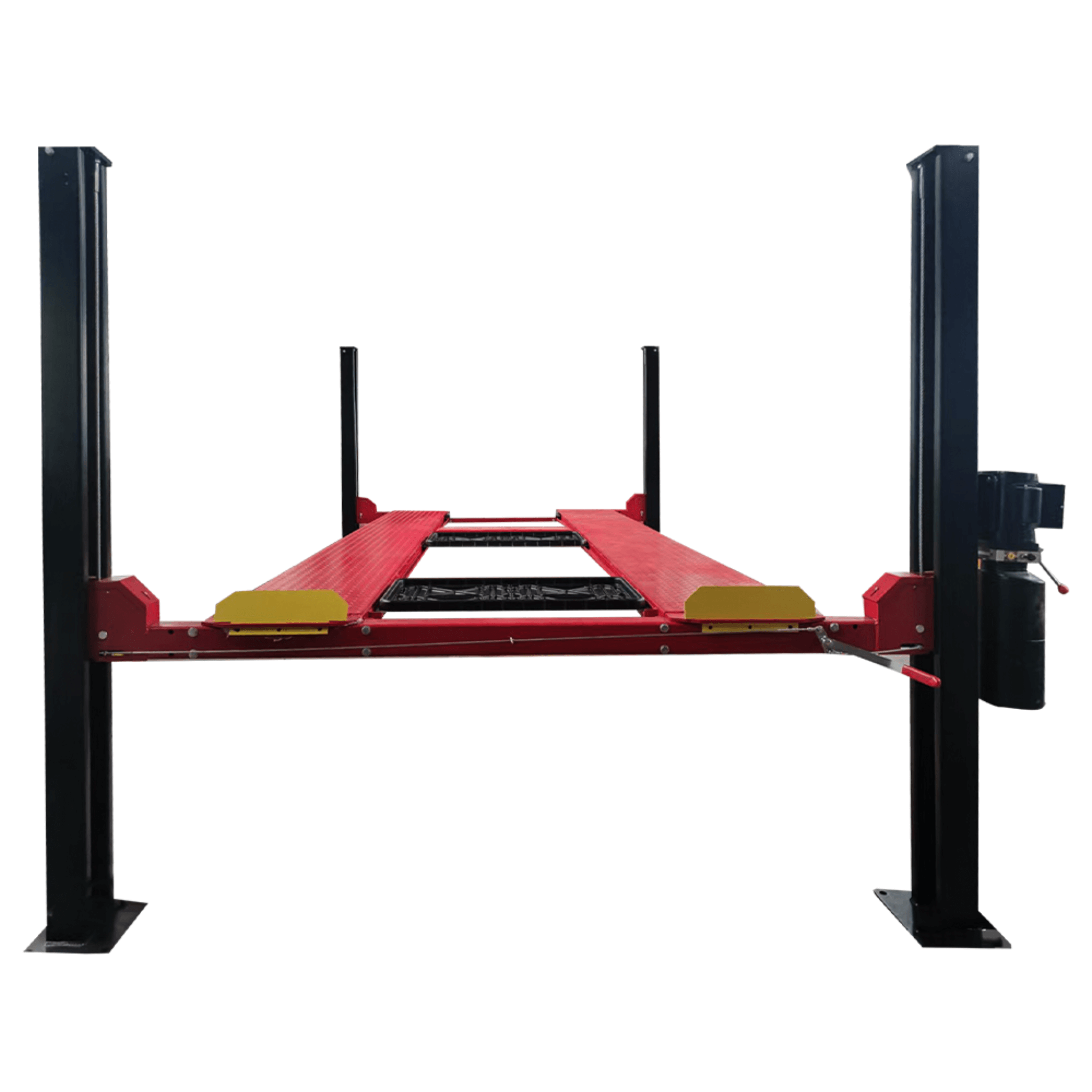

KATOOL KT-4H950 9,500lb Heavy Duty 4-Post Lift
- ✓ No Sales Tax - Except CA, FL, GA, IL, IN, MI, MN, OH, PA, TN, & WA
- ✓ Typically Ships in 3-7 Business Days
- ✓ Free Warehouse Pickup Options
- ✓ Better Business Bureau (BBB) Accredited

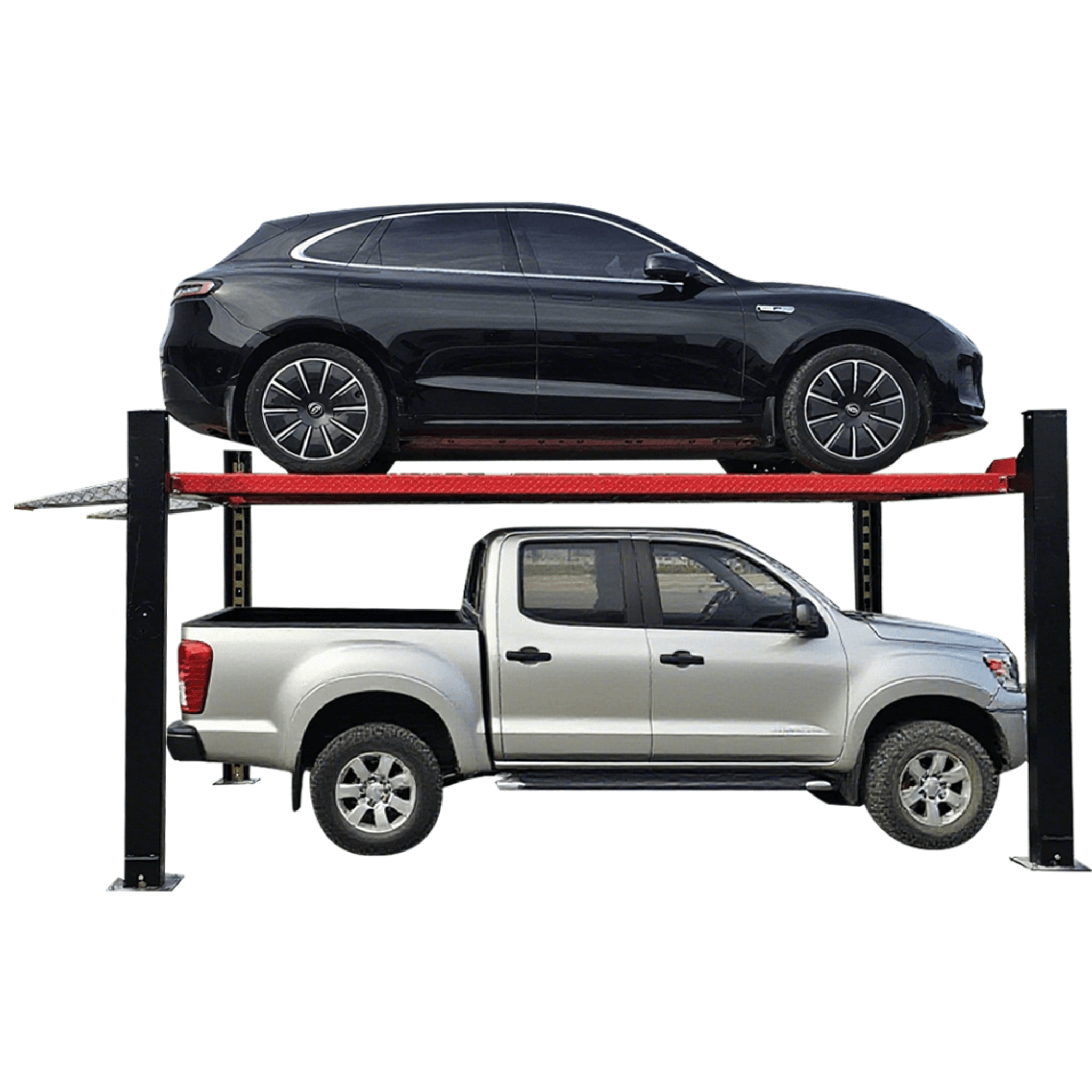

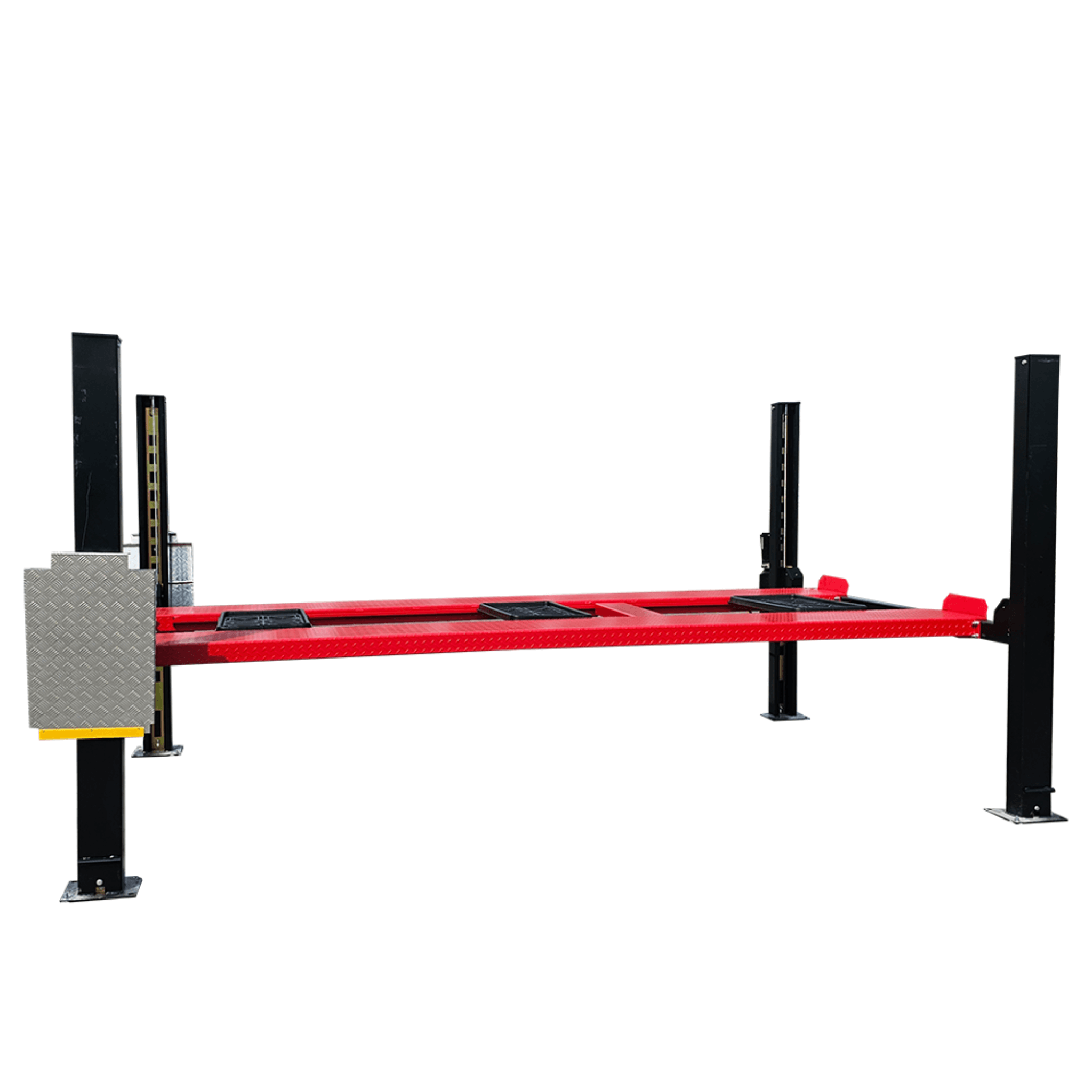

Elevate your auto service capabilities with the KATOOL KT-4H950 4-Post Lift, designed for heavy-duty performance and built to handle vehicles up to 9,500 pounds. This lift is a reliable solution for professional automotive shops, dealerships, and serious home garages needing robust lifting power and long-term durability.

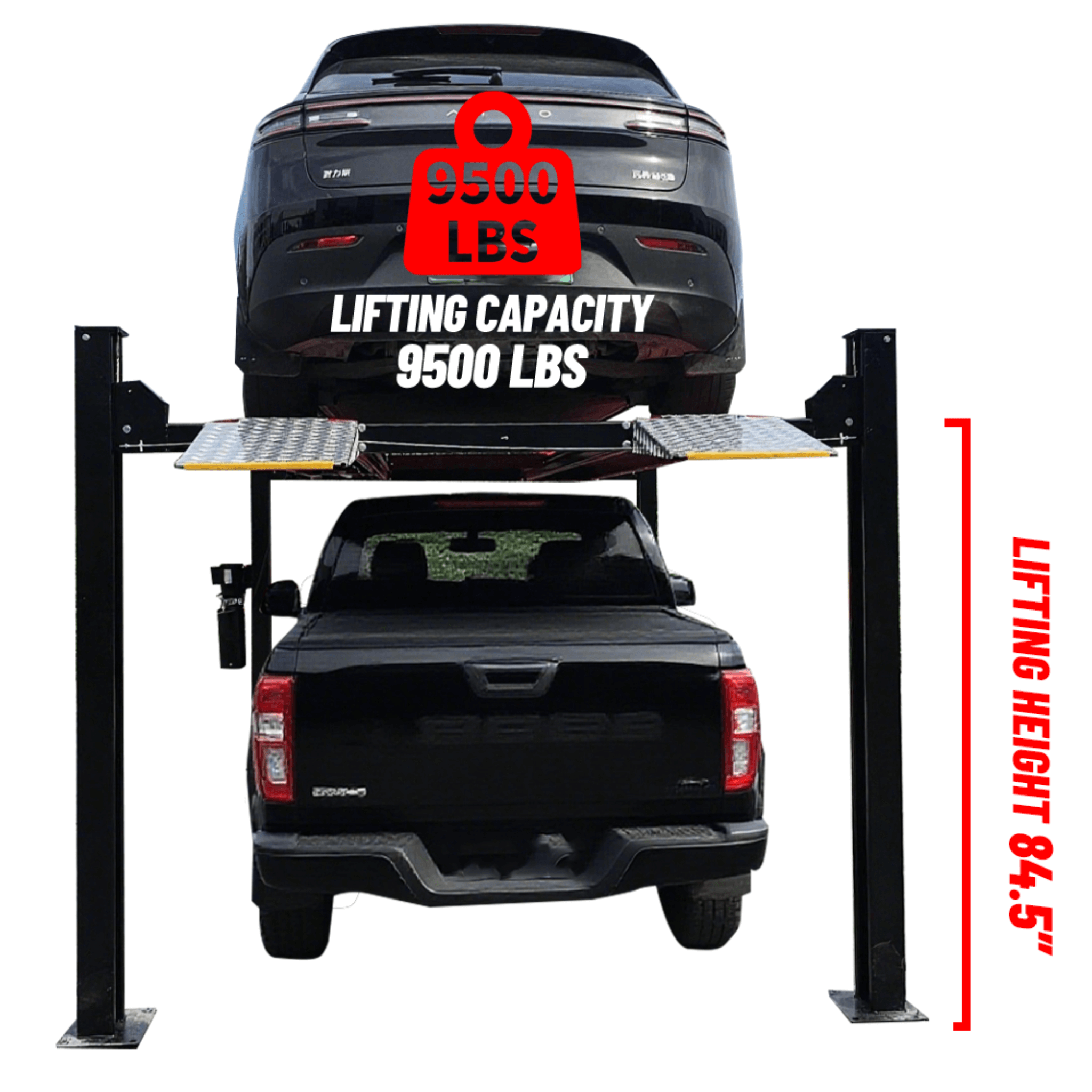

With an impressive lifting height of 84.5 inches and a quick 50-second lift time, this 4-post lift provides efficient access for undercarriage maintenance, repairs, and inspections. The non-skid diamond plate platforms and adjustable safety lock ladders ensure stable, slip-resistant operation for improved workplace safety.

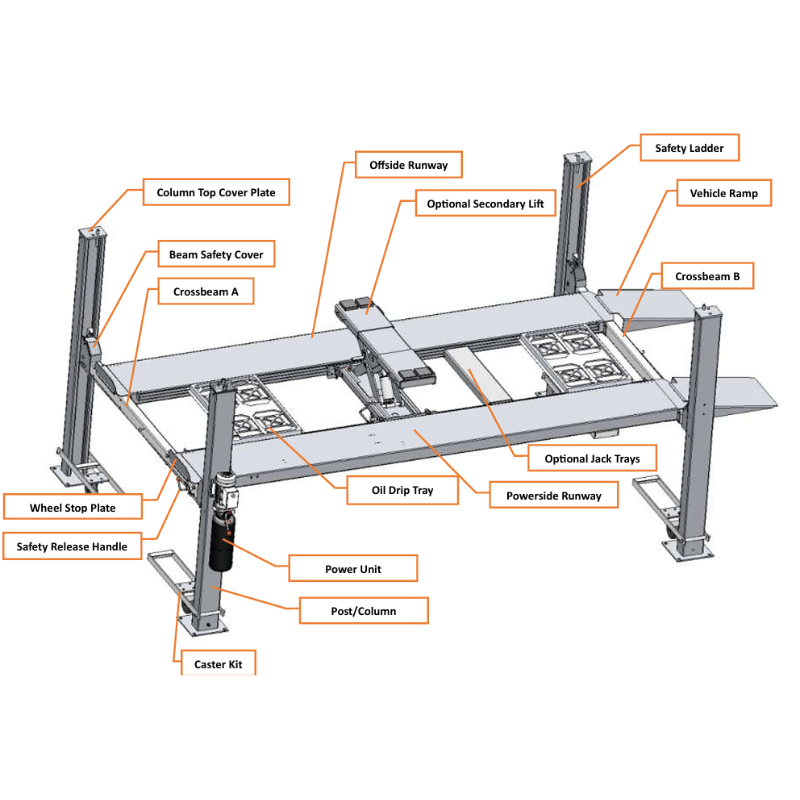

Engineered with 4 mechanical locks and both primary and secondary safety systems, the KT-4H950 prioritizes user protection. It also includes caster kits, aluminum ramps, a jack tray, and drip trays making it a complete lifting system ready to boost your shop’s productivity.
Lifting Capacity: 9,500lb
Lifting Time: 50 seconds
Lifting Height: 84.5″

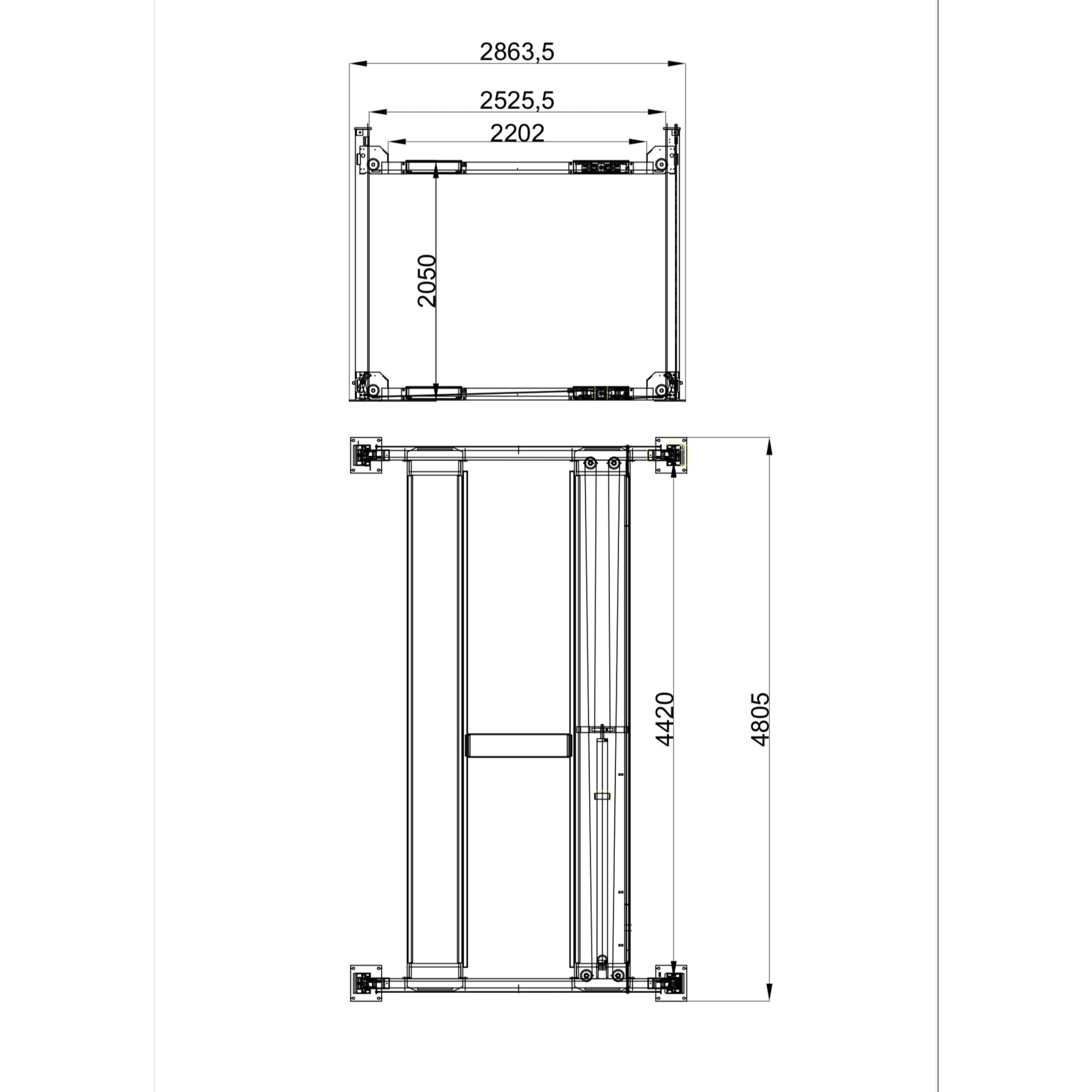

Overall Width: 113″
Width Between Columns: 99″
Overall Length: 189″
Motor: 110V / 3HP
Safety System: 4 mechanical locks with primary & secondary safety locks
Concrete Requirement: Minimum 3.93″ (100 mm) thickness at 3000 PSI

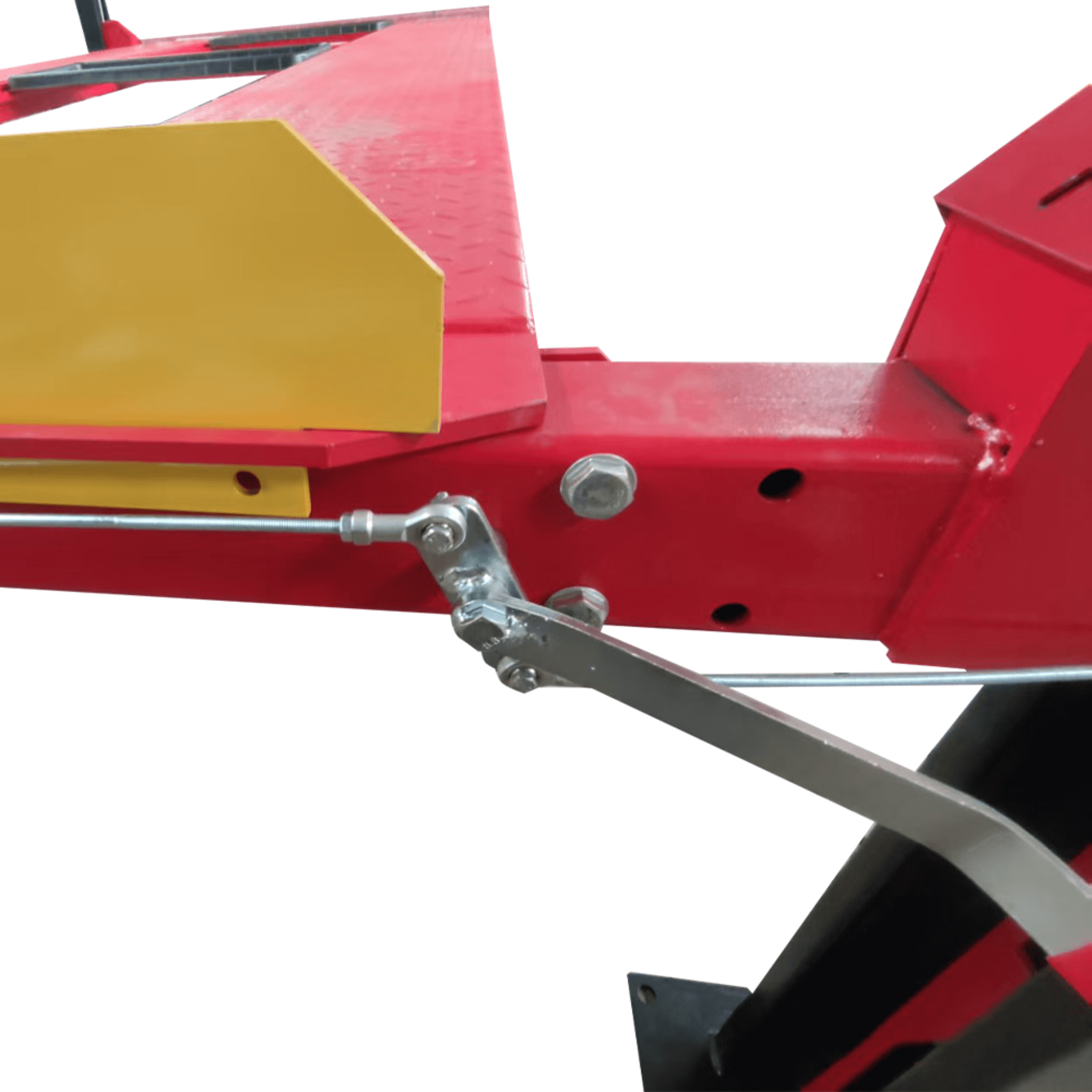

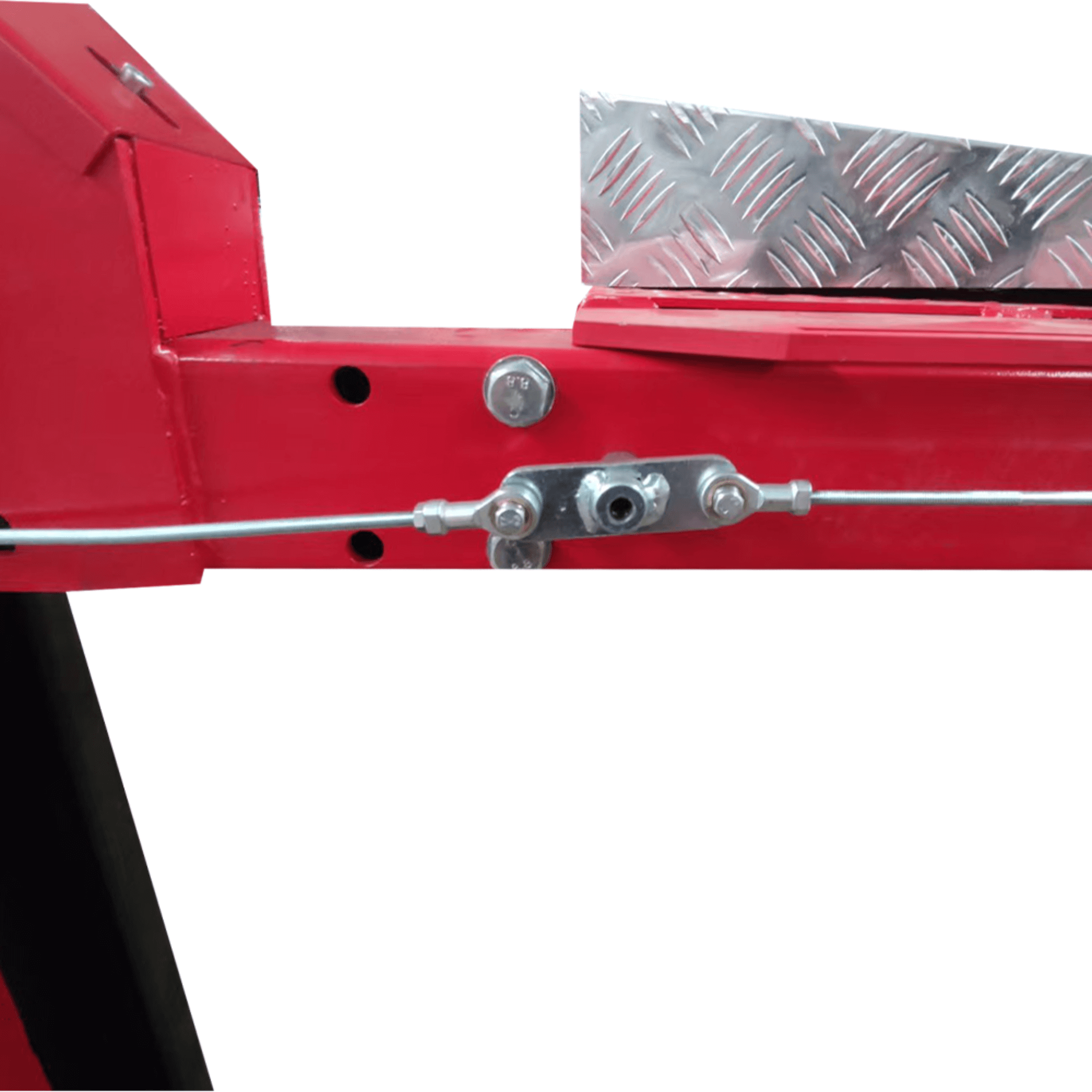

Single-point manual safety release for simple operation
Power unit column can be installed on either side, front or rear
Non-skid diamond plate runways for safer vehicle positioning

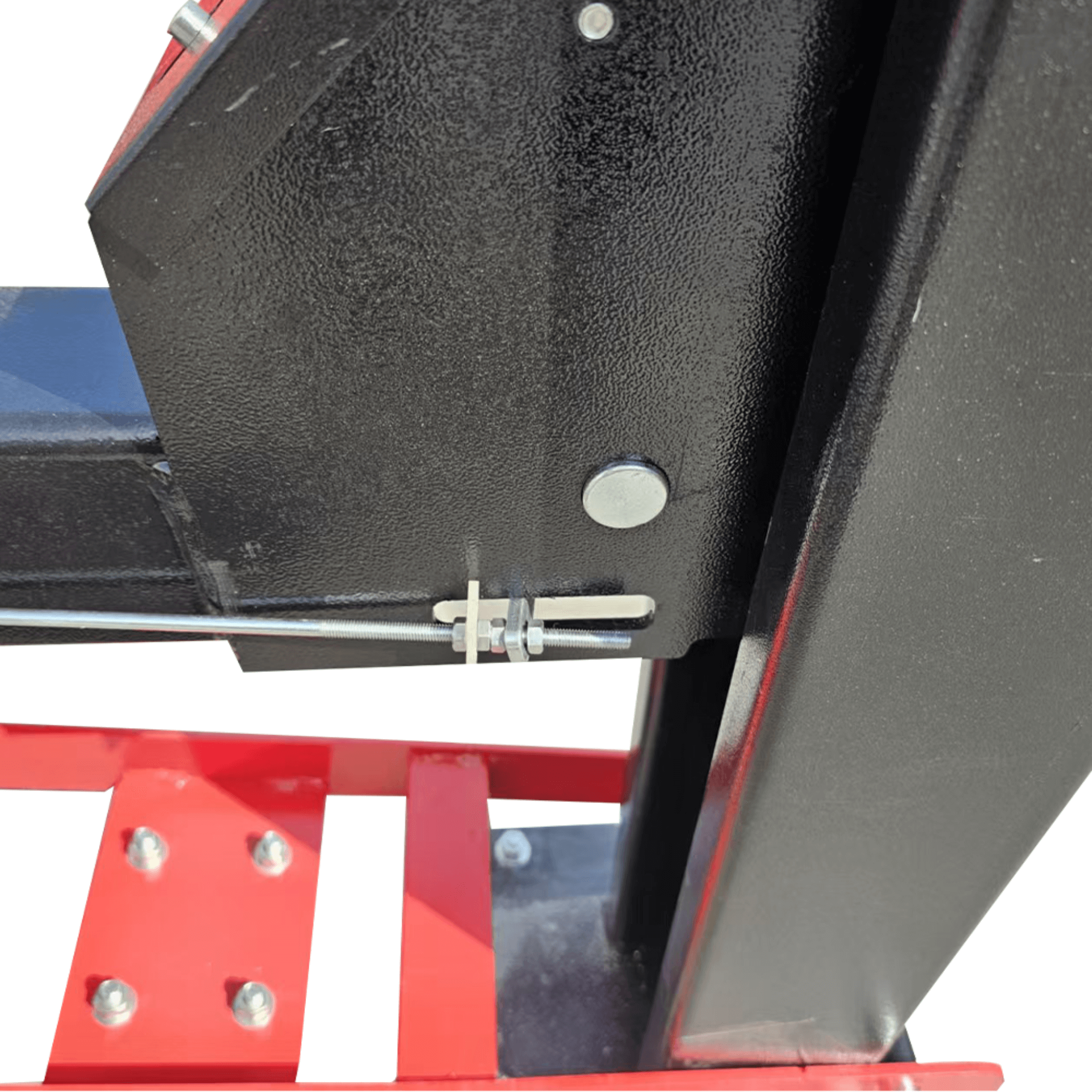

Adjustable safety lock ladders for custom lift heights
Includes:

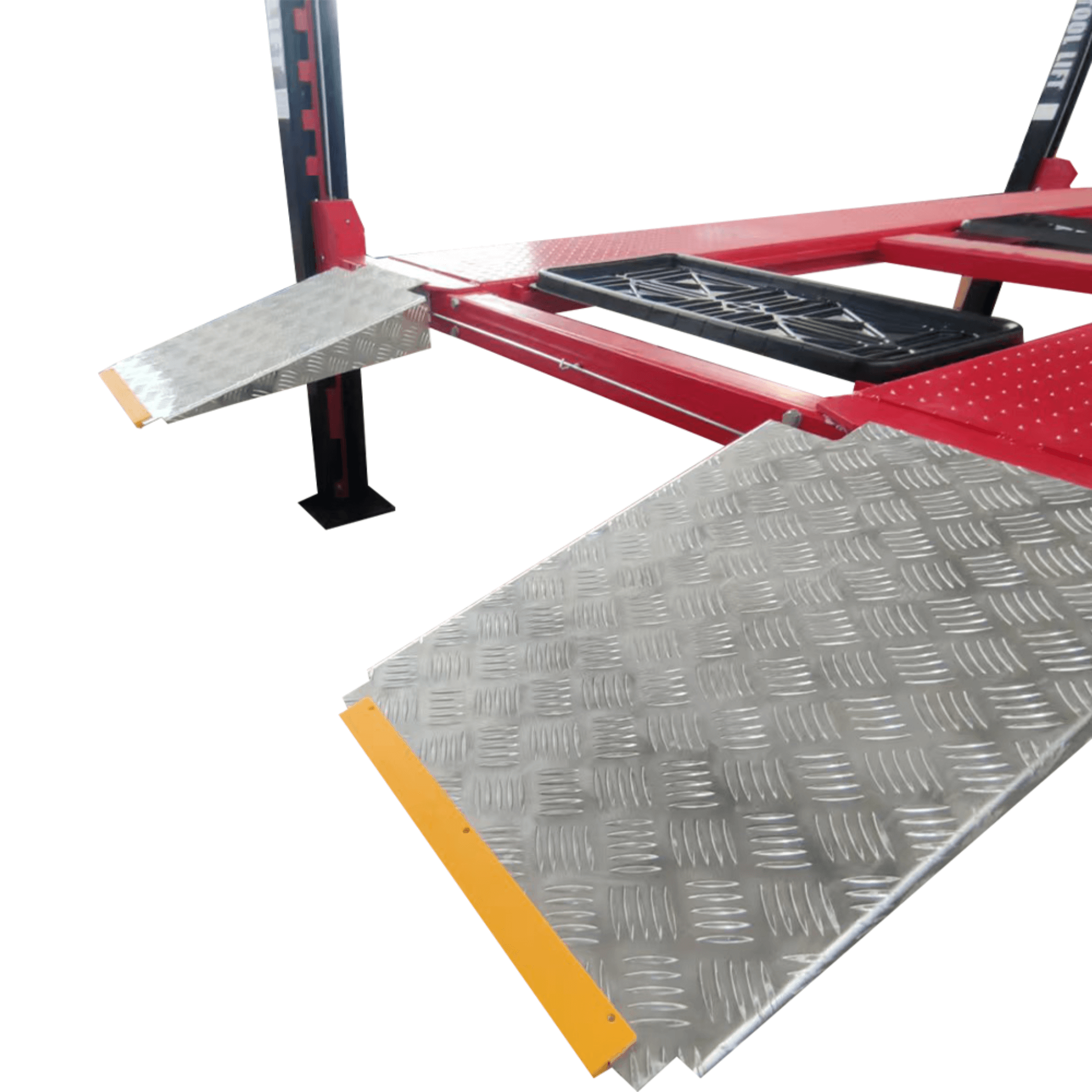

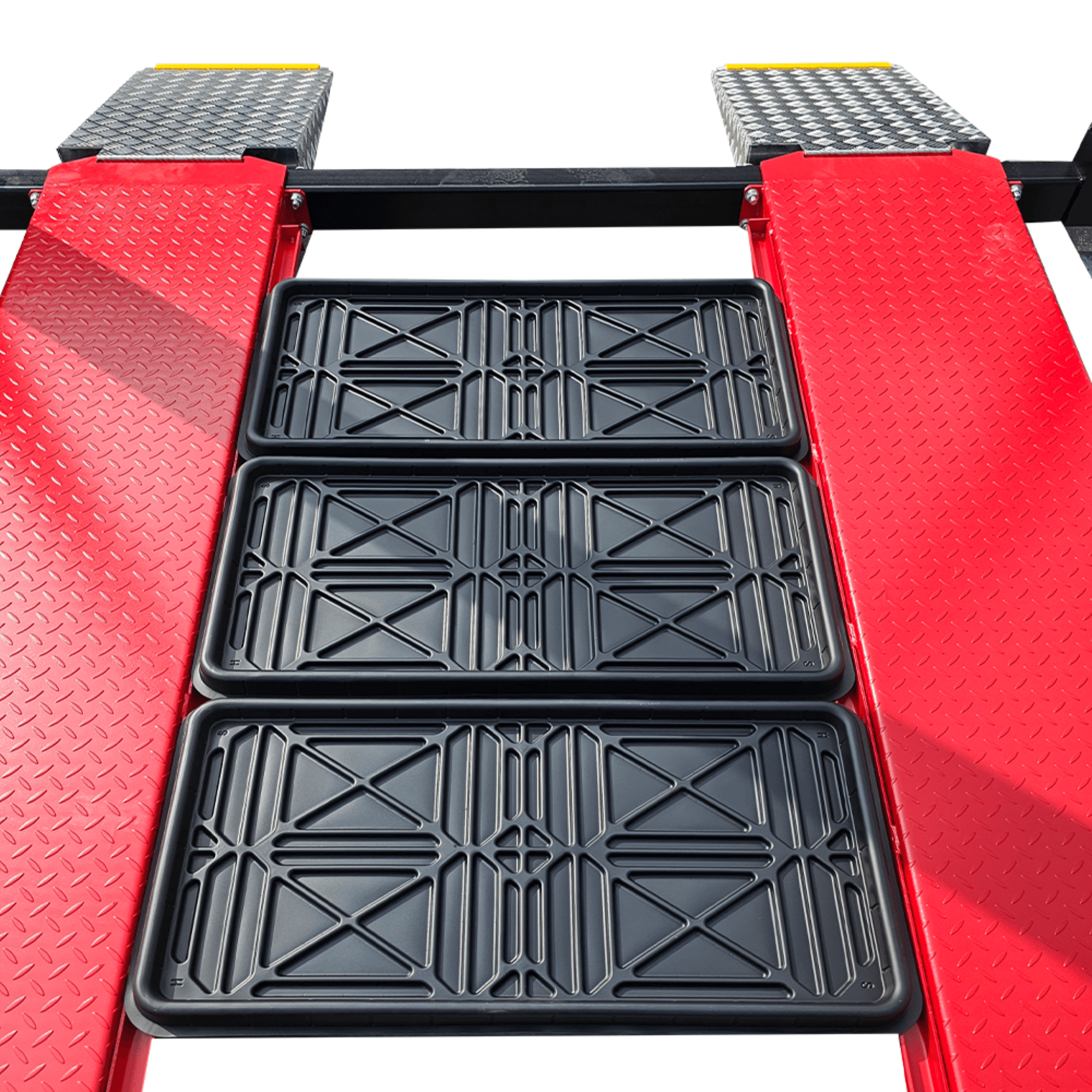

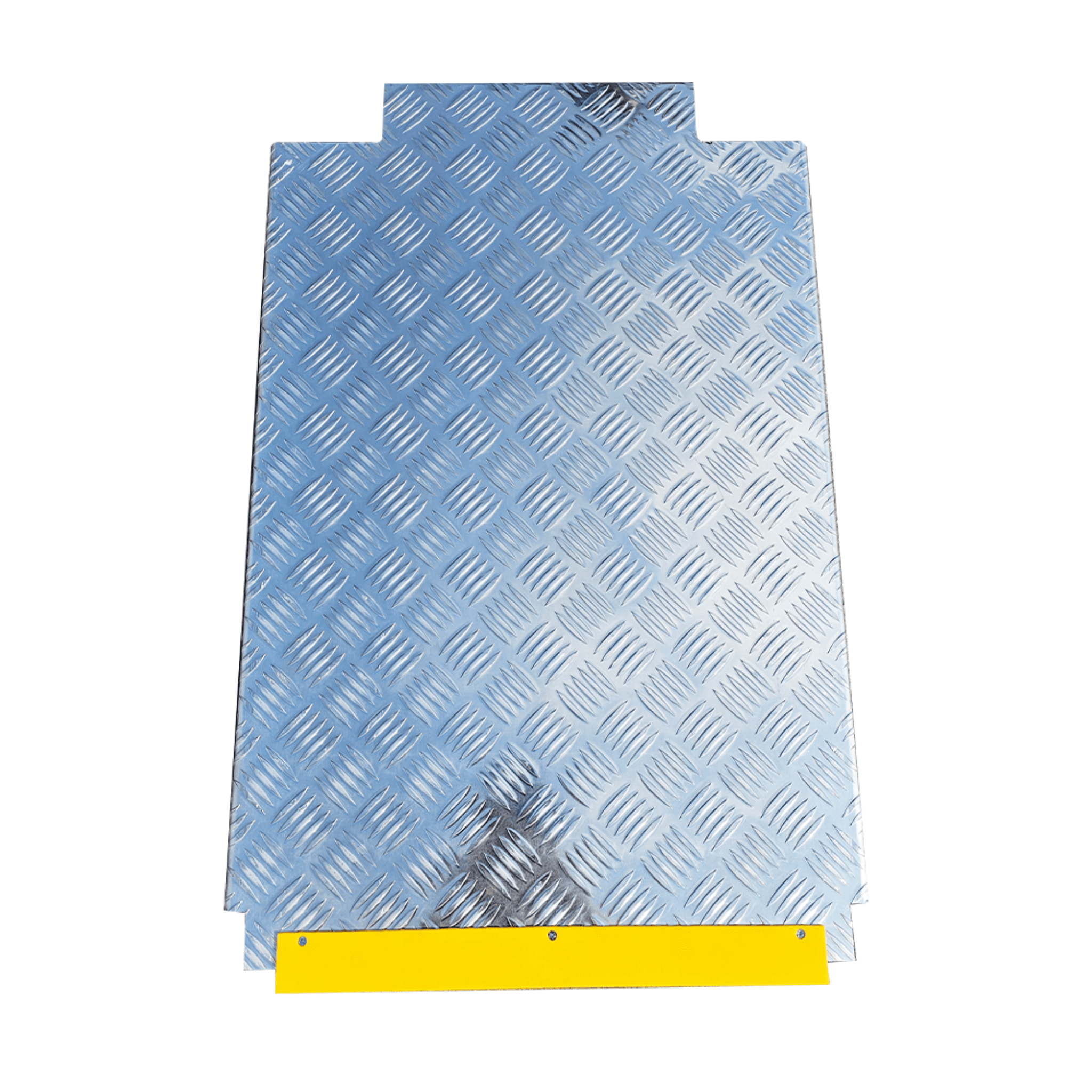

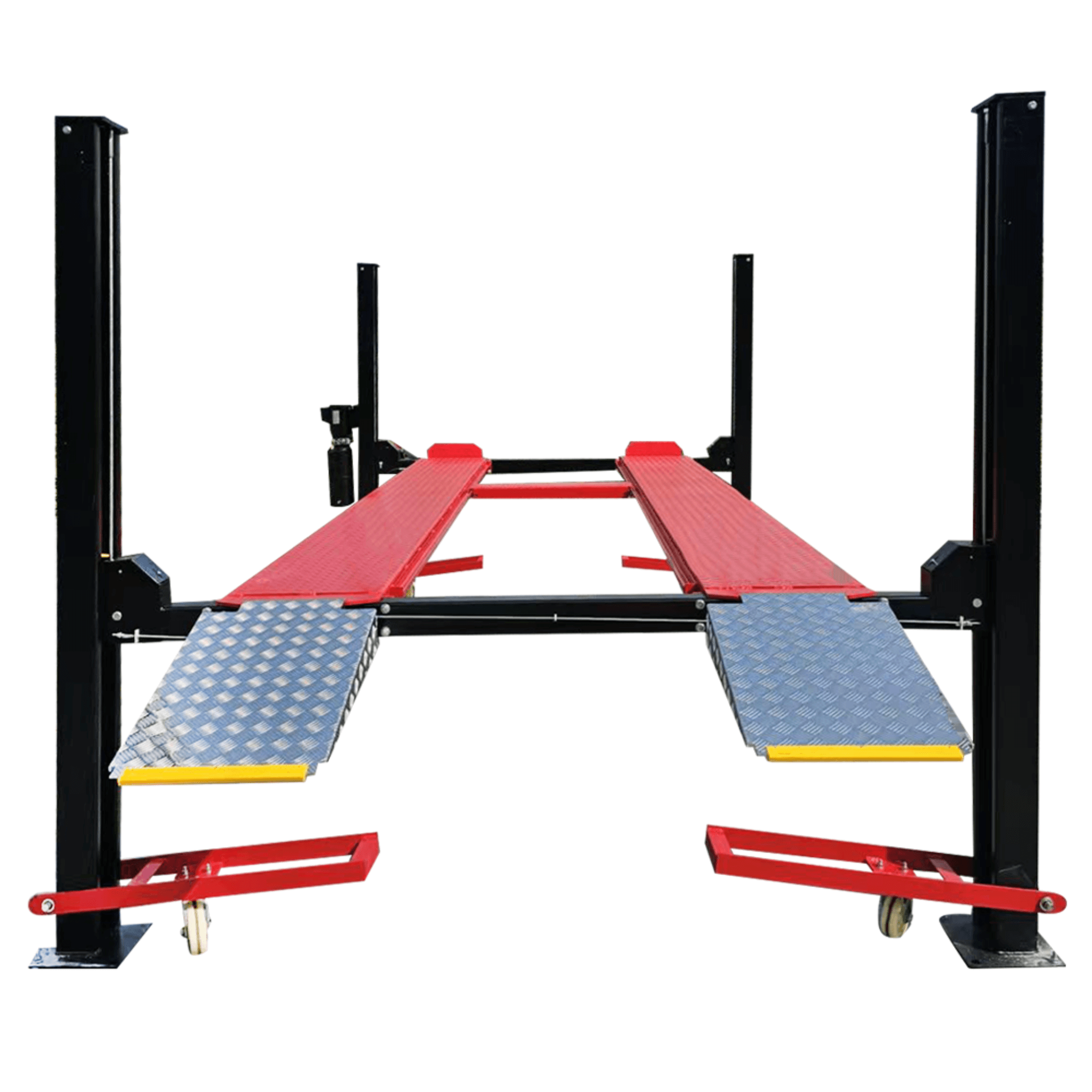

Caster kit, Aluminum ramps, Jack Tray, and 3 drip trays
Optional sliding bridge jack with hand pump available
Rugged construction built for long-term shop use
No documents
*Prior to purchasing and installing, customers must confirm the concrete thickness and strength to ensure safety. The concrete must be at least 3.93" thick and have a 3000 PSI rating in order to properly install this lift and avoid potential injury or death.
