Katool KT-AV9 Wheel Alignment Machine

SKU KT-AV9
by Katool
  • Free Shipping
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Better Business Bureau (BBB) Accredited
$5,750.00
Free Warehouse Pickup Locations*
*Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

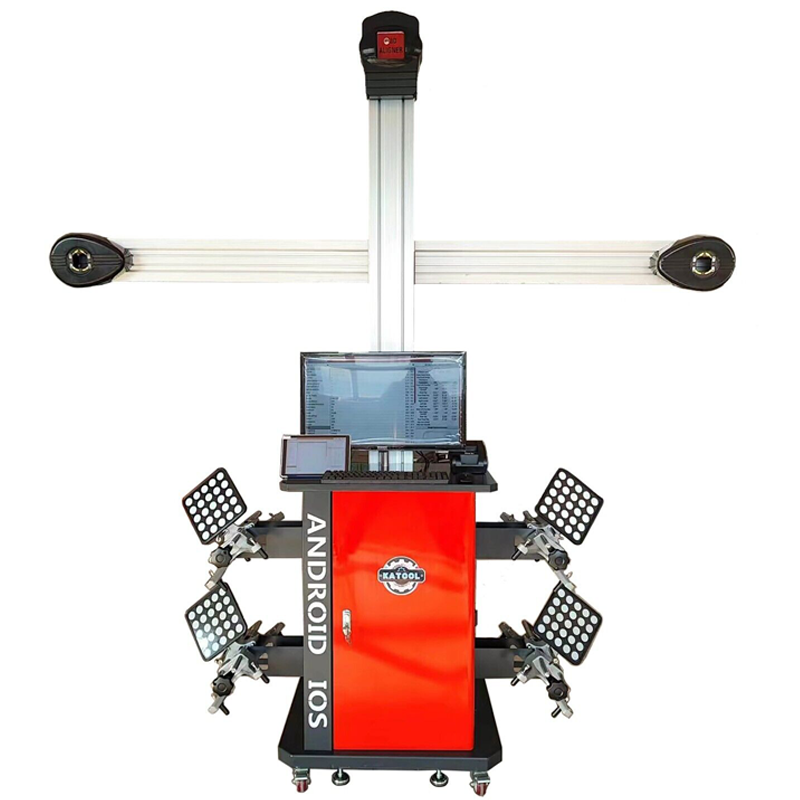

KT-AV9 Wheel Alignment Machine by Katool

Premature tire wear and lousy gas mileage – these are the telltale signs of a misaligned car. Ignoring the problem is like throwing money out the window (literally, in the form of shredded rubber!). Don't be fooled by those back-alley alignment specials. Their "eyeball" techniques might leave your car worse off than before. You deserve precision, not guesswork!

Introducing the Katool KT-AV9 Wheel Alignment Machine, the ultimate weapon against misalignment woes. This advanced system boasts crystal-clear dual cameras and a processing speed that would make any pit crew member drool. It even adapts to different lighting conditions, ensuring perfect results even in a dimly lit garage. Forget wasting time with complicated calibration. The KT-AV9 is pretty much plug-and-play, ready to work right out of the box. Plus, its unlimited memory and self-diagnostic features make setup and troubleshooting a breeze. Stop your customers from throwing money away on misaligned tires. Invest in the KT-AV9 and experience the difference!

Wheel Alignment KT-AV9 Specifications:

  • Power Supply: 100-240V,50/60 HZ,1 Ph
  • Working Temperature: 41F…104 F(+5℃…+40℃)
  • Cameras (Total): 2
  • Tire Diameter: 9 27/32-31 1/2 in(250-800 mm)
  • Wheellbase: 62 63/64 -82 43/64 in(1.6-2.1m)
  • Track Width: 70 55/64-177 11/64 in(1.8 -4.5 m)
  • Warranty: 1-Year Limited
  • Product Weight: 440.92 Ibs(200 kg)
  • Shipping Weight: 529.11 Ibs(240 kg)
  • Shipping Dimensions: 39.76x36.61x48.47 in(1010x930x1230mm) 110.24x15.75x15.75in(2800x400x400mm)

KT-AV9 From Katool Special Features:

  • Mobile 3D Wheel Aligner for Lift Application
  • Unlimited memory for vehicle specifications
  • No calibration during installation
  • Includes tablet and a 30inch display screen, mouse and keypad, and a printer
  • Complementary wifi device and USB drive
  • Uses Android and IOS systems for the software, minimizes the need for software and system maintenance
  • Synchronous Display on Smart Phone and Pad
  • The client can read the alignment operation on the smart device during the service
  • During rear wheel adjustment, the engineer can check data change on a smartphone easily
  • The post moves with a remote control, which makes it easy to track the height of the vehicles.
  • Free database upgrades yearly
  • The database keeps up with the most recent car models from all US, European and Asian brands.

Katool KT-AV9 Documentation:

Wheel Alignment KT-AV9 Product Manual Katool KT-AV9 Wheel Alignment Product Manual
