Katool KT-H100, 2 Post Car Lift 10,000lbs

SKU KT-H100-220
by Katool
  • Katool Sale - Ends February 14, 2025
  • No Sales Tax - Except CA, FL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
Save $150.00
Original Price $1,999.00
Current Price $1,849.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location
Voltage

Notify me when back in stock

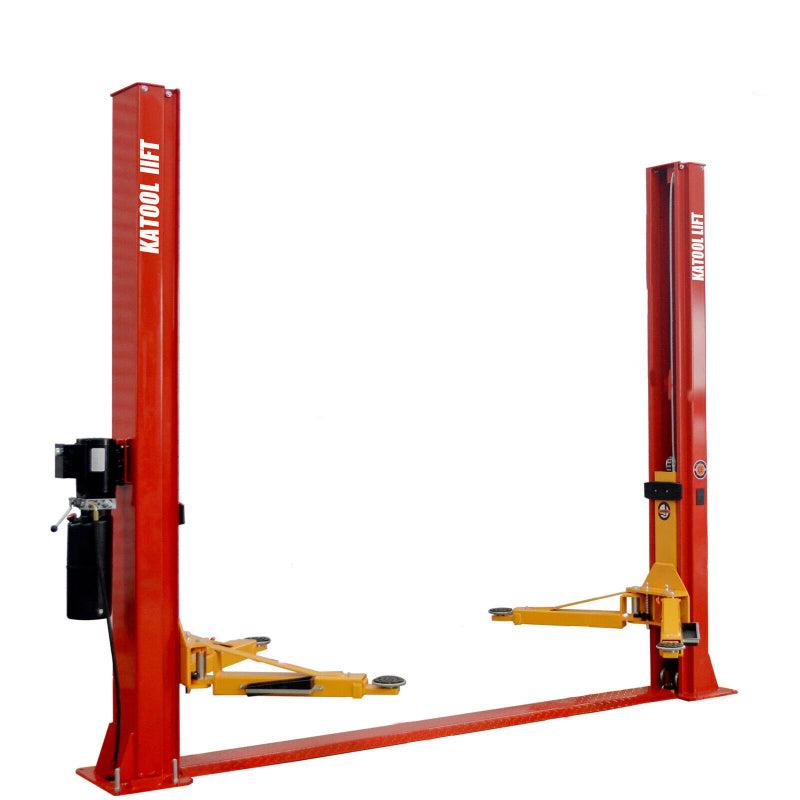

KT-H100 2 Post Lift by Katool

Tired of wrestling with heavy equipment and even heavier vehicles? With the KT-H100 2-Post Vehicle Lift, you won't have to ever again. This is a hydraulic powerhouse engineered to conquer even the most demanding lifting challenges. This boasts a staggering 11,000-pound lifting capacity, making it the ideal solution for professional workshops and garages tackling trucks, vans, and the sort of machinery we used to drool over as boys. Because it lifts such heavy loads, the KT-H100 prioritizes safety. Features like a single-point lock release and overhead safety shutoff bar offer intuitive operation and prevent over-extension accidents. The rubber pad door opening protection means you won’t ding any doors.

The KT-H100’s asymmetric arms allow for flexible positioning of a wide range of vehicles, while the adjustable extended support adapters accommodate varying heights with ease. The 180-degree arm design provides even more flexibility, while integrated safety guardrails with a toolbox keep your workspace organized while keeping everything you need within easy reach. The direct drive cylinders ensure smooth, reliable lifting, while the high-quality hydraulic system operates on either 220V or 110V power sources for maximum convenience. If you want long-lasting, robust lifting, you can’t go wrong with the KT-H100.

2 Post Lift KT-H100 Specification:

  • Lifting Capacity: 11,000 lbs (4990 kg)
  • Max. Lifting Height: 70.75 inches (1800 mm)
  • Min. Height: 3.74 inches (95 mm)
  • Height Overall: 141.25 inches (3587 mm)
  • Width Overall: 134.65 inches (3420 mm)
  • Outside Columns: 120.4 inches (3058 mm)
  • Inside Columns: 109.37 inches (2778 mm)
  • Drive Thru Clearance: 99.61 inches (2530 mm)
  • Motor: 220VAC / 60HZ / 1PH
  • Net Weight: 1323 lbs (600 kg)
  • Oil: AW-46 or AW-32 (colder climates)

KT-H100 From Katool Special Features:

  • 11000lbs lifting capacity
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
  • Single Point Lock Release
  • Asymmetric arms
  • Direct Drive Cylinders
  • Rubber pad door opening protection
  • Comes with adjustable extended support adaptor sets that range from 3.94 inches to 6 inches.
  • Overhead safety shutoff bar
  • 180 Degree Arm design
  • Feet-protection safety guardrails with toolbox
  • Cable Thickness: 3/8"
  • Power: 220V/60HZ/1PH - Standard Option; 110V/60HZ/1PH* - $249 upcharge

    *Must be wired to a circuit with 10-gage wire and a 30-amp breaker

  • Katool Warranty:
    • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
    • Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

Katool KT-H100 Documentation:

KT-H100 Vehicle Lift Installation Instructions  Katool KT-H100 Vehicle Lift Installation Instruction

*Must be wired to a circuit with 10-gage wire and a 30-amp breaker

*Concrete thickness must be at least 5.9" with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
