Katool KT-H105, 2 Post Vehicle Lift 10,000lbs

SKU KT-H105-220v
by Katool
  • Katool Sale - Ends February 14, 2025
  • No Sales Tax - Except CA, FL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
Save $150.00
Original Price $1,699.00
Current Price $1,549.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location
Voltage

Notify me when back in stock

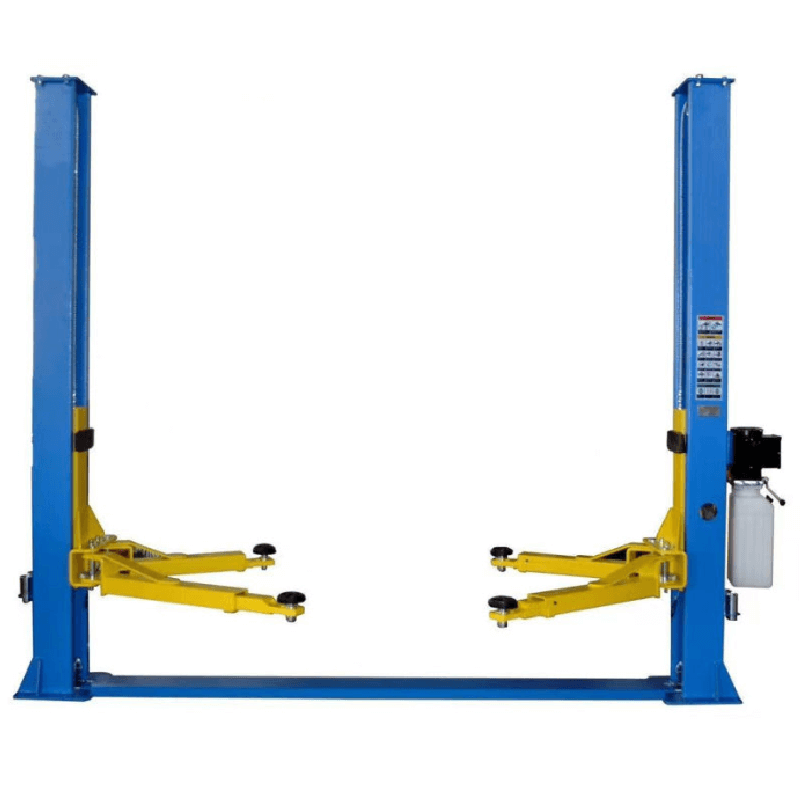

KT-H105 Vehicle Lift by Katool

Need a lift that makes the toughest jobs a lot easier? Look no further than the Katool KT-H105 2-Post Vehicle Lift. This hydraulic powerhouse boasts an eye-watering 10,000-lb lifting capacity, making it the ideal partner for professional workshops and busy garages that handle everything from hefty trucks, full-size luxury cars, and vans to heavy machinery. The base plate design and symmetric arms provide a rock-solid foundation for uniform lifting. Dual hydraulic chain-drive cylinders and a robust 3/8-inch cable guarantee smooth, reliable operation.

Meanwhile, rubber pad door opening protection protects doors from incurring dings and scratches. The screw-on pad and extension support adapters (adjustable up to 100mm) allow the KT-H105 to accommodate a wide range of vehicle heights with ease. Need to work on a specific vehicle type? The symmetric arm style offers flexible positioning options. This isn't just a lift, it's a long-term investment. The KT-H105 Vehicle Lift is the workhorse you can trust to handle your toughest lifting challenges, day in and day out.

Vehicle Lift KT-H105 Specification:

  • Lifting Capacity: 10,000 lbs
  • Max. Lifting Height: 70.8"
  • Min. Height: 3.9"
  • Height Overall: 110.9"
  • Width Overall: 140.4"
  • Outside Column: 124.8"
  • Inside Column: 110.2"
  • Drive-Thru Clearance: 98.4"
  • Front Arm Reach (Min): 29.5"
  • Front Arm Reach (Max): 46"
  • Rear Arm Reach (Min): 35.4"
  • Rear Arm Reach (Max): 58.2" (
  • Motor: 220VAC/60HZ/1PH/2.2KW
  • Net Weight: 1234 lbs
  • Oil: AW-46 or AW-32 (colder climates)

KT-H105 by Katool Special Features:

  • 10,000lb lifting capacity
  • CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
  • Manual safety release from two sides.
  • Base plate design
  • Arm Style: Symmetric
  • Cable Thickness: 3/8"
  • Dual Hydraulic Chain-Drive Cylinders
  • Robber pad door opening protection.
  • Screw-on pad and extension support adaptor sets +100mm
  • Power: 220V/60HZ/1PH - Standard Option; 110V/60HZ/1PH* - $249 upcharge

           *Must be wired to a circuit with 10-gage wire and a 30-amp breaker

  • Katool Warranty:
    • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
    • Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

Katool KT-H105 Documentation:

Vehicle Lift KT-H105 Product Manual  Katool KT-H105 Vehicle Lift Product Manual

*Concrete thickness must be at least 5.9" with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
