Katool KT-H105 10,000lb 2 Post Car Lift

KT-H105 Car Lift by Katool

Got a beast of a vehicle to lift? The Katool KT-H105 2-Post Vehicle Lift is here to show off its muscles. With a jaw-dropping 10,000 lb lifting capacity, this hydraulic dynamo doesn’t just lift—it conquers. Trucks, luxury sedans, vans, and even that ancient machinery Uncle Joe refuses to retire? All handled like a breeze.

The KT-H105 comes with dual hydraulic chain-drive cylinders and a tough-as-nails 3/8-inch cable, delivering silky-smooth operation every time. Its symmetric arms provide rock-solid stability, and the base plate design screams, “I’ve got this!” (and it does). Rubber pad door protection? Oh, you bet. No more sad scratches or awkward "oops" moments on your customer's shiny paint job. SUVs, low-riders, or that Frankenstein contraption from the back lot? This lift says, “Bring it on.”

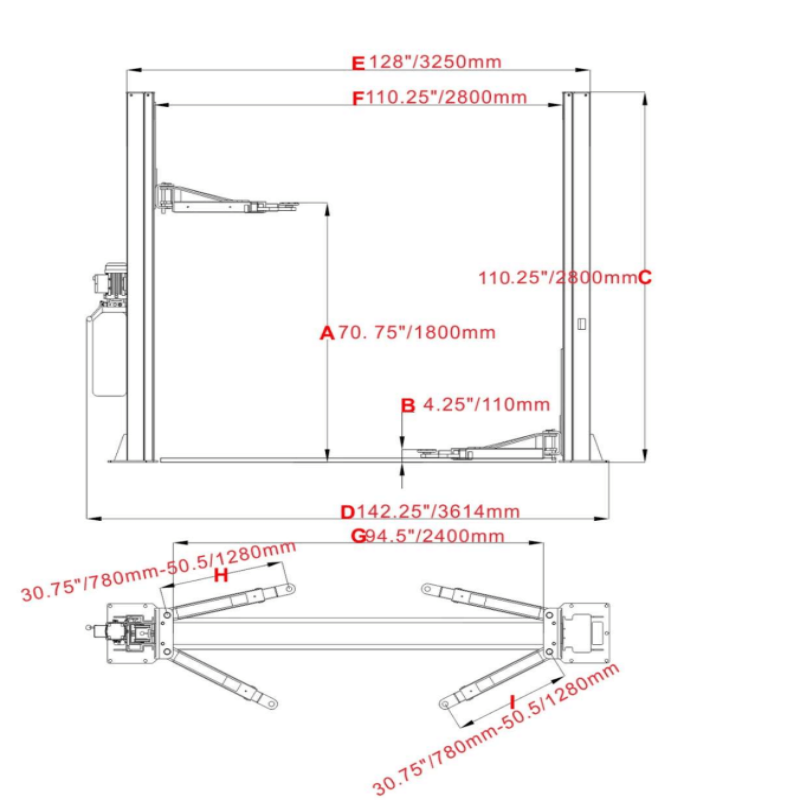

KT H105 Specification:

• Lifting Capacity: 10,000 lbs

• Maximum Lifting Height: 70.8"

• Minimum Height: 3.9"

• Overall Height: 110.9"

• Overall Width: 140.4"

• Outside Column Width: 124.8"

• Width Inside Columns: 110.2"

• Drive-Thru Clearance: 98.4"

• Front Arm Reach (Min): 29.5"

• Front Arm Reach (Max): 46"

• Rear Arm Reach (Min): 35.4"

• Rear Arm Reach (Max): 58.2"

• Net Weight: 1,234 lbs

• Oil Type: AW-46 or AW-32 (cold climates)

• Power: 220V / 60Hz / Single Phase

• Shipping / Pallet Dimensions: 112" x 18" x 36" (1,200 lbs)

H105 by Katool Special Features:

• CE Approved and Certified

• 115% dynamic loading capacity standard

• 150% static loading capacity tested

• Manual safety release from both sides

• Base plate design

• Arm Style: Symmetric

• 3/8" thick lifting cables

• Dual hydraulic chain-drive cylinders

• Rubber pad door opening protection

• Screw-on pad and extension support adapter sets (+4")

Warranty

• One-year (12 months) warranty on all parts against manufacturing defects

• Additional three-year (36 months) warranty on structural components

KT-H105 Manual

  Katool KT-H105 Installation and Operations Manual

*Concrete thickness must be at least 5.9" with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
