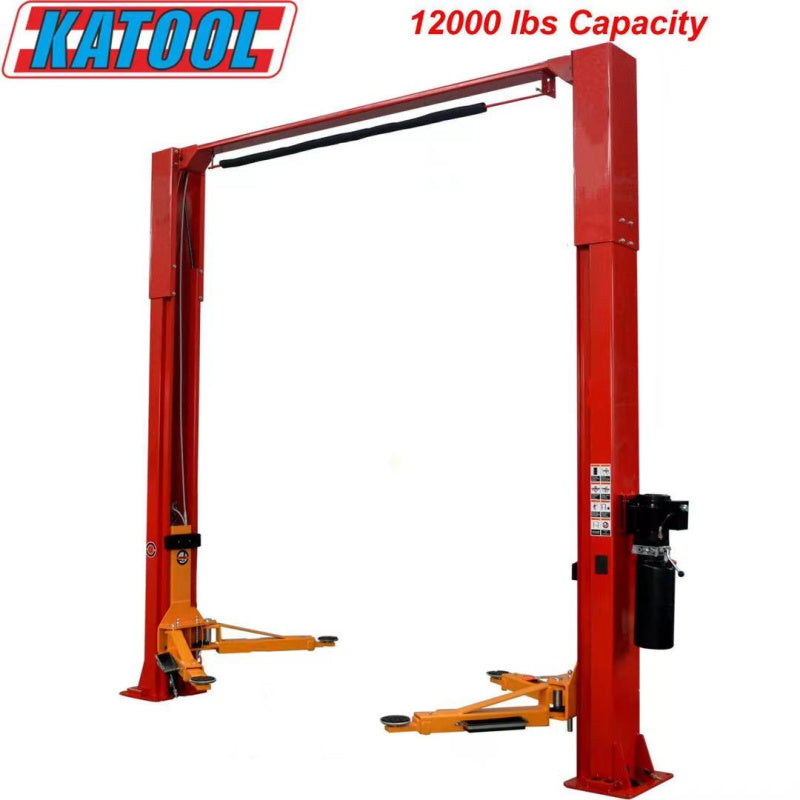

Katool KT-M120, 2 Post Car Lift 12,000lb - Extra Wide

SKU KT-M120-220v
by Katool
  • Katool Sale - Ends February 14, 2025
  • No Sales Tax - Except CA, FL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
Save $200.00
Original Price $2,849.00
Current Price $2,649.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location
Voltage

Notify me when back in stock

KT-M120 2 Post Lift By Katool

Tired of wimpy lifts that struggle with the beefiest trucks? The KT-M120 by Katool laughs in the face of weight limitations. This bad boy boasts a whopping 12,000 lbs lifting capacity, enough to handle even the most intimidating vehicles with ease. Don't settle for shaky lifts that leave you sweating cold – the KT-M120 is CE Approved and Certified, exceeding safety standards with a 150% static load capacity test.

This lift isn't just about brute strength, though. Symmetric arms and dual hydraulic chain-drive cylinders ensure smooth, balanced lifting, while the manual safety release (accessible from both sides!) provides peace of mind. Rubber door padding protects vehicles, and extended support adapters offer versatility for varying heights. Powered by a high-quality hydraulic system, the Katool KT-M120 delivers consistent, powerful performance. Stop struggling with weak lifts. Upgrade to the KT-M120 and experience the power of confidence in heavy-duty lifting.

2 Post Lift KT-M120 Specification:

  • Lifting Capacity: 12,000 lbs.
  • Max. Lifting Height: 70.75"
  • Min. Height: 4.25"
  • Height Overall: 166.75"
  • Width Overall: 165.5"
  • Outside Columns: 151.25"
  • Inside Columns: 130" (3390 mm)
  • Drive Thru Clearance: 117.75" (2990 mm)
  • Motor: 220VAC/60HZ/1PH
  • Net Weight: 1653 lbs. (750 KG)
  • Oil: AW-46 or AW-32 (colder climates)

KT-M120 by Katool Special Features:

  • 12000lbs  lifting capacity
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
  • Manual safety release from two sides

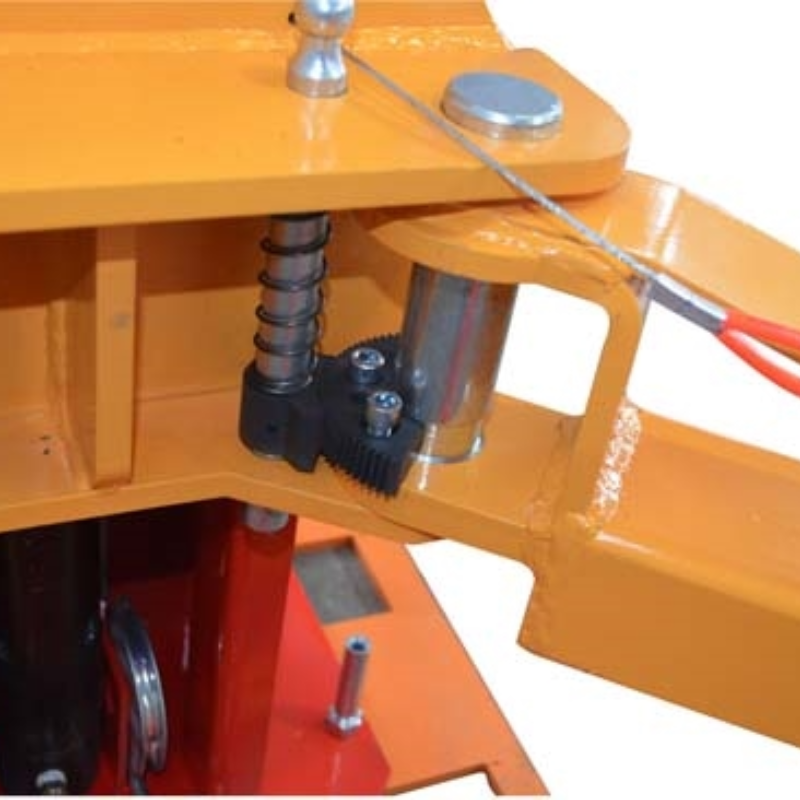

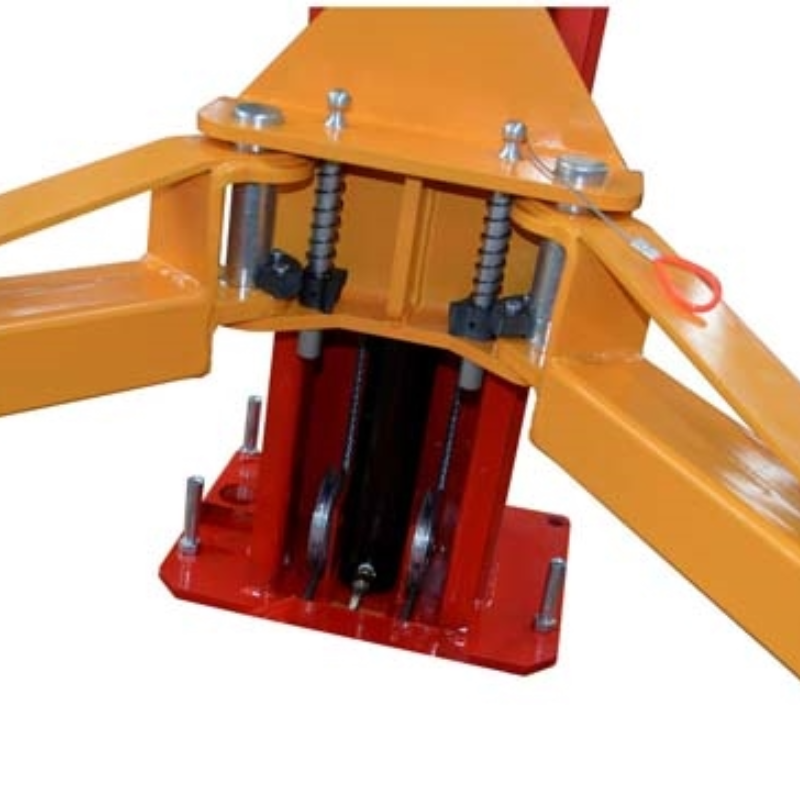

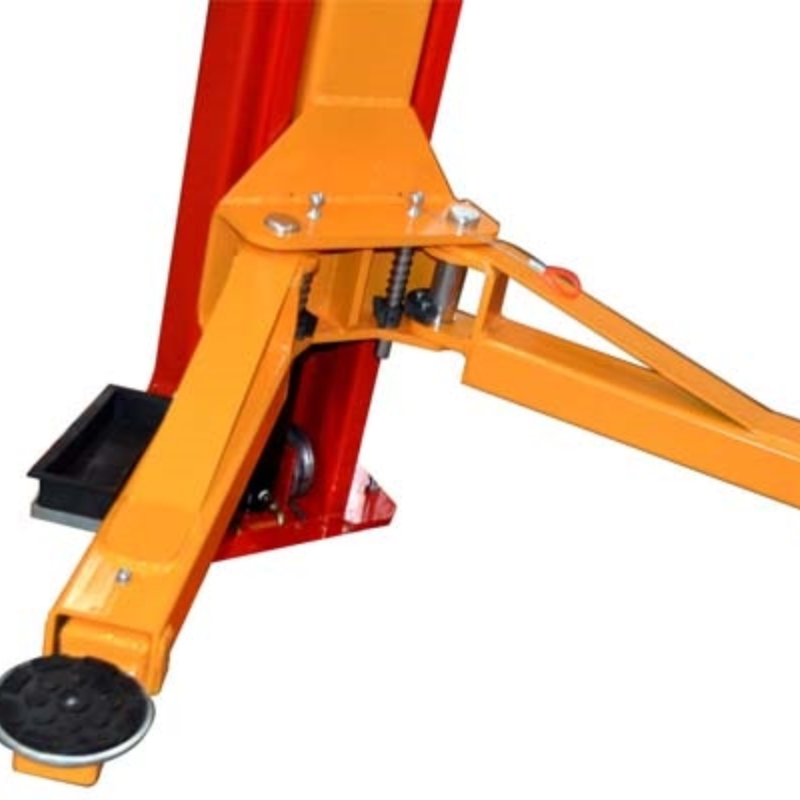

  • Symmetric arms

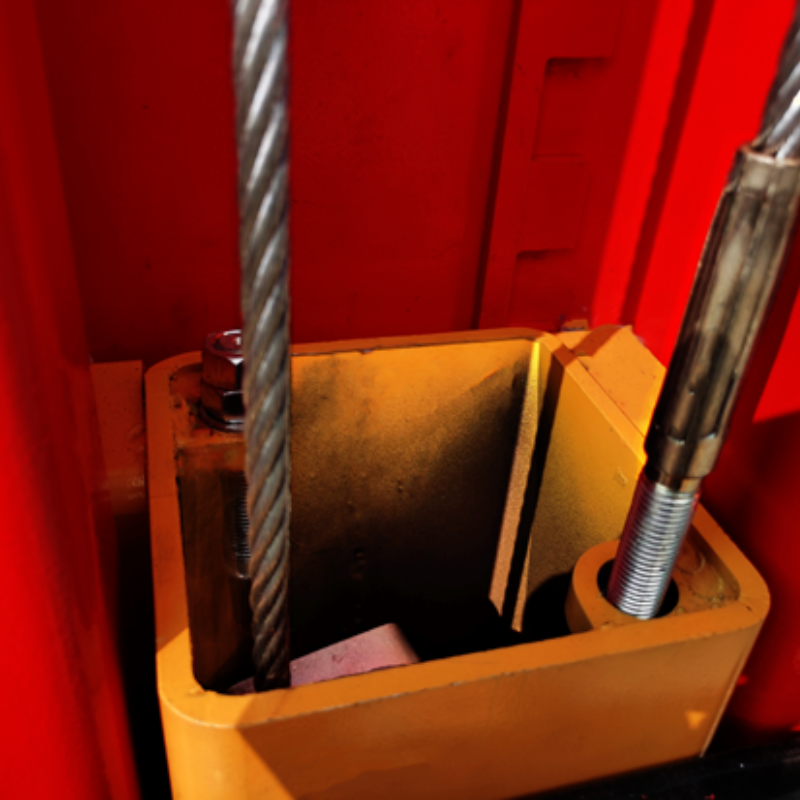

  • Cable Thickness: 3/8"

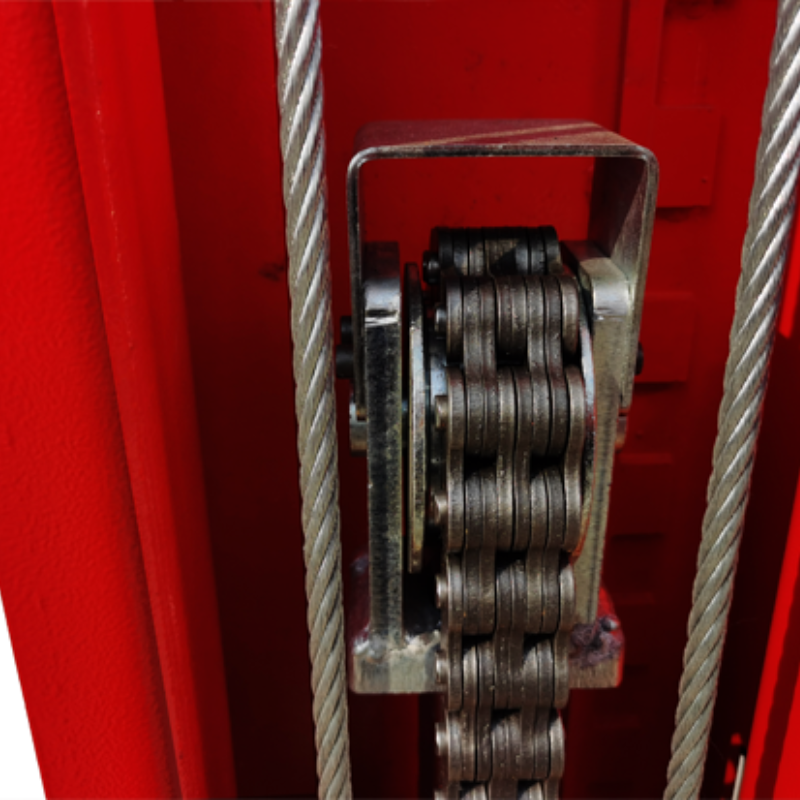

  • Dual Hydraulic Chain-Drive Cylinders
  • Rubber pad door opening protection

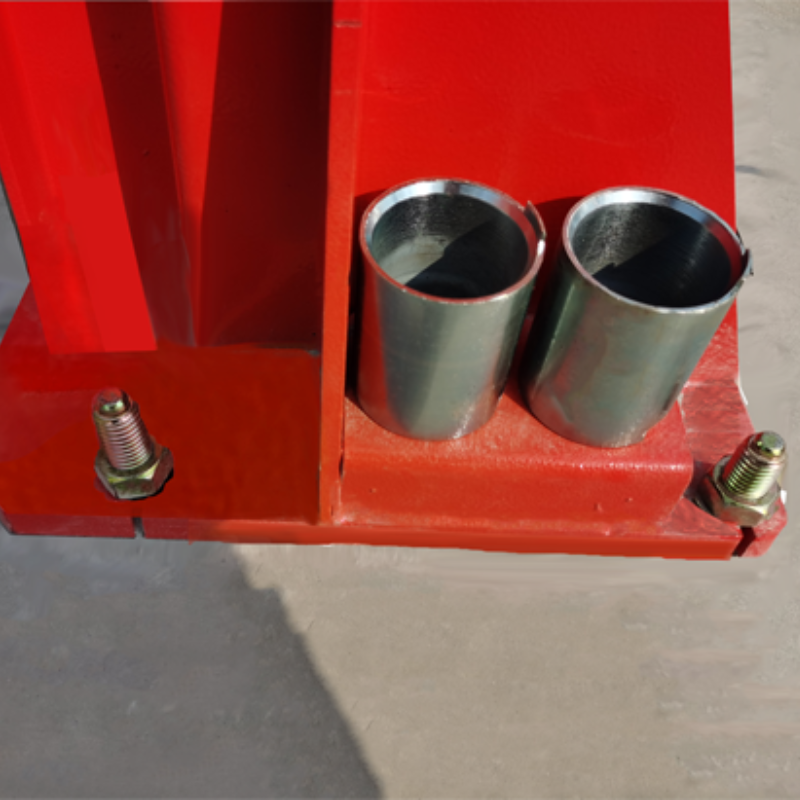

  • Comes with extended support adaptor sets of + 30 mm and + 120 mm
  • Overhead safety shutoff bar
  • Feet-protection safety guardrails with tools box
  • Power: 220V/60HZ/1PH - Standard Option; 110V/60HZ/1PH* - $249 upcharge

*Must be wired to a circuit with 10-gage wire and a 30-amp breaker

  • Katool Warranty:
    • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
    • Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
  • Buy as a Combo KT-M120 + KT-T830 and KT-B750
  • Buy as a combo KT-M120 + KT-T850 and KT-B750

Katool KT-M120 Documentation:

Vehicle Lift KT-M120 Product Manual  Katool KT-M120 Vehicle Lift Product Manual

*Must be wired to a circuit with 10-gage wire and a 30-amp breaker

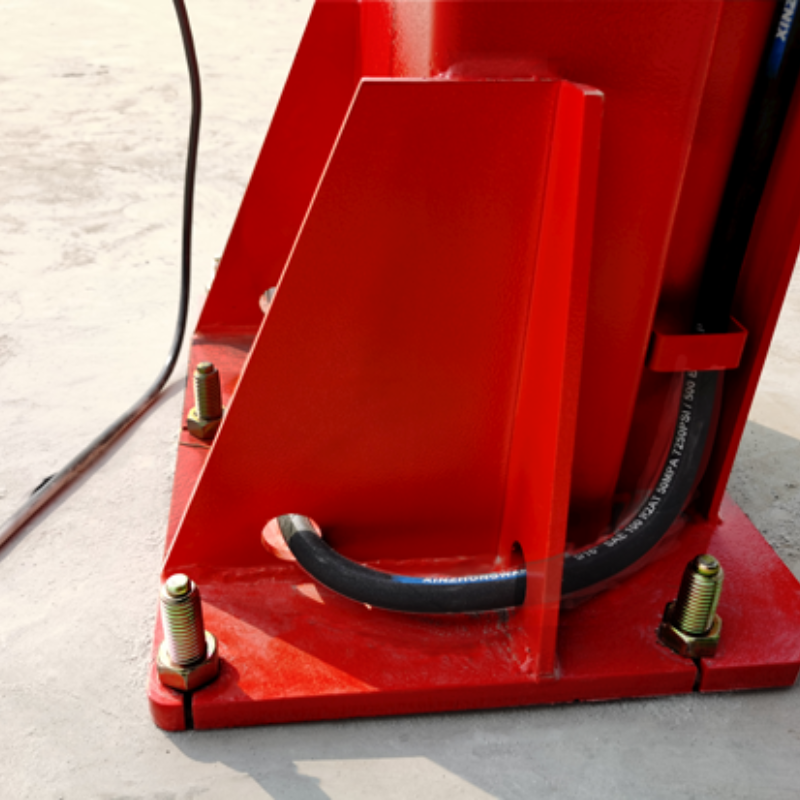

*Concrete thickness must be at least 5.9" with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

    This Item has a FLAT RATE SHIPPING FEE: $299*

    Warehouse Pickup locations (free shipping)

    • City of Industry, CA 91789
    • Brookshire, TX 77423
    • Houston, TX 77064
    • Pooler, GA 31322
    • Jersey City, NJ 07305
    • Bolingbrook, IL 60440

    Pallet Dimensions:

    • 112" x 18" x 36"
