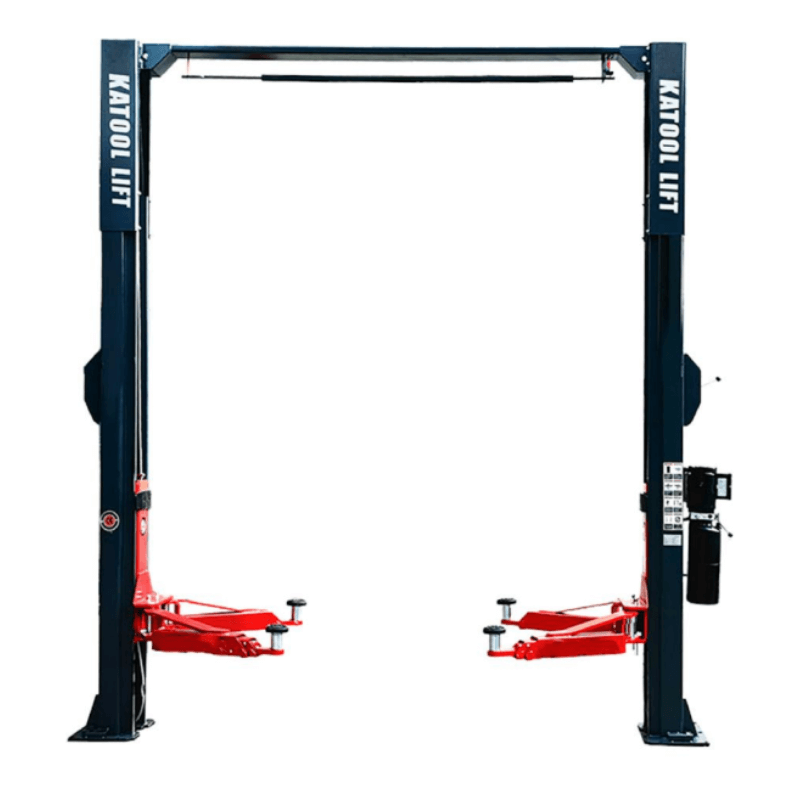

Katool KT-M140XD 14,000 lb Symmetric 2-Post Vehicle Lift

KT-M140XD 14,000 lb

The KT-M140XD is a high-capacity 14,000 lb symmetric 2-post lift engineered for demanding automotive and light commercial service environments. Built around a reinforced industrial-steel frame, this lift delivers exceptional stability and strength for lifting full-size pickup trucks, vans, and large commercial vehicles with confidence. Its 73-inch lifting height provides ample vertical clearance for undercarriage access, drivetrain service, and major mechanical repairs.

Designed for long-term durability, the KT-M140XD features precision welding, structural optimization, and thickened materials at all critical load-bearing points. The advanced direct drive, chainless system reduces moving components, resulting in smoother, quieter operation with lower maintenance requirements and extended service life. Double S-shaped columns distribute internal stress efficiently under load, enhancing structural integrity and minimizing deformation during lifting cycles.

Ideal for professional repair shops, fleet service centers, and high-volume garages, this lift combines wide 133-inch drive-through clearance with adaptable lifting arms to accommodate a broad range of vehicle widths and lifting points. The single-point interlocking release system ensures synchronized safety lock disengagement, improving operational efficiency while delivering a high level of technician safety.

Katool M140XD Specifications

• Lift Type: Symmetric

• Weight Capacity: 14,000 lbs

• Maximum Lifting Height: 72.83"

• Minimum Pad Height: 4.33"

• Drive-Through Width: 133.46"

• Overall Height: 166.73"

• Overall Width: 157.87"

• Rise Time: ≤ 50 seconds

• Lowering Time: 20–50 seconds

• Noise Level: ≤ 75 dB(A)

• Lift Weight: 1,807 lbs

• Power Unit: 220V / 60Hz / Single Phase

KT-M140XD 14,000 lb Symmetric 2-Post Vehicle Lift Special Features

• 14,000 lb high-capacity lift for trucks and commercial vehicles

• Heavy-duty industrial steel frame with reinforced load points

• Single-point interlocking safety release for synchronized lock control

• Direct drive, chainless system for smooth, low-maintenance operation

• Double S-shaped columns for enhanced structural stability under load

• Wide 133-inch drive-through clearance for large vehicle access

• Adaptable lifting arms for secure vehicle contact and positioning
