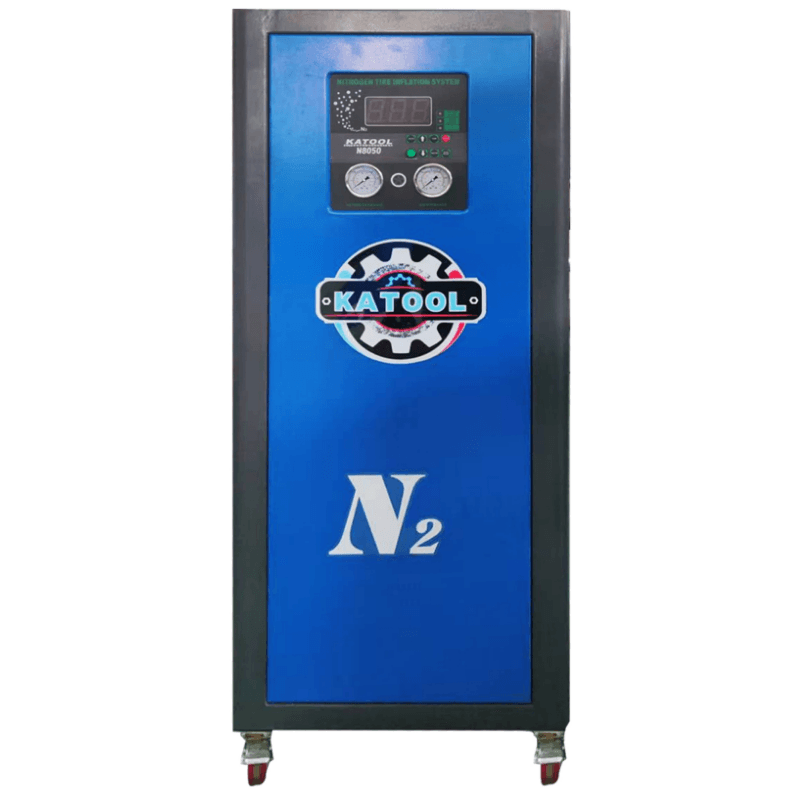

Katool KT-N4050 Nitrogen Tire Inflator System

KT-N4050 Nitrogen Tire Inflator System

Maintaining consistent tire pressure can be challenging when using standard compressed air, which contains oxygen and moisture. The Katool KT-N4050 Nitrogen Tire Inflator System provides an efficient way to generate and dispense nitrogen for cars, light trucks, and motorcycles, with adjustable pressure settings for different vehicle types.

Using PSA technology and Carbon Molecular Sieve (CMS), the KT-N4050 separates nitrogen from other gases in compressed air and produces nitrogen with 95%–99.5% purity. Its built-in 70-liter nitrogen storage tank and 8-meter high-pressure charging hose provide convenient on-site nitrogen inflation without requiring a separate nitrogen supply.

Designed for automotive service centers, tire shops, and other professional applications, the KT-N4050 combines nitrogen generation, storage, and tire inflation in one system. Its automatic pressure settings, ±1% + 0.5 PSI accuracy, and 2,000–4,500 L/H nitrogen output make it suitable for routine tire service.

N4050 Specifications

• Model: KT-N4050
• Vehicle Application: Cars, light trucks, motorcycles
• Power Supply: AC 110V / 60Hz
• Power: 60W
• Nitrogen Purity: 95%–99.5%
• Compressed Air Input: 8–10 bar
• Nitrogen Output: 2,000–4,500 L/H
• Nitrogen Output Pressure: ≤6.0 bar
• Operating Temperature: -10°C to +50°C
• Car Pressure Setting: 17–99 PSI
• Motorcycle Pressure Setting: 17–58 PSI
• Breaking Pressure: >145 PSI (10 bar)
• Accuracy: ±1% + 0.5 PSI
• Storage Tank: 70L built-in nitrogen tank
• Air Charge Hose: 8M high-pressure hose
• Dimensions: 630 × 550 × 1,400 mm
• Net Weight: 142 kg
• Gross Weight: 163 kg

Katool Nitrogen Tire Inflator System Special Features

• 95%–99.5% nitrogen purity
• PSA nitrogen generation technology
• Carbon Molecular Sieve (CMS) separation system
• Built-in 70L nitrogen storage tank
• Nitrogen output of 2,000–4,500 L/H
• Suitable for cars, light trucks, and motorcycles
• Automatic pressure settings for car and motorcycle modes
• Car mode: 17–99 PSI
• Motorcycle mode: 17–58 PSI
• Nitrogen output pressure up to 6.0 bar
• Pressure accuracy of ±1% + 0.5 PSI
• Includes 8-meter high-pressure air charge hose
• 60W power consumption
• Designed for professional tire service applications

Katool KT-N4050 Manual

Not Available
