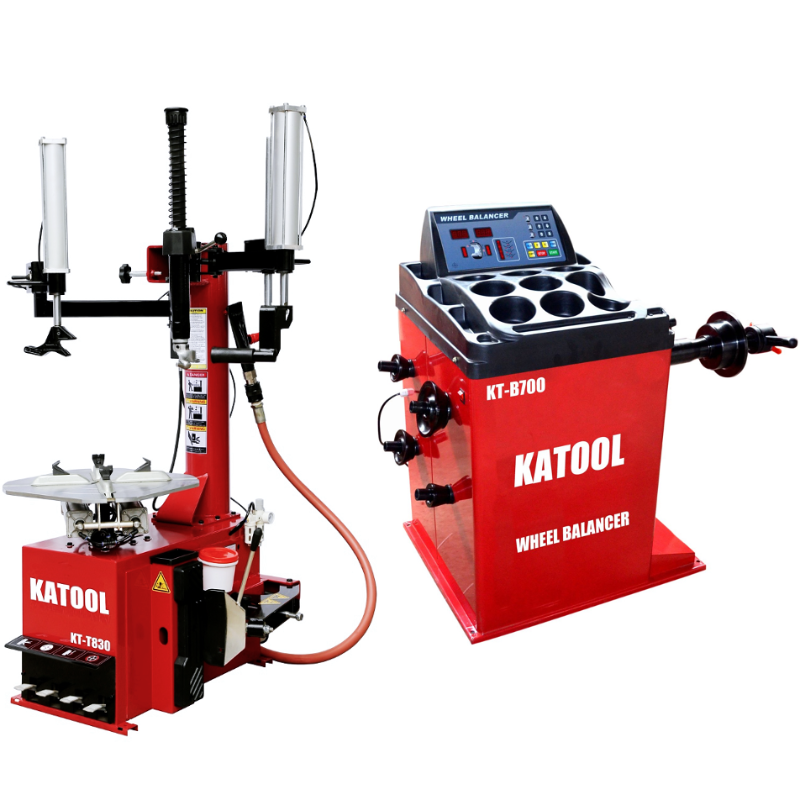

T830 Tire Changer and B700 Wheel Balancer by Katool
Inefficient tire service can slow down your workflow and lead to unbalanced tires, causing vibrations, uneven wear, and angry customers calling you because they’re stranded in the middle of nowhere. Traditional methods often require separate machines for changing and balancing tires, while imprecise balancing can compromise safety and tire life.
This will change that. The KT-T830 tackles a wide range of tire diameters and widths with its impressive capacity and versatile clamping system. The robust 2.0 HP motor ensures smooth and swift tire changes, while the KT-B700 Balancer delivers unmatched precision and speed with its rapid measuring time. The Katool KT-T830 & KT-B700 Combo offers unmatched performance and user-friendly features, making it the perfect investment for any automotive professional. Now, customers will be calling you to do their other cars as well. Upgrade your tire service today! The Katool KT-T830 & KT-B700 Combo offers unmatched performance and user-friendly features, making it the perfect investment for any automotive professional.
Tire Changer T830 Specifications:
Max Wheel Diameter: 41"/1040mm
Max Wheel Width: 15"/380mm
Outside Clamp: 12"-24"
Inside Clamp: 14"-26"
Power Supply: 120V 1PH
Motor Power: 2.0HP/1.5KW
Rotation Speed: 6.8r/min
Air Pressure: 0.8-1.0Mpa (116-145psi)
Net weight: 240KG/529lbs
Wheel Balancer B700 Specifications:
Wheel Width: 3"-12"
Wheel Diameter: /34.64"
Balancing Speed: 180rpm
Power Supply: 120V 1PH
Motor Power: 0.25KW
Rim Center Hole Dia.: <135mm/5.31"
Balancing Accuracy: ±1g
Measuring Time: 7S
Wheel Weight: 143lbs
KT-T830 from Katool Special Features:
Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
Inflation gauge with pedal control
>The high-quality spade cover effectively prevents the rim from being damaged
Pull type pedal control system, easy for tire changing and maintenance
Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
Double side assist arm
Bead blast seater head with post tank
186mm / 7.32" stainless bead breaker cylinder
Closed body for the protection of the parts inside
KT-B700 from Katool Special Features:
The body uses 3mm-thick steel with high strength, solid welding and low vibration
All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
The 36mm shaft thread is made by quenching treatment to offer high strength
The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
Various balance mode for different types of rims to provide more precision
Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease
Unit selection (Ounce/Gram, MM/Inch)
High quality integration power board, working stable and reliable.
Optional wheel guard
Longer shaft also compatible with wider wheels
Katool Warranty: One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
Katool T830 Tire Changer Product Manual
Katool B700 Wheel Balancer Product Manual
