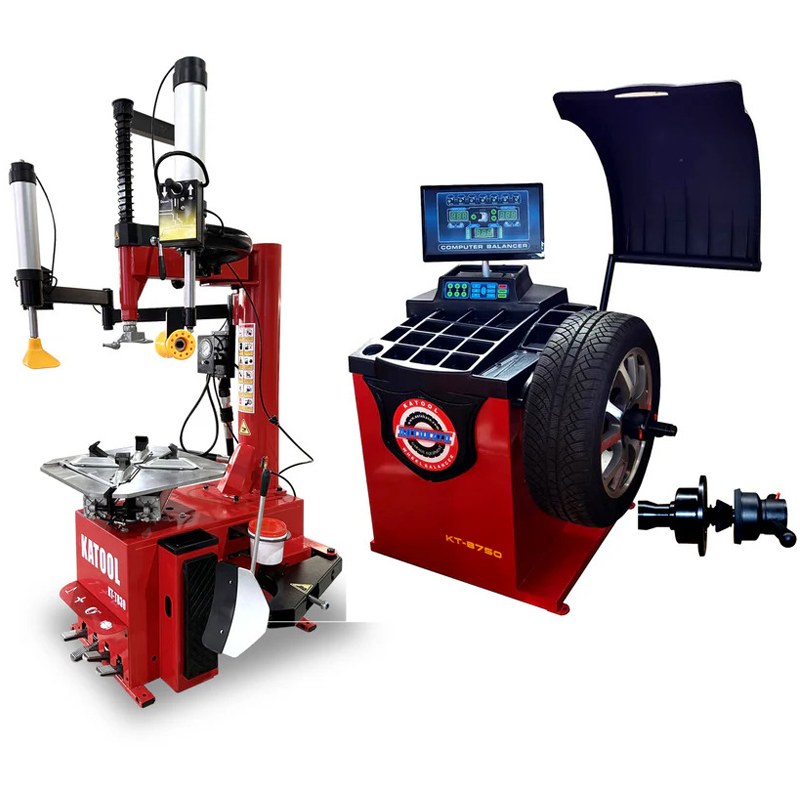

T830 Tire Changer and B750 Wheel Balancer by Katool
Are slow tire changes and inaccurate wheel balancing causing bottlenecks in your automotive service? The Katool KT-T830 Wheel Clamp Tire Changer and KT-B750 Wheel Balancer offer solutions to these common challenges. The KT-T830 tackles efficiency with its 2.0HP/1.5KW motor, operating at 6.8 RPM and handling wheels up to 41" in diameter and 15" wide. Its pedal-controlled inflation gauge and pull-type control system streamline operations, while the high-quality spade cover protects rims from damage. The KT-B750 addresses precision balancing with its ability to handle wheels up to 30" in diameter and 15" wide, achieving ±1g accuracy in just 7 seconds at 180 RPM.
Don't let outdated equipment limit your service quality and efficiency. The KT-T830 and KT-B750, with their durable construction and advanced features, are ready to transform your tire maintenance operations. The KT-T830's top-level motor with pure copper winding ensures increased power and durability, all while operating at 0.8 to 1.0Mpa (116-145psi) air pressure. The KT-B750's moisture, dust, and static electricity-resistant computer board, multiple balance modes, and self-calibration program guarantee precise results across various wheel types. Its 0.25KW motor, 120V outlet, and longer shaft accommodate wider wheels, while the included safety guard adds security. Upgrade now to increase your garage's productivity and enhance service quality with these comprehensive tire maintenance solutions.
Tire Changer T830 Specifications:
Max Wheel Diameter: 41"/1040mm
Max Wheel Width: 15"/380mm
Outside Clamp: 12"-24"
Inside Clamp: 14"-26"
Power Supply: 120V 1PH
Motor Power: 2.0HP/1.5KW
Rotation Speed: 6.8r/min
Air Pressure: 0.8-1.0Mpa (116-145psi)
Net weight: 240KG/529lbs
Wheel Balancer B750 Specifications:
Rim Diameter:<30"
Wheel Width:15"
Wheel Diameter:<880mm
Balancing Speed:180rpm
Power Supply:120V 1PH
Motor Power:0.25KW
Rim Center Hole Dia.:<135mm
Wheel Weight:<65KG
Balancing Accuracy:±1g
Measuring Time:7S
KT-T830 from Katool Special Features:
Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
Inflation gauge with pedal control
The high-quality spade cover effectively prevents the rim from being damaged
Pull type pedal control system, easy for tire changing and maintenance
Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
Double side assist arm
Bead blast seater head with post tank
186mm / 7.32" stainless bead breaker cylinder
Closed body for the protection of the parts inside
KT-B750 from Katool Special Features:
Automatic measurement ruler for auto input A and D values.
The body use 3mm thickness steel, high strength, solid welding, few vibration.
All-in-one pressure sensor support design, bottom board thickness 8mm,side board thickness 8mm, that insure the sensor working stable and high precision.
Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life.
The φ36mm shaft thread is by quenching treatment, high strength.
Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life.
Various balance mode, according different rim for different balance mode, make the balance effect more precision.
Built-in fault diagnosis and self calibration program that double side calibration ,No memory parameters, operation more easy.
Unit selection(Ounce/Gram, MM/Inch).
High quality integration power board, working stable and reliable.
Composite slash guard included.
Longer shaft for more width wheels
Katool Warranty: One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
