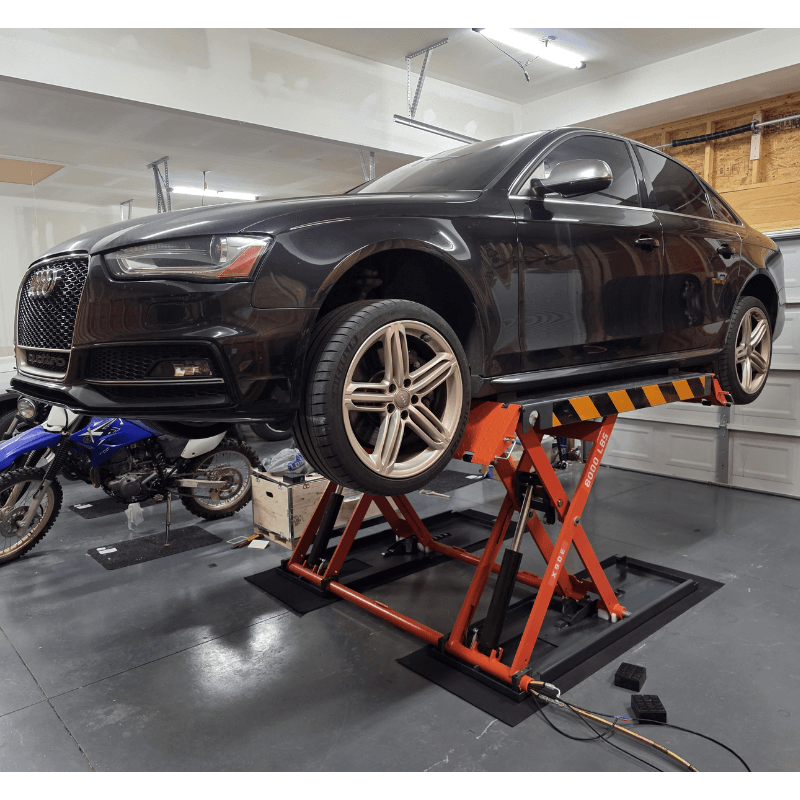

KT-X90E Mid-Rise Scissor Lift - Electric Lock by Katool - Side View

Katool KT-X90E 8,000 lb Mid Rise Scissor Lift - Electric Lock

SKU KT-X90E-110
by Katool
  • ✓ No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • ✓ Ships in 3-5 Business Days
  • ✓ Free Warehouse Pickup Options
  • ✓ Better Business Bureau (BBB) Accredited
$2,799.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location
Voltage
Support Bars

Notify me when back in stock

KT-X90E Scissor Lift by Katool

Your current scissor lift lacks the power, safety features, and versatility you need to handle demanding jobs efficiently. And you know it! Limited lifting capacity, safety concerns, and compatibility issues with various power supplies can slow your shop down and create unnecessary obstacles in your workflow. You don’t want that.

The Katool KT-X90E Lift eliminates these frustrations. Bragging an impressive 8,000-lb lifting capacity, this lift tackles even heavy-duty vehicles with ease with a max lift height of 47 inches. A focus on secure operation through features like a height limit switch and composite rubber lifting blocks. Versatility is built-in with a choice of 110v or 220v power options and a self-lubricating system for maintenance-free operation. The drive-up ramps accommodate a wider range of vehicles, and the top-level hydraulic system with an aluminum motor ensures reliable performance, even during prolonged use. Effortlessly handle all your lifting needs with the Katool KT-X90E!

Scissor Lift KT-X90E Specifications:

  • Max. Lifting Capacity: 8000 lbs
  • Max. Lifting Height: 47"
  • Min. Lifting Height: 4.3"
  • Lifting Time: 30 seconds
  • Platform Length: 81.5"
  • Platform Width: 20.1"
  • Width between Platforms: 32.2"
  • Rated Oil Pressure: 20 MPa
  • Oil: AW-46 or AW-32 (colder climates)
  • Pallet Dimensions:
    • (1) 78" x 67" x 9" - 1,179lbs
    • (1) 37" x 16" x 16" - 110lbs
  • Optional: Support Bars
    • Overall Length: 73"
    • Pin Distance: 48" to 59" Wide
    • Adapter Height: 6.2" to 8" Tall

KT-X90E From Katool Special Features:

  • 8000lbs(3500KG) lifting capacity
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
  • Flush mount design
  • Starting-up system design
  • 24V safe control system
  • Height limit switch
  • Composite rubber lifting blocks included
  • Comes with self-lubricated bushing and bearing
  • Drive-up ramps lock design as platform extension for long vehicles
  • Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working
  • Power: 110v/220v/60Hz, single phase
  • Includes: Caster Kit for Mobility
  • Katool Warranty:
    • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
    • Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

Katool KT-X90E Documentation

Scissor Lift KT-X90E Product Manual   Katool KT-X90E Scissor Lift Product Manual

*This model should be securely anchored to concrete before operation. Concrete thickness must be at least 5.9" with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

                          This Item has a FLAT RATE SHIPPING FEE: $299*

                          Warehouse Pickup locations (free shipping) - Contact Us if interested.

                          • City of Industry, CA 91789
                          • Brookshire, TX 77423
                          • Houston, TX 77064
                          • Pooler, GA 31322
                          • Jersey City, NJ 07305
                          • Bolingbrook, IL 60440

                          Scissor Lift Support Bar Kit Diagram

                           KT-X90E Scissor Lift by Katool Diagram

                           Scissor Lift KT-X90 Diagram

                           KT-X90E Scissor Lift by Katool Diagram 2

                           Scissor Lift KT-X90 Diagram 2
