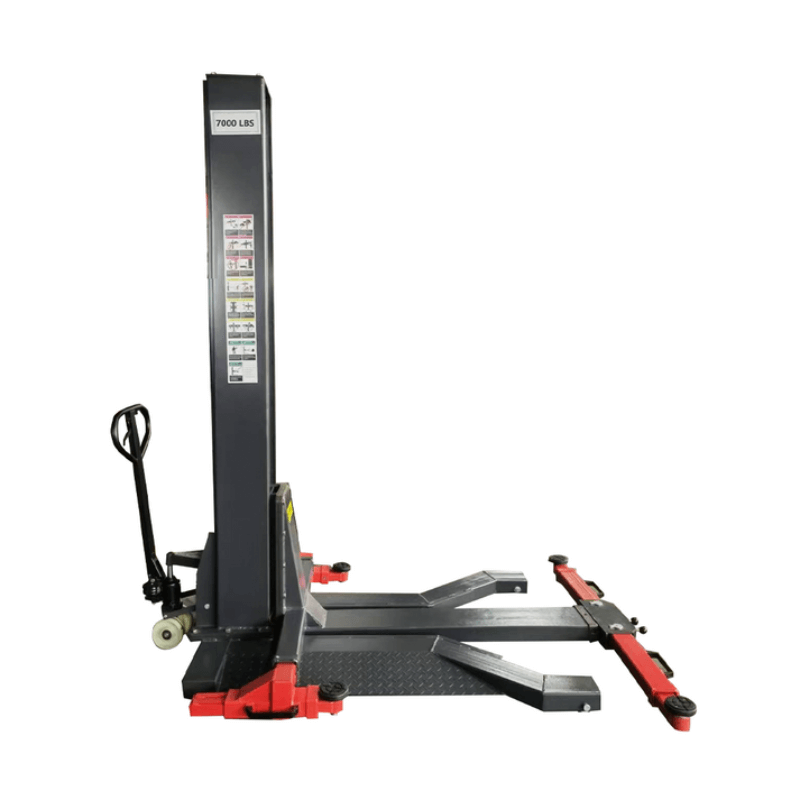

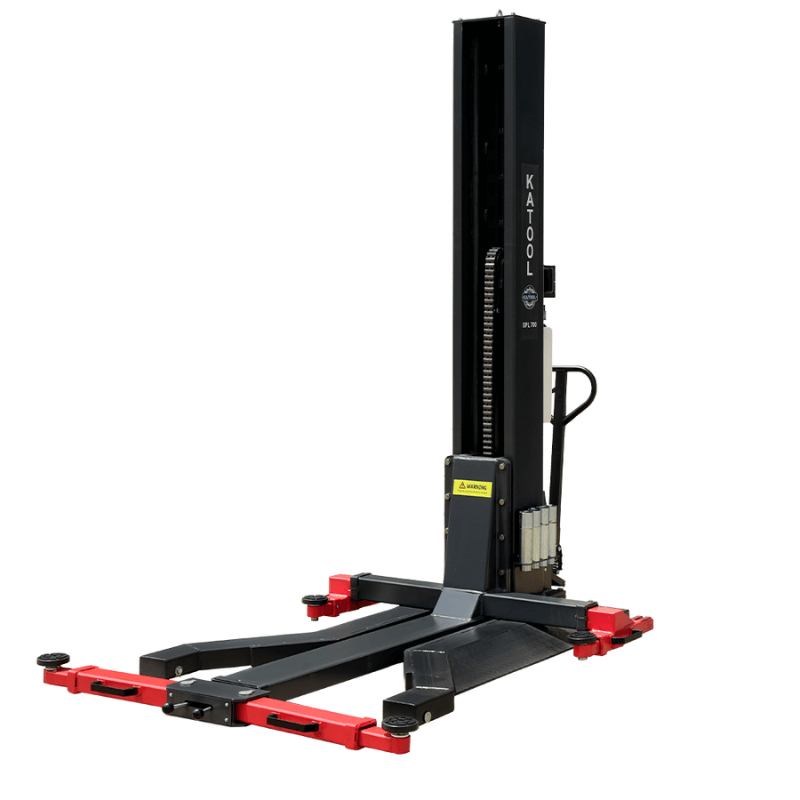

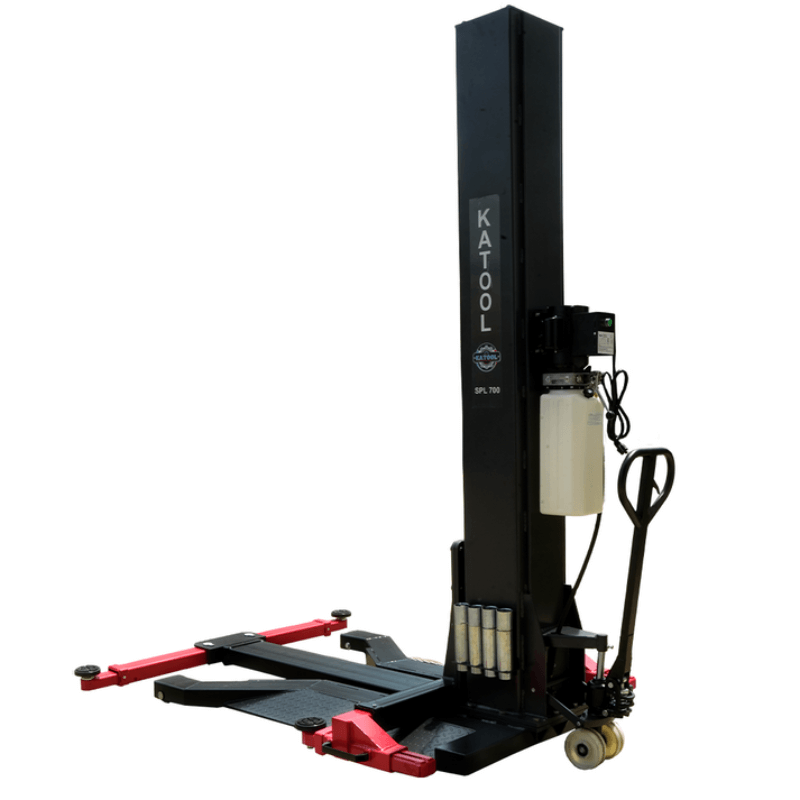

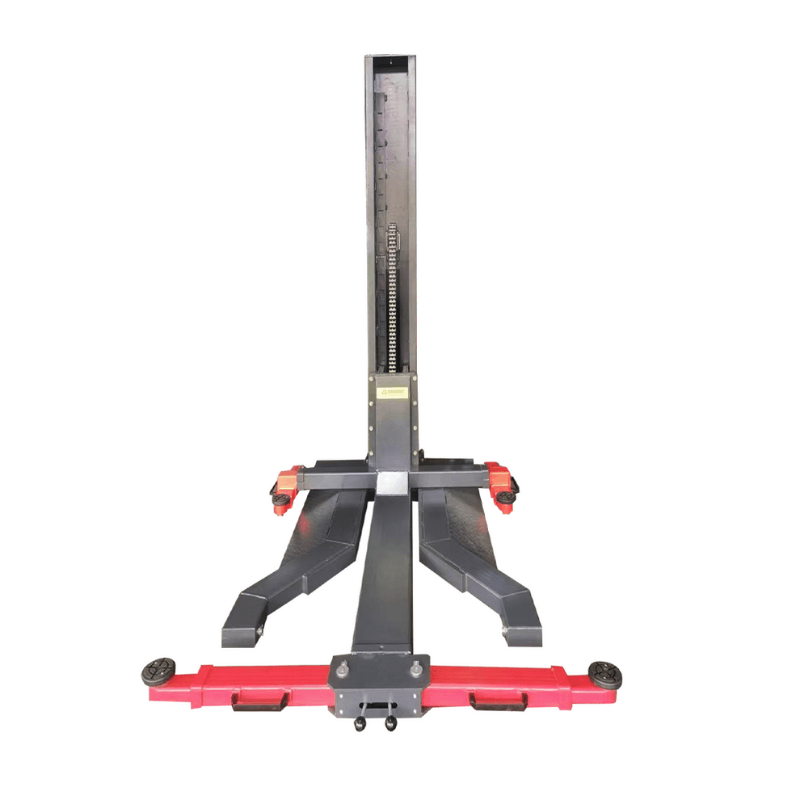

Katool SPL 700 7000 LB Single Post Lift

SKU SPL-700
by Katool
$4,800.00
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Typically Ships in 3-7 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

SPL 700 Single Post Lift?ÿ

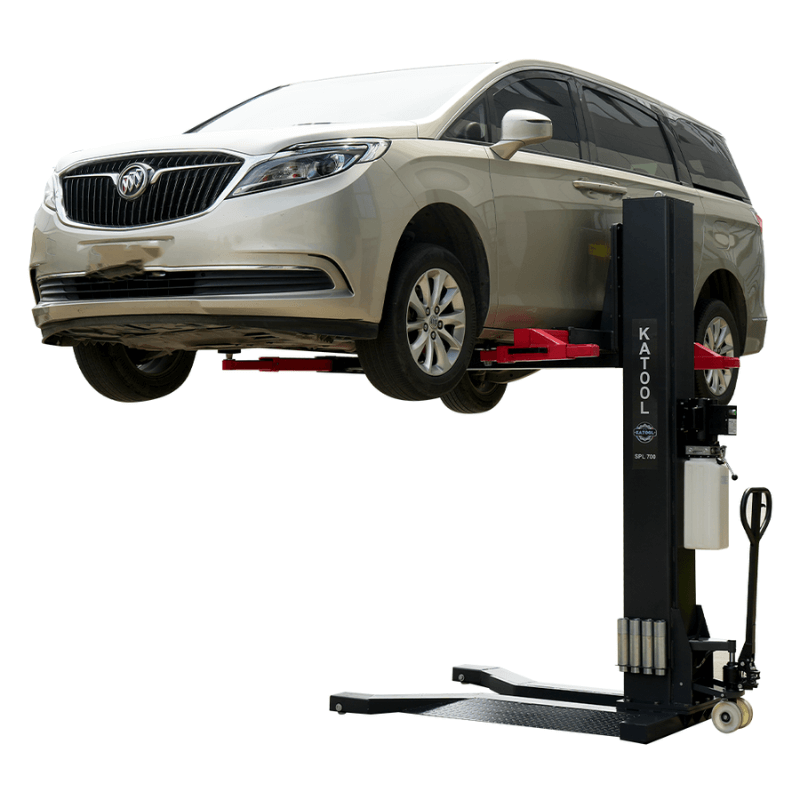

The Katool SPL 700 Single Post Lift is the perfect solution for tight workspaces, home garages, and professional shops needing compact yet powerful lifting equipment. With a 7000-pound capacity, this space-saving lift is designed for easy access and efficient service of sedans, small trucks, and light-duty vehicles. Its single-post design allows full undercarriage access while maintaining a small footprintƒ??ideal for maximizing shop space.

Built with convenience and flexibility in mind, the SPL 700 features an adjustable lifting pad system that spans a wide range of vehicle widths. It offers a maximum lifting height of 71 2/3" and a clearance height of 68", giving you ample room for under-vehicle work. It operates on a 110V electrical supply and requires only a 30-amp breaker, making it compatible with most residential and commercial electrical setups. For added customization, four truck adapters are included in two heights: 2.75" and 6".

SPL700 Specifications

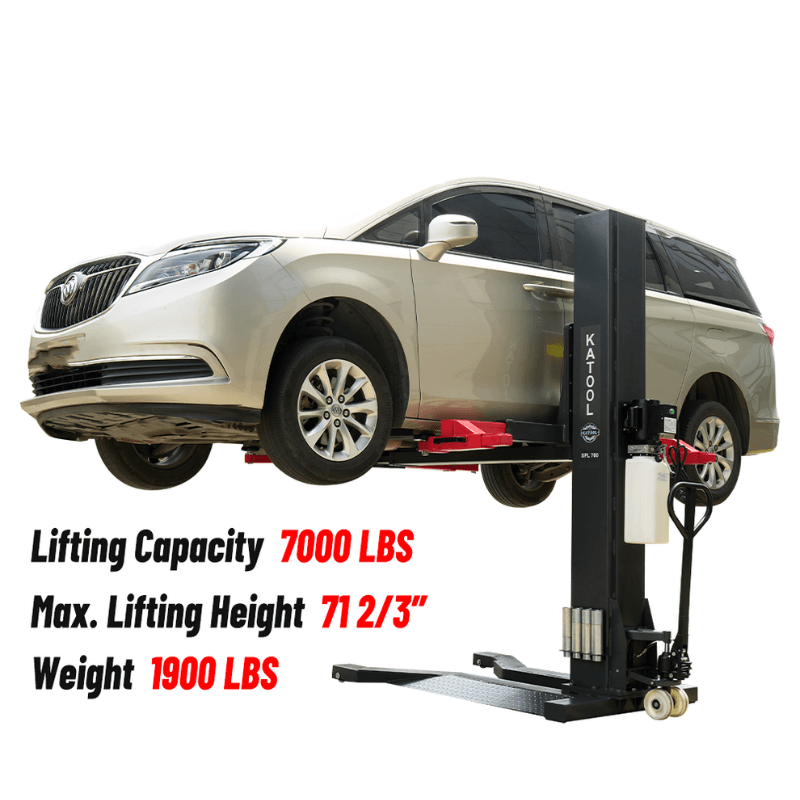

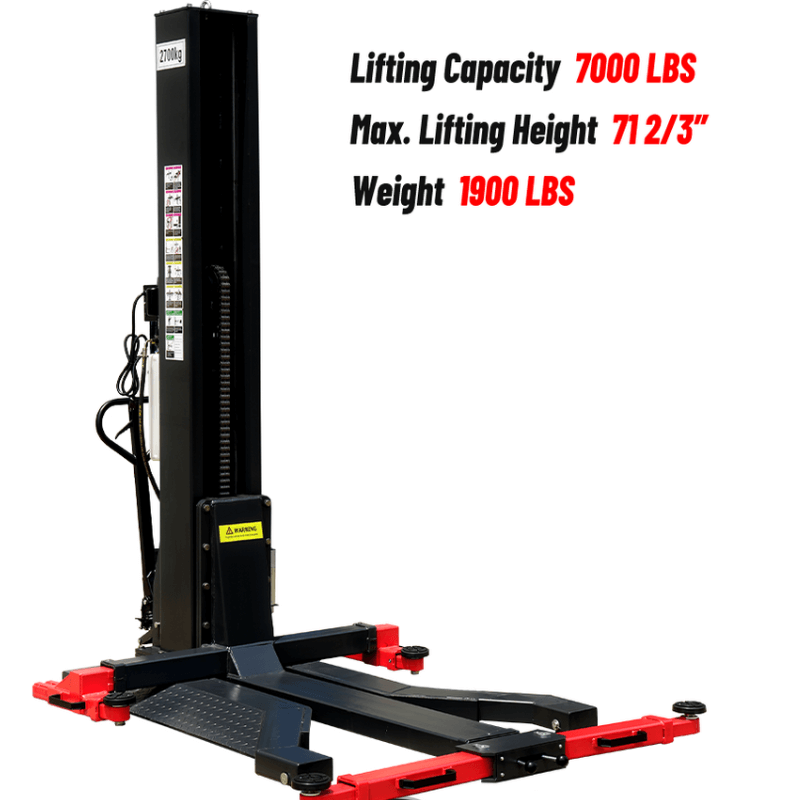

  • Lifting Capacity: 7000 lbs

  • Max Lifting Height (No Adapters): 71 2/3ƒ??

  • Max Clearance Height: 68ƒ??

  • Minimum Pad Height: 5ƒ??

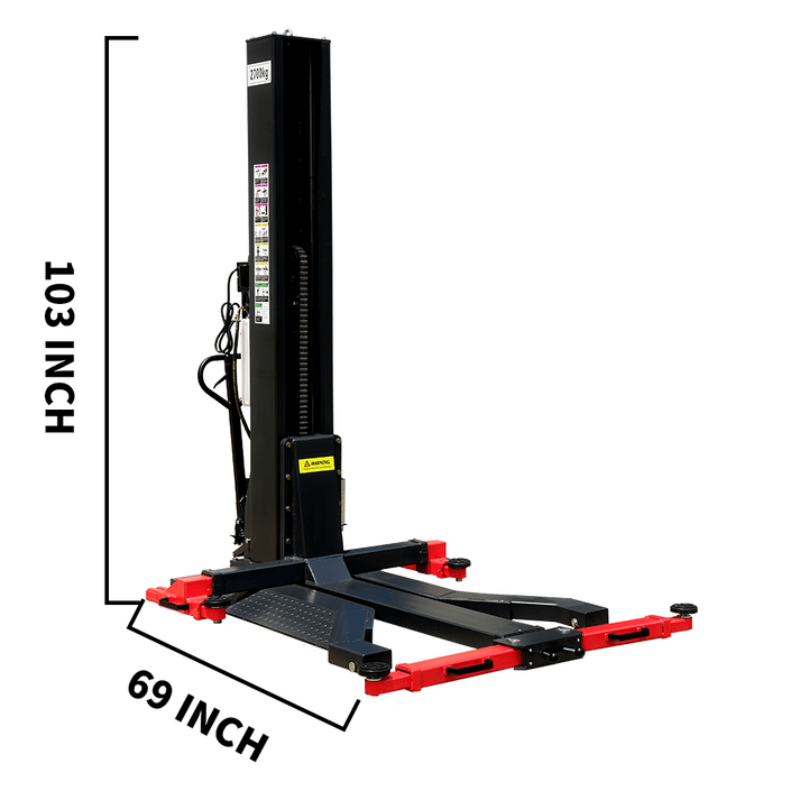

  • Overall Height: 102 3/4ƒ?? (8ƒ?ý 6 3/4ƒ??)

  • Overall Dimensions (L ?? W ?? H): 111 1/2ƒ?? ?? 96ƒ?? ?? 102 3/4ƒ??

  • Column Size: 10 1/2ƒ?? ?? 12 1/2ƒ??

  • Distance Between Lifting Pads:

    • Column to Offside: 39 1/2ƒ?? ƒ?? 81ƒ??

    • Column to Column: 53ƒ?? ƒ?? 73ƒ??

    • Offside to Offside: 54 1/3ƒ?? ƒ?? 91 1/2ƒ??

  • Motor Requirement: 110V, 30-amp breaker

  • Oil Requirement: 3ƒ??5 gallons of AW32 or AW46 (not included)

  • Shipping Weight: 1,900 lbs

  • Adapter Heights Included: (4) 2.75ƒ?? and (4) 6ƒ??

  • Adapter Peg Size: 2ƒ??

SPL 700 6,000 LB Single Post Lift Special Features

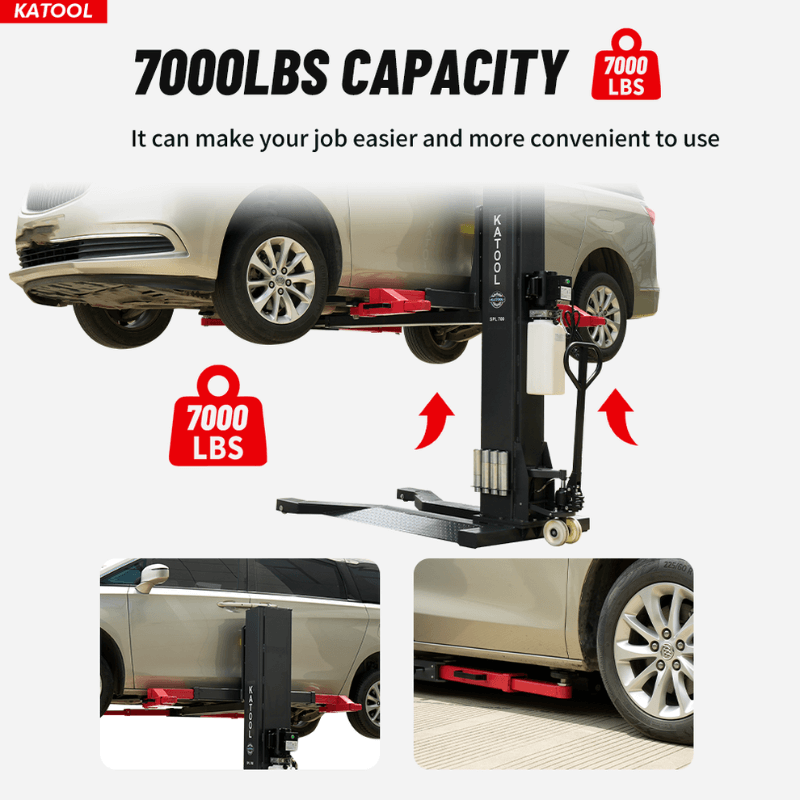

  • Heavy-duty 7000 lb lifting capacity

  • Compact single-post design ideal for limited spaces

  • Fully adjustable lifting pad reach for a wide range of vehicles

  • 110V power operation compatible with home or shop use

  • Fast, reliable hydraulic performance with 3ƒ??5 gallon oil requirement

  • Easy installation and operation for mechanics of all levels

  • Includes four adapters for lifting versatility

  • Great for tire, brake, and undercarriage work

Katool SPL 700 Manual

Not Available

Warehouse Pickup locations (free shipping)

  • City of Industry, CA 91789
  • Brookshire, TX 77423
  • Houston, TX 77064
  • Kalamazoo, MI 49048
  • Pooler, GA 31322
  • Jersey City, NJ 07305
  • Bolingbrook, IL 60440
Katool SPL 700 7000 LB Single Post Lift Diagram 1
Katool SPL 700 7000 LB Single Post Lift Diagram 2
