Krebs KB4 10000lb 4 Post Lift

SKU 11100201
$5,823.00
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Product Options

Color Option

Delivery Options

Notify me when back in stock

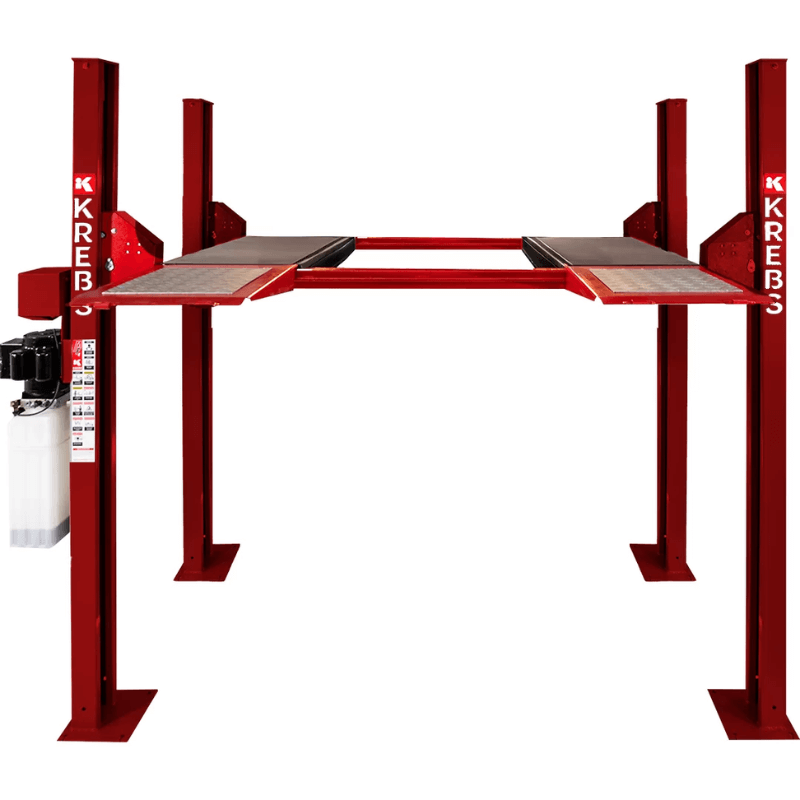

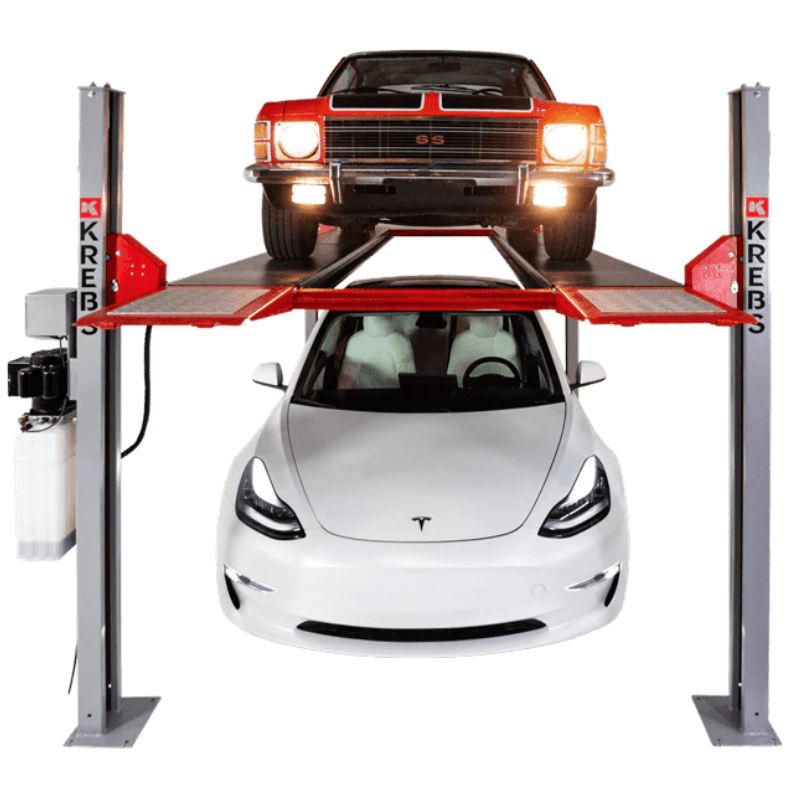

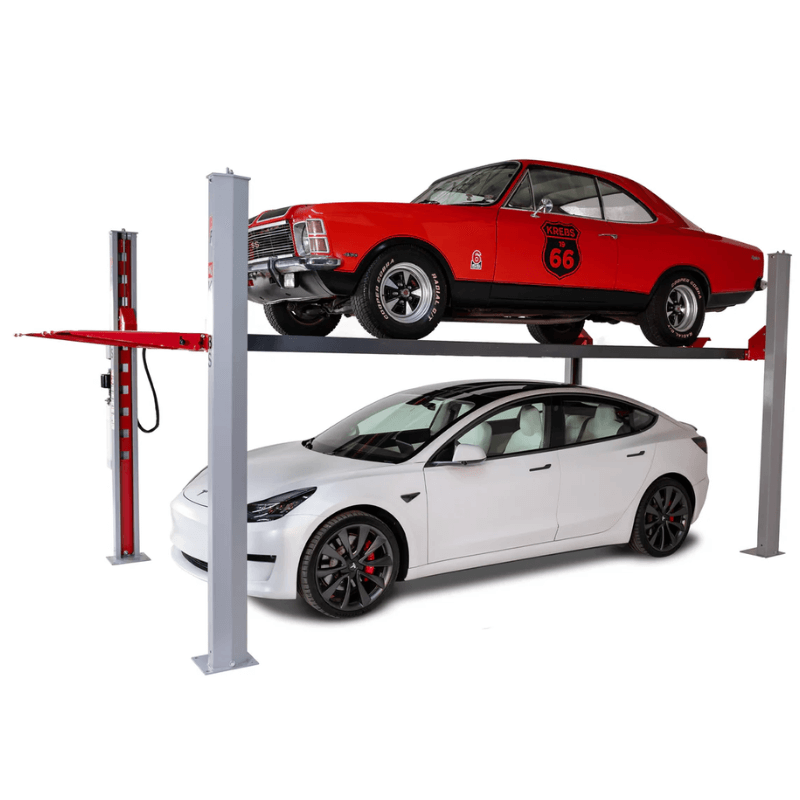

KB4 4 Post Lift 10,000 lb

The KB4 stands as a testament to KREBS’ unwavering commitment to excellence. It’s nothing short of remarkable—a four-post automotive lift that has been meticulously crafted using state-of-the-art technology. Our singular aim: deliver to our discerning buyers an advanced and secure lift. The KB4 Series has a capacity of 10,000 lbs.

The Krebs KB4/10 4 Post Lift is the embodiment of engineering excellence, combining strength, mobility, and smart design to support today’s demanding automotive environments. Built with a 10,000 lb. lifting capacity and a lightweight yet ultra-robust structure, this lift offers maximum versatility for shops that service everything from sedans to light-duty trucks. Whether you're expanding your garage capabilities or upgrading to a more efficient setup, the KB4 is designed to deliver high performance with unmatched reliability.

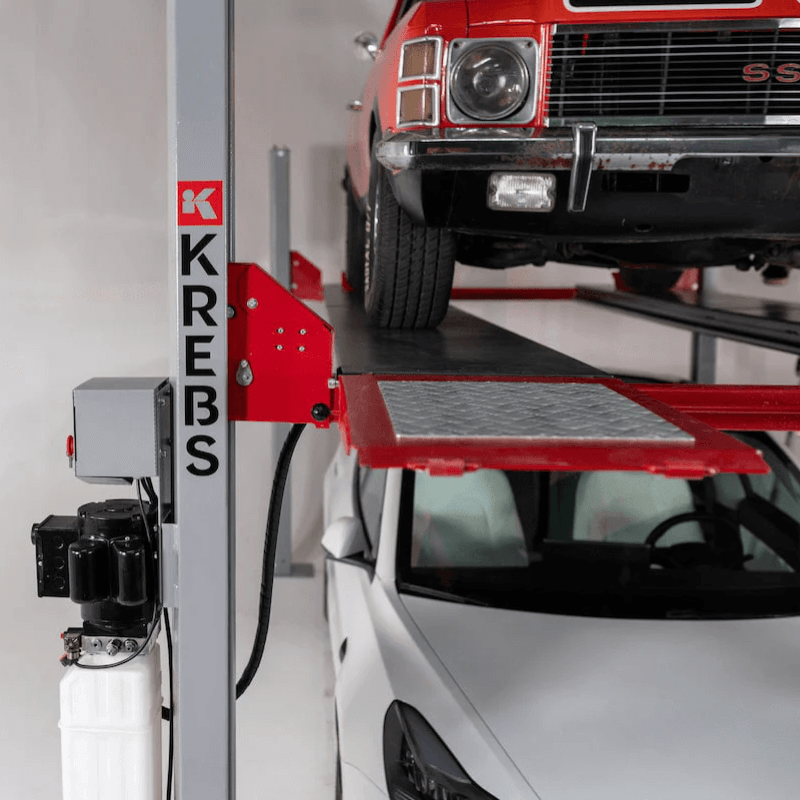

This premium-grade lift features a durable powder-coated finish, electric/hydraulic power system, and an advanced airless electric solenoid locking mechanism for enhanced safety and user control. Its 4-post design provides optimal vehicle stability during lifts, while the included caster kit and drip trays increase functionality and convenience. Best of all, the KB4 can be installed without floor anchoring—ideal for garages with smooth, level surfaces.

4 Post Lift KB4 Specification

  • Lifting Capacity: 10,000 lbs

  • Overall Height (Posts): 100″

  • Max. Rise Height: 80-5/8″

  • Overall Runways Height: 85-3/16″

  • Runways Height: 4-1/2″

  • Overall Length: 220″

  • Base Plate Length: 195″

  • Width Between Runways: 43-1/4″

  • Total Width of Runways: 82″

  • Center of Runways: 63″

  • Overall Width (Lift Only): 107-7/8″

  • Inside Columns Width: 98″

  • Inside Base Plate Width: 88-1/2″

  • Overall Width (with Motor): 119″

  • Column Center-to-Center: 189-5/8″

  • Required Bay Size: 181.9 sq. ft.

  • Min. Concrete Thickness: 6″

  • Included:

    • Drip Trays
    • Caster Kit
  • Finish: Powder Coated

  • Safety Device: Electric (Airless)

  • Motor Certification: UL

  • Shipping Specs

    • 1,750lbs - 197" L x 25" W x 32" H

KB 4 10000lb Heavy Duty Automotive 4 Post Lift Special Features

  • Heavy-duty 10,000 lb. lifting capacity for a wide range of vehicles

  • Powder-coated finish for corrosion resistance and lasting durability

  • Lightweight column design with reinforced 7-bend construction

  • Electric/hydraulic system ensures powerful, smooth operation

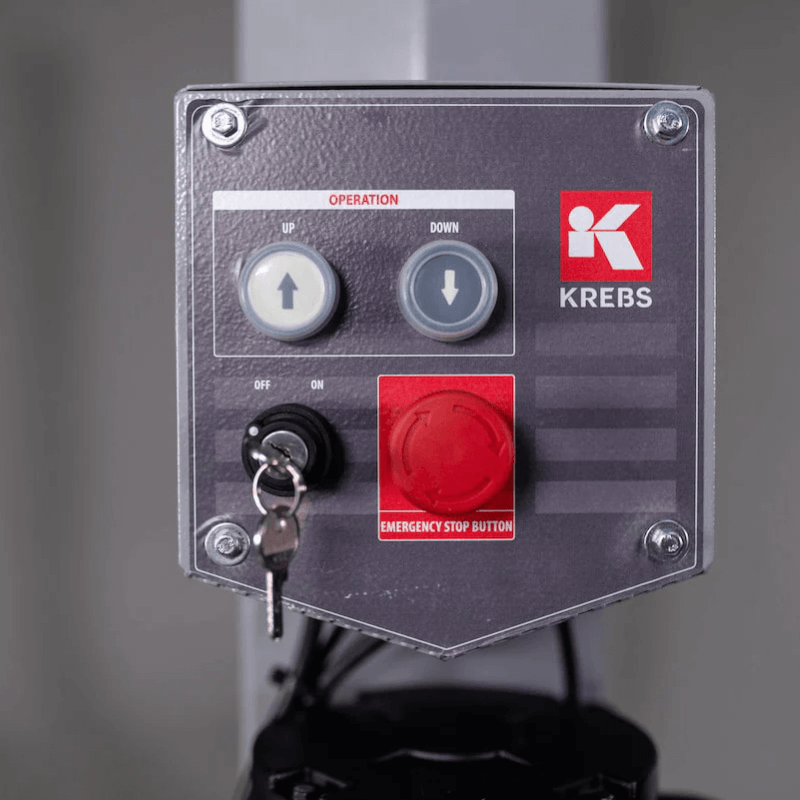

  • Advanced airless electric solenoid locking system for enhanced safety

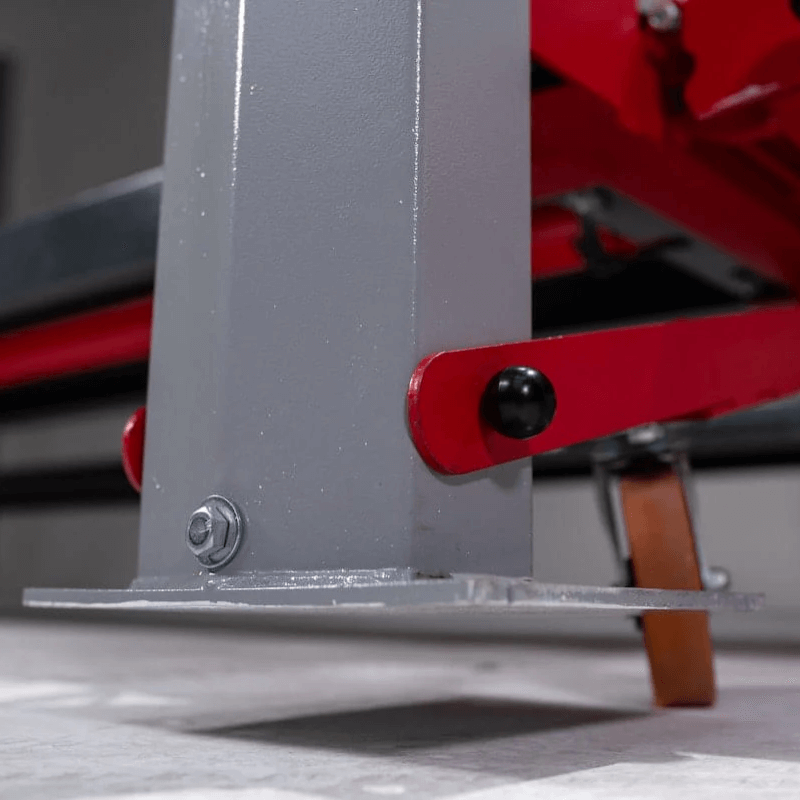

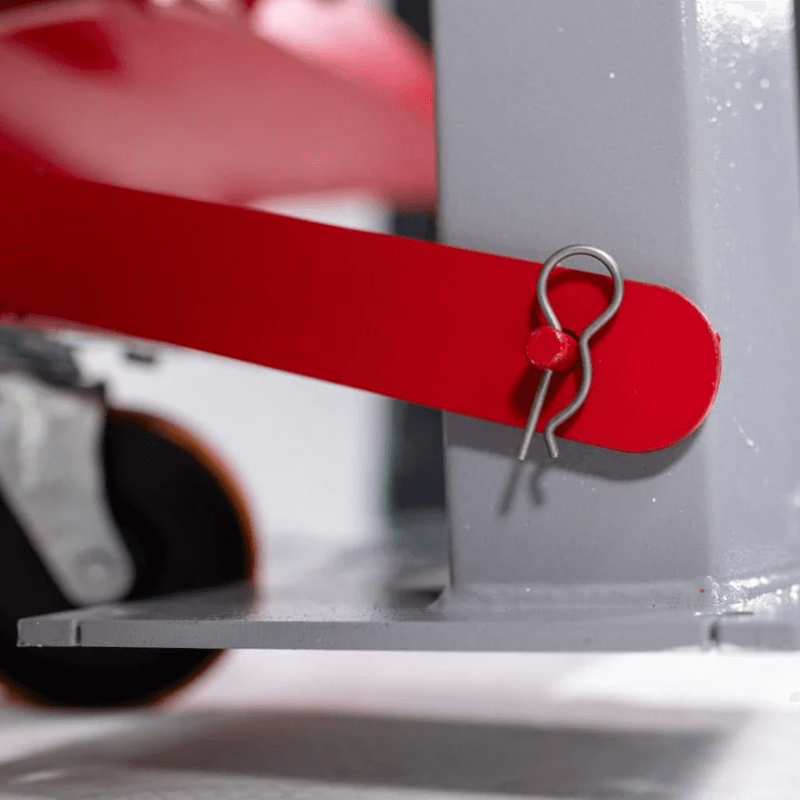

  • Includes four steel drip trays and a caster kit for added mobility

  • Portable setup—can be used without ground anchoring

  • Wide runway spacing accommodates larger vehicle frames

  • Ideal for professional auto shops and service bays

  • Warranty
    • 5 Year Structural
    • 1 Year Hydraulics
    • 1 Year Electric

Krebs KB4 Manual

Krebs KB4 4 Post Lift Product Brochure   Krebs KB4 4 Post Lift Product Brochure
Krebs KB4 4 Post Lift Warranty   Krebs KB4 4 Post Lift Warranty
Krebs KB4 4 Post Lift Dimension   Krebs KB4 4 Post Lift Dimension
Krebs KB4 10000lbs Heavy Duty Automotive 4 Post Lift Diagram View
