Launch Tech USA TLT210-XT, 10,000 lb Clear Floor 2 Post Car Lift

SKU TLT210-XT-B
by Launch
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$4,699.00

Product Options

Style

Delivery Options

Notify me when back in stock

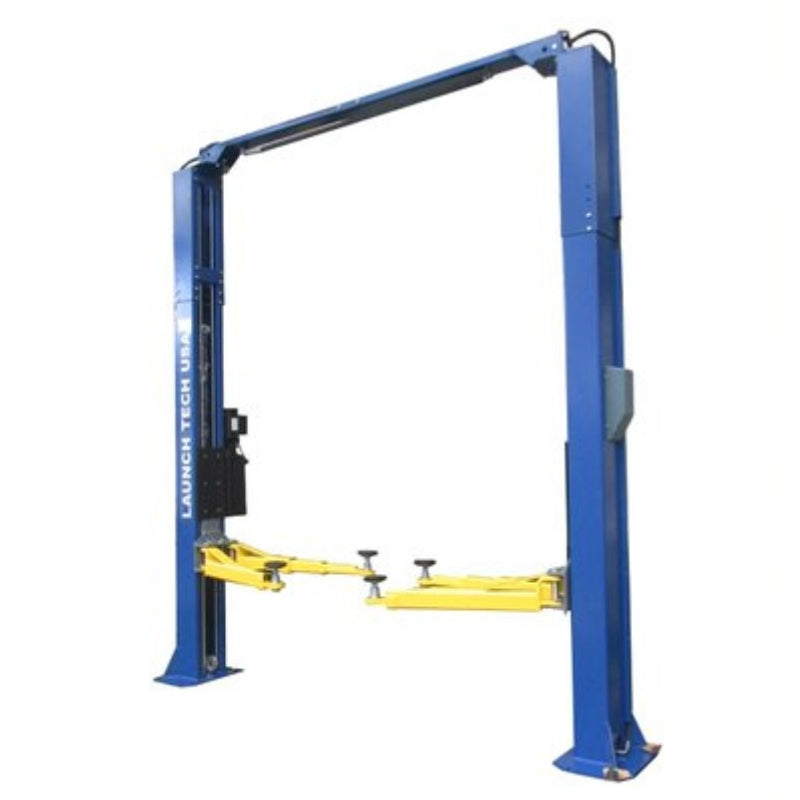

TLT210-XT 2 Post Car Lift by Launch Tech USA

Need a car lift that can handle more weight than your average gym-goer? Meet the Launch Tech USA TLT210-XT, the ALI certified 10,000 lb lifting capcity clear floor 2 post car lift that’s ready to take your automotive service to the next level. With robust direct drive cylinders and heavy-duty arm restraint systems, this lift promises maximum stability and reliability—because who wants to play a game of “Will it hold?” every time they raise an SUV?

The asymmetric arm style, along with double telescoping screw pads and 3-stage front arms, provides the versatility you need to accommodate various vehicle sizes and configurations. Rubber door guards and outer hose guards are included to protect both the lift and your vehicles, because let’s face it, accidents happen. Convenient features like a single-point lock release make operation a breeze, while stackable pad extensions add to the lift’s adaptability. With its advanced technology and user-friendly design, the Launch Tech USA TLT210-XT is an essential tool for any automotive service facility looking to enhance efficiency.

2 Post Car Lift TLT210-XT Specification:

  • Capacity: 10,000 lbs.
  • Height Overall: 145-1/2″ / 149″
  • Width Overall w/ Power Unit:
    • Asymmetric: 138″
    • Symmetric: 137″
  • Max Lift Height: 73″
  • Width Between Columns: 110″ / 102″
  • Min. Pad Height: 4″
  • Drive Thru Clearance:
    • Asymmetric: 88″
    • Symmetric: 98.4″
  • Lifting Speed: 50 seconds
  • Asymmetric / Symmetric: Asymmetric
  • Clear Floor / Floor Plate: Clear Floor
  • Short Arm Reach – min/max: 23-5/8″ - 43-1/2″
  • Long Arm Reach – min/max: 38-5/8″ - 61-7/8″
  • Narrow Bay Setting: Deduct 5.9″
  • Max Load Per Arm: 2,500 lbs
  • Ship Weight: 1,750 lbs
  • Power: 208-230V - 60Hz - 1 PH
  • Pallet Dimensions: 110" 24" 48"

TLT210-XT 2 Post Car Lift Special Features:

  • ALI certified
  • 10,000 lbs capacity
  • Direct Drive cylinders
  • Rubber Door Guards
  • Outer Hose Guards
  • Single Point Lock Release
  • Heavy Duty Arm Restraint System
  • Arm Style: Asymmetric
  • Double Telescoping Screw Pads
  • Adjustable Column Height & width
  • Standard or Rotated Asymmetric Columns
  • Stackable Pad Extensions
  • 3 Stage Front Arms
  • Color Options: Blue Only (Red Obsolete)
  • Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
  • Download the Product Manual

Launch Tech USA TLT210-XT Documentation:

Car Lift TLT210-XT Product Manual   Launch Tech USA TLT210-XT Car Lift Product Manual
