LMC Lincoln T011 1000 Large Truck-Tractor Vulcanizer

Lincoln-1000 Large Truck-Tractor Vulcanizer

Large truck, tractor, and off-road tire injuries require a vulcanizer with sufficient working clearance and heat output for both spot and section repairs. The LMC Lincoln-1000 Large Truck-Tractor Vulcanizer is designed for spot and section repair across truck, tractor, and many off-road tires, giving professional tire repair shops a versatile solution for larger applications.

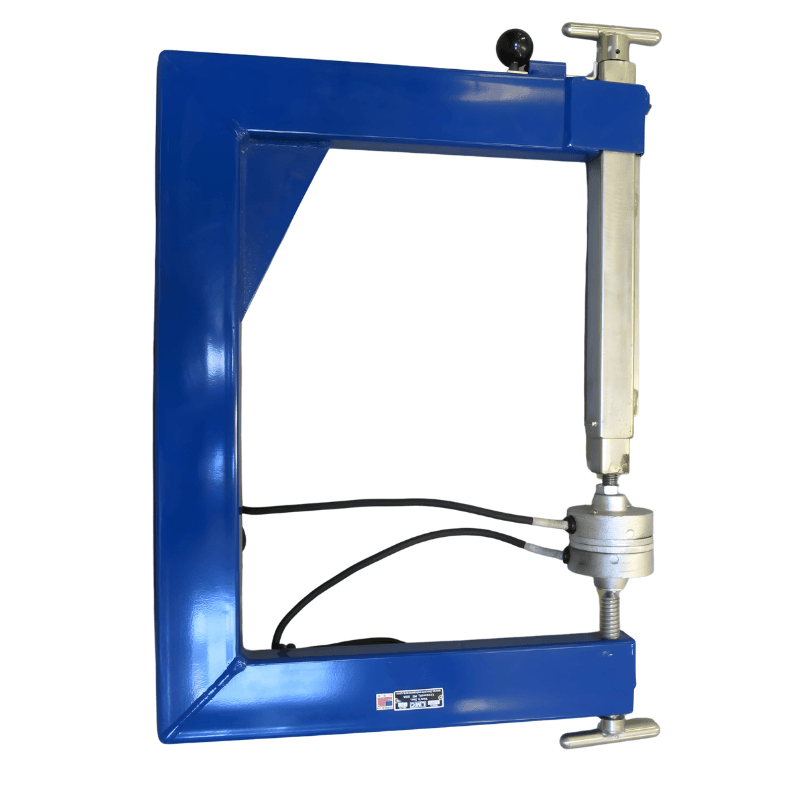

The spring-loaded lower heat unit maintains even pressure throughout the curing process, helping eliminate frequent re-tightening. Its telescoping lower assembly slides back for quick mounting or removal of the spotter and locks securely into position during use.

A threaded adjustment screw provides controlled positioning of the upper heat unit, while the solid one-piece frame keeps the unit manageable at 30 lbs. Two 3-5/16" diameter round heat units fit into tight repair areas while providing the wattage needed to support adapter plates for larger repairs. The Lincoln-1000 is available in 120V or 240V configurations.

Tire Vulcanizer Lincoln-1000 Specification

• Brand: LMC
• Model: Lincoln-1000
• Product Type: Large Truck-Tractor Vulcanizer
• Application: Spot and section tire repair
• Curing Heads: 2
• Curing Head Diameter: 3-5/16"
• Throat Depth: 14-1/2"
• Throat Height: 16"
• Shipping Weight: 30 lbs
• Voltage: 120V or 240V

Lincoln-1000 Tire Vulcanizer Special Features:

• Designed for spot and section repairs
• Suitable for truck, tractor, and many off-road tires
• Spring-loaded lower heat unit maintains even curing pressure
• Helps eliminate frequent heat-unit re-tightening
• Telescoping lower assembly slides back for quick spotter mounting and removal
• Lower assembly locks into position during use
• Acme-threaded adjusting screw for upper heat unit
• Solid one-piece frame
• Two 3-5/16" diameter round heat units
• Round heat units fit into close repair areas
• Heat output supports adapter plates for larger repairs
• Available in 120V or 240V configurations

LMC Lincoln-1000 Manual

  LMC Lincoln-1000 Spec Sheet
