LMC Lincoln T018 1400 Tractor Truck Air Spotter - Flexible Contour

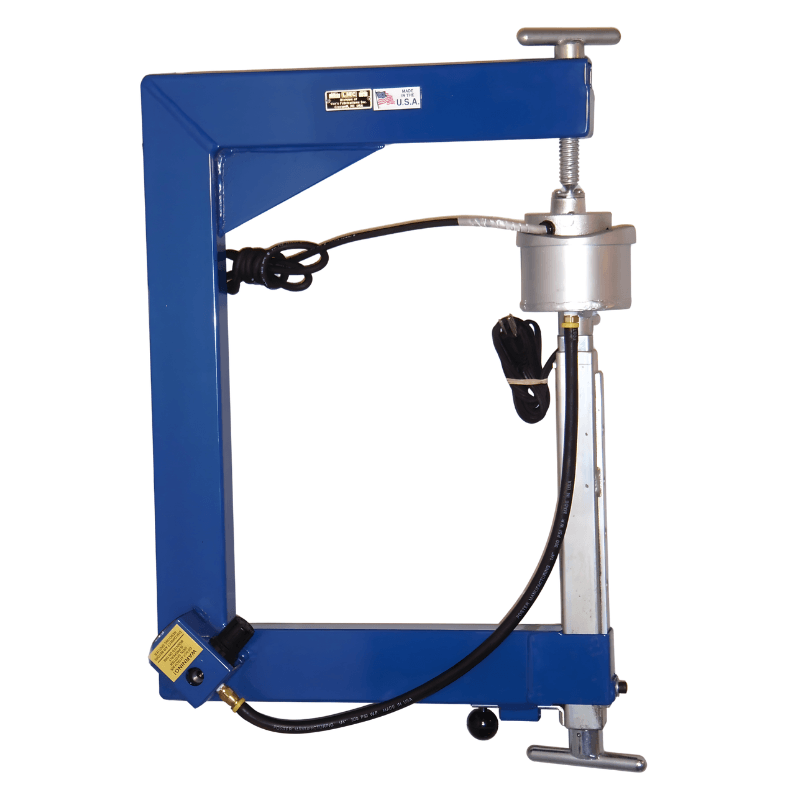

Lincoln-1400 “Flexible Contour” Tractor Truck Air Spotter

Repairing large tractor, truck, and off-road tires requires consistent pressure and heat across the repair area. The LMC Lincoln-1400 Flexible Contour Tractor Truck Air Spotter uses air-regulated pressure and a flexible silicone rubber heat pad that conforms to the tire contour, helping provide even pressure and controlled curing.

The controlled-temperature 4" diameter heat pad applies even pressure across the repair area to capture and cure repair rubber. It can cure a 3-1/2" spot or section repair plug in one cycle and can be used for multiple cures when larger repairs are required.

Unlike an air bag, the Lincoln-1400 uses a flexible silicone rubber heat pad contained inside a cylinder and driven by air pressure. Its frame-mounted regulator is set to operate at 65 PSI for consistent pressure throughout the cure cycle, while the rugged frame bracket protects the regulator. Available in 120V or 240V configurations.

Tire Vulcanizer Lincoln-1400 Specification

• Brand: LMC
• Model: Lincoln-1400
• Product Type: Flexible Contour Tractor Truck Air Spotter
• Heat Pad Diameter: 4"
• Maximum Single-Cure Repair: 3-1/2"
• Operating Air Pressure: 65 PSI
• Throat Depth: 14-1/2"
• Throat Height: 16"
• Shipping Weight: 36 lbs
• Voltage: 120V or 240V

Lincoln-1400 Tire Vulcanizer Special Features:

• Flexible contour design conforms to tire shape
• Air-regulated pressure reduces guesswork during repairs
• Flexible silicone rubber heat pad applies even pressure
• 4" diameter controlled-temperature heat pad
• Cures 3-1/2" spot or section repair plugs in one cure
• Multiple-cure capability for repairs larger than 3-1/2"
• Silicone rubber heat pad is contained in a cylinder and driven by air pressure
• Frame-mounted air regulator operates at 65 PSI
• Rugged frame bracket protects the air regulator
• Suitable for large tractor and small off-road tires
• Also suitable for truck tire repairs
• Available in 120V or 240V configurations

LMC Lincoln-1400 Manual

  LMC Lincoln-1400 Operations and Instruction Manual

  LMC Lincoln-1400 Spec Sheet

  LMC Lincoln-1400 Trouble Shooting Guide
