LTPA12 12,000lb 2 Post Lift - Adjustable Width

Daytona LTPA12 12,000lb 2 Post

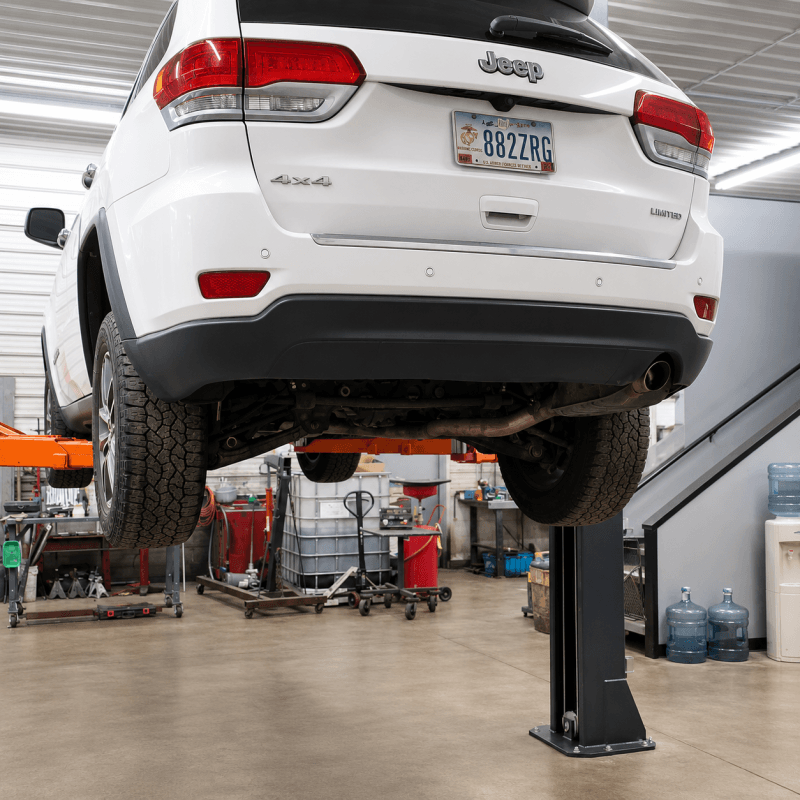

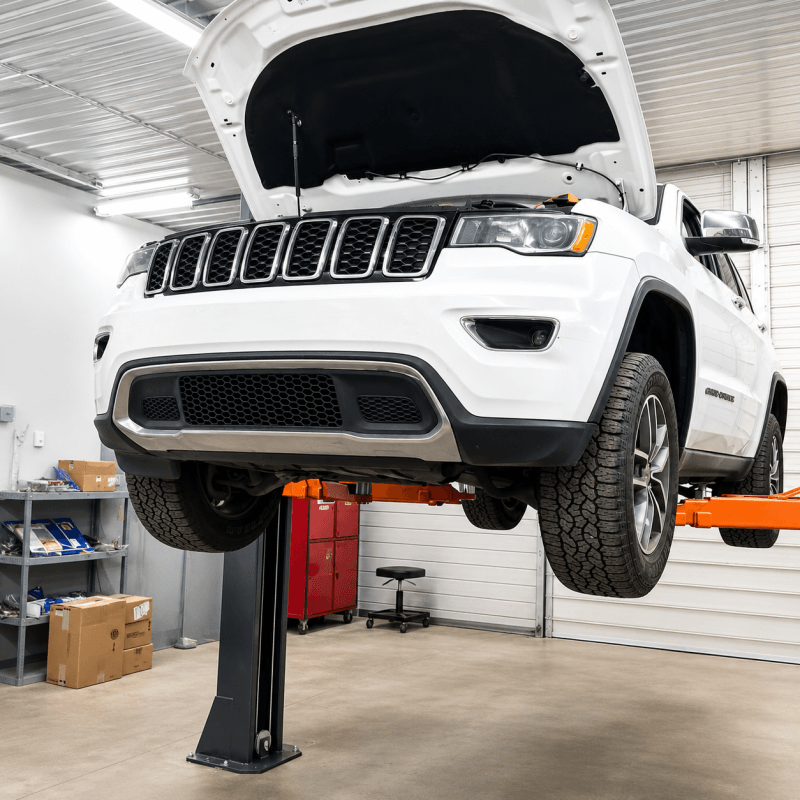

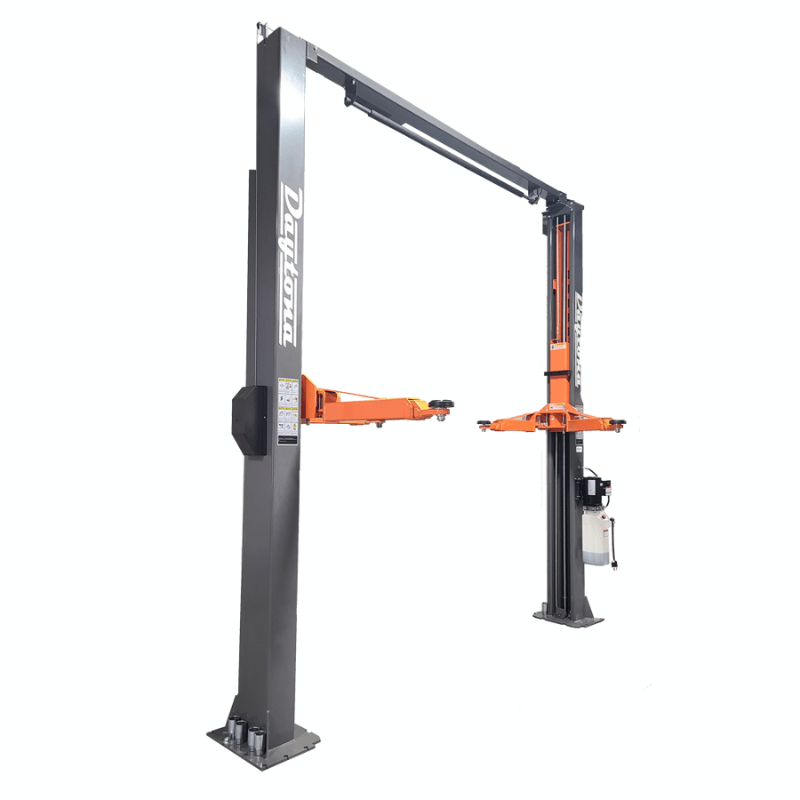

The Daytona LTPA12 12,000 lb Adjustable 2-Post Lift is engineered for professional automotive shops that require strength, flexibility, and dependable safety when servicing heavier vehicles. With a robust 12,000 lb lifting capacity, this adjustable 2-post lift is well-suited for cars, trucks, and commercial vehicles, making it a versatile solution for modern repair facilities.

Built for durability and long-term performance, the LTPA12 features dual direct-drive hydraulic cylinders with cable equalization for smooth, balanced lifting. Automatic safety locks with a single-point release system enhance operator safety, while high polymer polyethylene wear-resistant slide blocks reduce friction and maintenance. Additional shop-focused details—including a height limit switch, rubber door guards, and a durable powder coat finish—support reliable daily operation.

Ideal for professional repair shops, fleet service centers, and truck-focused garages, the Daytona LTPA12 offers adjustable width settings to accommodate different vehicle sizes and shop layouts. Three-stage front and rear arms, standard truck adapters, and the option to add a 2-foot height extension kit provide flexibility for evolving service needs, making this lift a dependable, shop-ready investment.

LTPA-12 Specification

• Max Capacity: 12,000 lbs

• Maximum Lifting Height: 68.9"

• Minimum Lifting Height: 3.9"

• Overall Height: 141.7"

• Overall Width: 150.3" to 162.1"

• Drive-Thru Clearance: 107", 113", or 119"

• Width Between Columns: 122" to 133.9"

• Internal Base Width: 140.9" to 152.7"

• Arm Reach: 32.3" to 63.8"

• Motor: 3 HP

• Voltage: 240V

• Amperage: 13A

• Power Phase: Single Phase (PH1)

• Frequency: 60Hz

• Main Lift Shipping Dimensions: 138" x 22" x 41" - 2,400lbs


• Pump Shipping Dimensions: 31" x 11" x 12"

• Pump Shipping Weight: 60 lbs

• Optional Height Kit Shipping Dimensions: 32" x 15" x 18"

• Optional Height Kit Shipping Weight: 210 lbs

• Control Box Height: 66.5"

• Safety Lock Release Height: 59.7"

• Base Plate Footprint: 18.7" x 20.9"

• Base Plate Thickness: 0.8"

LTPA 12 12,000lb 2-Post Adjustable Lift Special Features

• 12,000 lb lifting capacity for cars, trucks, and commercial vehicles

• Automatic safety locks with single-point lock release system

• Dual direct-drive hydraulic cylinders for smooth, balanced lifting

• High polymer polyethylene wear-resistant slide blocks

• Three-stage front and rear arms for flexible vehicle positioning

• Screw-up pads for precise lifting height adjustment

• Height limit switch for added overhead protection

• Full-length rubber door guards

• Durable powder coat finish for long service life

• Standard truck adapters included

• Optional 2 ft height extension kit available (sold separately)

Daytona LTPA12 Manual

  Daytona LTPA12 Instruction Manual

  Daytona LTPA12 Brochure

  Daytona LTPA12 Diagram
