M1M PBTSDD161734 Truck Side Down Draft Paint Booth

SKU PBTSDD161734
$40,400.00
  • Estimated Leadtime: 4 Weeks
  • Made In the USA
  • Custom Paint Booth Options Available - Contact Us
  • No Sales Tax - Except CA, GA, FL, IL, IN, MI, OH, & PA

Delivery Options

Notify me when back in stock

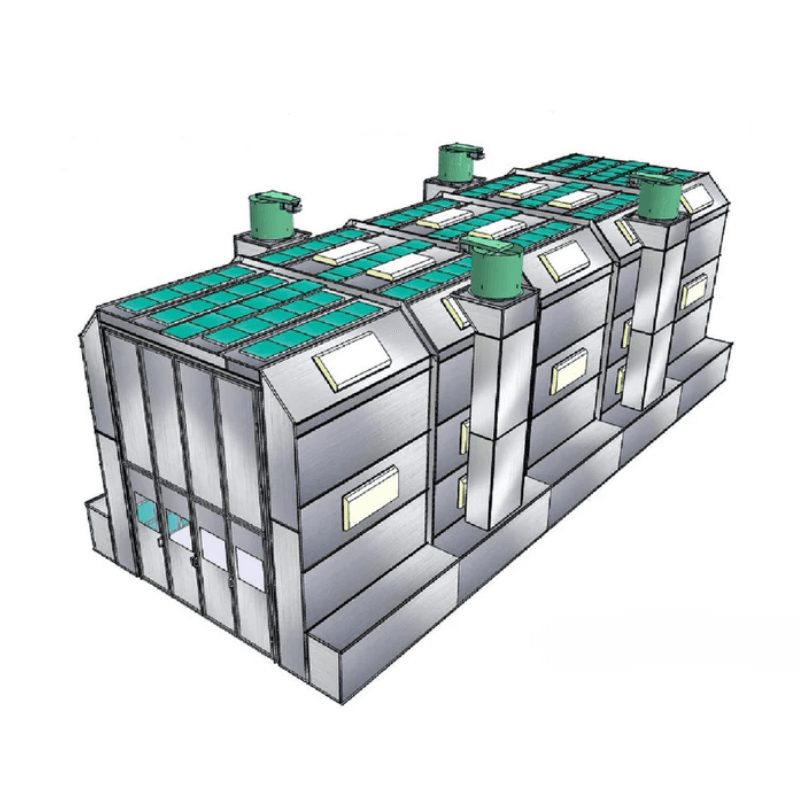

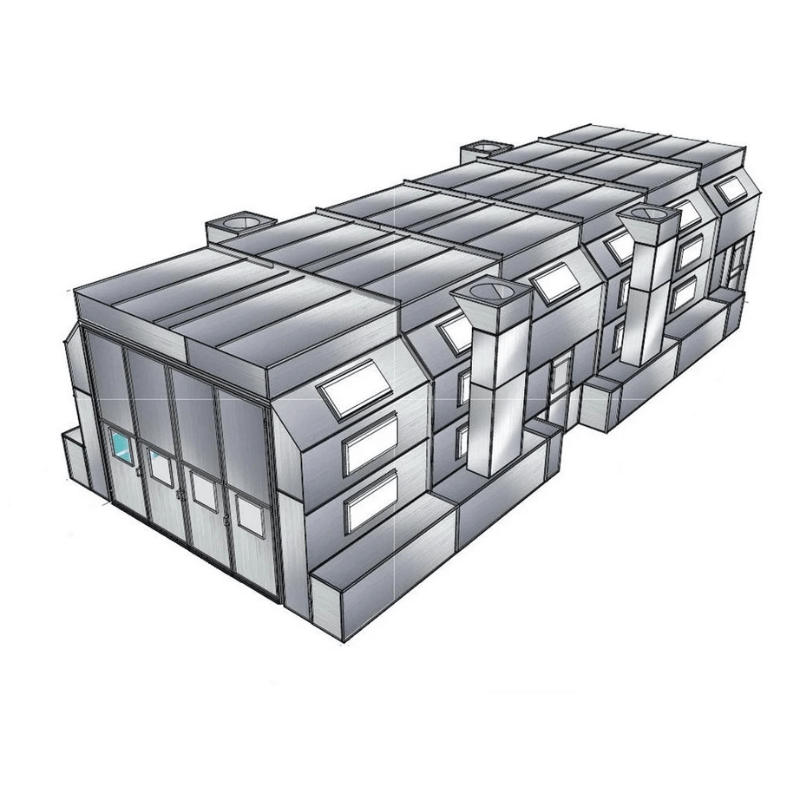

PBTSDD161734 Side Down Draft Paint Booth for Trucks by Merchant 1 Manufacturing

The M1M PBTSDD161734 Side Down Draft Paint Booth offers the highest-quality airflow system for superior paint finishes on large commercial vehicles and equipment. Built for professional applications, this booth delivers top-down air movement with multiple chimney-style side exhausts, minimizing overspray and maximizing finish clarity. Ideal for automotive, truck, and industrial coating applications, it also supports an optional air make-up unit for temperature control in all climates.

Crafted from 18-gauge G-90 galvanized steel in Reidsville, NC, and featuring certified LED lighting, four high-power fans, and reliable filtration systems, this booth meets or exceeds OSHA and NFPA-33 compliance standards. With a 20-foot width, 17'5" height, and 30-foot depth, the PBTSDD161734 accommodates a wide range of vehicles and industrial equipment.

Paint Booth PBTSDD161734 Specification

  • Interior Dimensions: 16′ Wide X 16′ Tall X 30′ Deep

  • Exterior Dimensions: 20′ Wide X 16’8″ Tall X 34′ Long

  • Front Door Opening: 11' Wide x 15' Tall

  • Construction: 18-gauge G-90 galvanized steel

  • Lighting: Twenty-two 2' x 4' LED fixtures with glass covers

  • Exhaust System: (2) 30" fans, 3 HP each, 3-phase; 25,600 CFM @ 0.5 S.P.

  • Airflow: Side down draft with top-down intake and side chimney exhaust

  • Filtration: 20" x 20" intake & exhaust filter pads

  • Compliance: OSHA and NFPA-33

  • Manometer/Draft Gauge, Sealants, Hardware: Included

PBTSDD161734 Truck Side Down Draft Paint Booth Special Features

  • Premium side down draft airflow for superior finish results

  • Ideal for high-end paint jobs on trucks, trailers, buses, and heavy equipment

  • Supports heated air make-up units for year-round use

  • Built in the USA with certified components and expert craftsmanship

  • Four powerful exhaust fans for consistent air performance

  • Twenty-two LED light fixtures ensure clear, even illumination

  • Complete with filtration, draft gauge, and sealing materials

  • Flexible configuration and custom sizing available

  • Designed for easy installation and long-term durability

  • Backed by responsive U.S.-based customer support
