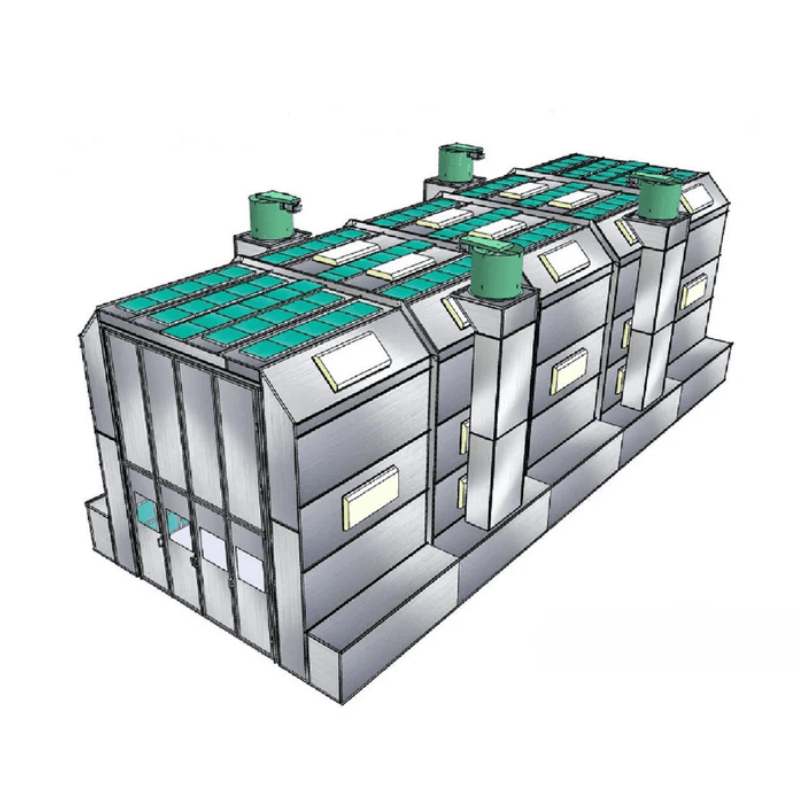

M1M PBTSDD161744 Truck Side Down Draft Paint Booth

SKU PBTSDD161744
$54,595.00
  • Estimated Leadtime: 4 Weeks
  • Made In the USA
  • Custom Paint Booth Options Available - Contact Us
  • No Sales Tax - Except CA, GA, FL, IL, IN, MI, OH, & PA

Delivery Options

Notify me when back in stock

PBTSDD161744 Side Down Draft Paint Booth for Trucks by Merchant 1 Manufacturing

The M1M PBTSDD161744 Side Down Draft Truck Paint Booth is designed to deliver premium finishes with superior airflow. Its side down draft ventilation system ensures clean, consistent air movement, reducing overspray and contamination for optimal painting results. Built in the USA with high-quality galvanized steel, this booth is ideal for commercial applications and is compliant with OSHA and NFPA-33 standards.

Engineered for durability and flexibility, the booth includes top-tier components such as LED lighting, high-capacity exhaust fans, and industrial-grade filters. Whether you're painting trucks, buses, or heavy equipment, this booth provides a professional, code-compliant environment to meet your shop’s high production demands.

Paint Booth PBTSDD161744 Specification

  • Interior Dimensions: 16′ Wide X 16′ Tall X 40′ Deep

  • Exterior Dimensions: 16'W x 16'8"T x 44'D

  • Front Door Opening: 11'W x 15'T

  • Construction: 18-gauge G-90 galvanized steel

  • Lighting: Twenty-two 2'x4' LED fixtures with glass covers

  • Exhaust System: (2) 30" Fans, 3HP-3PH motors, 25,600 CFM @ 1/2 S.P.

  • Filtration: 20" x 20" intake and exhaust filter pads

  • Accessories: Manometer, hardware, and sealants included

PBTSDD161744 Truck Side Down Draft Paint Booth Special Features

  • Premium side down draft airflow for clean, high-quality finishes

  • Built in the USA – Reidsville, NC

  • OSHA and NFPA-33 compliant for safety and code compliance

  • Modular construction with customizable sizing options

  • Compatible with air make-up/heating unit with solid intake box

  • Heavy-duty materials and components for long-lasting performance

  • Designed for easy installation and maintenance

  • Ideal for large vehicles, trailers, and equipment painting
