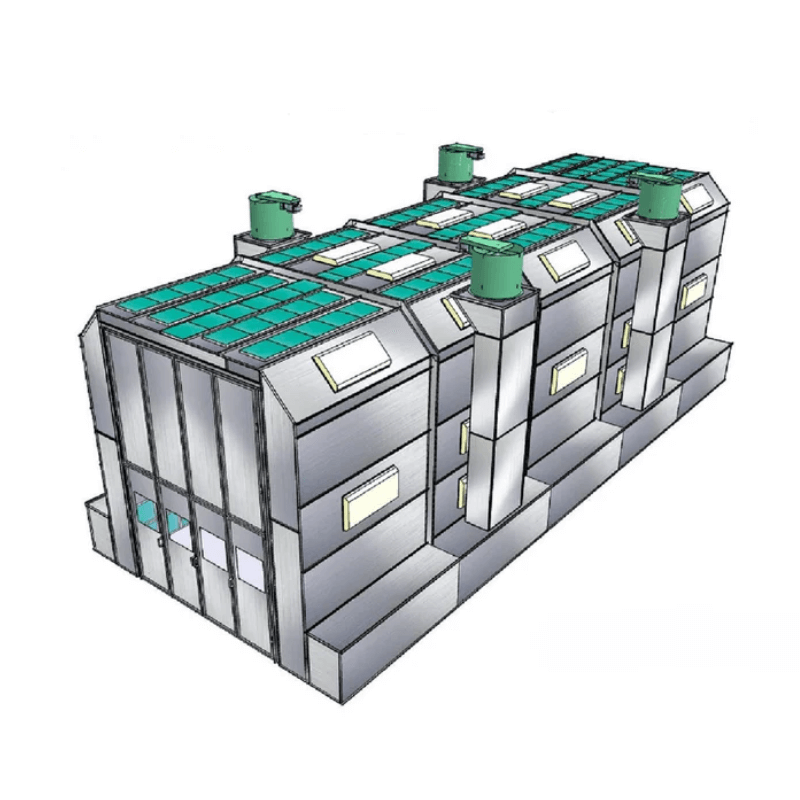

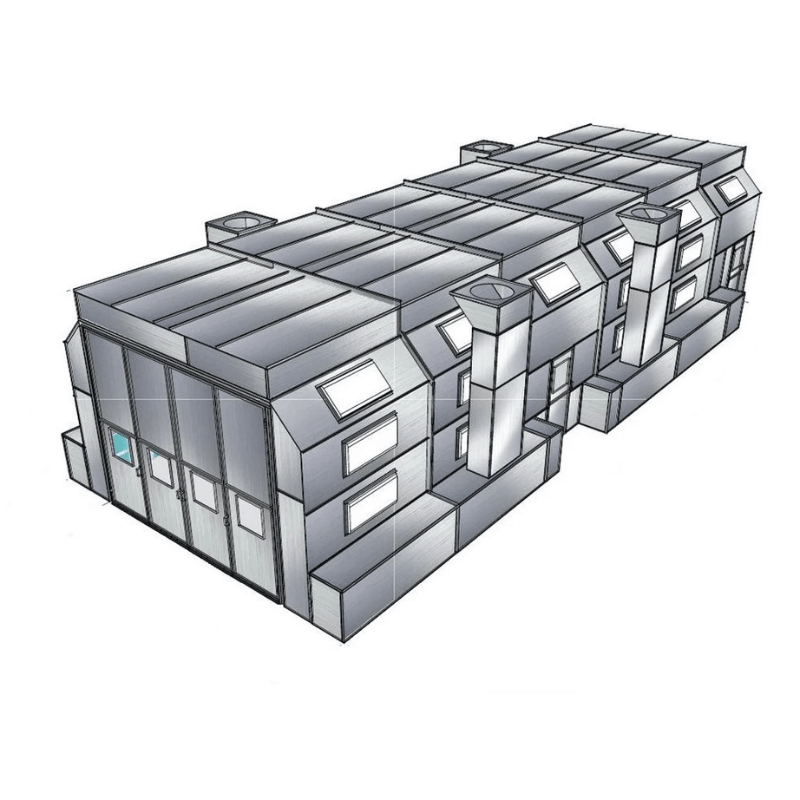

M1M PBTSDD161754 Truck Side Down Draft Paint Booth

SKU PBTSDD161754
$65,000.00
  • Estimated Leadtime: 4 Weeks
  • Made In the USA
  • Custom Paint Booth Options Available - Contact Us
  • No Sales Tax - Except CA, GA, FL, IL, IN, MI, OH, & PA

Delivery Options

Notify me when back in stock

PBTSDD161754 Side Down Draft Paint Booth for Trucks by Merchant 1 Manufacturing

The M1M PBTSDD161754 Truck Side Down Draft Paint Booth is expertly engineered to meet the demands of commercial and industrial finishing applications. With generous dimensions of 16 feet wide, 16 feet 6 inches tall, and an extended 54-foot depth, this booth is built to accommodate large trucks, trailers, and equipment with ease. Its side down draft airflow system draws air from the ceiling and exhausts it through side walls, providing a controlled and clean environment for high-quality paint finishes with minimal overspray and contamination.

Manufactured in the USA using 18-gauge G-90 galvanized steel, this durable booth meets OSHA and NFPA-33 compliance standards. It comes equipped with 22 bright 2'x4' LED light fixtures with glass covers, a powerful 4-fan exhaust system totaling 25,600 CFM, and a comprehensive filtration system to maintain air purity. Whether you're painting, refinishing, or coating, the M1M PBTSDD161754 delivers consistent performance and superior results in every job.

Paint Booth PBTSDD161754 Specification

  • Interior Dimensions: 16′ Wide X 16′ Tall X 50′ Deep

  • Exterior Dimensions: 16'W x 16'8"T x 54'D

  • Front Door Opening: 11'W x 15'T

  • Construction: 18-gauge G-90 galvanized steel

  • Lighting: Twenty-two 2'x4' LED fixtures with glass covers

  • Exhaust System: (2) 30" Fans, 3HP-3PH motors, 25,600 CFM @ 1/2 S.P.

  • Filtration: 20" x 20" intake and exhaust filter pads

  • Accessories: Manometer, hardware, and sealants included

PBTSDD161754 Truck Side Down Draft Paint Booth Special Features

  • Side down draft airflow for optimal paint quality

  • Extended 54' depth for larger vehicle applications

  • OSHA and NFPA-33 compliant for safe operation

  • Built in the USA using premium galvanized steel

  • Ready for optional air make-up/heating unit

  • Durable construction with industrial-grade components

  • Efficient LED lighting for maximum visibility

  • Customizable to meet specific shop requirements
