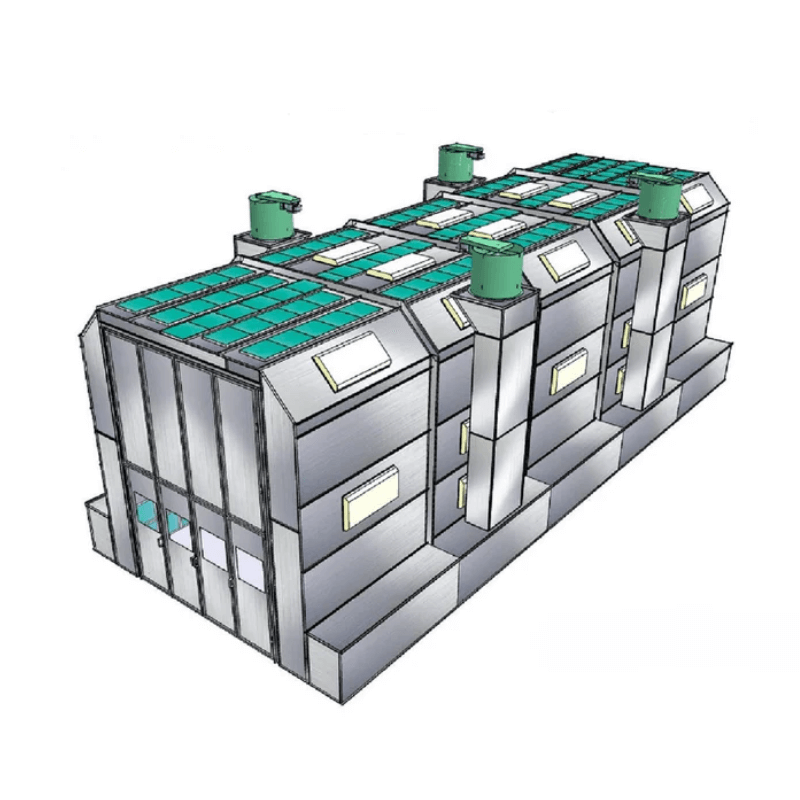

M1M PBTSDD161764 Truck Side Down Draft Paint Booth

SKU PBTSDD161764
$72,000.00
  • Estimated Leadtime: 4 Weeks
  • Made In the USA
  • Custom Paint Booth Options Available - Contact Us
  • No Sales Tax - Except CA, GA, FL, IL, IN, MI, OH, & PA

Delivery Options

Notify me when back in stock

PBTSDD161764 Side Down Draft Paint Booth for Trucks by Merchant 1 Manufacturing

The M1M PBTSDD161764 Truck Side Down Draft Paint Booth is engineered for maximum efficiency and superior paint finishes in heavy-duty vehicle and equipment applications. With its impressive 64-foot depth and side down draft airflow design, this booth delivers top-to-bottom air movement with side-wall exhaust to keep overspray and contaminants away from the finish. Ideal for commercial shops working with long trailers, buses, and other large vehicles.

Constructed in the USA with 18-gauge G-90 galvanized steel, this durable paint booth meets OSHA and NFPA-33 compliance standards. It comes fully equipped with twenty-two high-efficiency LED light fixtures, a robust four-fan exhaust system totaling 25,600 CFM, and a reliable filtration setup to maintain clean air conditions. Built for performance, reliability, and customization, the PBTSDD161764 is an essential investment for any serious operation.

Paint Booth PBTSDD161764 Specification

  • Interior Dimensions: 16′ Wide X 16′ Tall X 60′ Deep

  • Exterior Dimensions: 16'W x 16'6"T x 64'D

  • Front Door Opening: 11'W x 15'T

  • Construction: 18-gauge G-90 galvanized steel

  • Lighting: Twenty-two 2'x4' LED fixtures with glass covers

  • Exhaust System: (2) 30" Fans, 3HP-3PH motors, 25,600 CFM @ 1/2 S.P.

  • Filtration: 20" x 20" intake and exhaust filter pads

  • Accessories: Manometer, hardware, and sealants included

PBTSDD161764 Truck Side Down Draft Paint Booth Special Features

  • Side down draft airflow for high-end paint applications

  • Extended 64' depth for longer vehicles and equipment

  • OSHA and NFPA-33 compliant design

  • US-manufactured with premium galvanized steel

  • Optional support for air make-up/heating units

  • Bright, energy-efficient LED lighting

  • Durable and customizable for your shop needs

  • Fast setup and reliable performance
