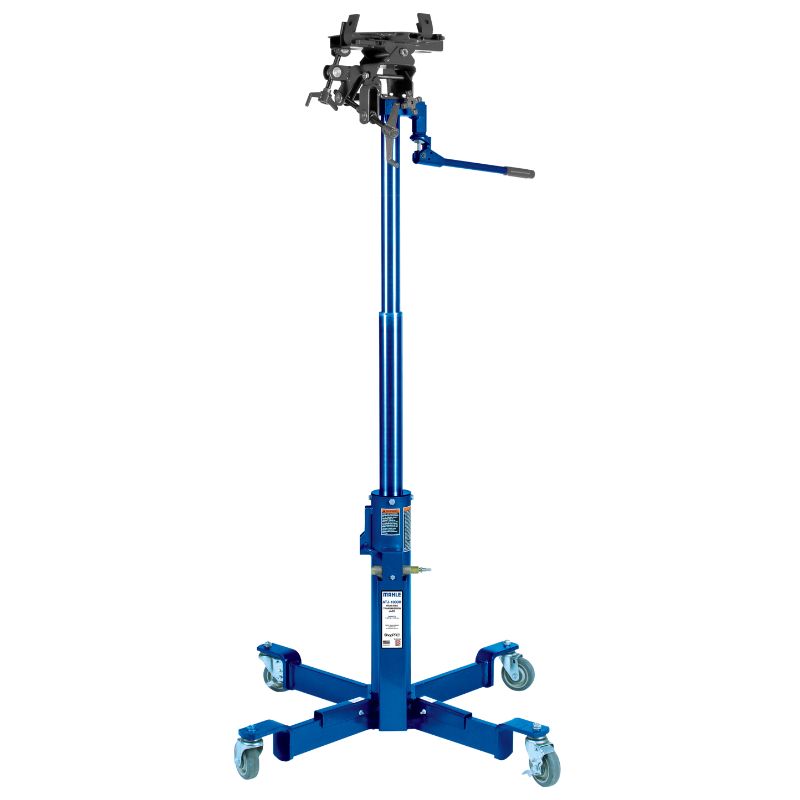

Mahle ATJ-1000H ShopPRO 1/2 Ton Transmission Jack - High Rise

SKU ATJ-1000H
by Mahle
  • Contact us now for our best price!
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$2,818.00
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

ATJ-1000H ShopPRO 1/2 Ton Transmission Jack - High Rise by Mahle

Struggling to maneuver hefty transmissions like a pro? The Mahle ATJ-1000H High-Rise Transmission Jack is about to make your life easier—and a whole lot safer. With a 1,000 lb capacity and a 72-inch max lift height, this two-stage jack is designed for both speed and precision. The first stage is 100% air-operated to speed things up, while the second stage provides smooth, controlled hydraulic adjustments when accuracy is key. Talk about leveling up your transmission work!

Once it’s airborne, the flexible head-plate design, measuring 11.5 x 11.5 inches, ensures you can tilt forward, rear, and side-to-side with ease. Plus, the heavy-duty acme threaded screws make tilt adjustments feel effortless, so no more fighting with your tools. Swivel casters give you smooth maneuverability, and the Nylon Speed-Strap™ locks that load in place faster than you can say "secure." With a range of 34.5 to 72 inches, and air pressure requirements between 90 and 160 psi, this jack is as versatile as it is dependable. It's engineered for convenience, durability, and—most importantly—getting your transmission work done right.

Transmission Jack ATJ-1000H Specifications

  • Capacity 1,000 lb (454 kg)
  • Minimum Start Height 34.5 in (88 cm)
  • Maximum Lift Height 72 in (183 cm)
  • Power 1st Stage Air / 2nd Stage Hydraulic
  • Head Plate Dimensions 11.5 in x 11.5 in (29 cm x 29 cm)
  • Dimensions (W x L) 41 in x 41 in (104 cm x 104 cm)
  • Swivel Caster Diameter 4 in (10 cm)
  • Required Air Pressure 90 to 160 psi (6.2 to 11.0 bar)
  • Tilt (Forward / Rear / Side to Side) 40° / 20° / 10°

ATJ-1000H 1/2 Ton Transmission Jack Special Features:

  • Two-stage design: 1st stage 100% air operated for speed; 2nd stage hydraulic for precise control
  • Swivel casters make for easy maneuverability
  • Nylon Speed-Strap™ quickly and conveniently secures the load
  • Heavy-duty acme threaded screws provide greater bearing surface for easier tilt adjustments
  • Additional adapters available

Mahle ATJ-1000H Documentation

  Mahle ATJ-1000H Product Manual
