Mahle CAL-10, ShopPRO 10 Ton Commercial Vehicle Air Lift in Blue

SKU CAL-10
by Mahle
  • Contact us now for our best price!
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$7,412.00
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

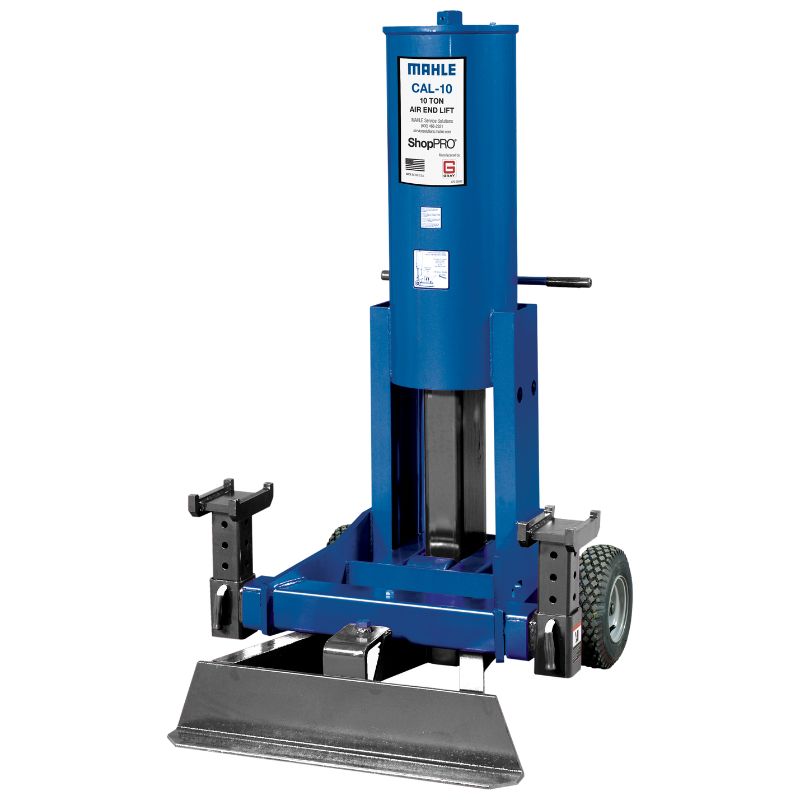

CAL-10,  ShopPRO 10 Ton Commercial Vehicle Air Lift in Blue by Mahle

Imagine lifting 20,000 lbs like it’s no big deal. Well, with the Mahle CAL-10 ShopPRO™ vehicle lift, that’s exactly what you’ll be doing. Built for those who demand more than just basic lifting, this 100% air-operated powerhouse turns heavy-duty jobs into light work. The two-stage air valve ensures controlled lifting and lowering, while pin increments every 3 inches give you precision without the stress. And did we mention? It handles low-clearance vehicles like a champ with a starting height of just 14 inches.

With a 30-inch stroke and a max lift height of 50 inches, you’ll be tackling tasks faster than ever. Plus, the fact it’s 100% air-operated means no complicated setups—just raw, reliable power. Ready to upgrade your workshop with serious lifting power? Order now and enjoy free shipping on the Mahle CAL-10 ShopPRO™—your go-to for ultimate efficiency and safety in vehicle lifting. Plus, it comes in blue, too.

UNIT INCLUDES FREE SHIPPING!

Vehicle Air Lift CAL-10 Specifications:

  • Capacity 20,000 lb (9,072 kg)
  • Stroke 30 in (76 cm)
  • Minimum Start Height 14 in (36 cm)
  • Maximum Lift Height 50 in (127 cm)
  • Power Air
  • Required Air Pressure 200 psi (13.8 bar)
  • Forward Reach (CL to CL) 17 in (43 cm)
  • Overall Length 43 in (109 cm)
  • Overall Width 37 in (94 cm)
  • Overall Height 66 in (166 cm)
  • Saddle Spread 32 in to 43 in (81 cm to 109 cm)
  • Shipping Weight 755 lb (342 kg)

CAL-10 10 Ton Commercial Vehicle Air Lift Special Features

  • Allows for safe lifting and support of drive axles
  • Change all tires with a single jack movement
  • Eliminates the need to go under the vehicle to place Jacks or support stands
  • Downstops and pin increments every 3”
  • Low starting height to clear low hanging suspension
  • 100% air operation

Mahle CAL-10 Commercial Vehicle Air Lift Product Manual   Mahle CAL-10 Commercial Vehicle Air Lift Product Manual
