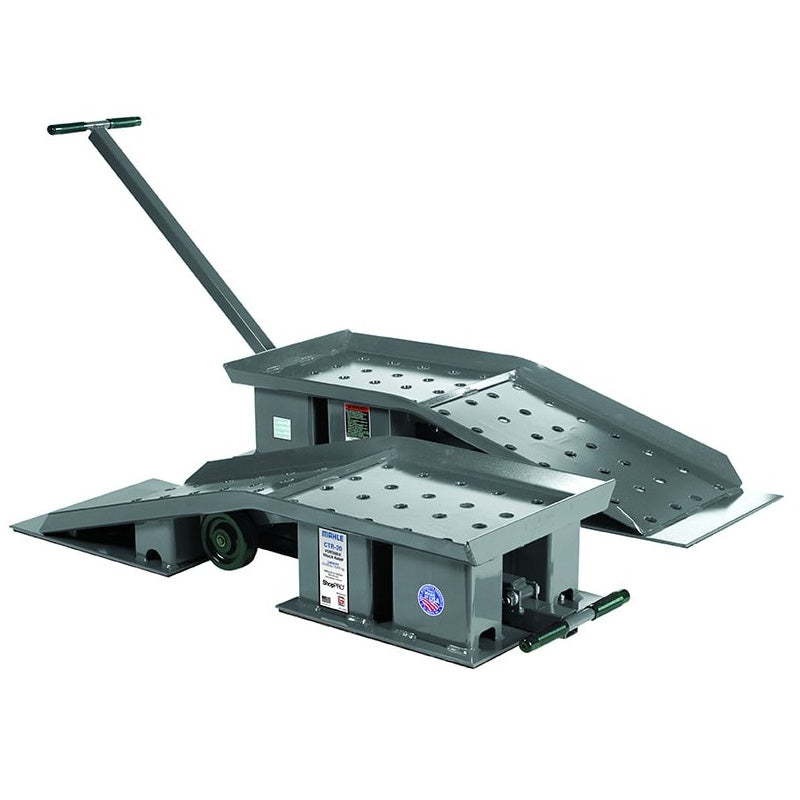

CTR-20, 20 ton Commercial Vehicle Truck Ramps - Non-Skid (pair) By Mahle Side View

Mahle CTR-20, 20 ton Commercial Vehicle Truck Ramps - Non-Skid (pair)

SKU CTR-20
by Mahle
  • ✓ Contact us now for our best price!
  • ✓ No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • ✓ Free Warehouse Pickup Options
  • ✓ Better Business Bureau (BBB) Accredited
$2,699.00
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

CTR-20, 20 ton Commercial Vehicle Truck Ramps - Non-Skid (pair) By Mahle

Struggling to crawl under a massive truck for an inspection or repair? The Mahle CTR-20 Truck Ramps provide a straightforward, heavy-duty solution. Designed for commercial vehicles, these ramps offer an impressive 20,000 lbs capacity per ramp—40,000 lbs when used as a pair—making them perfect for handling even the bulkiest trucks.

With a 9-inch lift height, the CTR-20 ramps give you enough clearance to work comfortably without compromising stability. The non-skid base and raised tire-gripping surface keep your vehicle securely in place during loading. These ramps are easy to maneuver with their retractable handle and self-lowering wheels, allowing you to move them effortlessly around the shop. Constructed from welded steel, these ramps combine strength with convenience, making under-vehicle work much simpler and safer.

Vehicle Truck Ramps CTR-20 Specifications

  • Capacity (Each): 20,000 lb (9,072 kg)
  • Total Ramp Height: 9 in (23 cm)
  • Dimensions (H x W x L): 9 in x 18.5 in x 51 in (23 cm x 47 cm x 130 cm)
  • Tread Width: 15 in (38 cm)
  • Handle Length: 34.5 in (88 cm)
  • Wheel Diameter: 5 in (13 cm)
  • Ordered in Pairs

CTR-20 Vehicle Truck Ramps Features

  • Heavy-Duty Capacity: Supports up to 20,000 lbs per ramp (40,000 lbs per pair).
  • Retractable Handle & Self-Lowering Wheels: Easily move the ramps around the shop with minimal effort.
  • Non-Skid Base: Ensures the ramp stays securely in place during loading.
  • Raised Tire-Gripping Surface: Prevents vehicles from slipping or sliding off the ramp.
  • Welded Steel Frame Construction: Delivers unmatched strength and durability.

The Mahle CTR-20 ramps are ideal for technicians who need reliable, high-capacity lifting power without the hassle of using jacks or crawling under vehicles uncomfortably.
