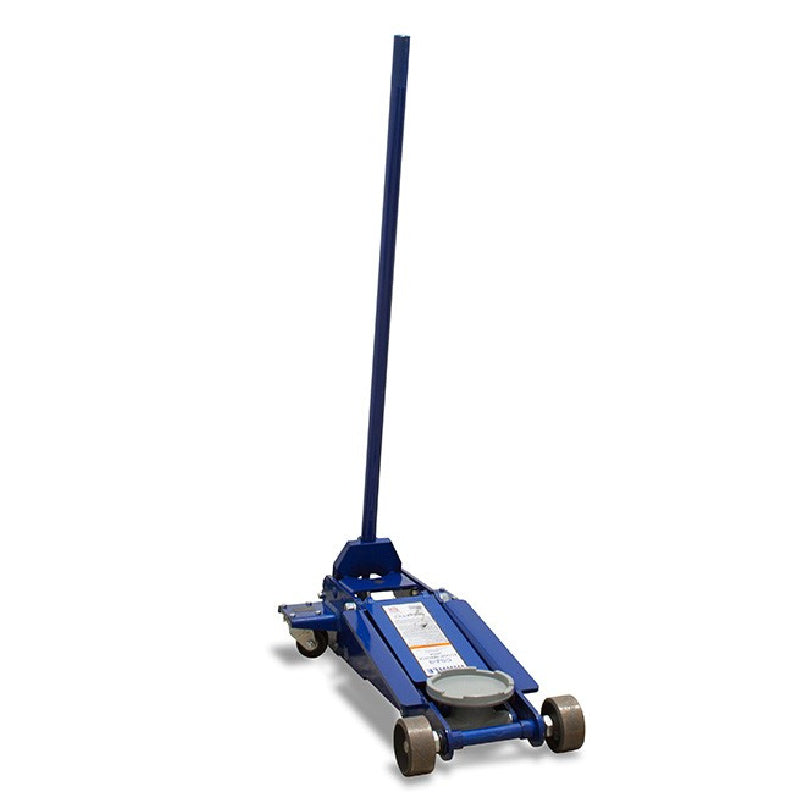

Mahle CSJ-6A, 6 Ton Commercial Vehicle Service Jack - Air Assist

CSJ-6A, 6 Ton Commercial Vehicle  Service Jack - Air Assist by Mahle

The Mahle CSJ-6A is a 6-ton service jack designed to make heavy-duty vehicle lifting a breeze. With a maximum capacity of 12,000 lbs, this jack is engineered to handle oversized vehicles with ease, providing an ideal solution for commercial service applications. Starting at a low profile of just 4.8 inches and extending up to 23.3 inches, it offers a wide range of flexibility to accommodate various vehicle sizes and lifting needs. What sets this jack apart is its air, hydraulic, and manual power flexibility, giving operators the choice of how much effort they want to exert, whether working in a fully equipped garage or in less favorable conditions.

Convenience is at the core of the Mahle CSJ-6A’s design. With large front and rear casters for effortless movement, and a 95.3-inch-long frame providing excellent reach, positioning this jack under vehicles is smooth and efficient. The 90 to 175 psi air assist ensures precise lifting and reduced operator fatigue. Built for durability and efficiency, the Mahle CSJ-6A makes lifting even the heaviest vehicles feel light and manageable.

Vehicle  Service Jack CSJ-6A Specifications:

• Maximum Capacity: 12,000 lb (5,443 kg)
• Minimum Start Height: 4.8 in (12 cm)
• Maximum Lift Height: 23.3 in (59 cm)
• Power: Air/Hydraulic/Manual
• Required Air Pressure: 90 to 175 psi (6.2 to 12.1 bar)
• Chassis Dimensions (H x L): 9.8 in x 48 in (25 cm x 122 cm)
• Handle Length: 47.8 in (121 cm)
• Dimensions (W x L): 18.5 in x 95.3 in (47 cm x 242 cm)
• Overall Reach: 87 in (221 cm)
• Front Caster Diameter: 4.3 in (11 cm)
• Rear Swivel Caster Diameter: 4 in (10 cm)
• Saddle Diameter: 7.4 in (19 cm)
• Front Width Caster to Caster: 16.9 in (43 cm)
• Rear Width Bracket to Bracket: 19.9 in (51 cm)
• Shipping Weight: 256 lb (116 kg)

CSJ-6A, 6 Ton Vehicle  Service Jack Special Features:

• Versatile Power Options: Operates with air, hydraulic, or manual power for flexibility in different environments.
• Heavy-Duty Capacity: Lifts up to 12,000 lbs, making it ideal for commercial and oversized vehicles.
• Low Start Height: Starts at just 4.8 inches off the ground, allowing easy access under low-clearance vehicles.
• Easy Maneuverability: Large front and rear casters ensure smooth and precise positioning.
• Air Assist Precision: Air-powered assist (90 to 175 psi) allows for controlled, easy lifting.
• Durable Build: Designed for long-lasting performance in heavy-duty conditions.

Mahle CSJ-6A Documentation
