Mahle FluidPRO® ATX 280 Transmission Fluid Exchange System

| SKU FluidPRO® ATX 280
$4,795.00

Delivery Options

Do you have a forklift (or similar) ready to unload upon delivery?

Notify me when back in stock

  • Made in the USA
  • Contact us now for our best price!
  • Ships in 3-7 Business Days
  • Family-Run Support - Right here in the USA. No Call Centers
HeavyLift Direct is Better Business Bureau Accredited
Authorized Mahle Distributor
Family Owned & Operated
 American-Based Support

More Details About the Mahle FluidPRO® ATX 280 Transmission Fluid Exchange System

Description & Specifications

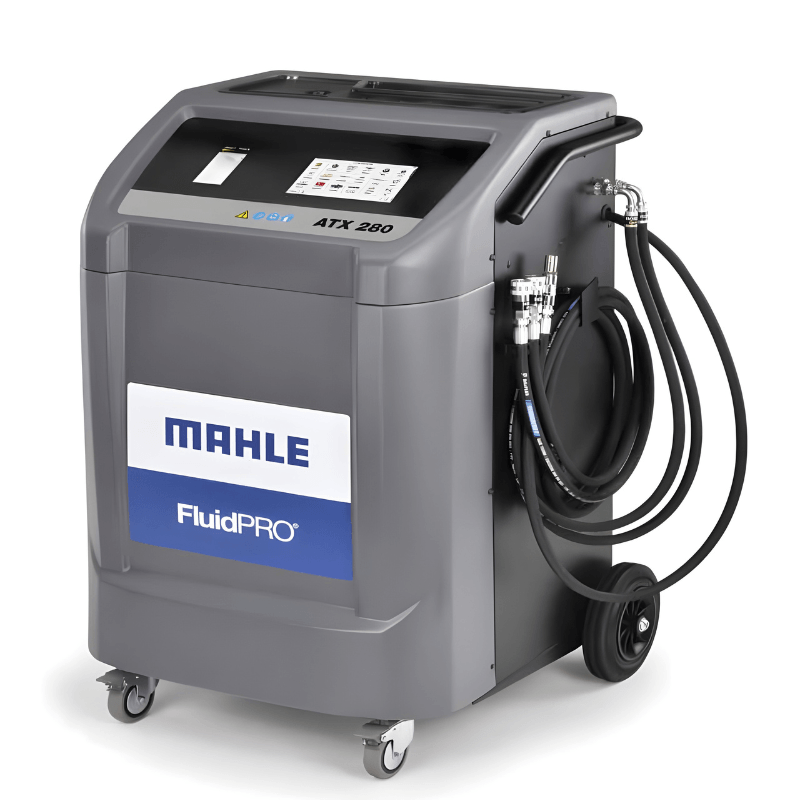

FluidPRO® ATX 280 Transmission Fluid Exchange System

The MAHLE FluidPRO ATX 280 is an advanced automatic transmission fluid exchange system designed to simplify transmission service while helping technicians maintain accurate oil flow and fluid purity. It features a 7-inch color touchscreen with a redesigned graphical interface that guides operators through service procedures.

The ATX 280 includes an onboard vehicle database with transmission images, service information, fill capacities, and recommended oil types. The system automatically detects the direction of oil flow in the transmission, while the software-assisted process helps prevent incorrect connections and supports efficient fluid exchange. An integrated Zero-Cross-Contamination cleaning function cleans the internal circuit when changing oil types.

WiFi connectivity enables software updates, remote assistance through MAHLE Re.Solve, and service report printing through NEXUS Print. The FluidPRO ATX Remote Viewer smartphone app allows technicians to monitor service operations remotely. An interchangeable tank system further simplifies oil-type changes while helping maintain fluid purity.

Transmission Fluid Exchange System FluidPRO® ATX 280 Specifications:

  • Control: Automatic, software-assisted with 7" color touchscreen
  • New Oil Filter: 90 µm
  • Sight Glasses: Visual inspection of oil quality
  • Dipstick Function: Integrated with 0.24" and 0.39" hoses
  • Zero-Cross-Contamination: Circuit cleaning function after oil type change
  • Service Hoses: 2 × 9.84 ft
  • Waste Oil Hose: 1 × 4.92 ft
  • BOOST Function: Integrated
  • Service Report: Via WiFi (NEXUS Print) or USB export
  • Top Grid: With A/T adapters tray
  • Oil Pumps: 1 × 8.0 qt/min and 1 × 6.3 qt/min hydraulic oil pumps
  • Pump Control: PWM-controlled
  • Menu Languages: 15
  • Power Supply: 110/230V, 50–60Hz
  • Software Updates: Via WiFi
  • Remote Assistance: MAHLE Re.Solve via WiFi
  • Smartphone App: FluidPRO ATX Remote Viewer
  • Dimensions (H × L × W): 47.2" × 29.1" × 29.1"
  • Weight: 136.7 lbs

FluidPRO® ATX 280 Transmission Fluid Exchange System Special Features

    • 7-inch color touchscreen LCD display
    • Redesigned graphical user interface for simplified operation
    • Automatic, software-assisted transmission fluid exchange
    • Onboard vehicle database with transmission images and service information
    • Includes transmission fluid fill capacities and oil type information
    • Automatically detects transmission oil flow direction
    • Helps prevent incorrect connections during service
    • 90-micron new oil filter
    • Sight glasses for visual inspection of fluid quality
    • Integrated dipstick function
    • 6mm and 10mm hose connections
    • Zero-Cross-Contamination circuit cleaning function
    • Interchangeable oil tank for quick oil-type changes
    • Integrated BOOST function
    • WiFi connectivity for software and database updates
    • MAHLE Re.Solve remote assistance capability
    • NEXUS Print service report functionality
    • USB service report export
    • FluidPRO ATX Remote Viewer smartphone app
    • Two 3-meter service hoses
    • 1.5-meter waste oil drain hose
    • Top grid with automatic transmission adapter tray
    • PWM-controlled hydraulic oil pumps
    • Supports 15 menu languages

    Mahle FluidPRO® ATX 280 Manual

    Mahle FluidPRO® ATX 280 Users Manual   Mahle FluidPRO® ATX 280 Users Manual

    Mahle FluidPRO® ATX 280 Brochure   Mahle FluidPRO® ATX 280 Brochure

    Mahle FluidPRO® ATX 280 Quick Set Up Guide   Mahle FluidPRO® ATX 280 Quick Set Up Guide

    Mahle FluidPRO® ATX 280 Operations Guide   Mahle FluidPRO® ATX 280 Operations Guide

    Mahle FluidPRO® ATX 280 Set-Up Instruction   Mahle FluidPRO® ATX 280 Set-Up Instruction
